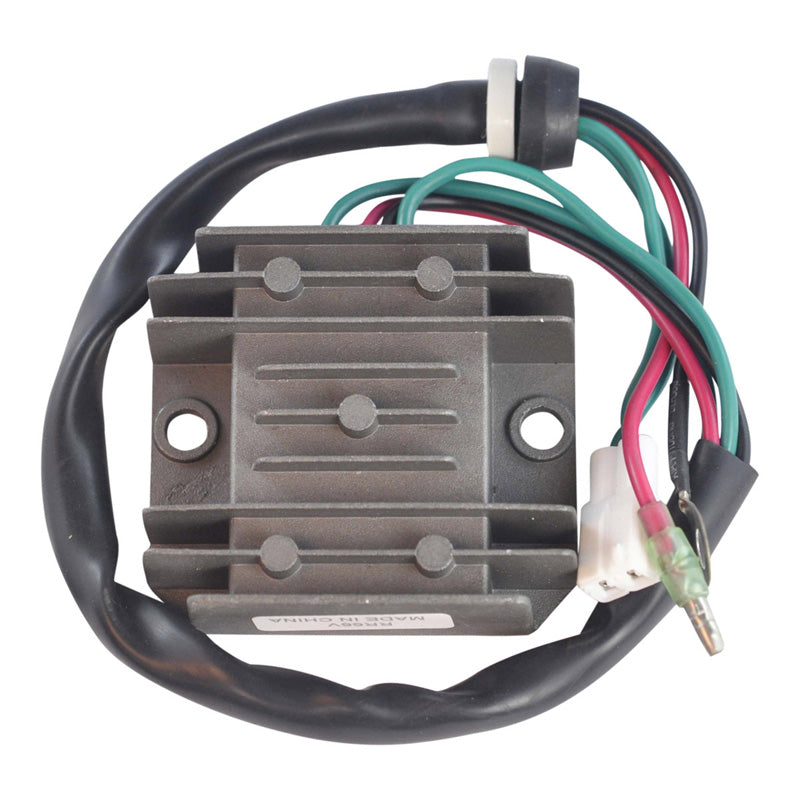

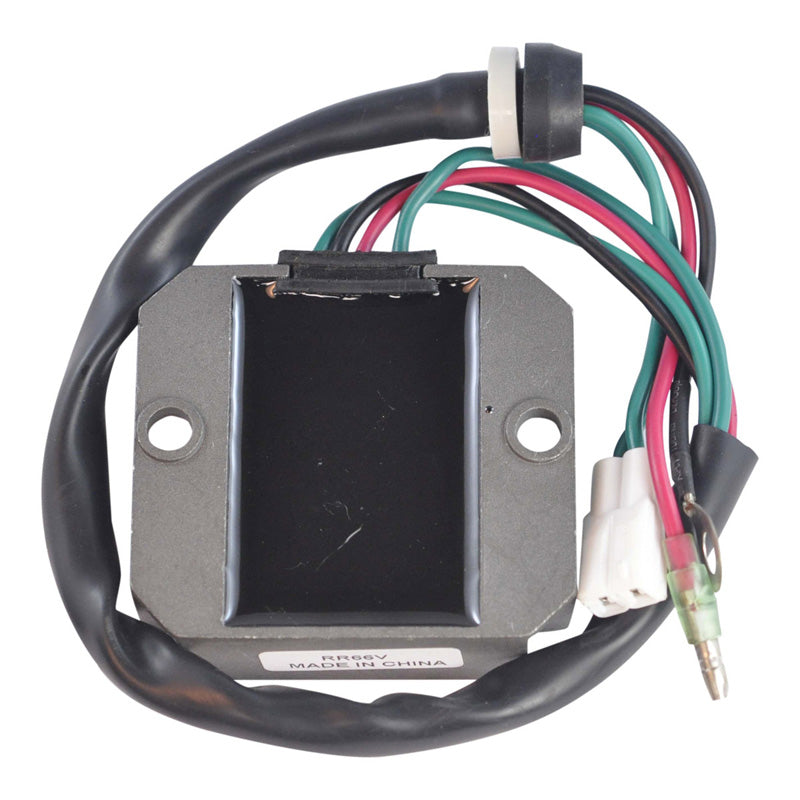

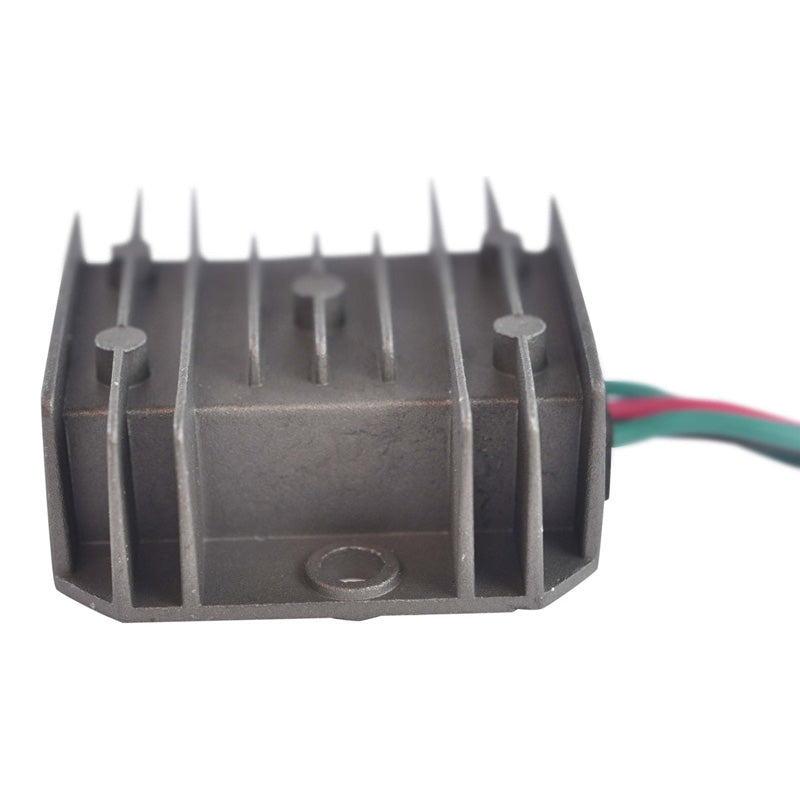

RMS REGULATOR YAM GP|XL|XLT 1200|XR1800 99-05 RM30923

Brand new improved voltage regulator rectifier

• AC regulator rectifier
• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• The Quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components.
• All products shipped are tested

*All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications:

Dimensions:
Width: 59 mm
Length: 66 mm
Height: 24 mm
Fixation holes center to center: 55 mm

Other specifications:

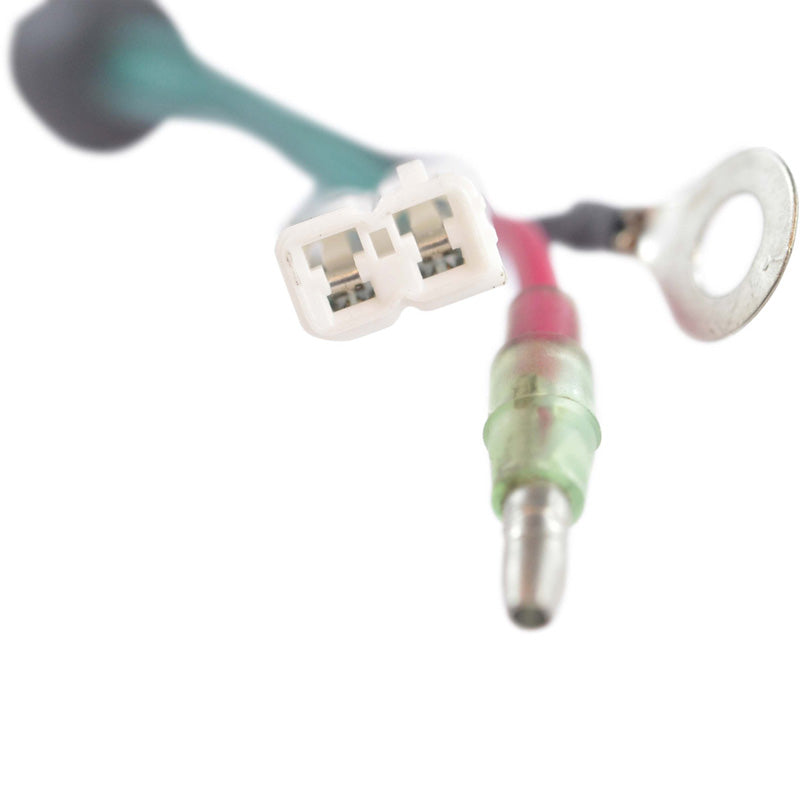

Number of plugs: 1
Number of pins: 4
Number of wires: 4
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?

Warning:

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
