RMS REGULATOR YAM TX 500|XS 360 400 500|RD 400 73-82 RMS020-102784

Brand new aftermarket voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• The quality exceeds the OEM equipment
• All products shipped are tested

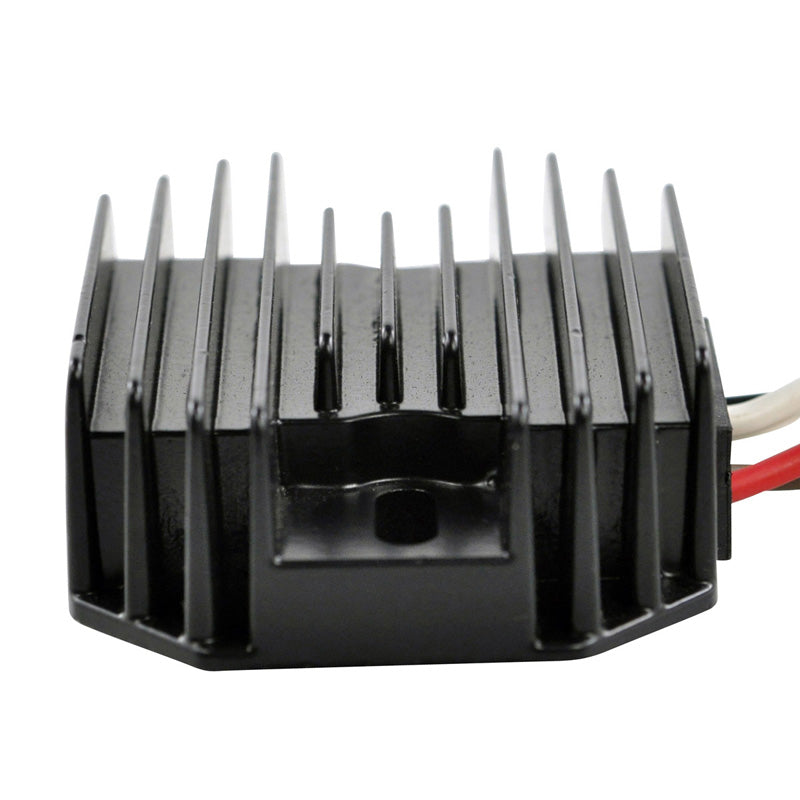

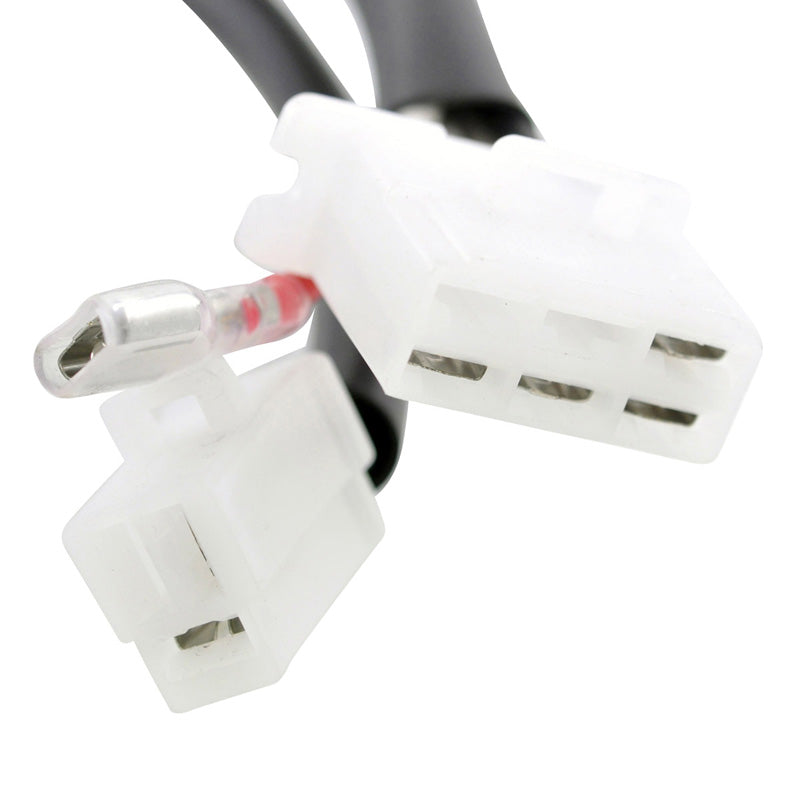

We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.

All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications:

Dimensions:
Width: 72 mm
Length: 81 mm
Height: 29 mm
Wires length: 260 mm

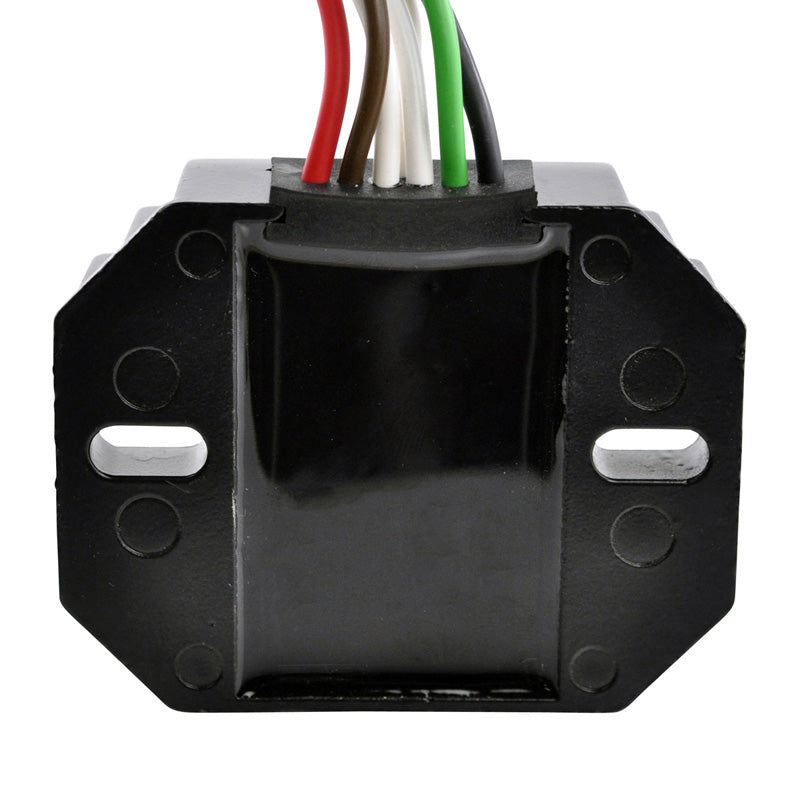

Fixation holes center to center: 60 mm

Other specifications:
Number of plugs: 2
Number of pins: 7
Number of wires: 7
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20? to 85?

Warning:

This solid state voltage regulator/rectifier replaces the separate voltage regulator and rectifier units used on many of the listed models. It should be a direct plug in to replace both units.

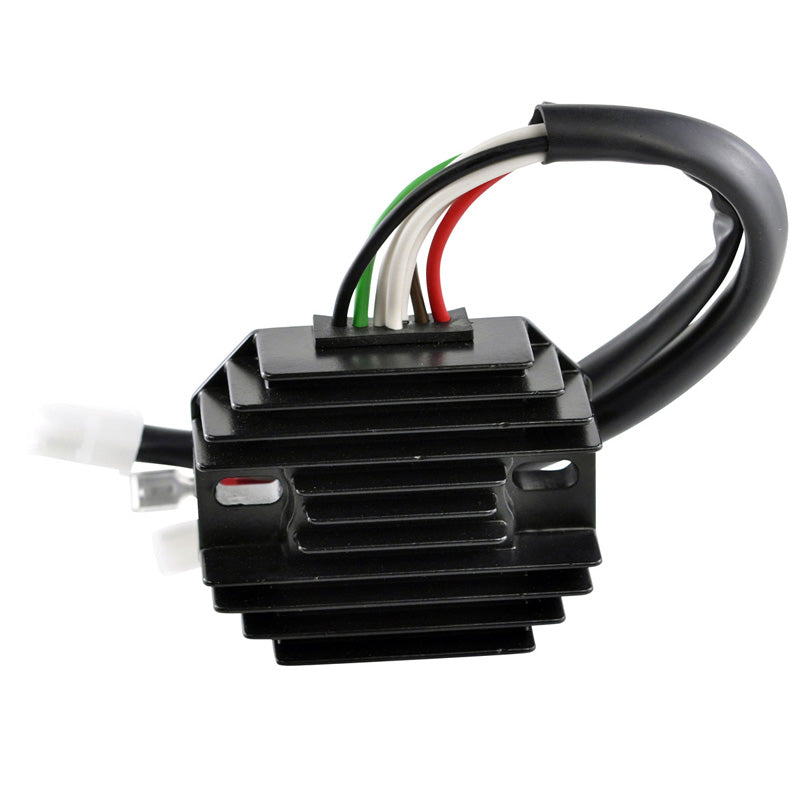

The wire color and function is as follows:

• 3 White - stator AC in (no polarity, connect in any order)
• Black - Battery negative (ground)
• Red - Battery positive
• Brown - Keyswitched positive (field coil constant positive)
• Green - Field coil regulation control (switched ground)

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
