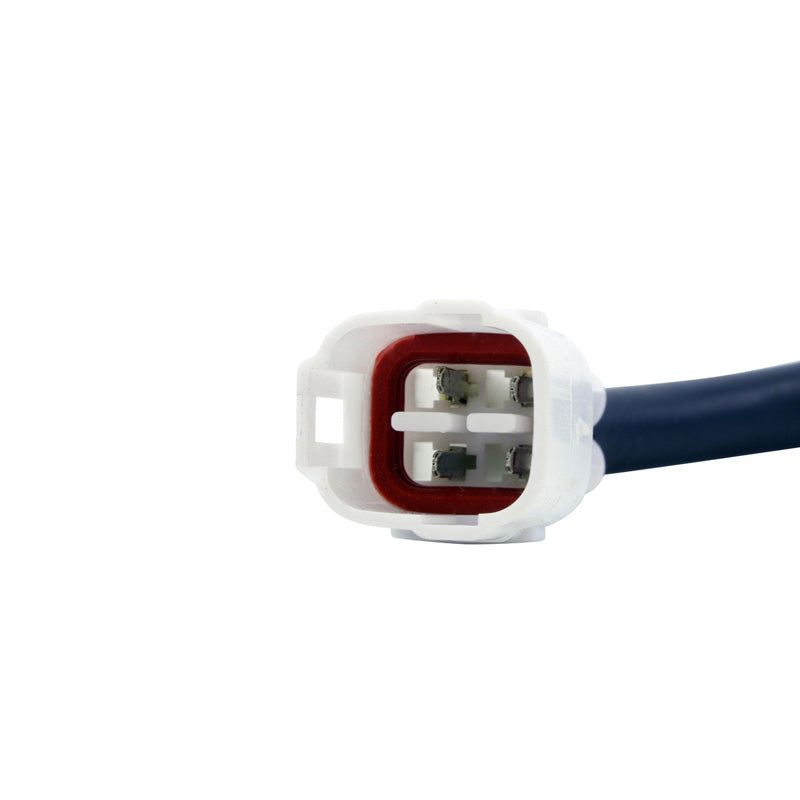

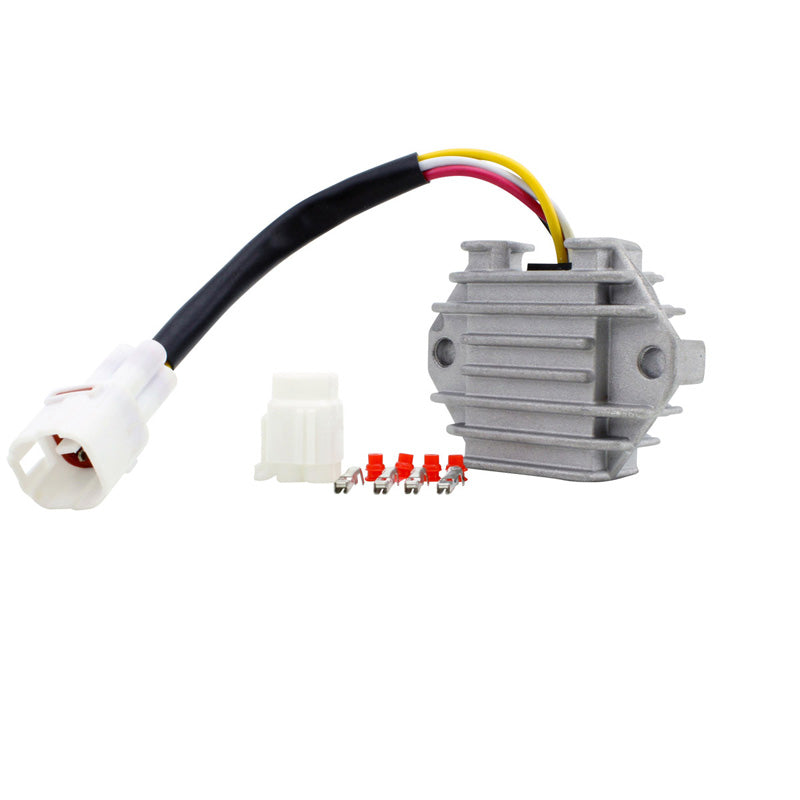

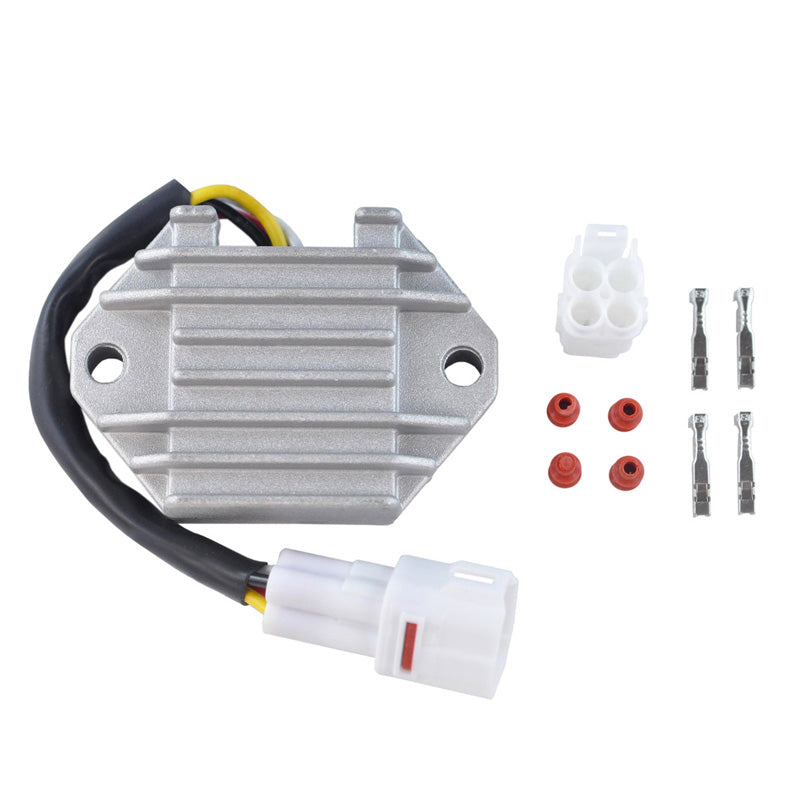

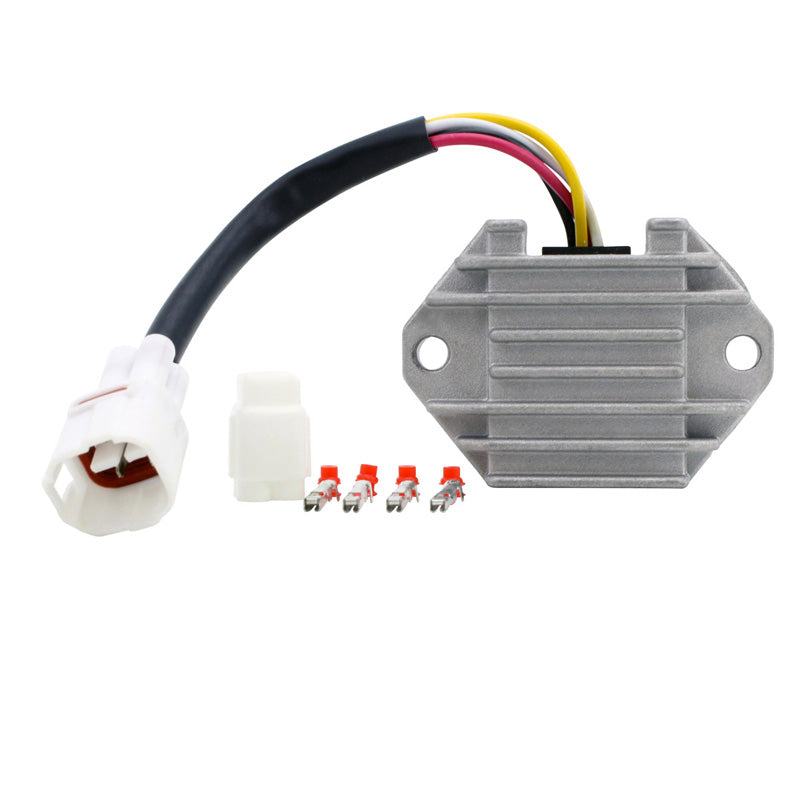

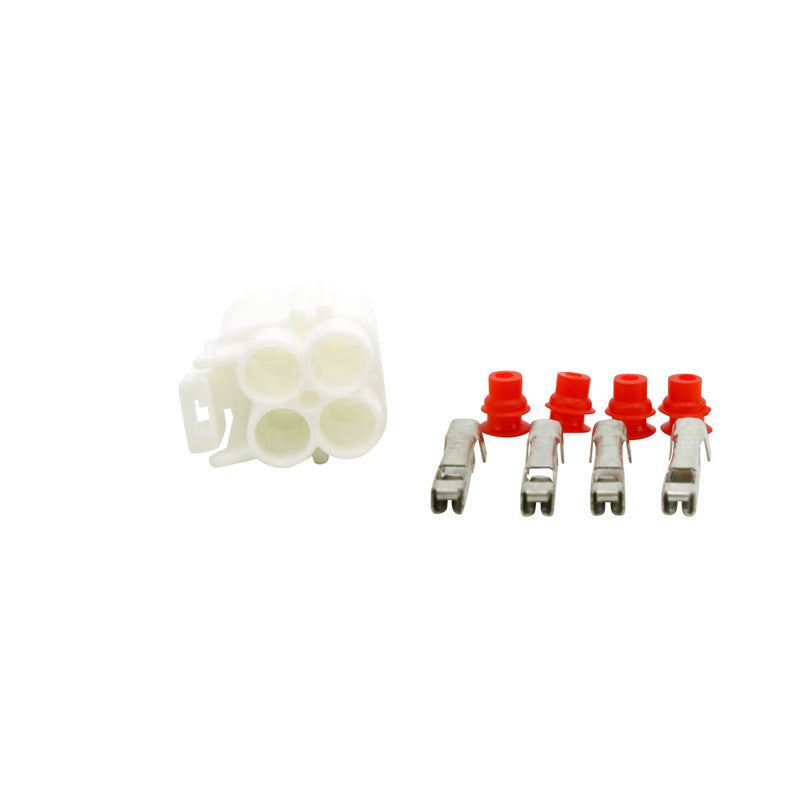

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.
Specifications:
Dimensions:
Width: 63 mm
Length: 78 mm
Height: 26 mm
Fixation holes center to center: 60 mm
Wires length: 450 mm
Other specifications:
Number of plugs: 1
Number of pins: 4
Number of wires: 4
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?
Warning:
Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
