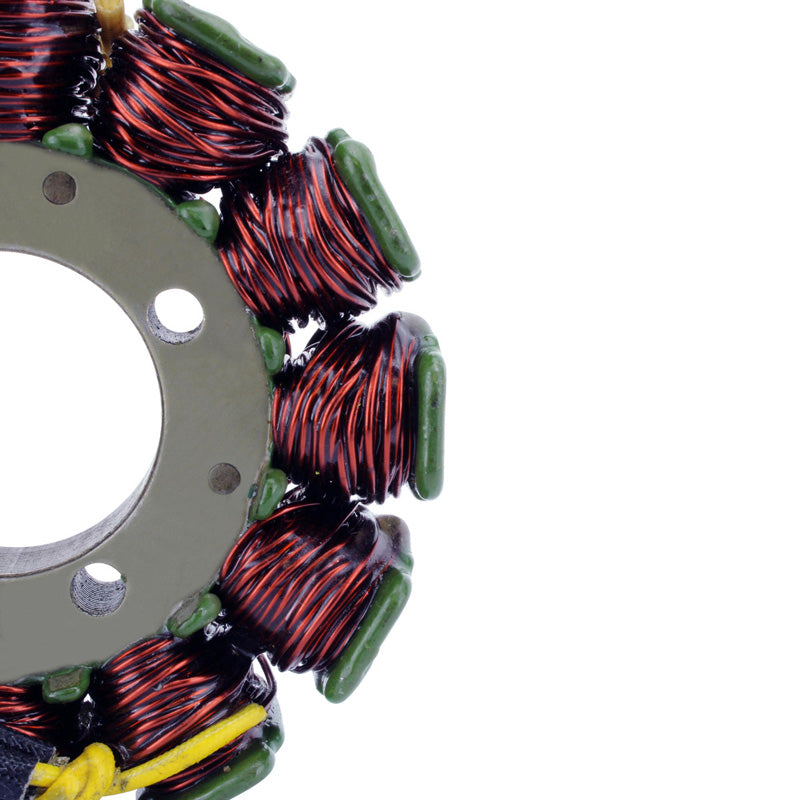

Highest grade of copper winding, resistant to 200 degrees Celsius.

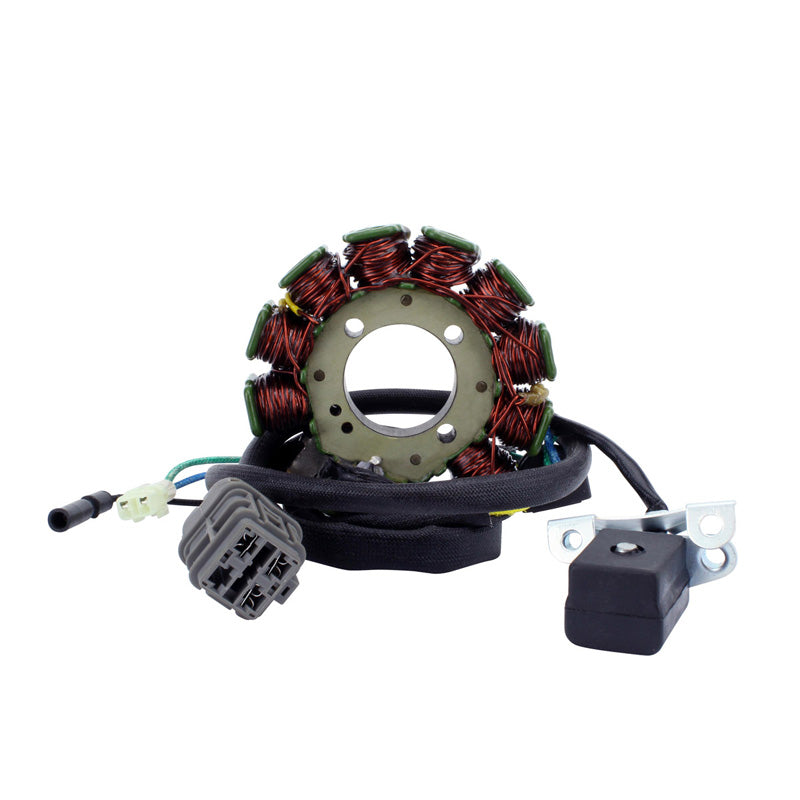

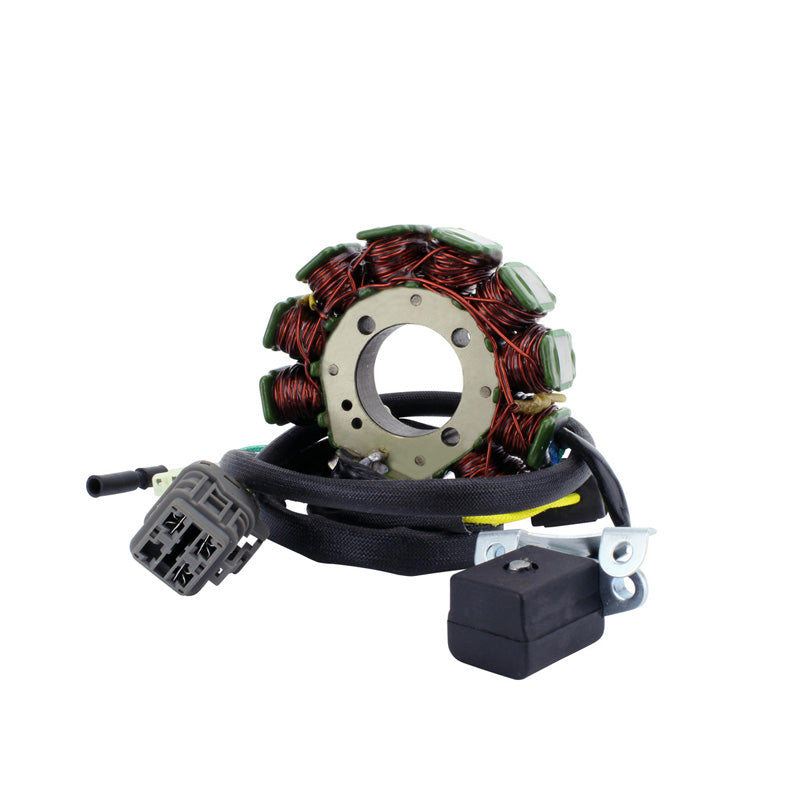

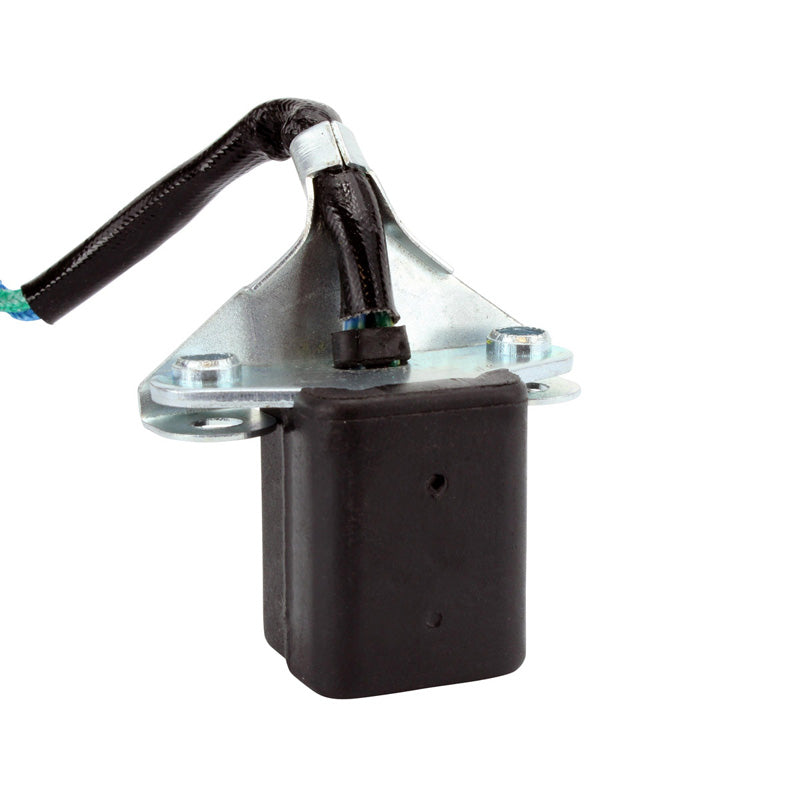

Pick up pulsar coil included

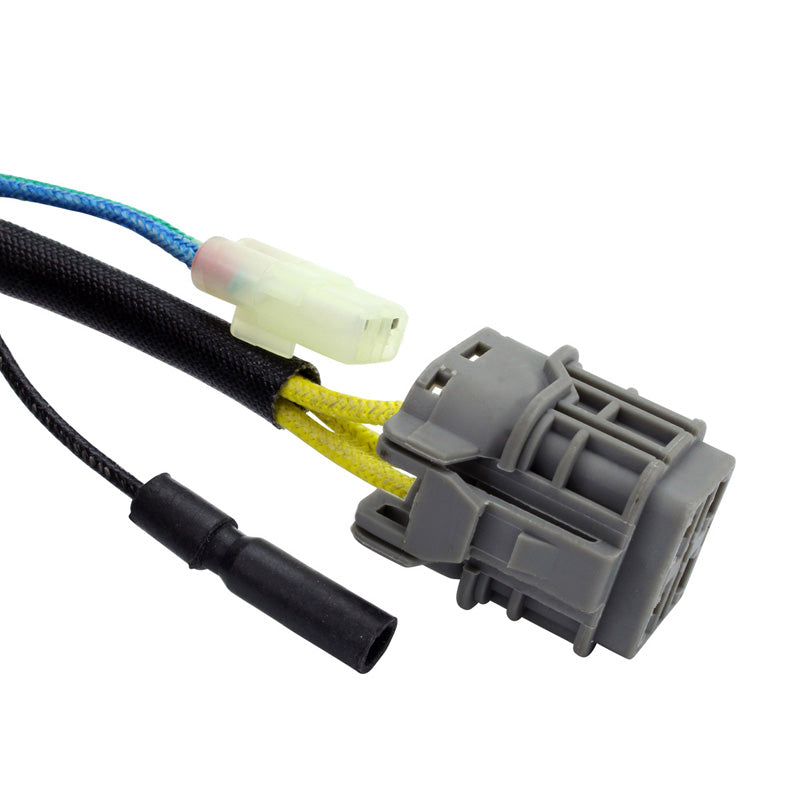

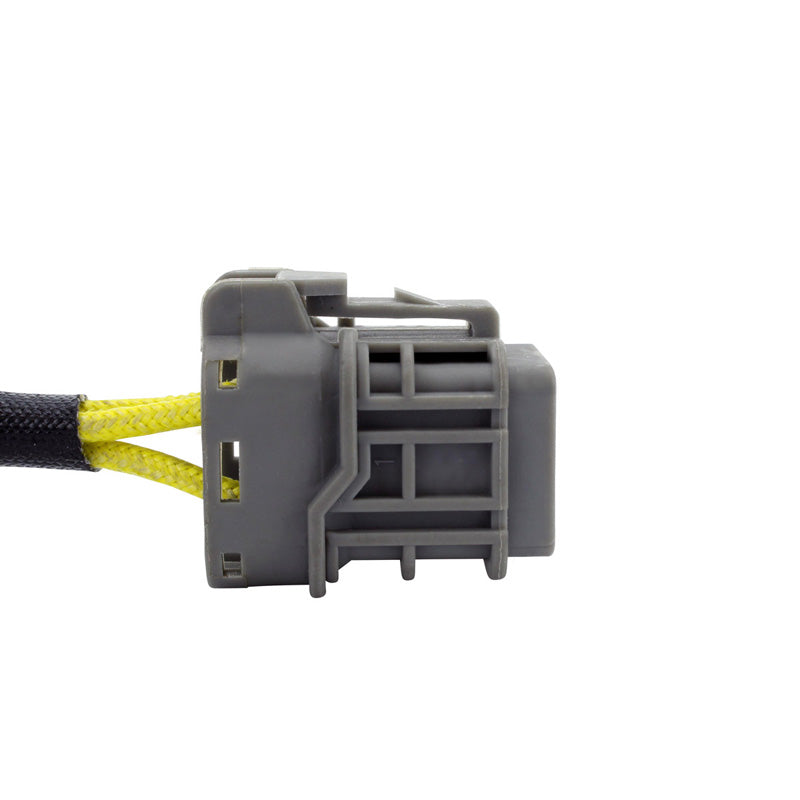

Connectors included

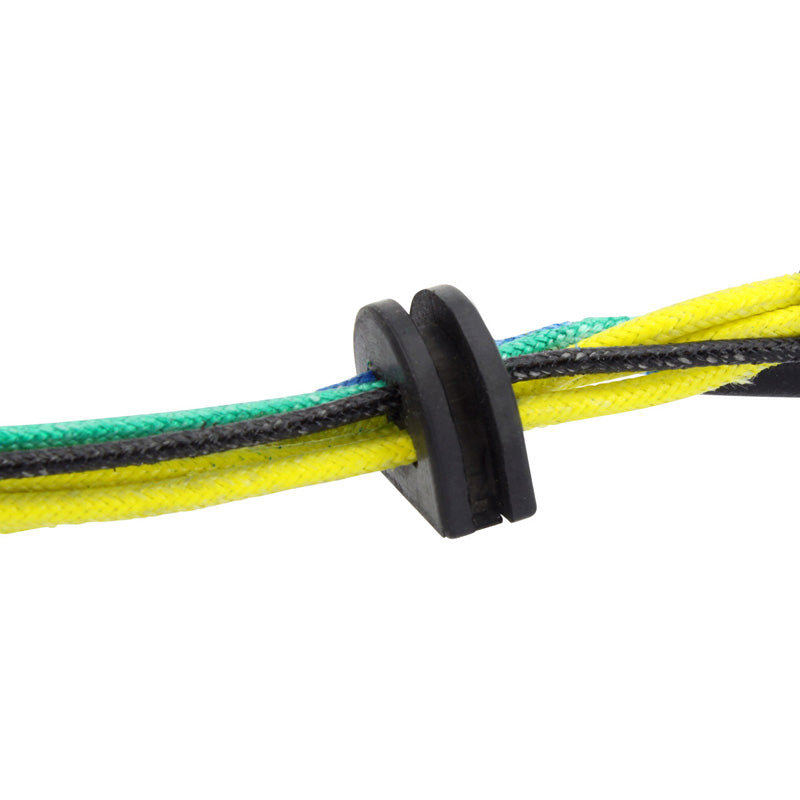

Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 32 mm
Exterior diameter : 88.5 mm

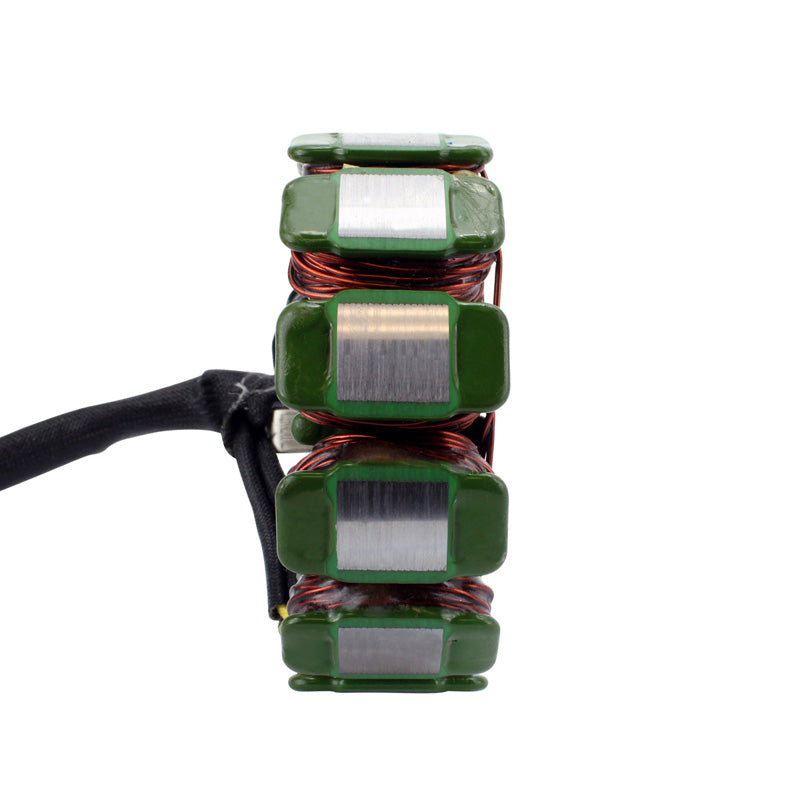

Thickness : 17 mm
Length of wires stator to grommet : 110 mm
Length of wires grommet to plug : 740 mm
Length of pickup coil's wire to grommet : 80 mm
Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6

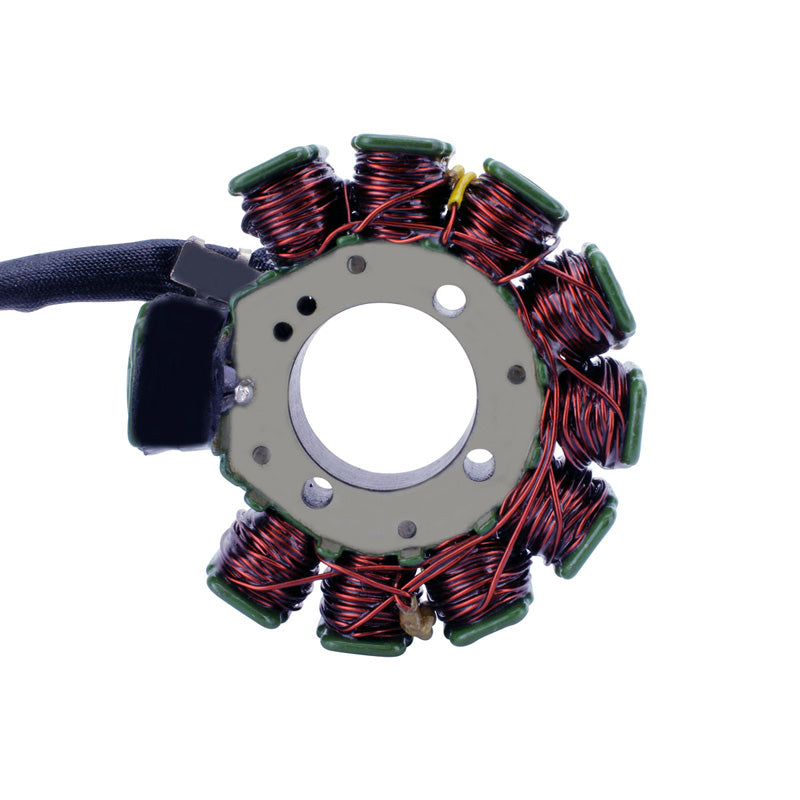

Number of poles : 10
Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms +-20%
Pickup : Blue to Green = 100 ohms +-20%
Source : Black/Red to Ground = 450 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
