RMS STATOR A-C 250 DVX|UTILITY 06-09 RM01259

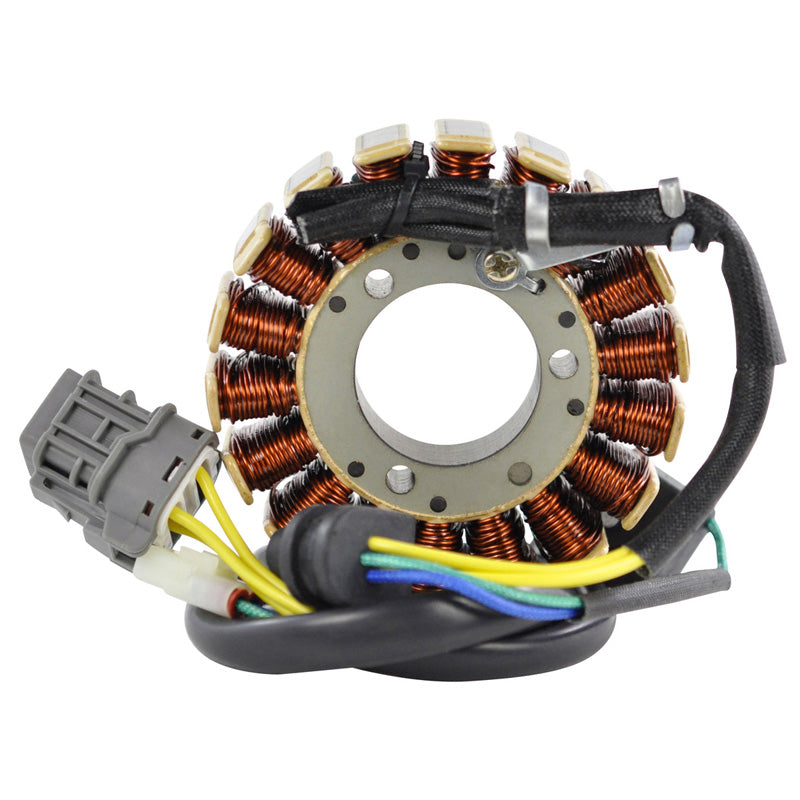

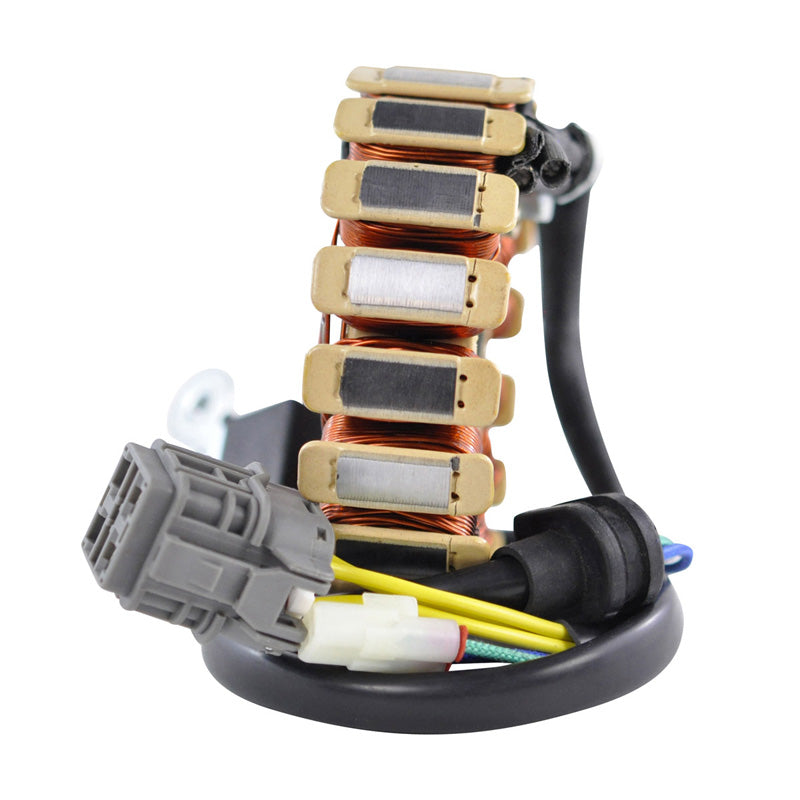

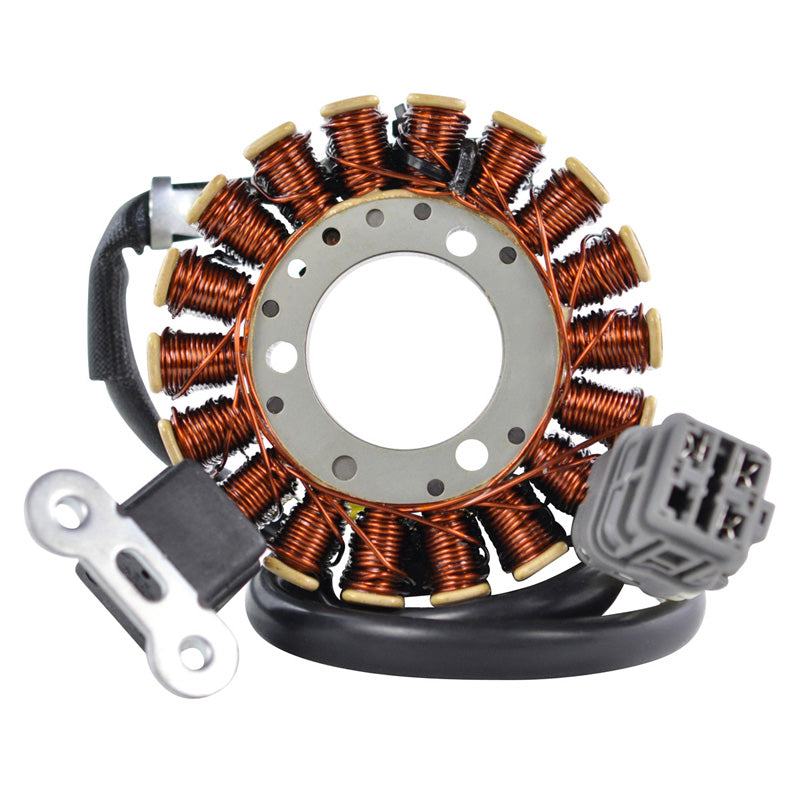

Brand new generator stator.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest-grade lamination materials.
• Highest-grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included.

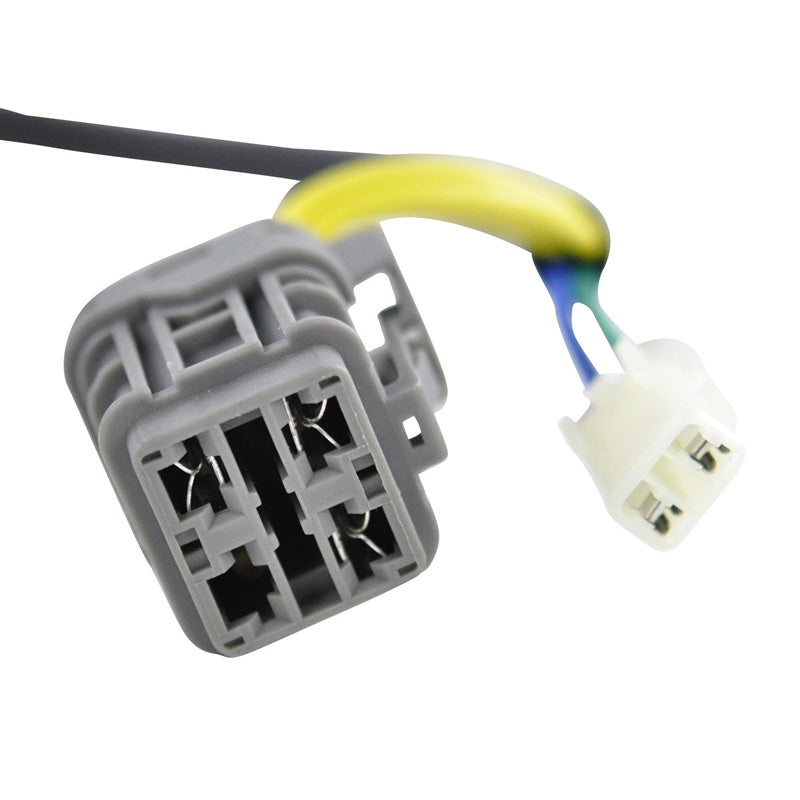

• Connector included.
• Rubber grommet included.
• All products shipped are tested.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 34 mm
Exterior diameter: 92 mm
Thickness: 18 mm
Length of wires stator to grommet: 80 mm
Length of wires grommet to plug: 420 mm
Length of pickup coil's wire to grommet: 55 mm


Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5

Wire to wire resistance:
Alternator: Yellow between each Yellow = 0.4 ohms +/-20%
Pickup: Green/White to Blue/Yellow = 105 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
