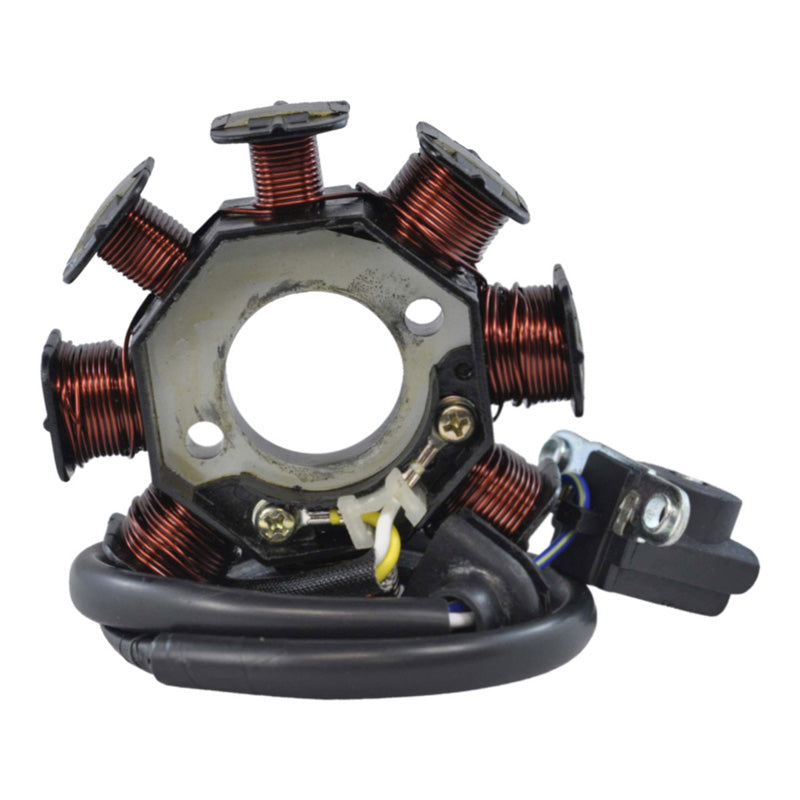

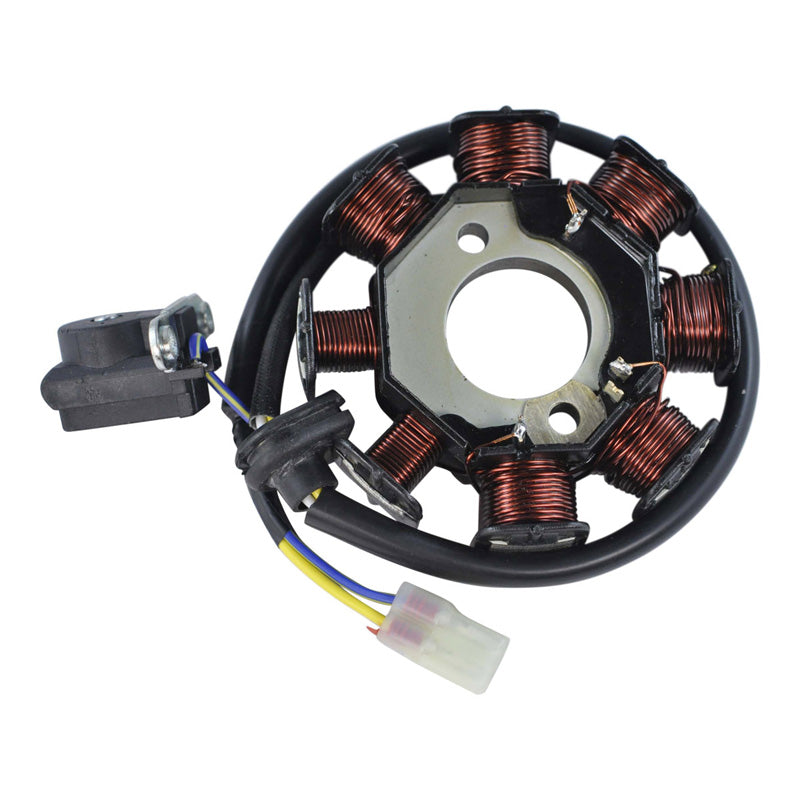

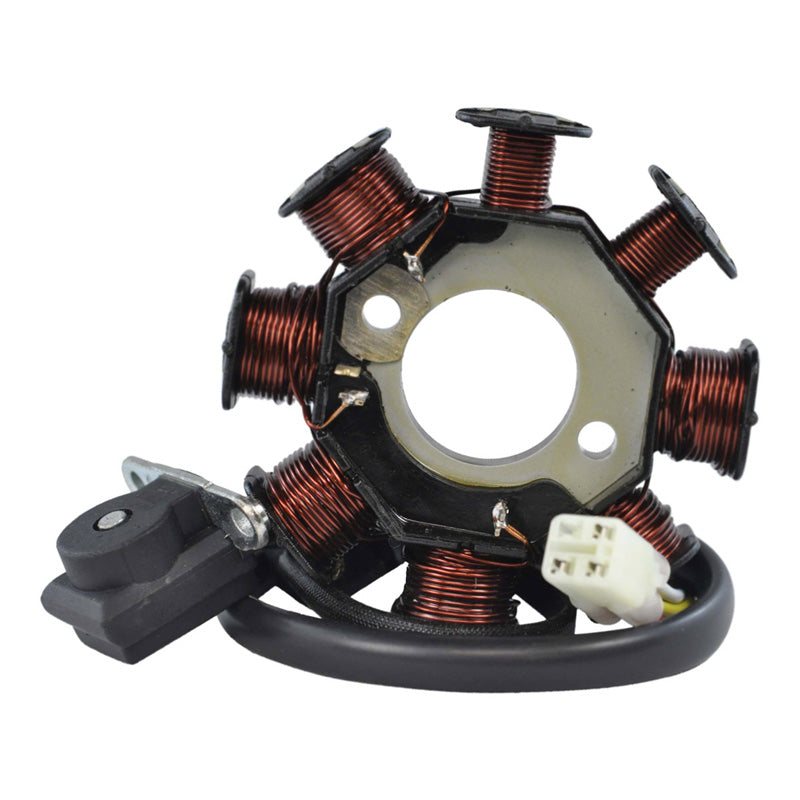

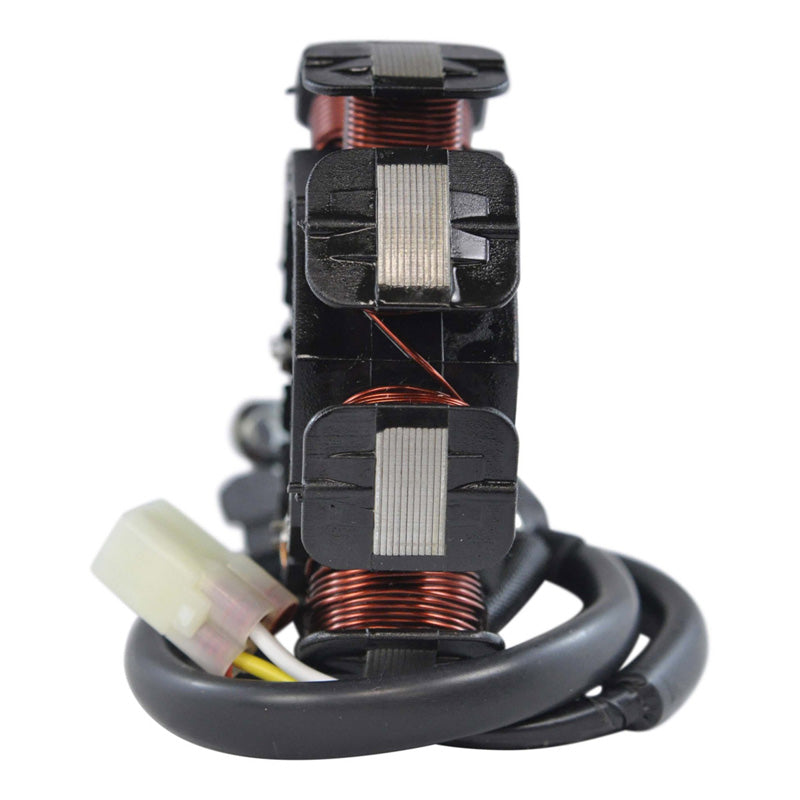

Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included

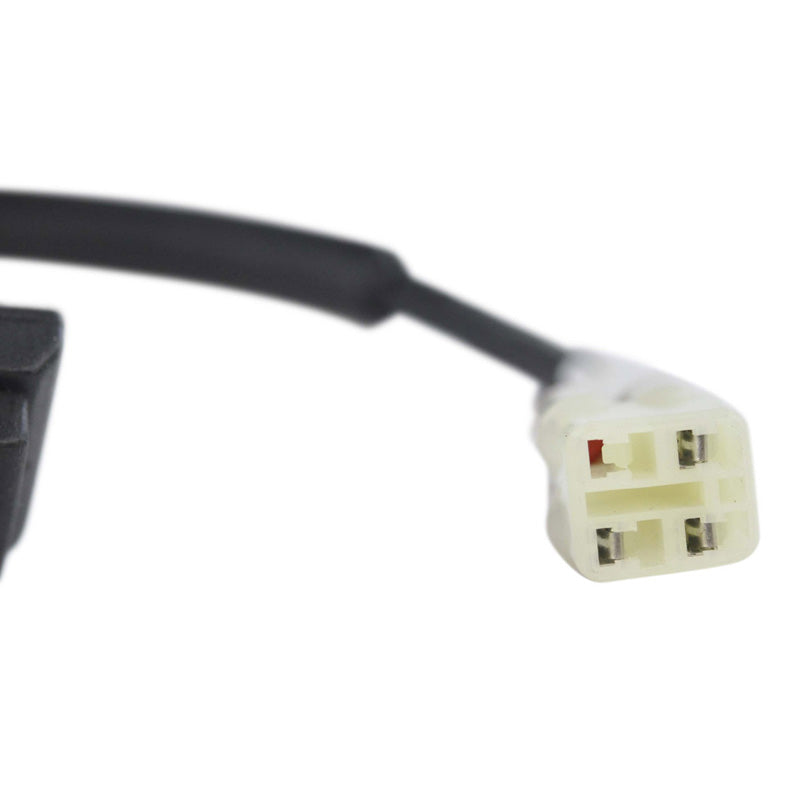

Connector included
Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions:
Interior diameter: 28mm
Exterior diameter: 87mm
Thickness: 8mm
Length of wires stator to grommet: 112mm
Length of wires grommet to plug: 325mm
Length of pickup coil's wire to grommet: 25mm
Other Specifications:
Number of wires: 3
Number of plugs: 1
Number of terminals: 3
Wire to wire resistance:
Alternator: Yellow to White = 0.4ohms +/-20%
Pickup: Blue/Yellow to Ground = 110ohms =+/-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
