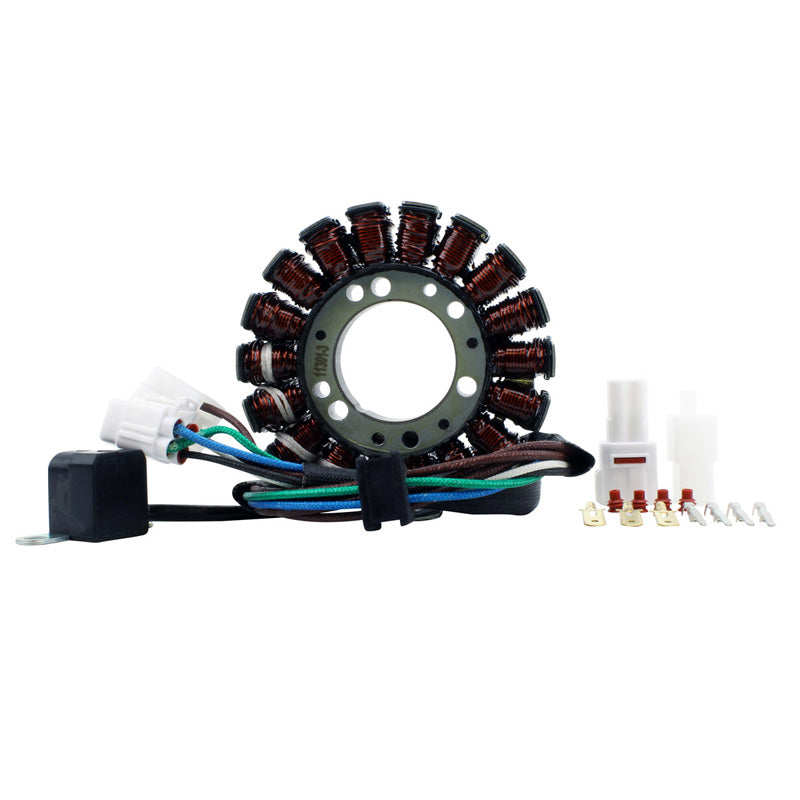

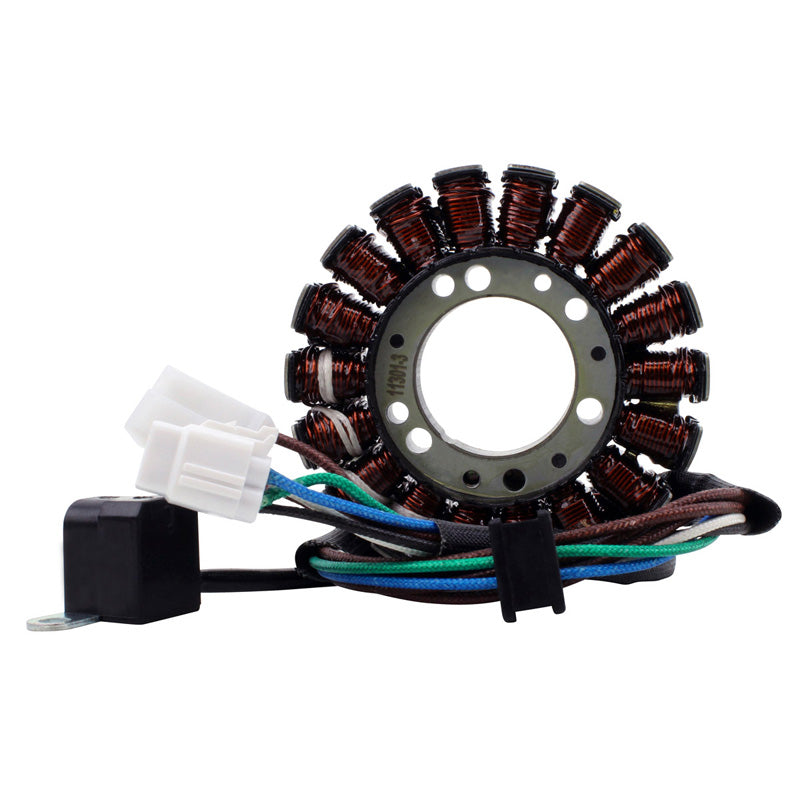

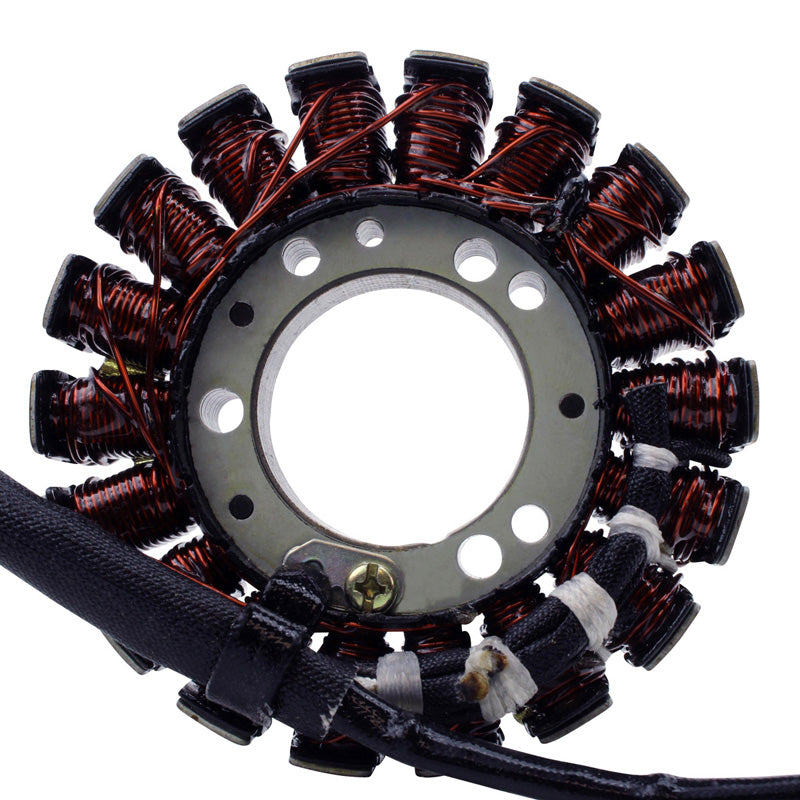

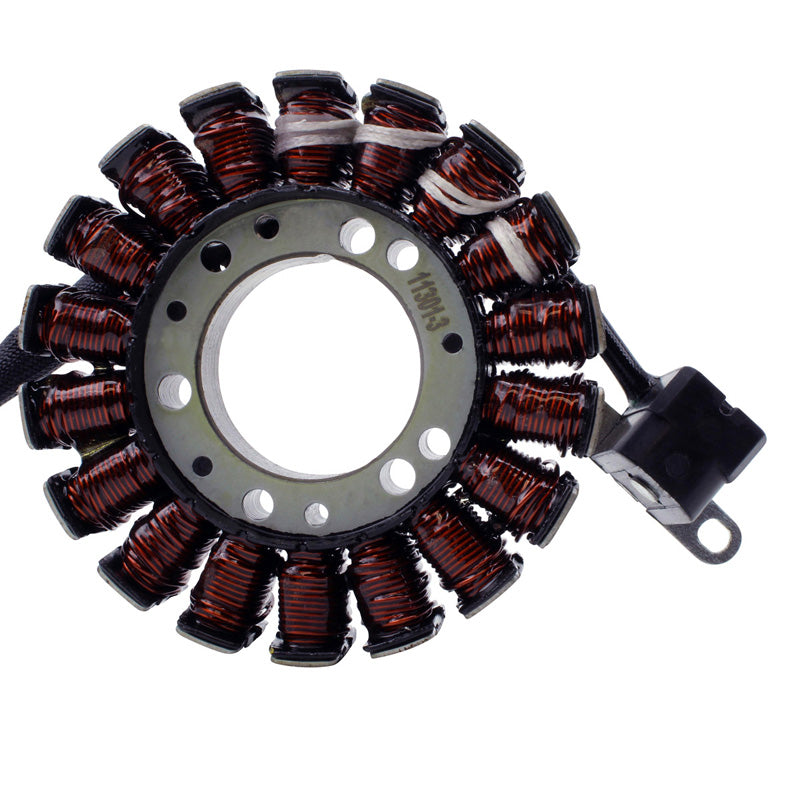

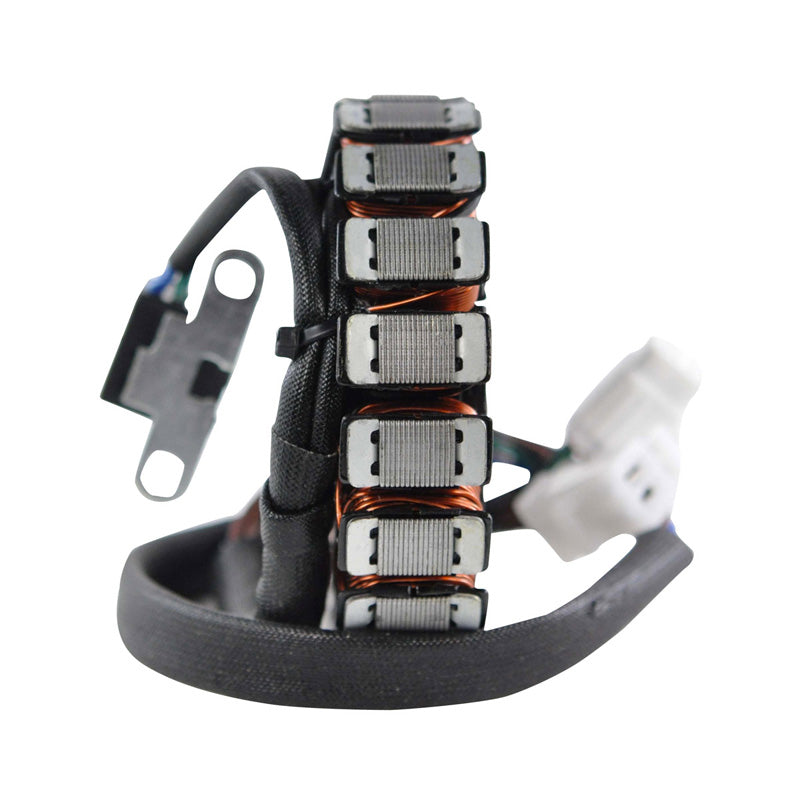

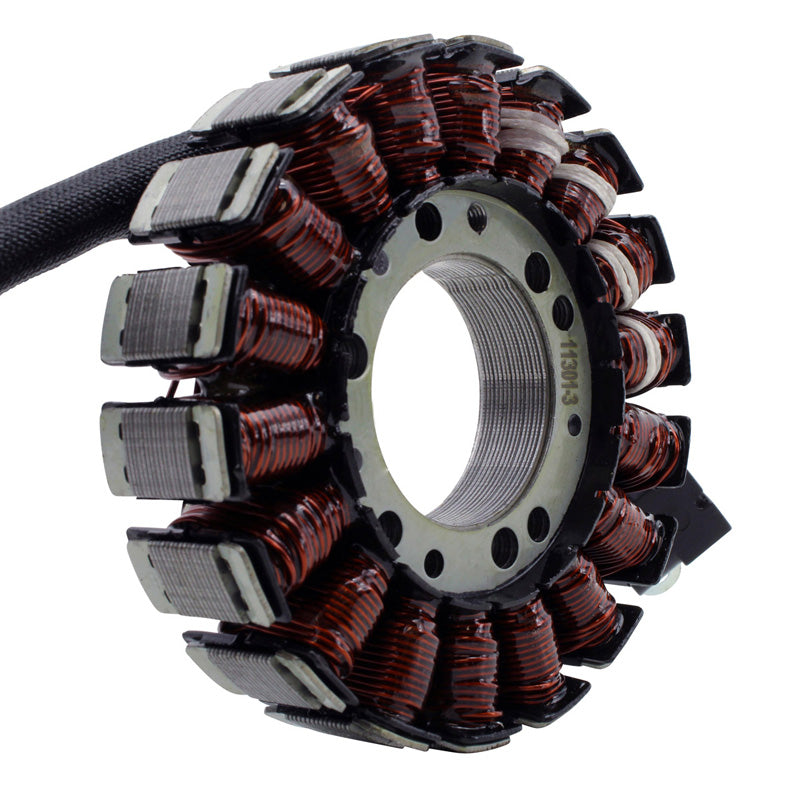

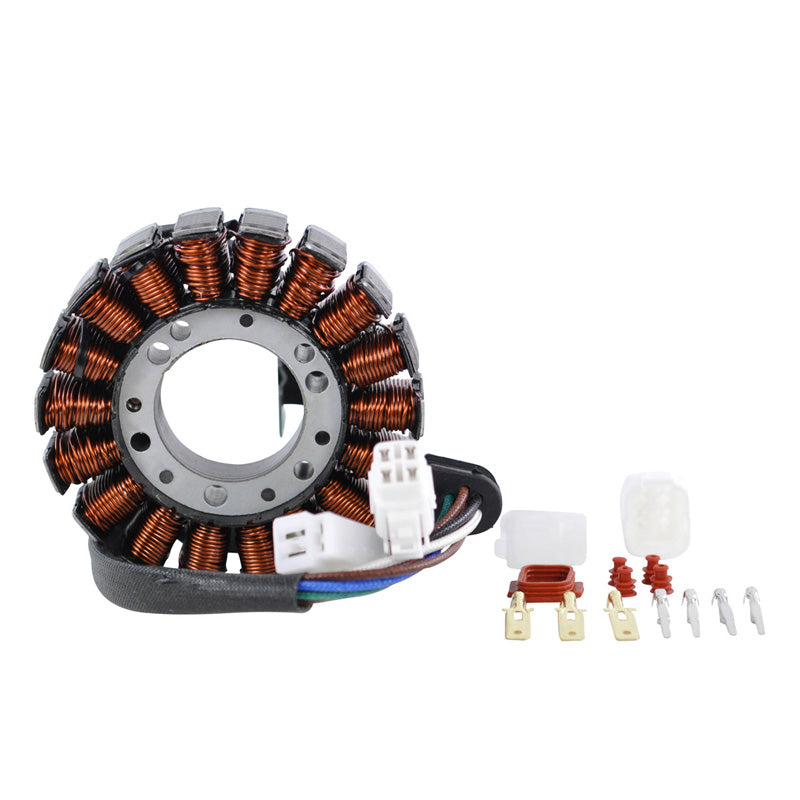

Highest grade copper windings, resistant to 200 degrees Celsius.

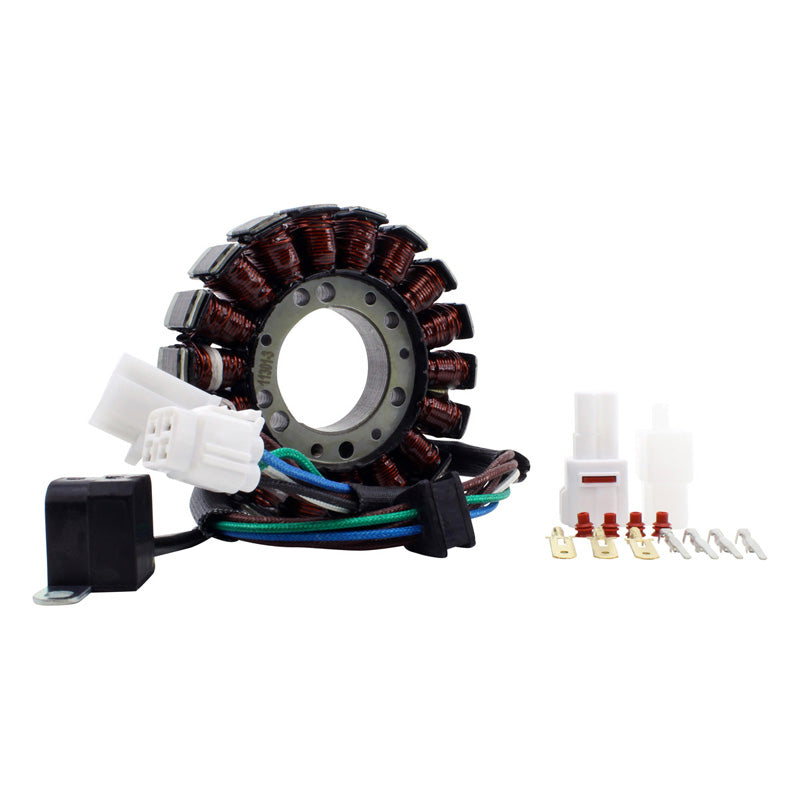

Pick up pulsar coil included

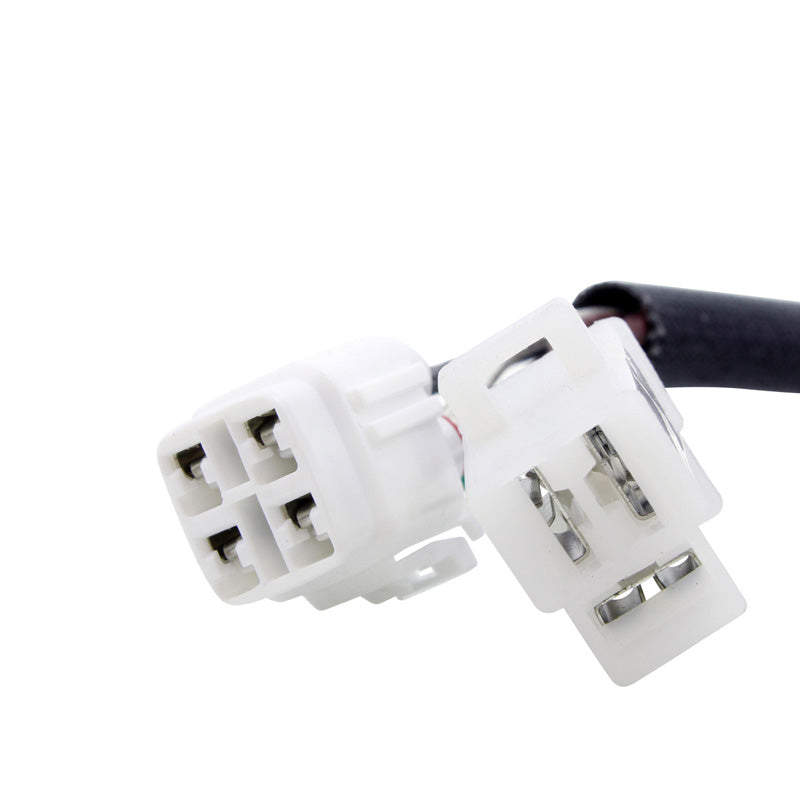

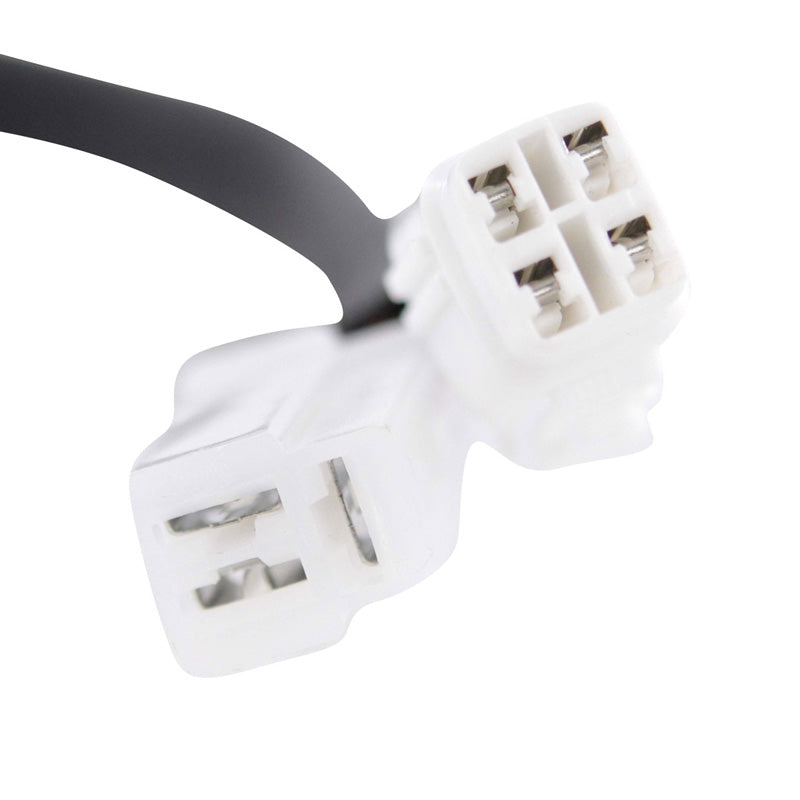

Connector included
Rubber grommet included
All products shipped are tested
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

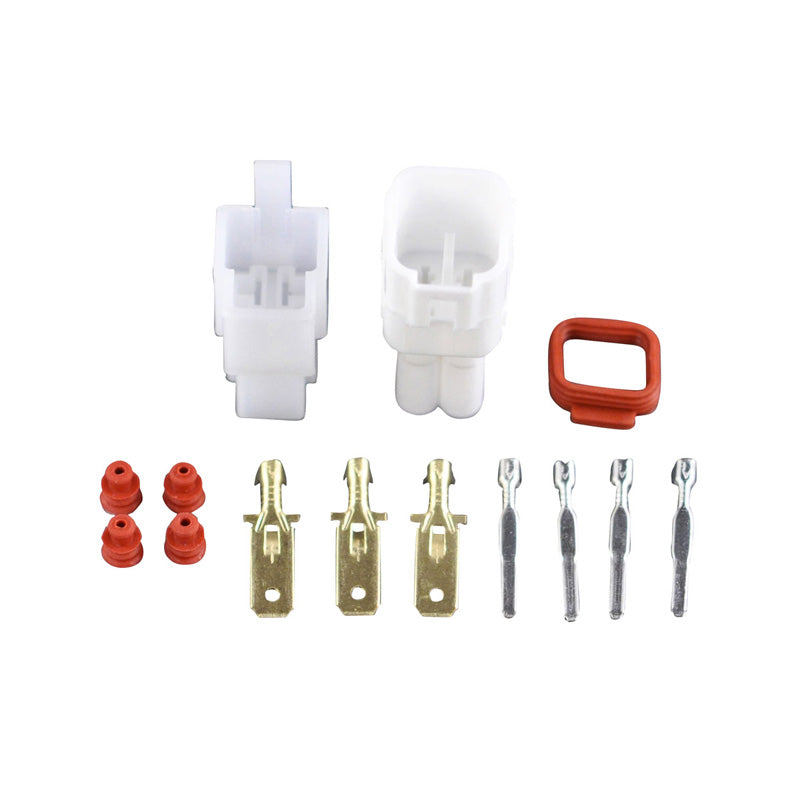

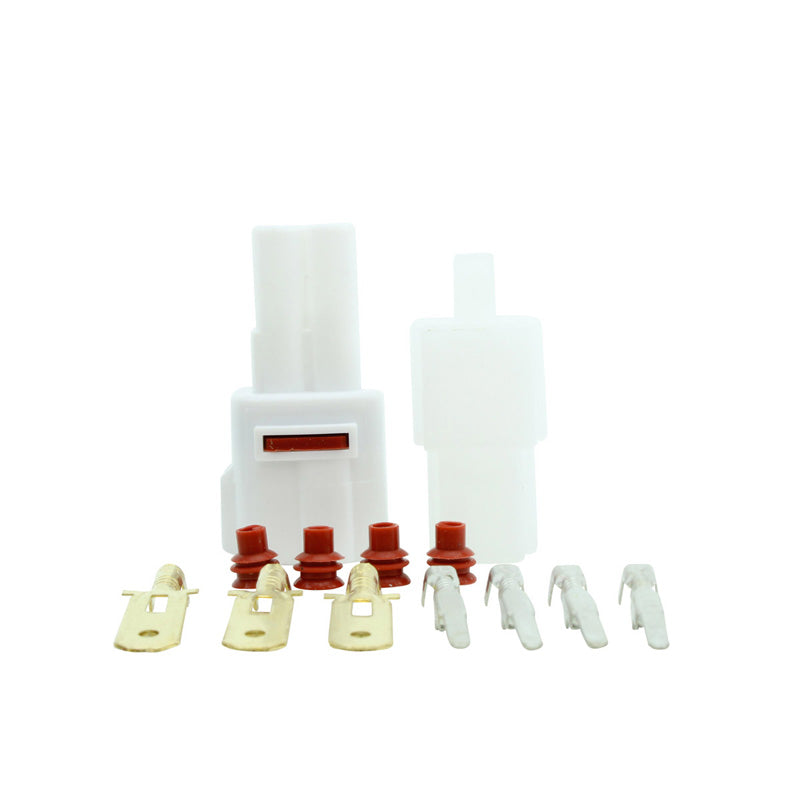

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 35mm
Exterior diameter : 94mm
Thickness : 26mm
Length of wires stator to grommet : 125mm
Length of wires grommet to plug : 245mm
Length of pickup coil's wire to grommet : 250mm
Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Wire to wire resistance :
Alternator : Brown to Brown = 0.4ohms +/-20%
Pickup : Blue to Green = 500ohms +/-20%
Source : Black to White = 0.3ohms +/-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
