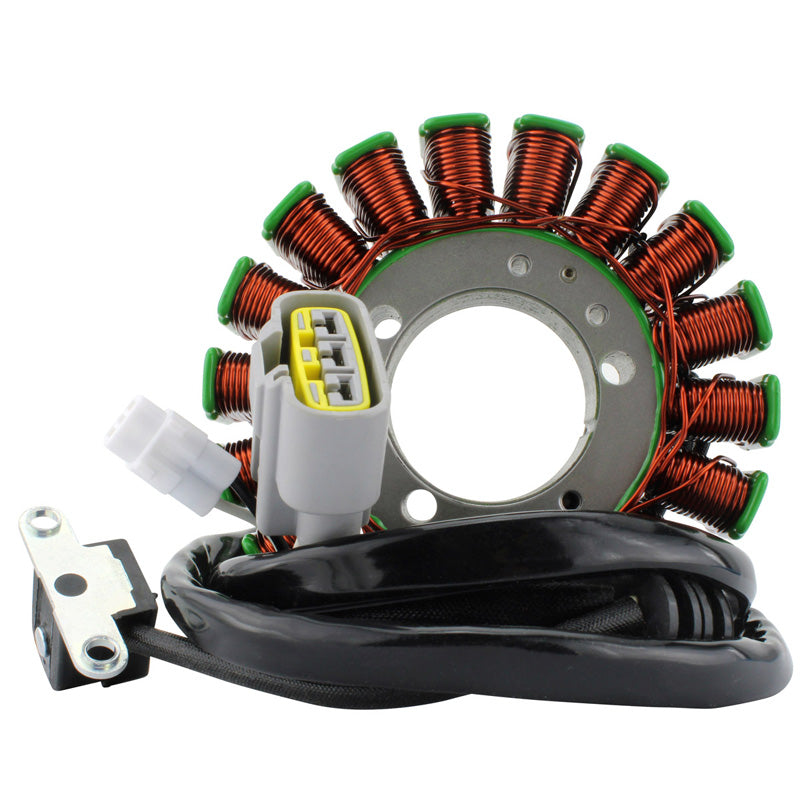

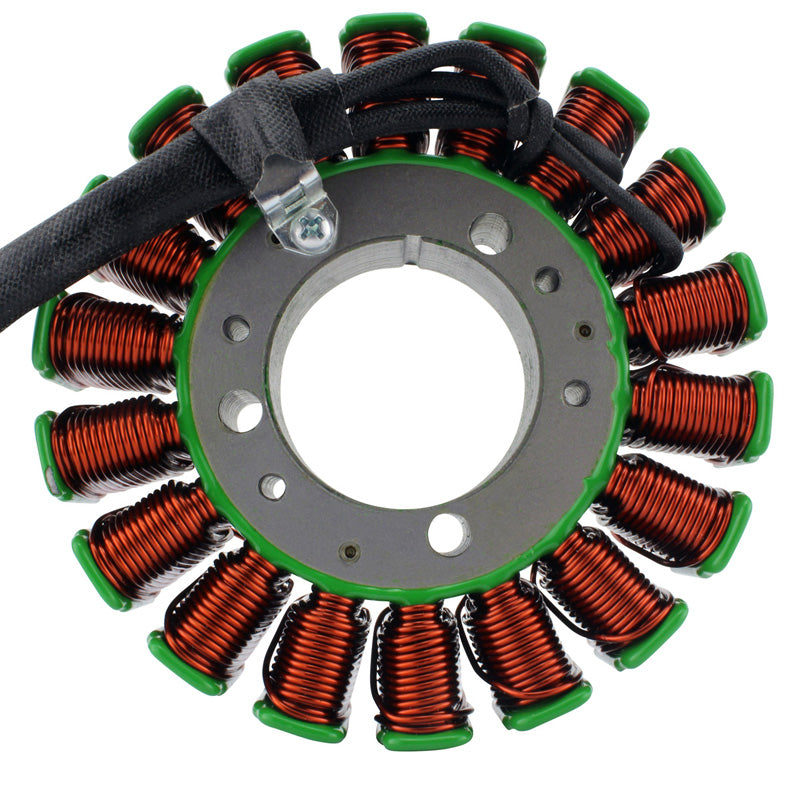

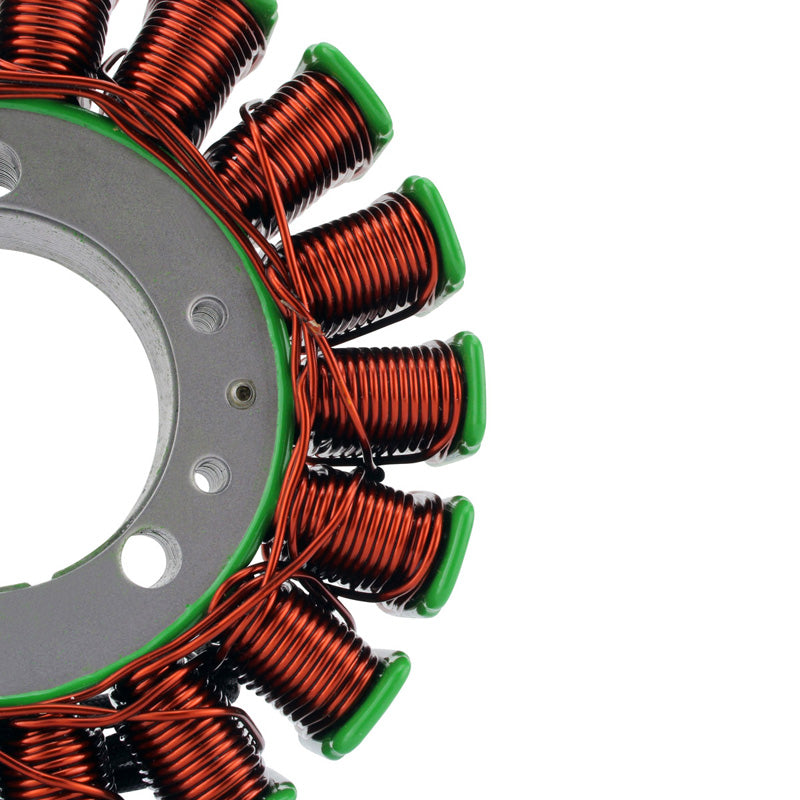

Highest grade of copper winding, resistant to 200 degrees Celsius

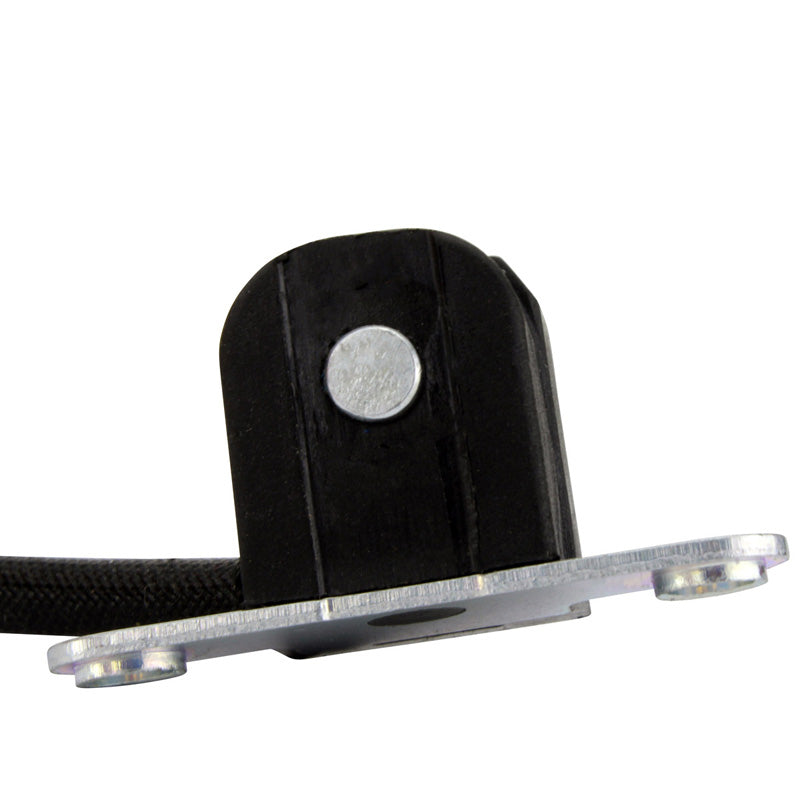

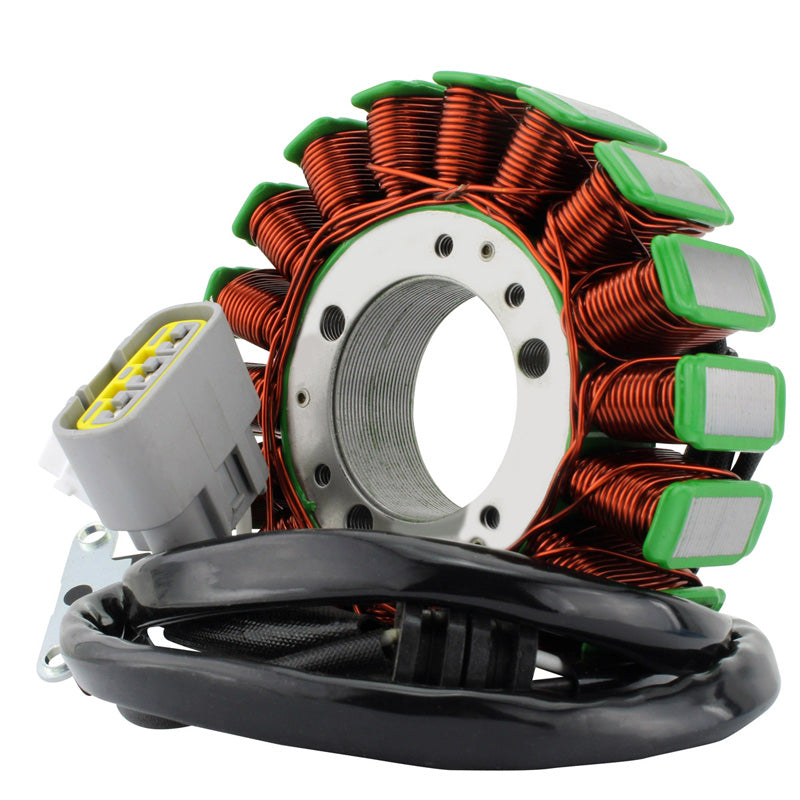

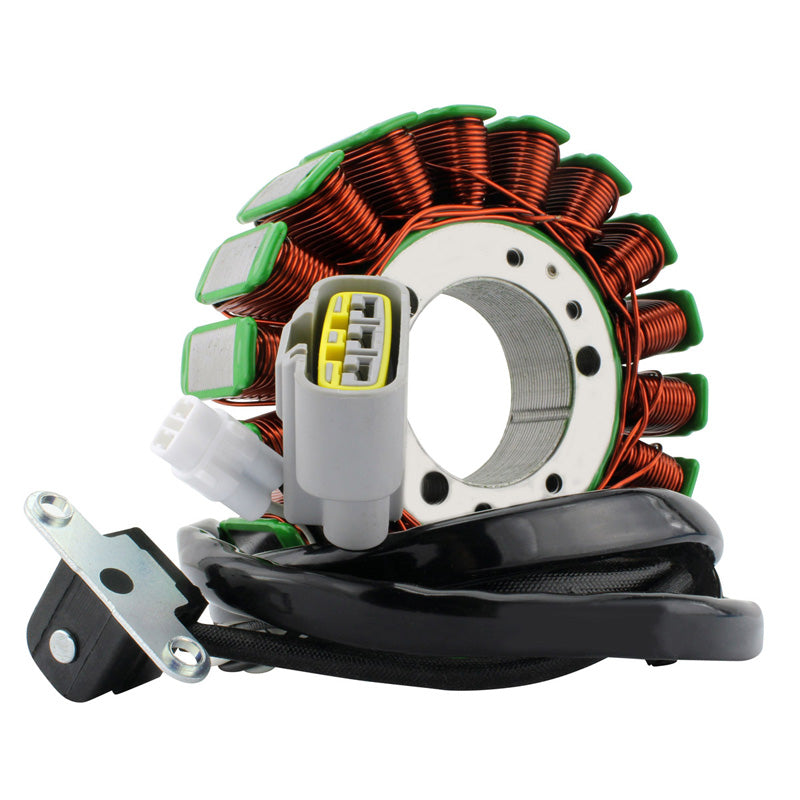

Pick up pulsar coil included

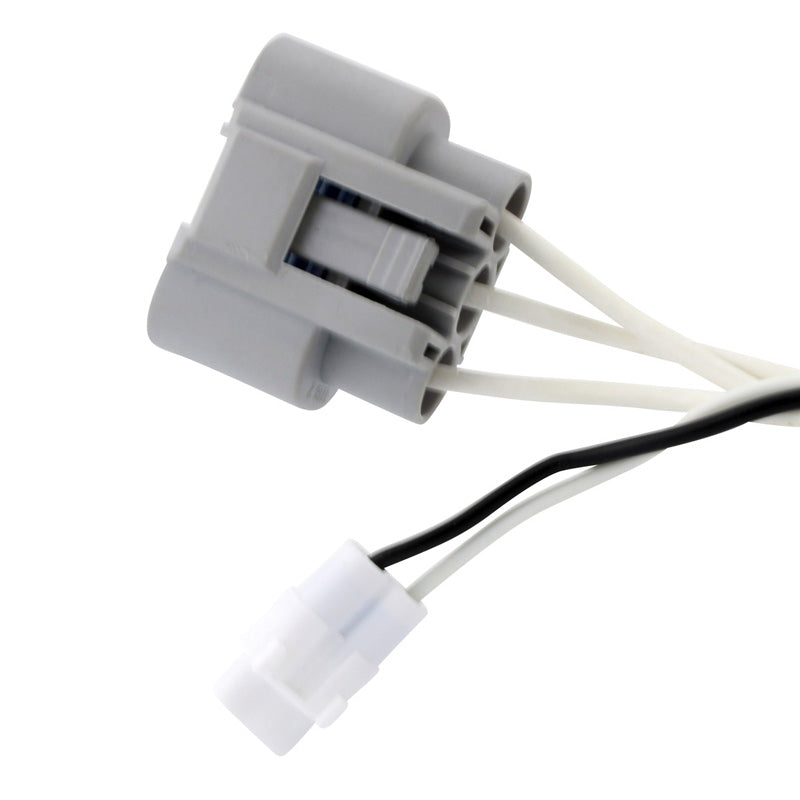

Connectors included

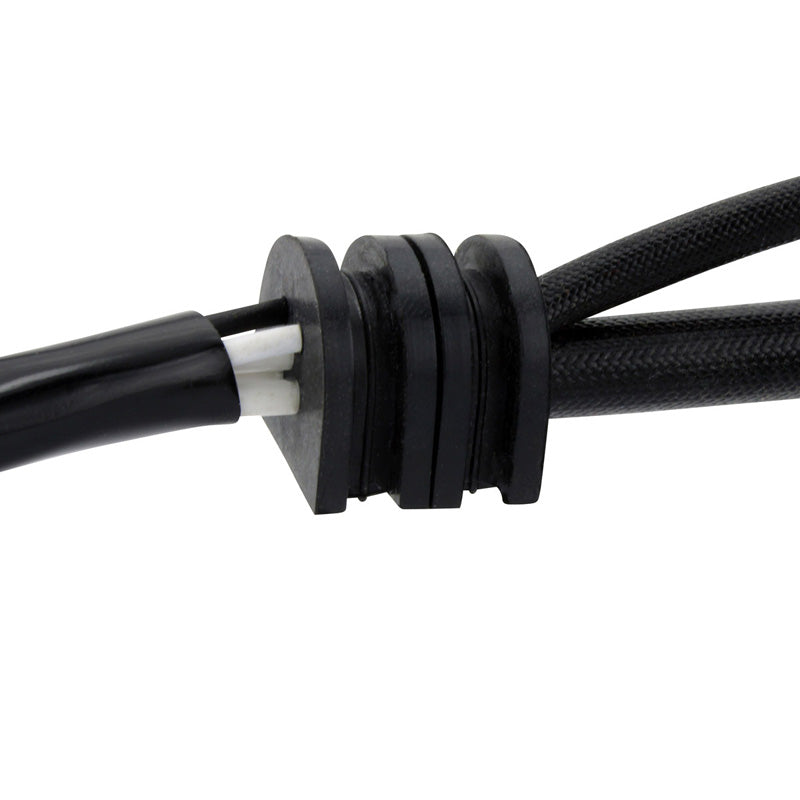

Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions:
Interior diameter: 42 mm
Exterior diameter: 115 mm

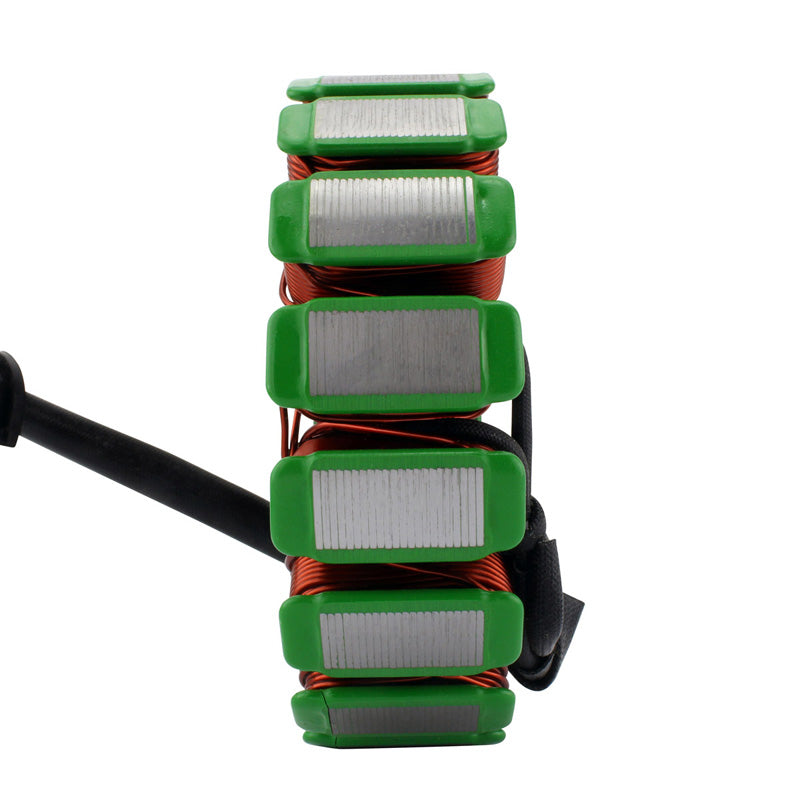

Thickness: 22 mm
Length of wires stator to grommet: 200 mm
Length of wires grommet to plug: 910 mm
Length of pickup coil's wire to grommet: 100 mm
Other specifications:
Number of wires: 5

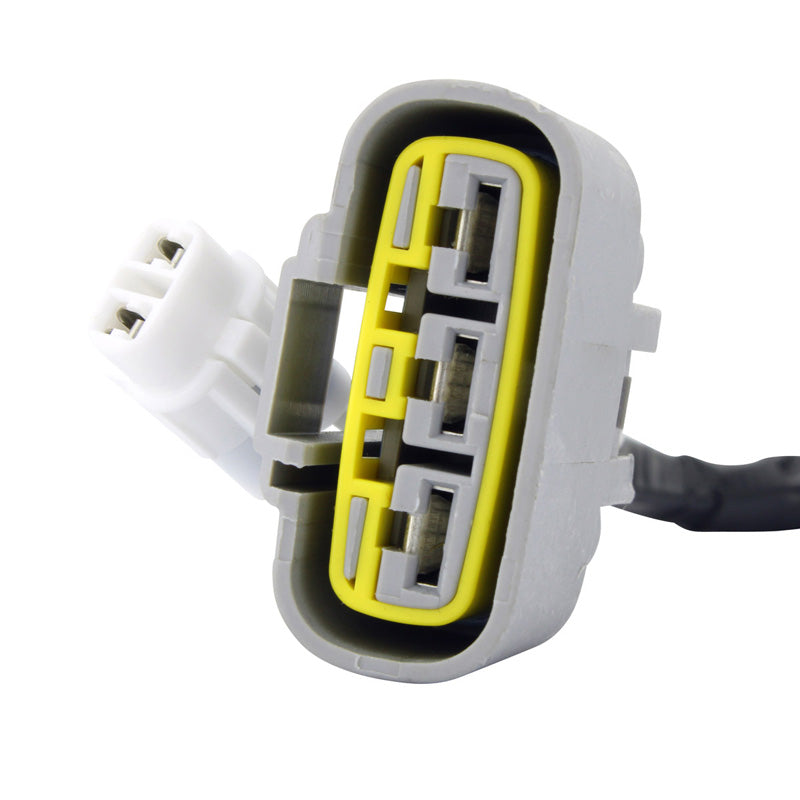

Number of plugs: 2
Number of pins: 5

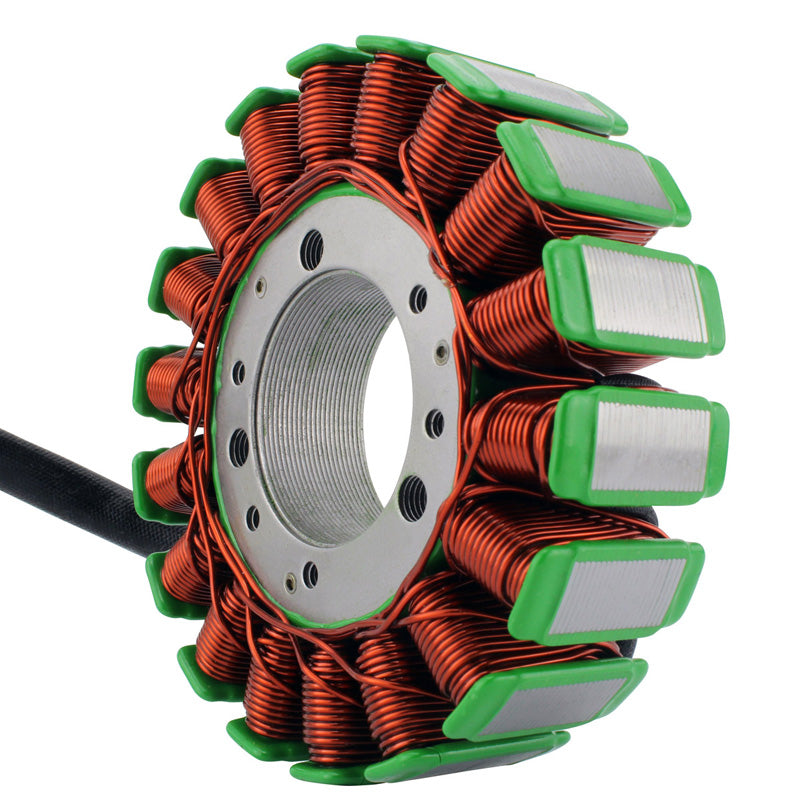

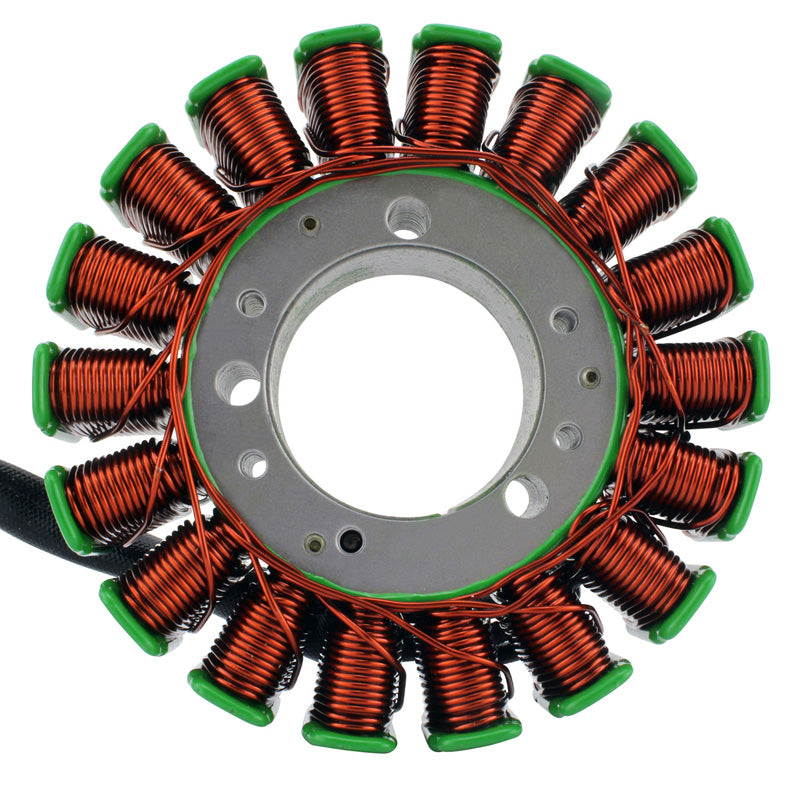

Number of poles: 18
Wire to wire resistance:
Alternator: White to White = 0.4 ohms +-20%
Alternator: White to ground = O.L
Pickup: Black to Grey = 515 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
