Highest grade of copper winding, resistant to 200 degrees Celsius

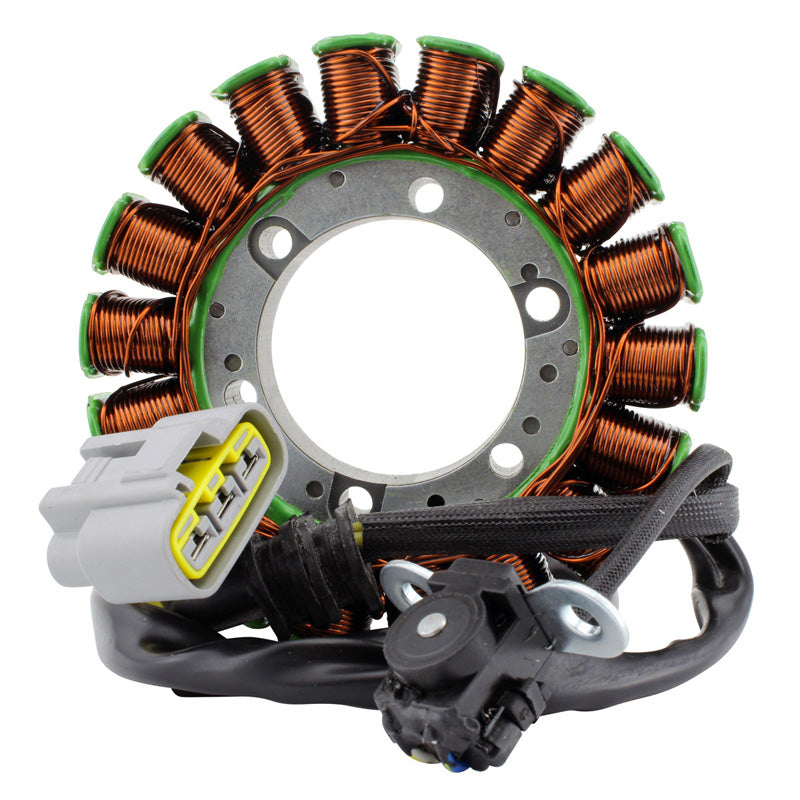

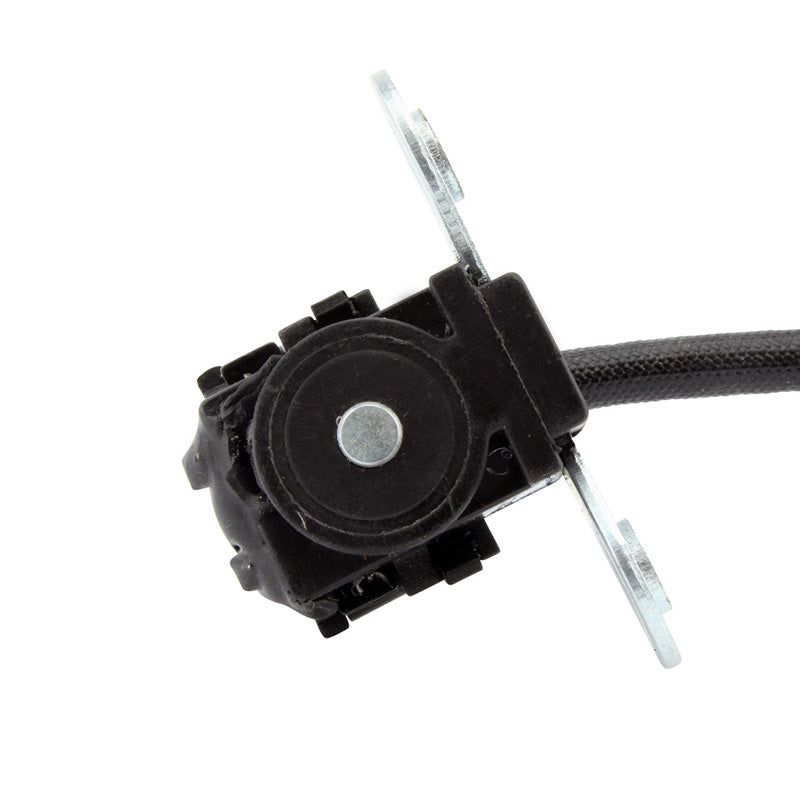

Pick up pulsar coil included

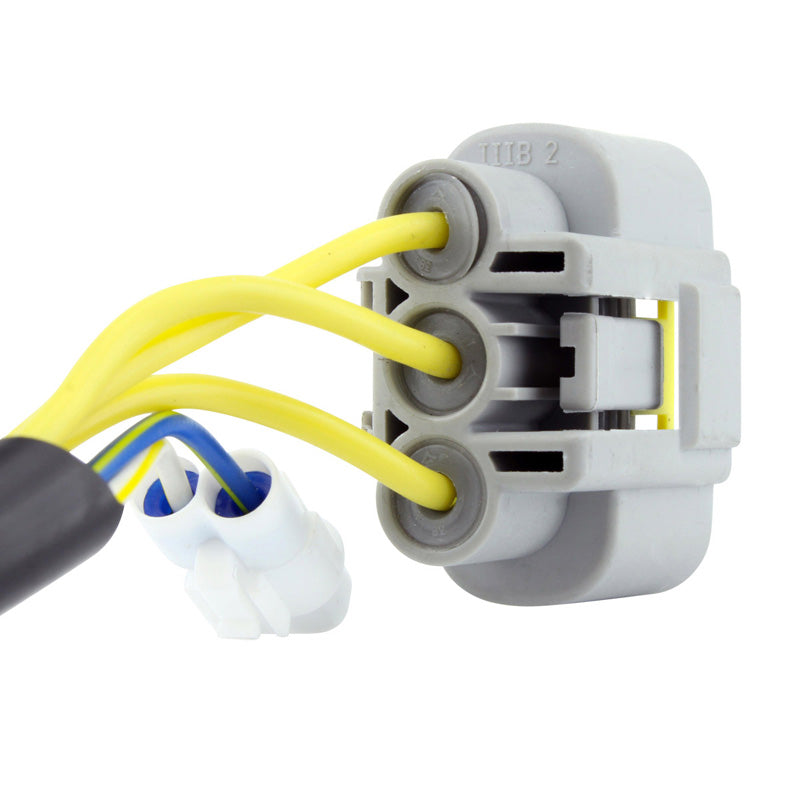

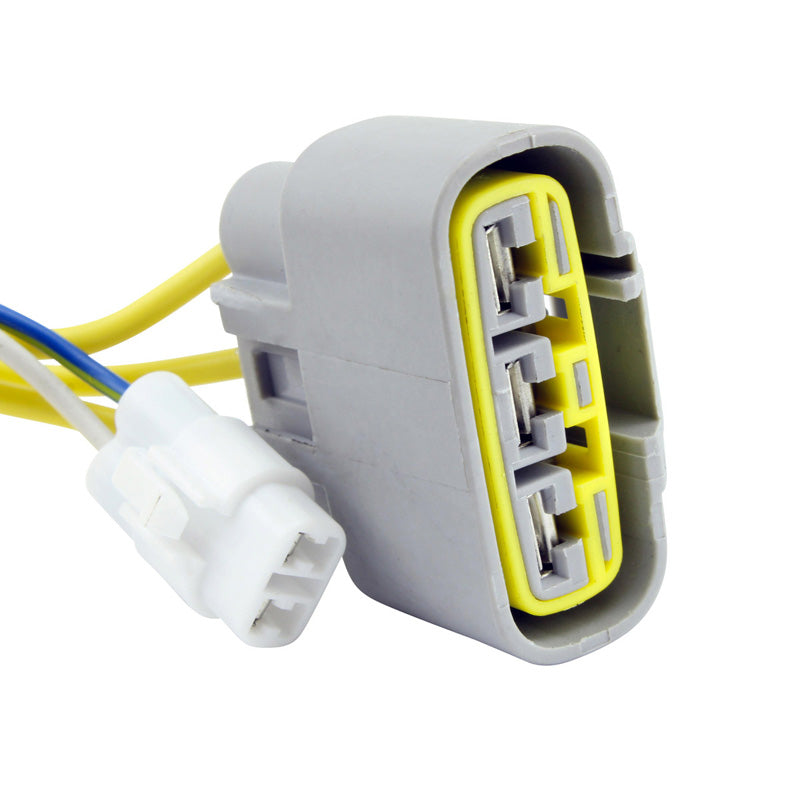

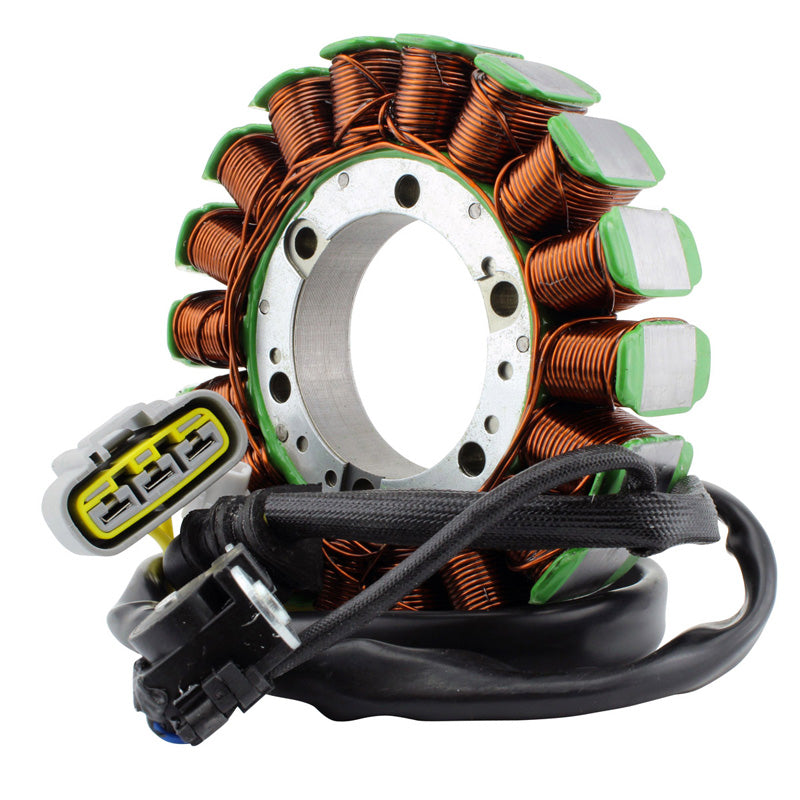

Connectors included

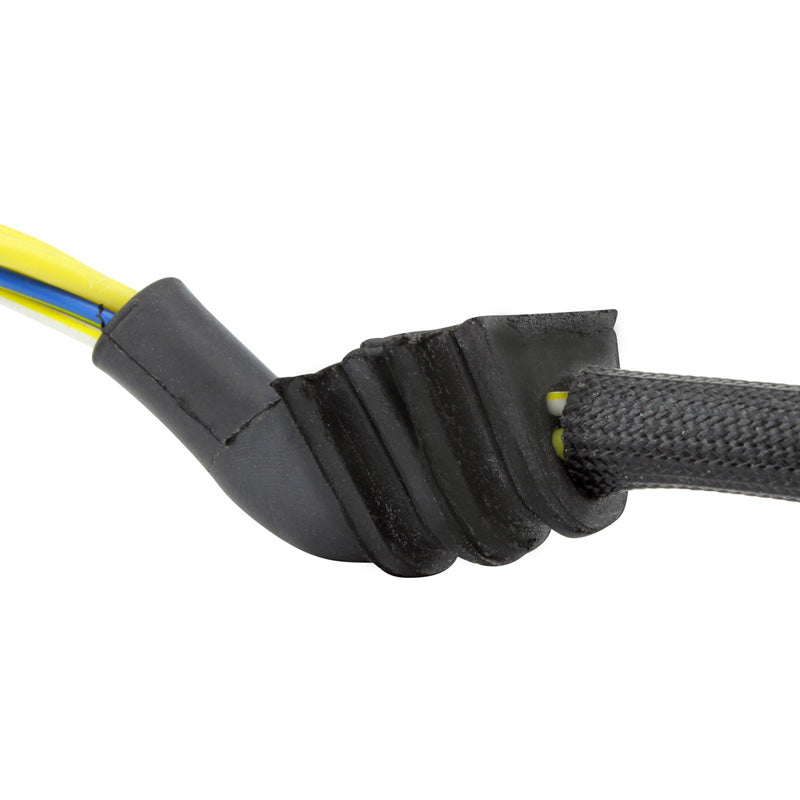

Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 56 mm
Exterior diameter : 27 mm

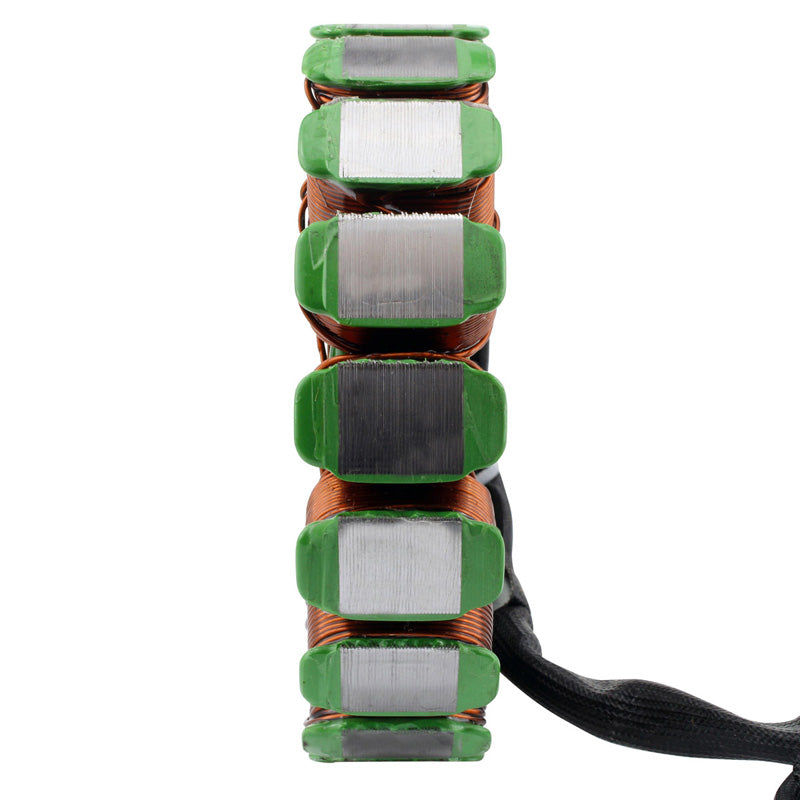

Thickness : 33 mm
Length of wires stator to grommet : 103 mm
Length of wires grommet to plug : 665 mm
Length of pickup coil's wire to grommet : 87 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

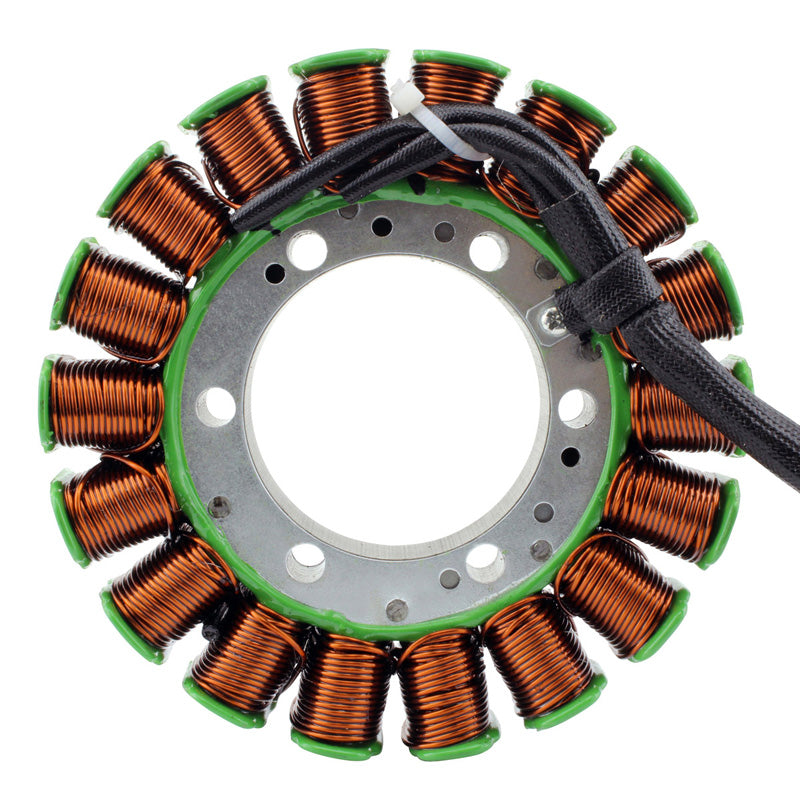

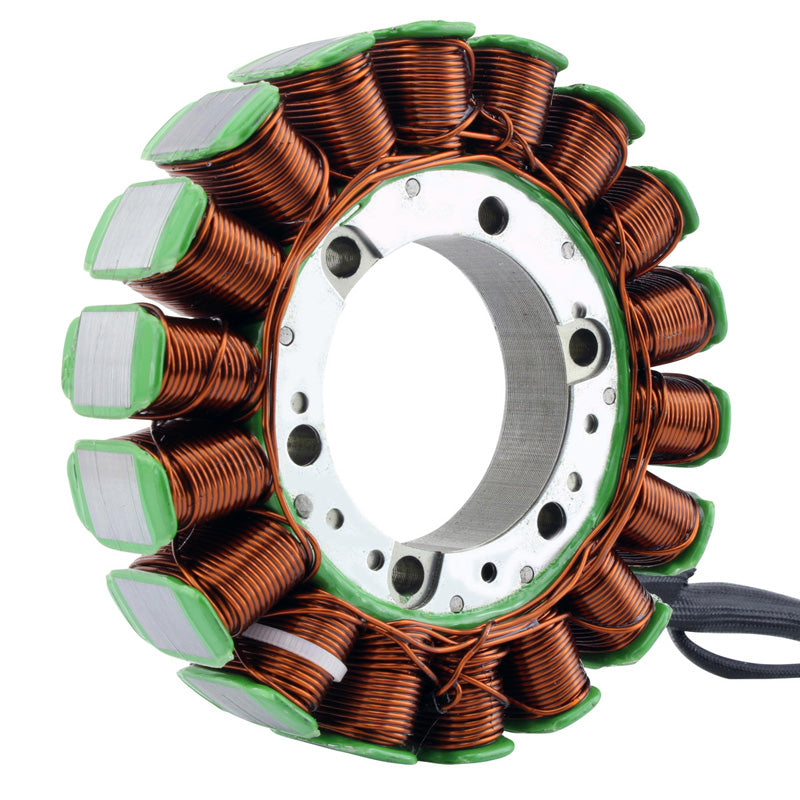

Number of poles : 18
Alternator : Yellow to Yellow = 4 ohms +-20%
Pickup : White/Yellow to Blue/Yellow = 250 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
