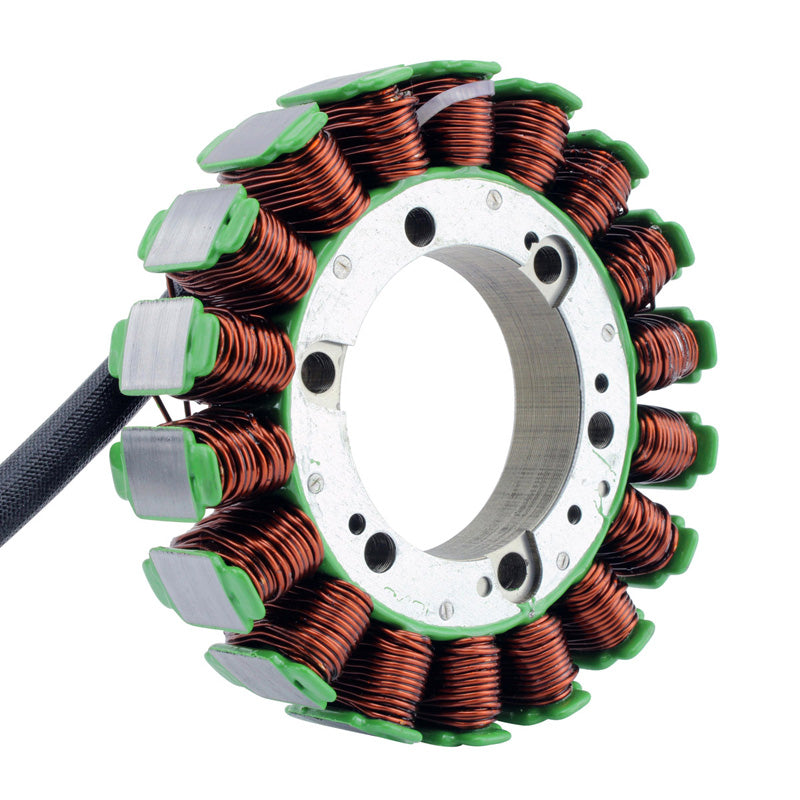

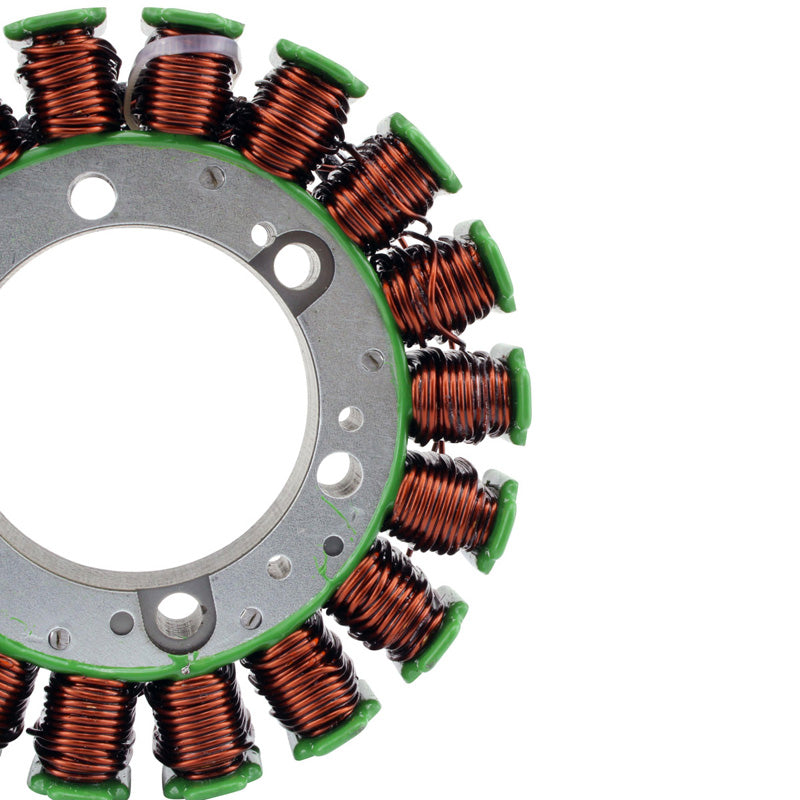

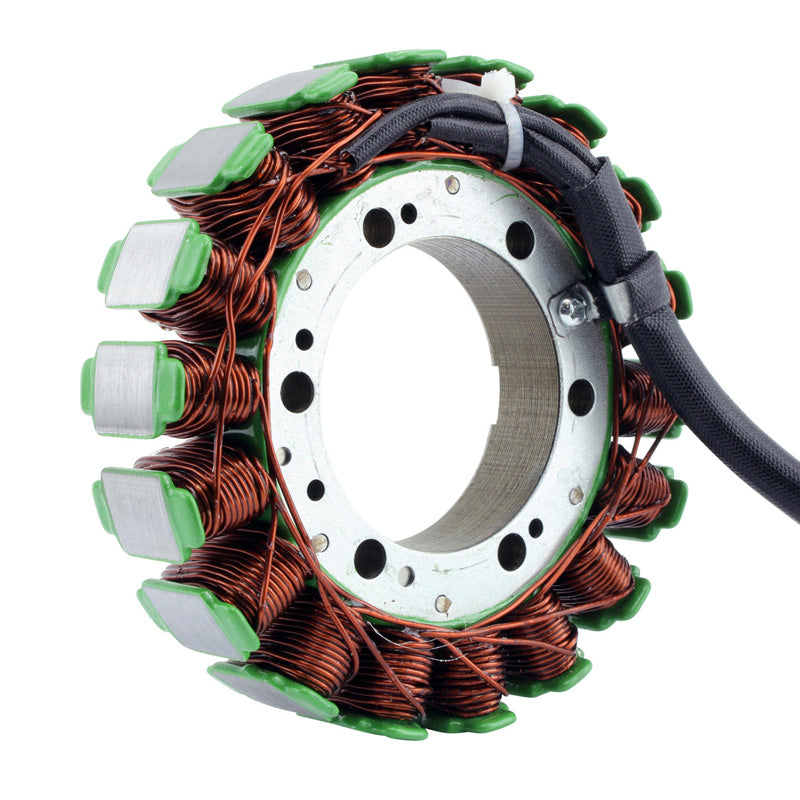

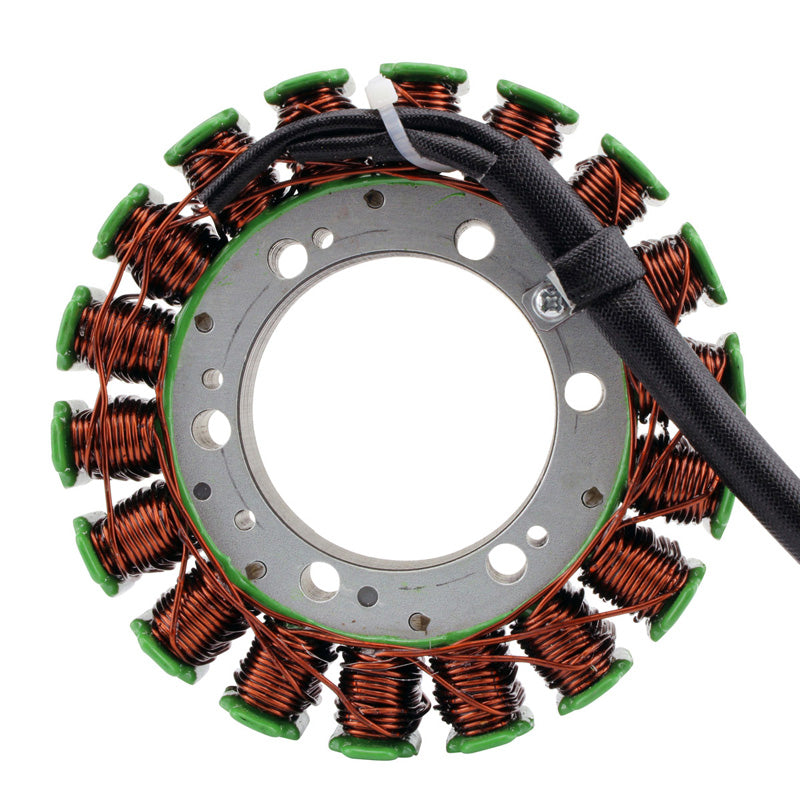

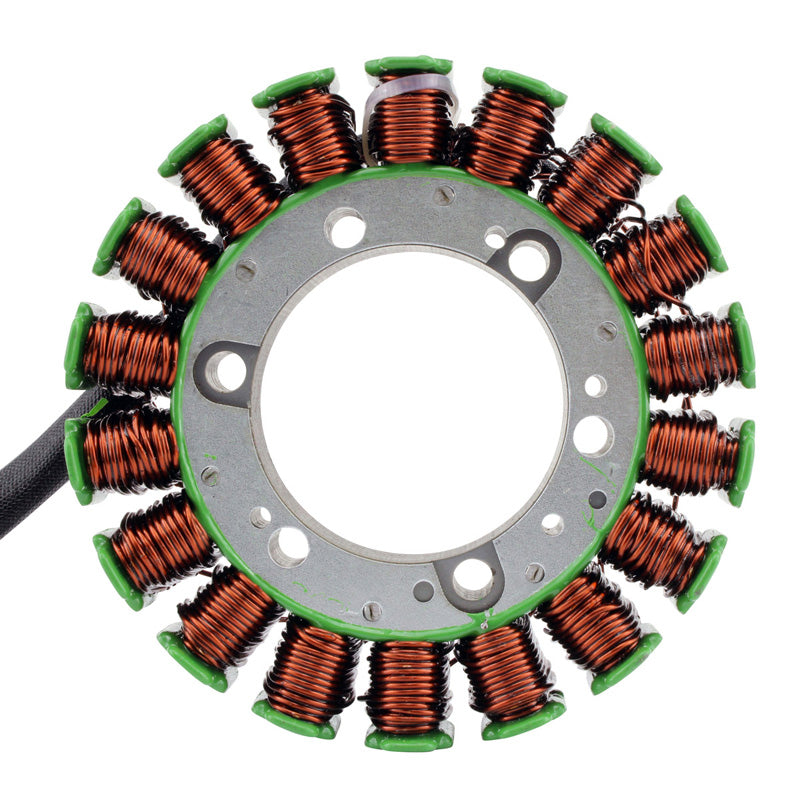

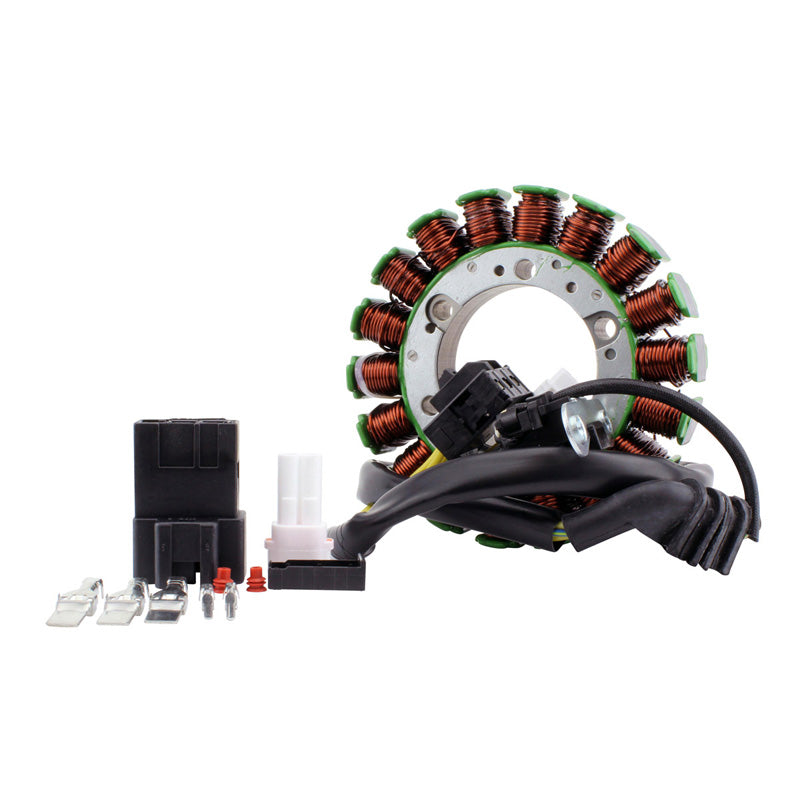

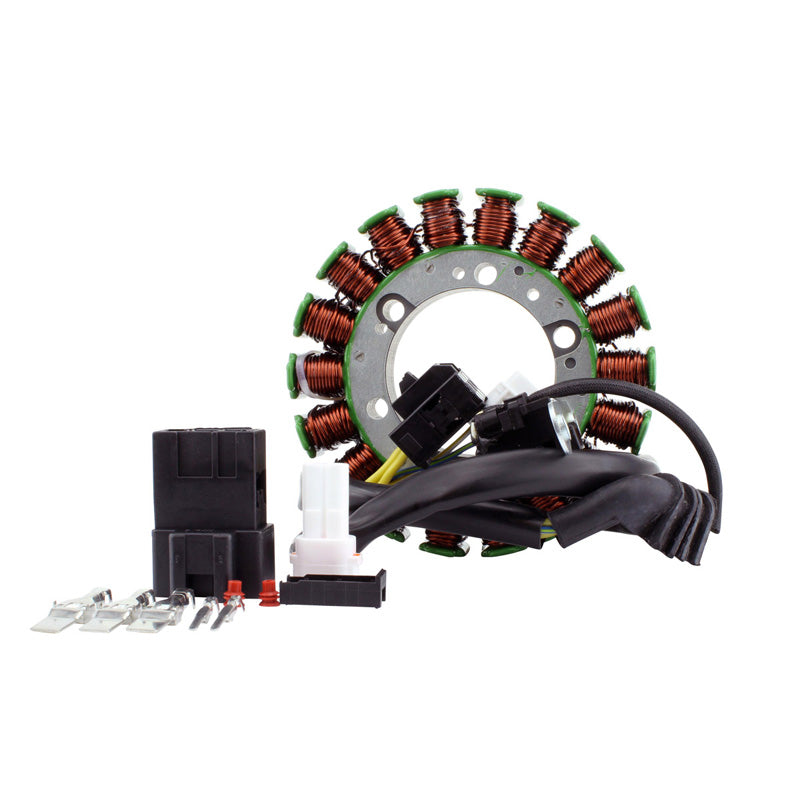

Highest grade of copper winding, resistant to 200 degrees Celsius

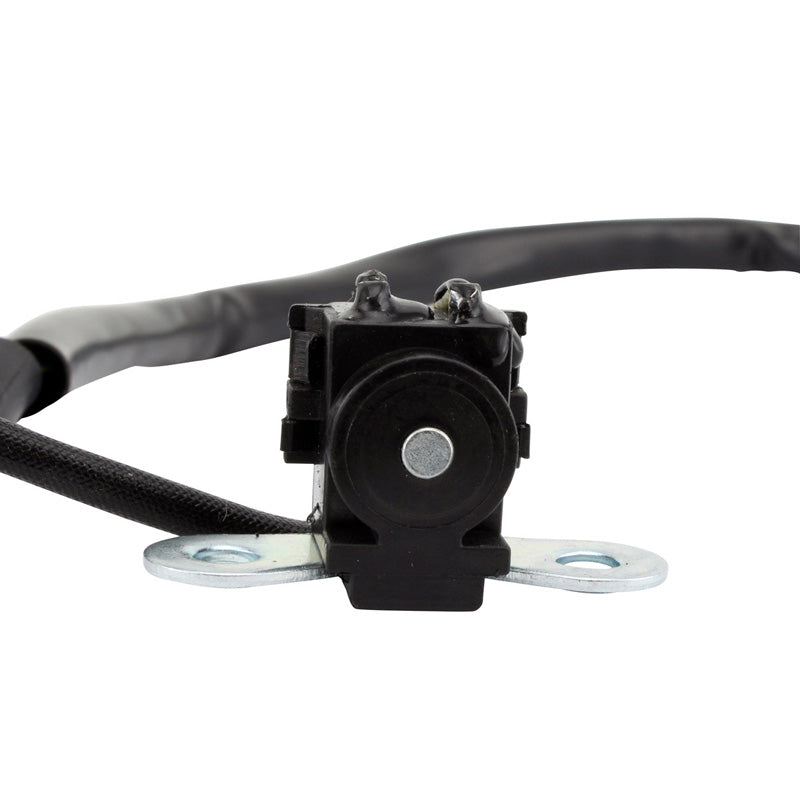

Pick up pulsar coil included

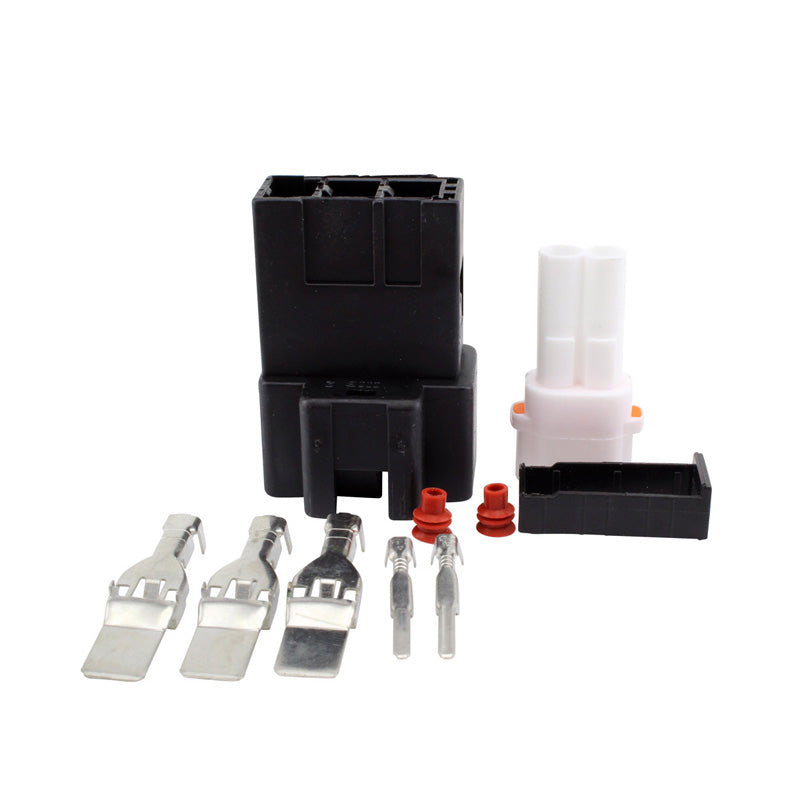

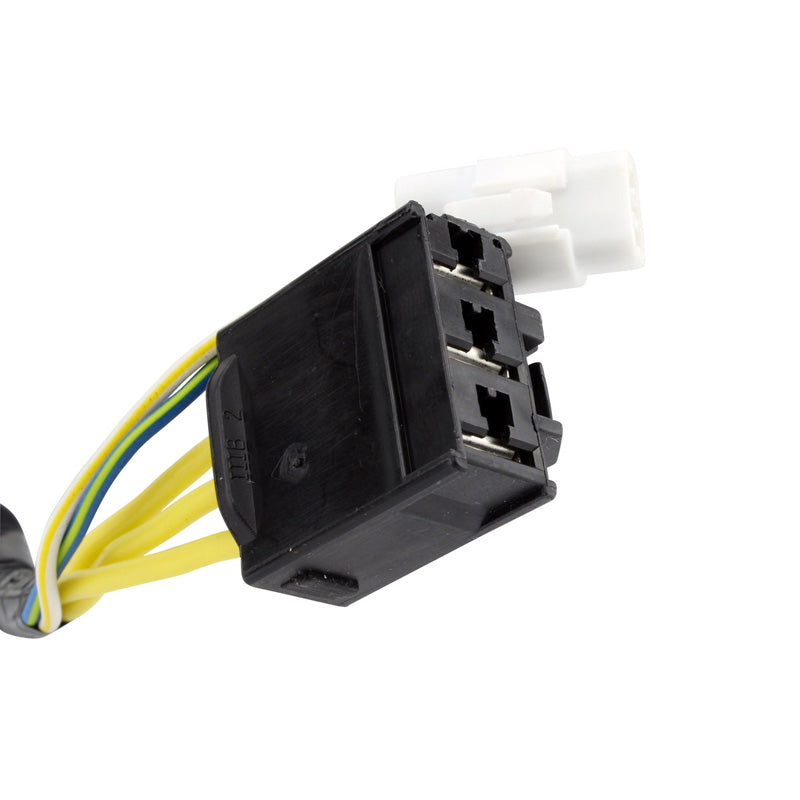

Connectors included

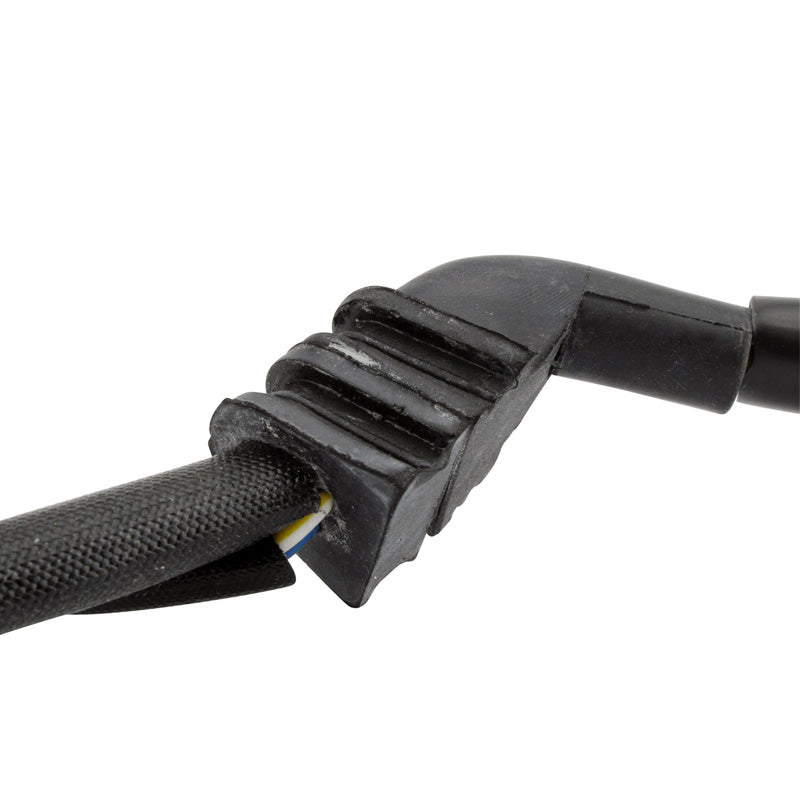

Rubber grommet included
All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 54 mm
Exterior diameter : 118 mm

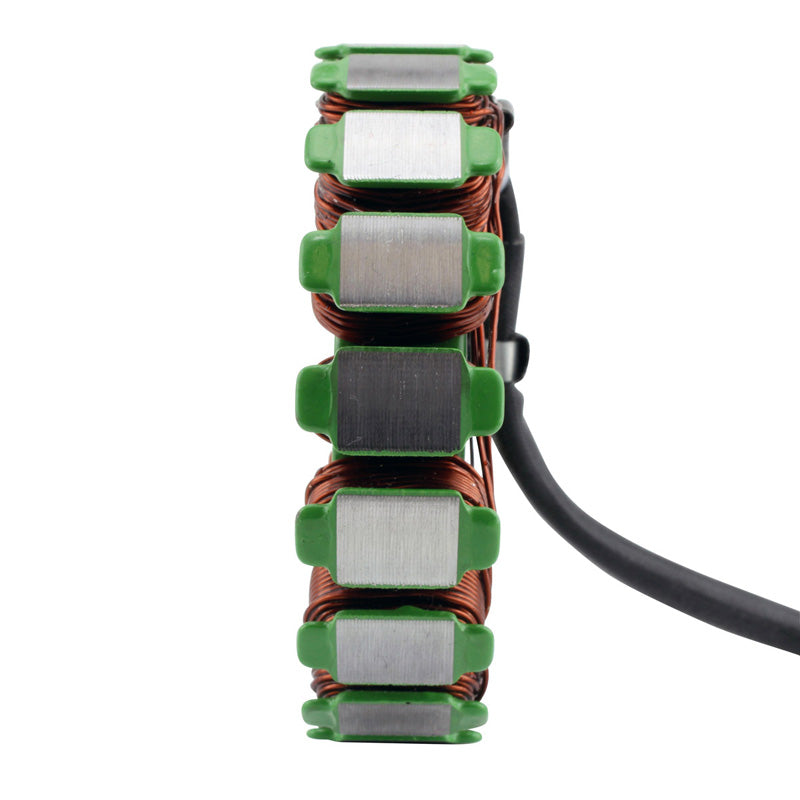

Thickness : 19 mm
Length of wires stator to grommet : 110 mm
Length of wires grommet to plug : 520 mm
Length of pickup coil's wire to grommet : 10 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms +-20%
Pickup : Yellow / White to Yellow / Blue = 272 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
