Highest grade copper windings, resistant to 200 degrees Celsius.

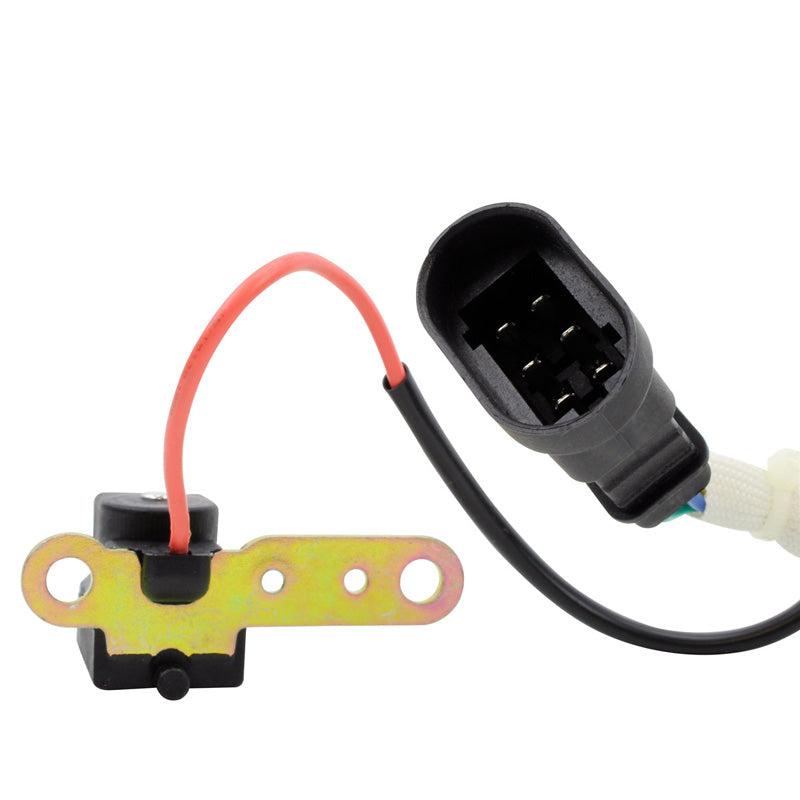

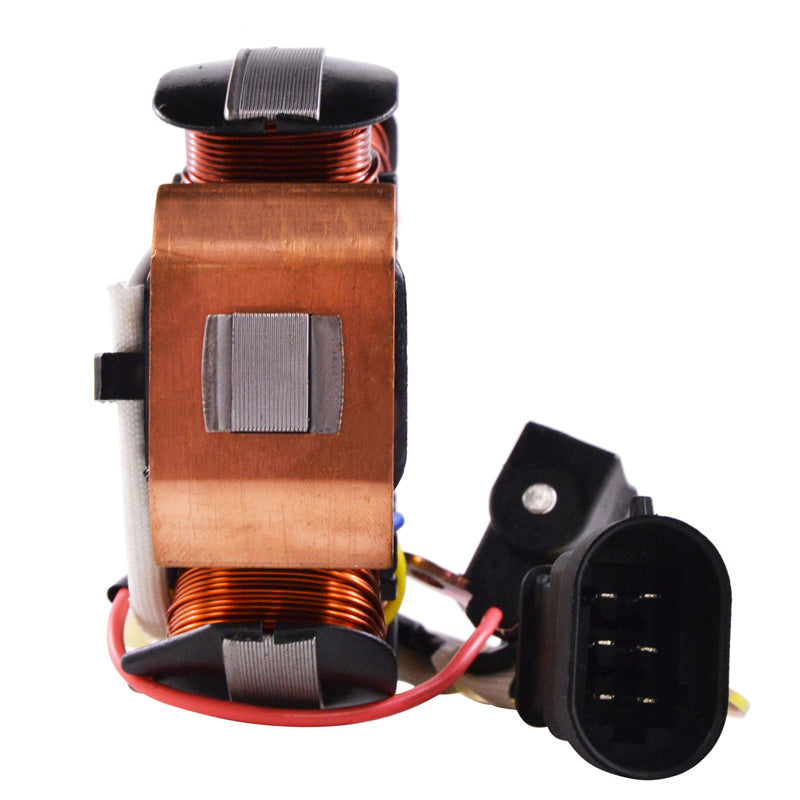

Pick up pulsar coil included

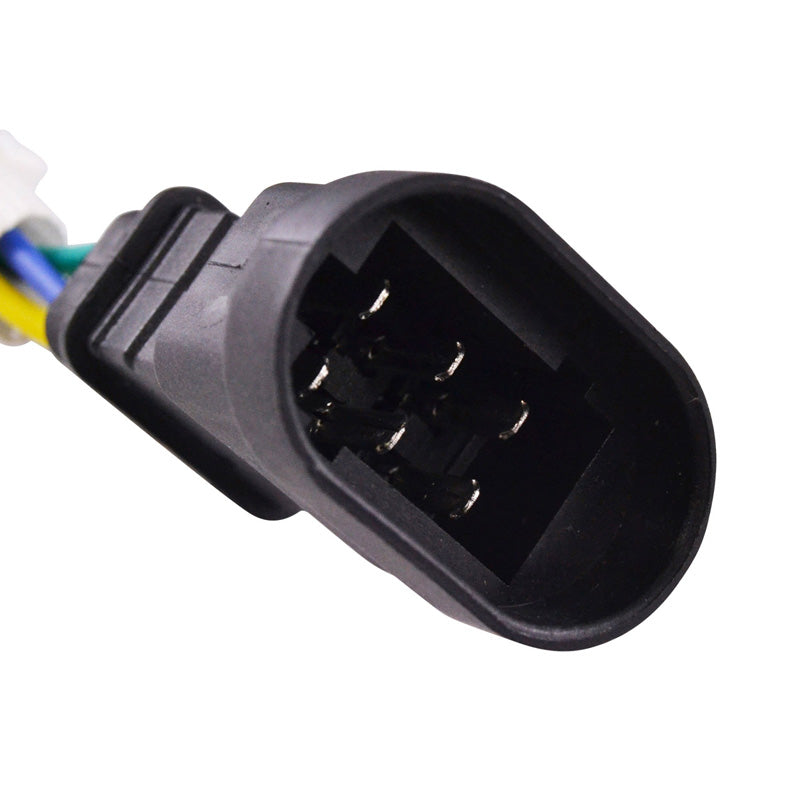

Connector included
Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:

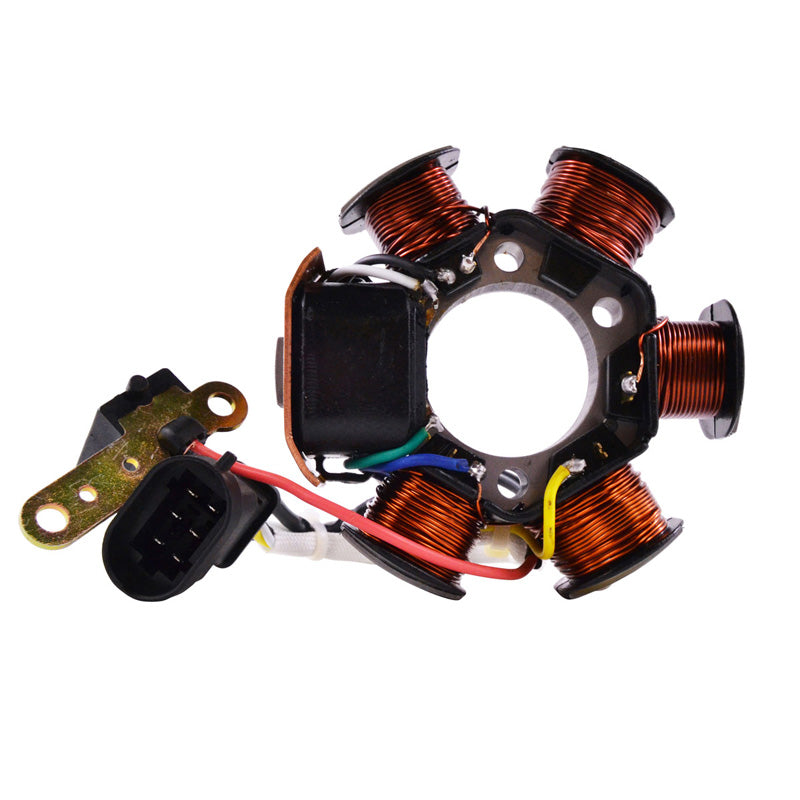

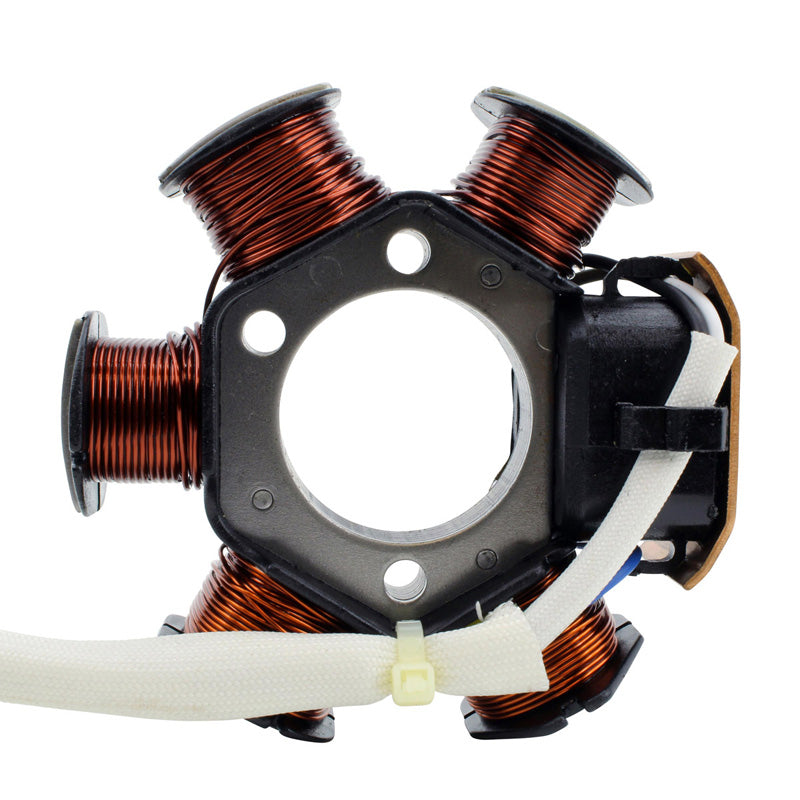

Dimensions : Interior diameter : 36 mm Exterior diameter : 98 mm Thickness : 12 mm Length of wires stator to plug : 150 mm
Other specifications : Number of wires : 6 Number of plugs : 1 Number of pins :6
Wire to wire resistance : Alternator : Black to Ground = O.L Alternator : Yellow to Blue = 1.6 ohms +-20% Pickup : Red to Ground = 120 ohms +-20% Source : White to Green = 900 ohms +-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
