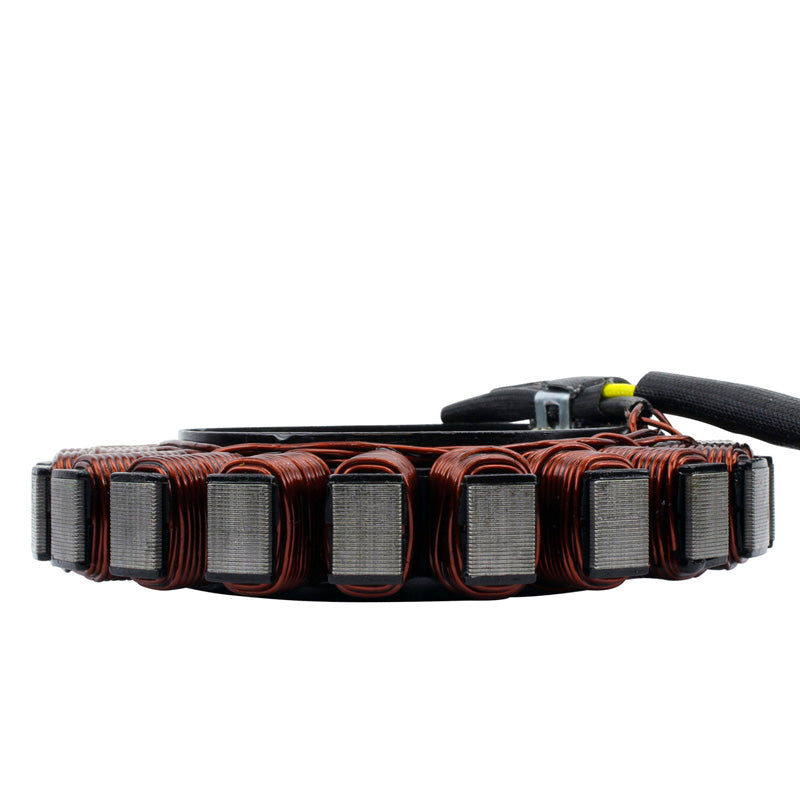

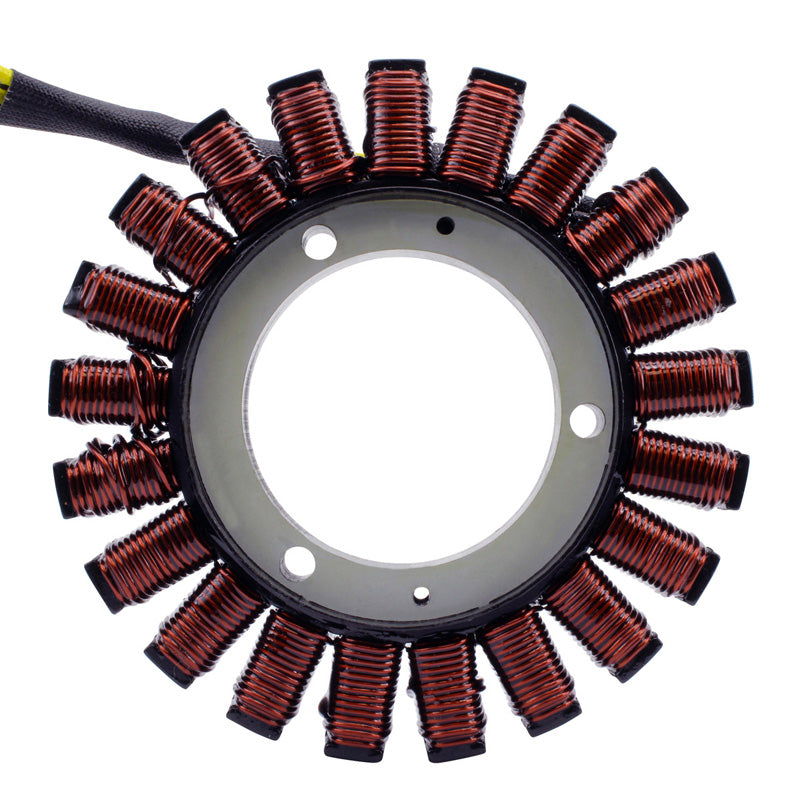

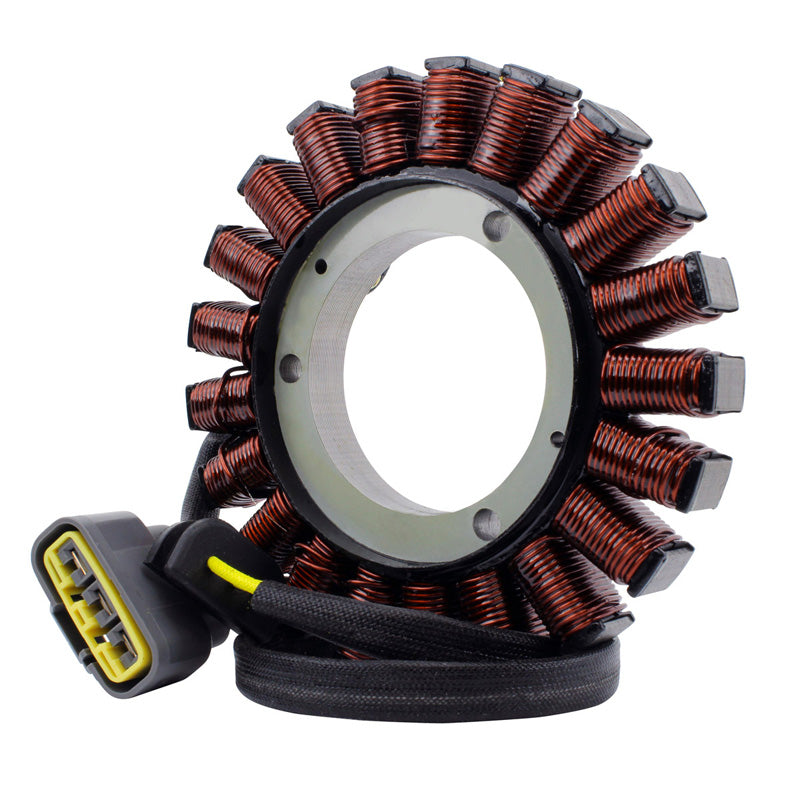

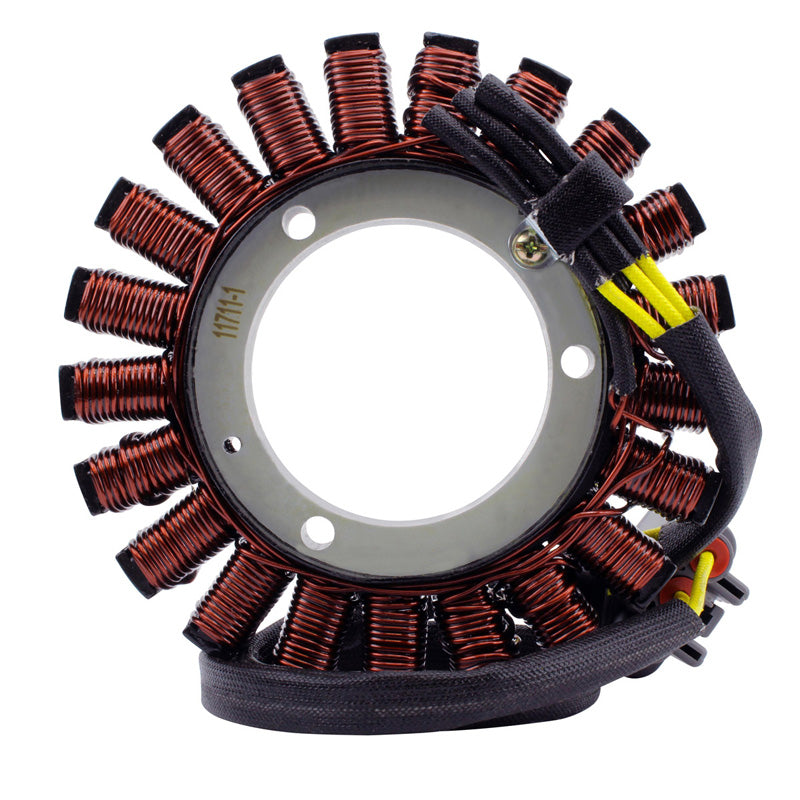

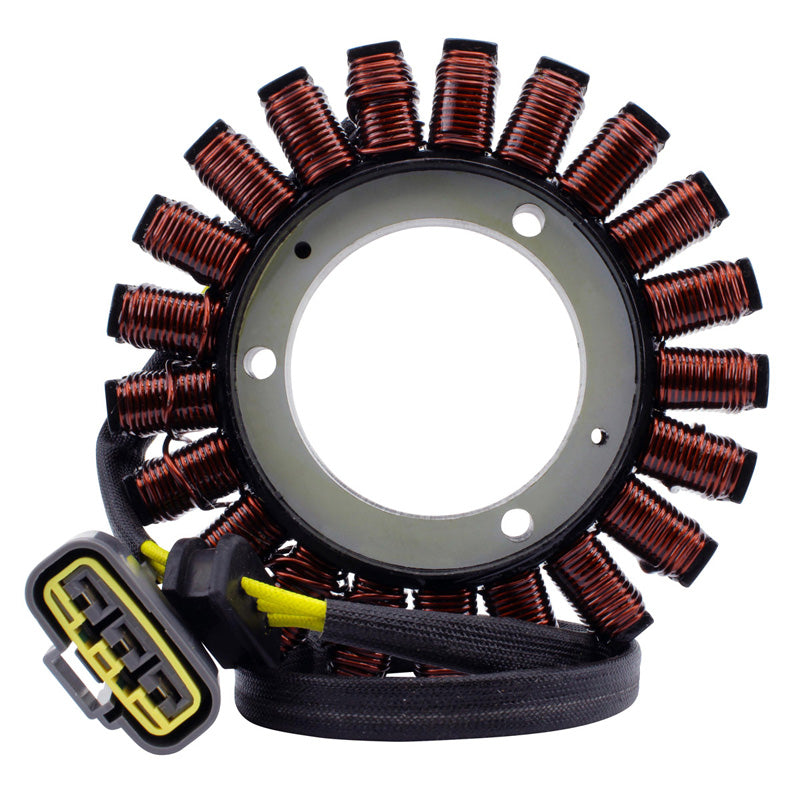

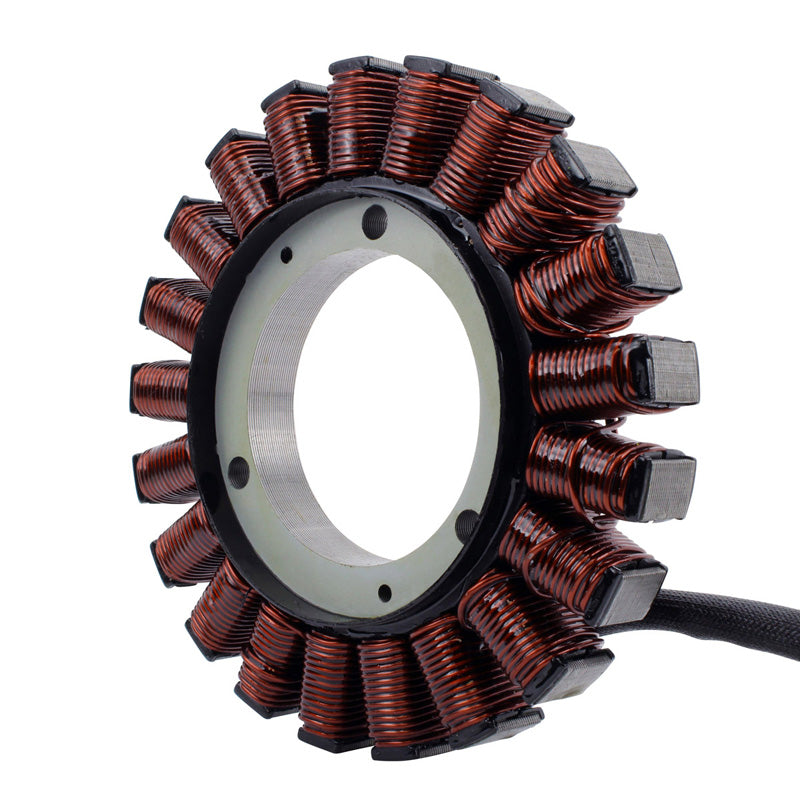

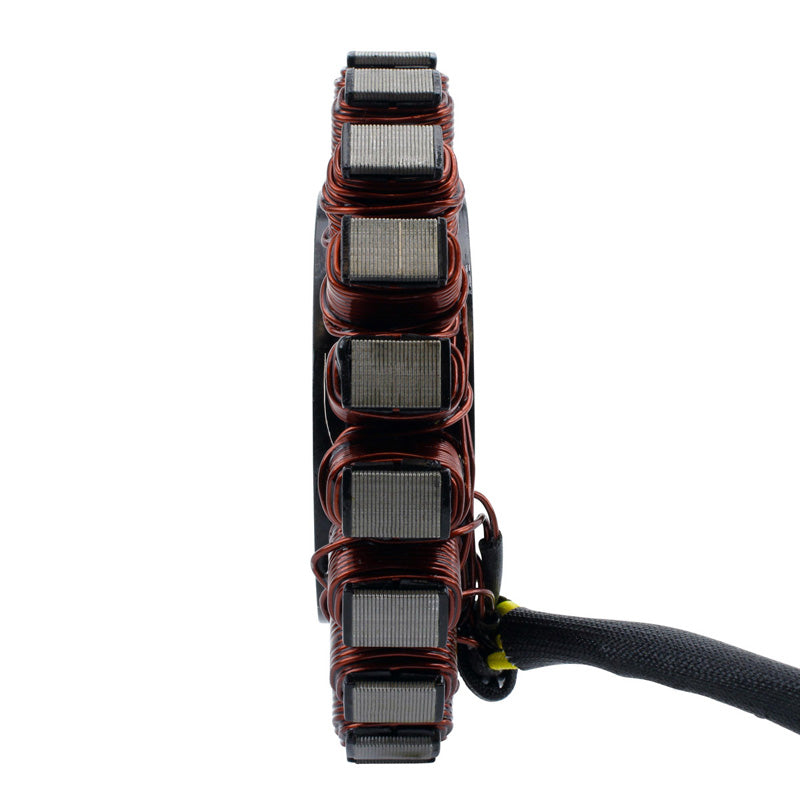

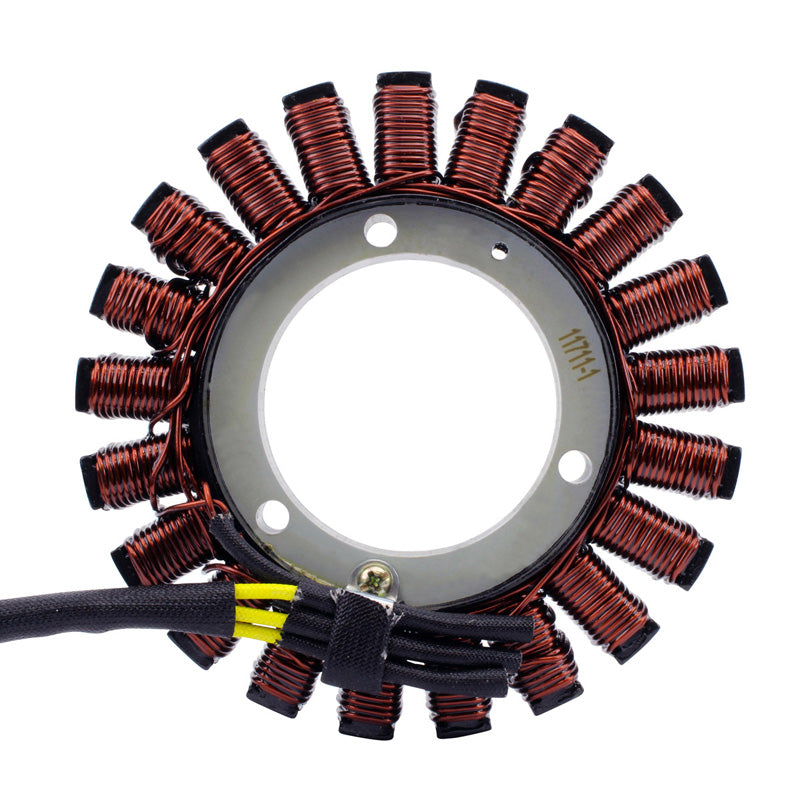

RMS STATOR BMW R1200 GS|R1200 R|R1200 RS 2012-18 RMS010-105024

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.

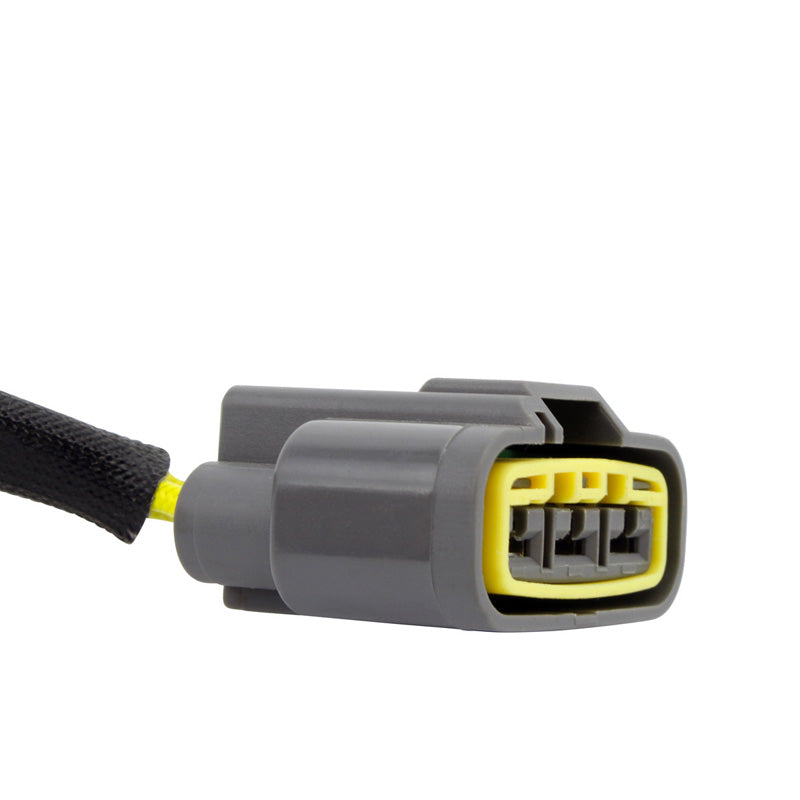

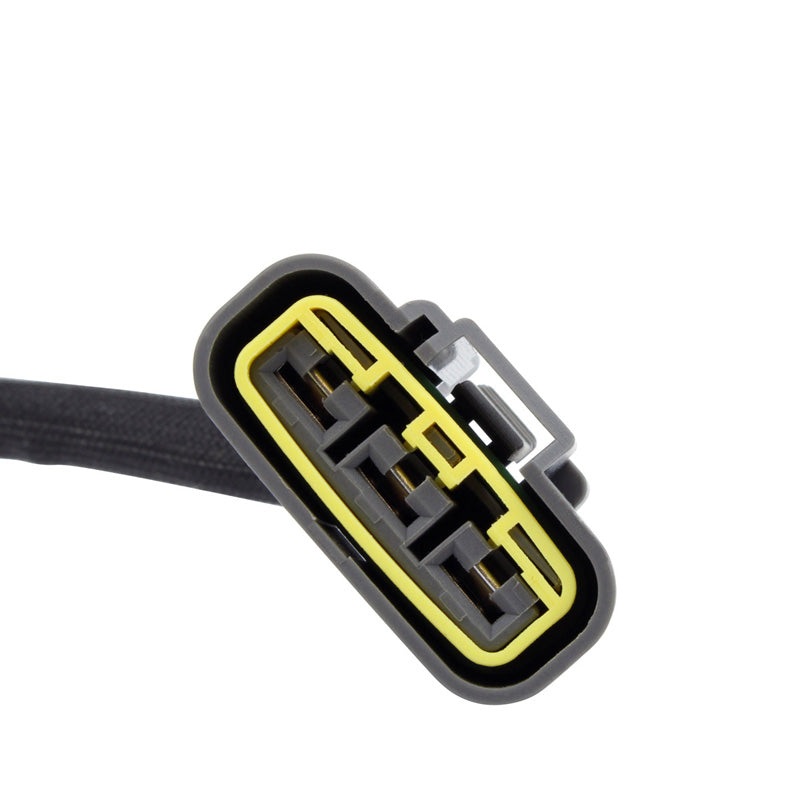

• Connectors included

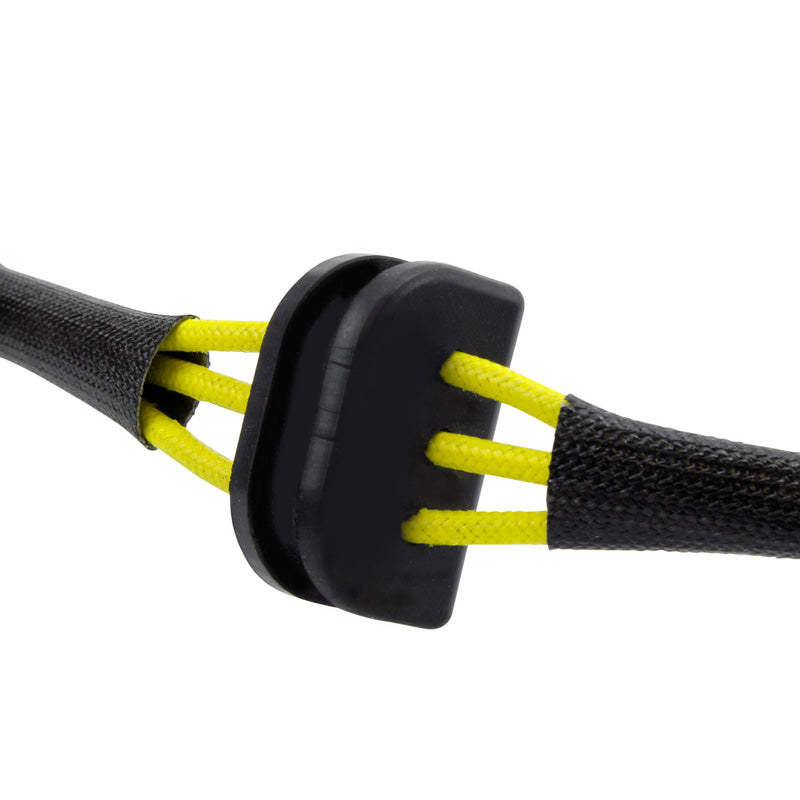

• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 60 mm
Exterior diameter :133 mm
Thickness : 18 mm
Length of wires stator to grommet : 68 mm
Length of wires grommet to plug : 470 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 21

Wire to wire resistance :
Alternator 3p : Between each Yellow = 0.4 ohms +-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt, charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
