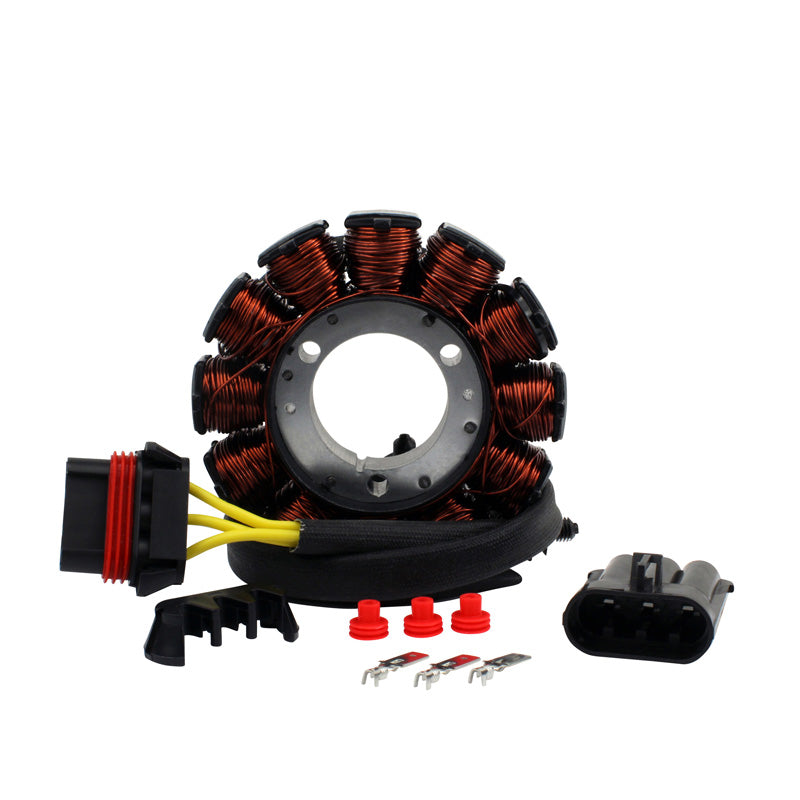

RMS STATOR CAN-AM DEFENDER 20-25 RMS010-108471

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials.
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Connectors included.
• Rubber grommet included.
• All products shipped are tested.

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

• Dimensions:
  • Interior diameter: 42 mm
  • Exterior diameter: 115 mm
  • Thickness: 16 mm
• Length of wires stator to grommet: 150 mm
• Length of wires grommet to plug: 720 mm
• Other specifications:
• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3
• Number of poles: 12
• Wire to wire resistance:
• Alternator: Yellow to Yellow = 0.5 ohms +/-20%
