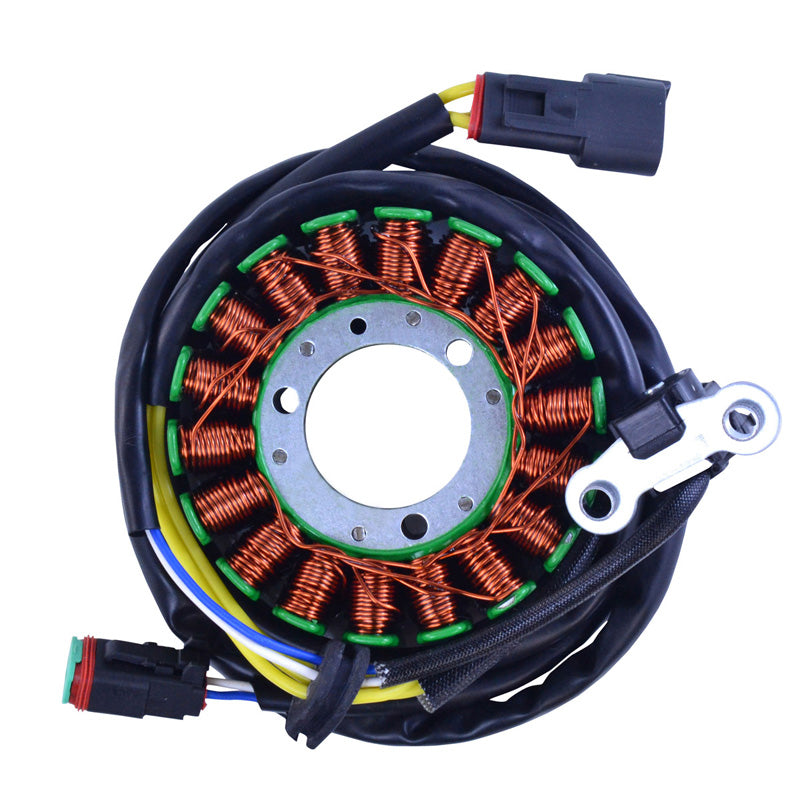

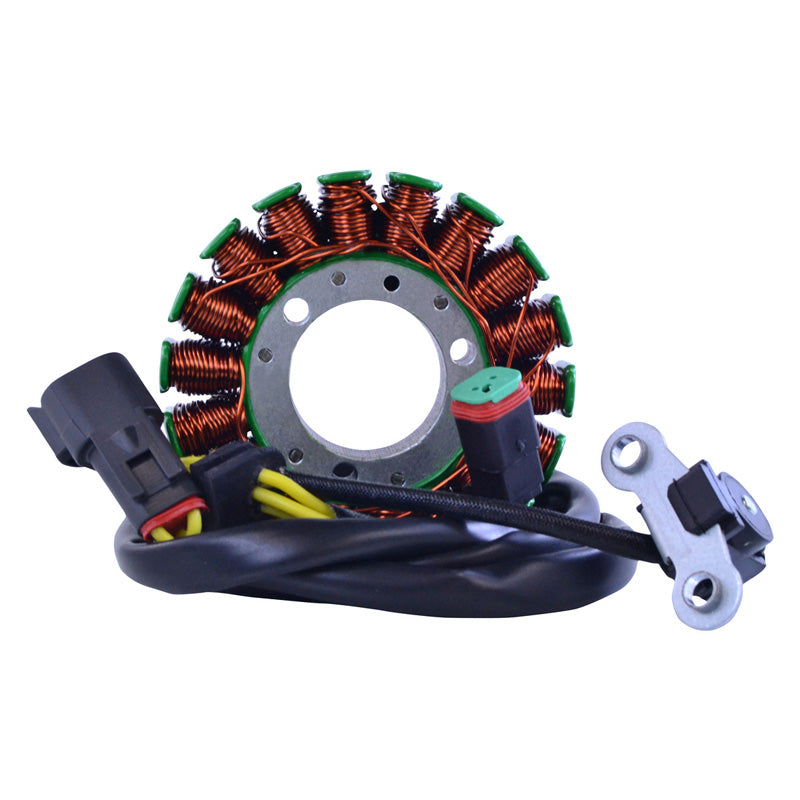

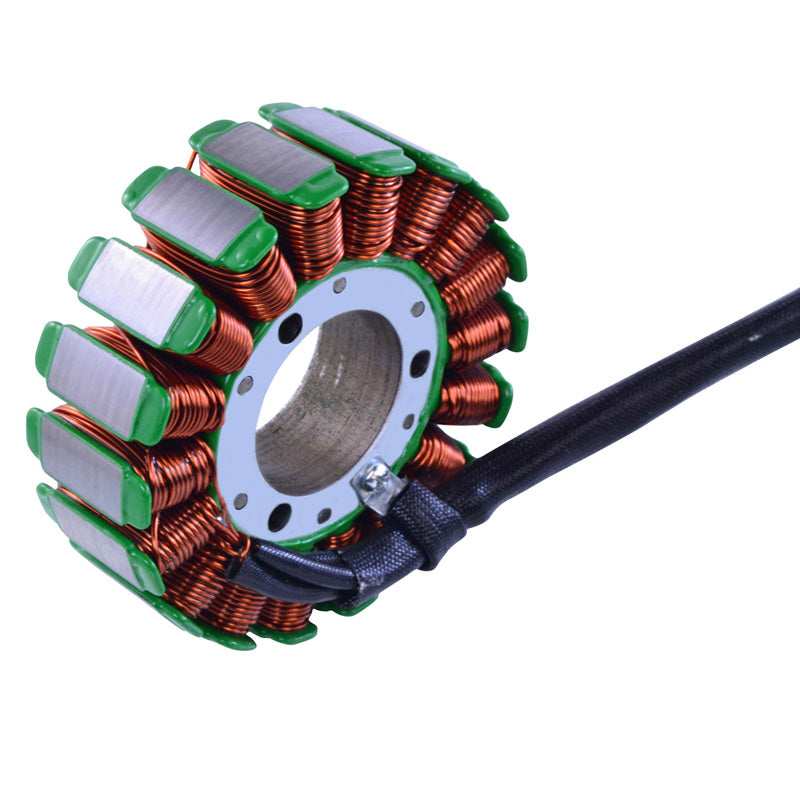

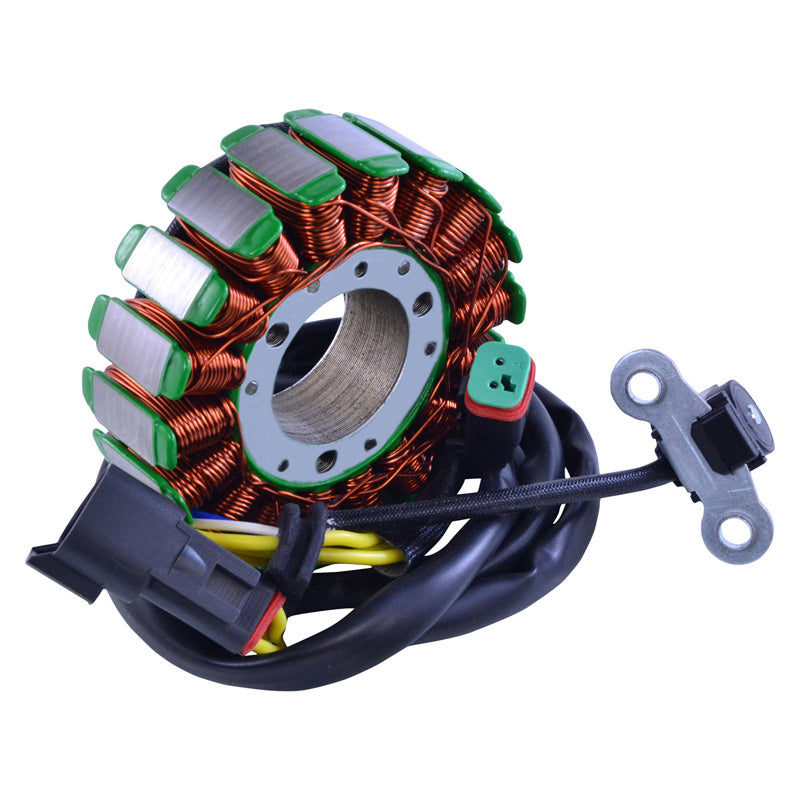

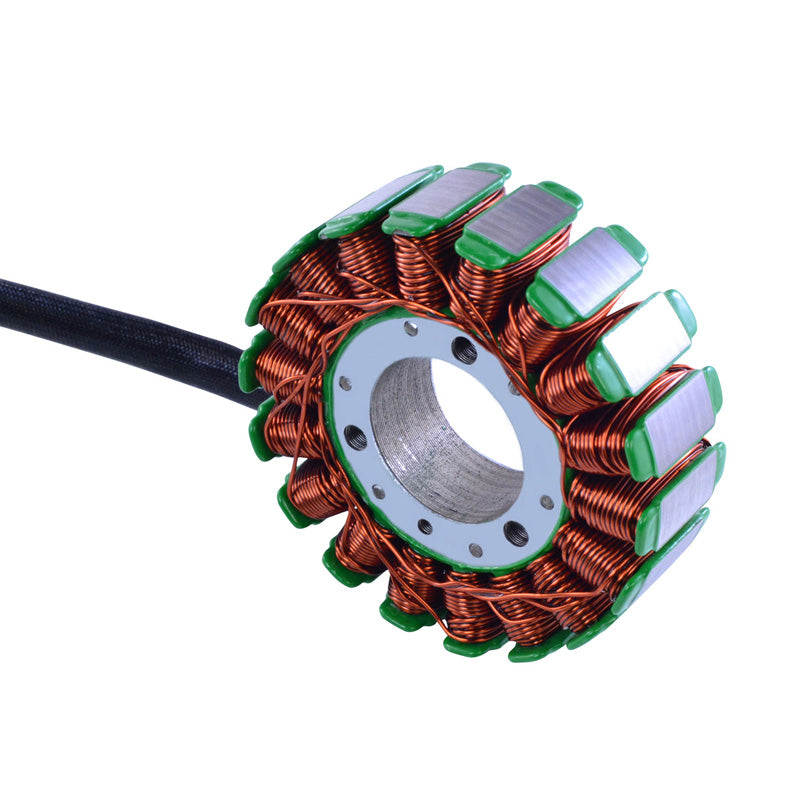

Highest grade copper windings, resistant to 200 degrees Celsius.

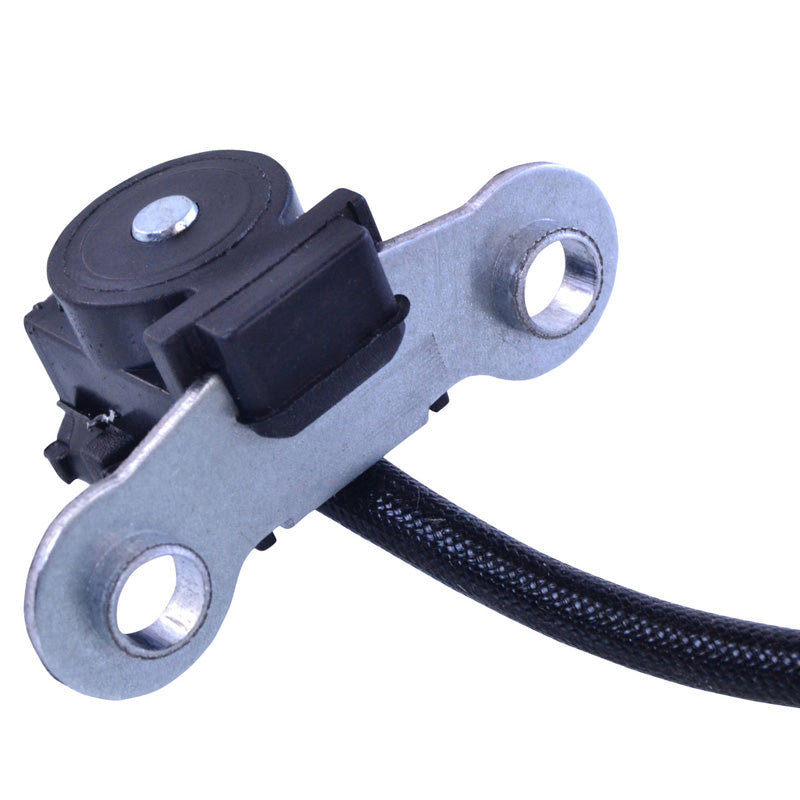

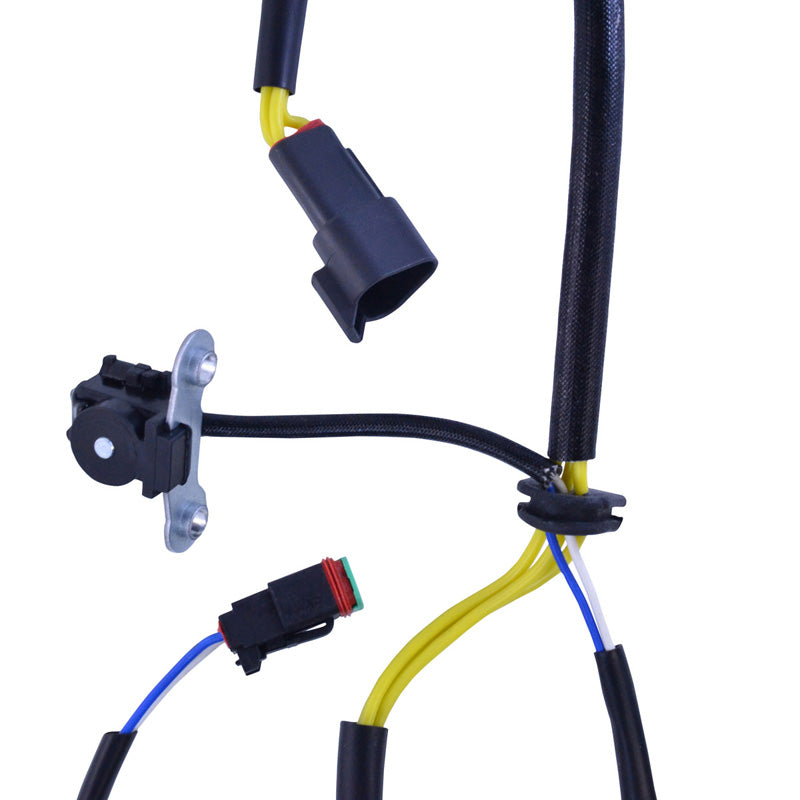

Pick up pulsar coil included

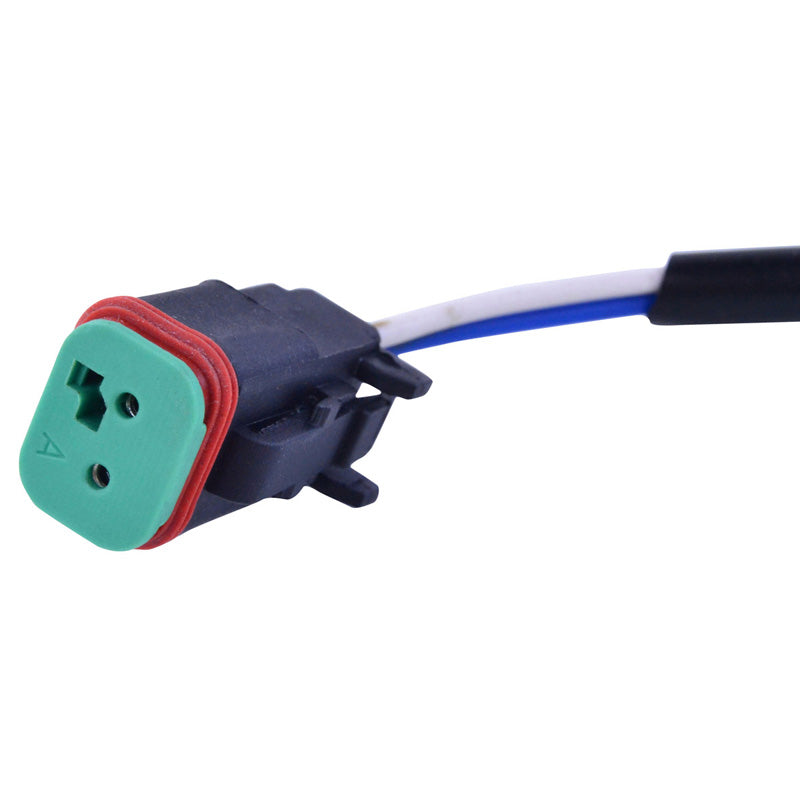

Connector included
Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

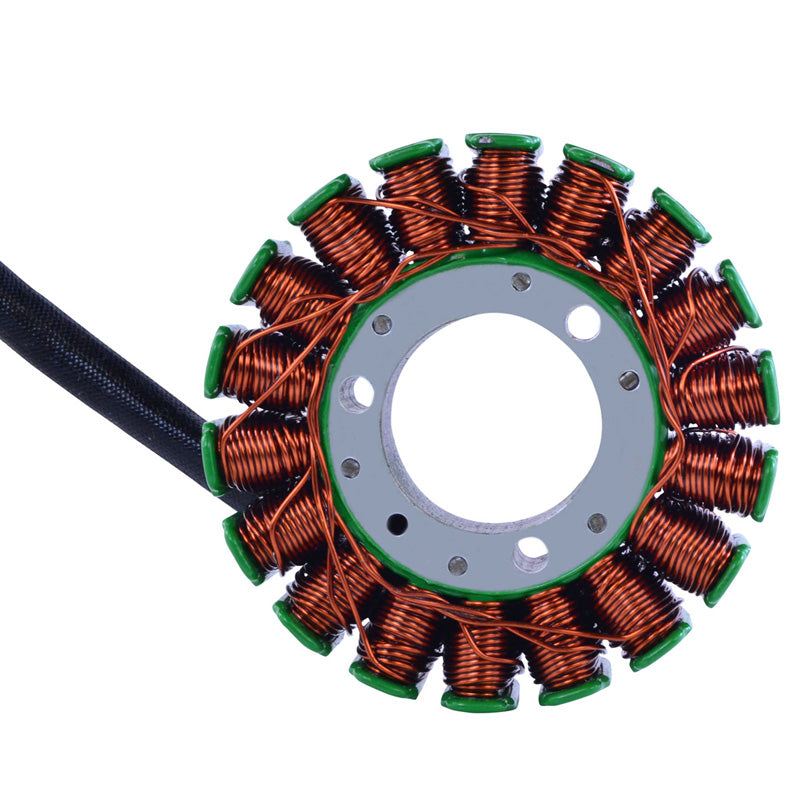

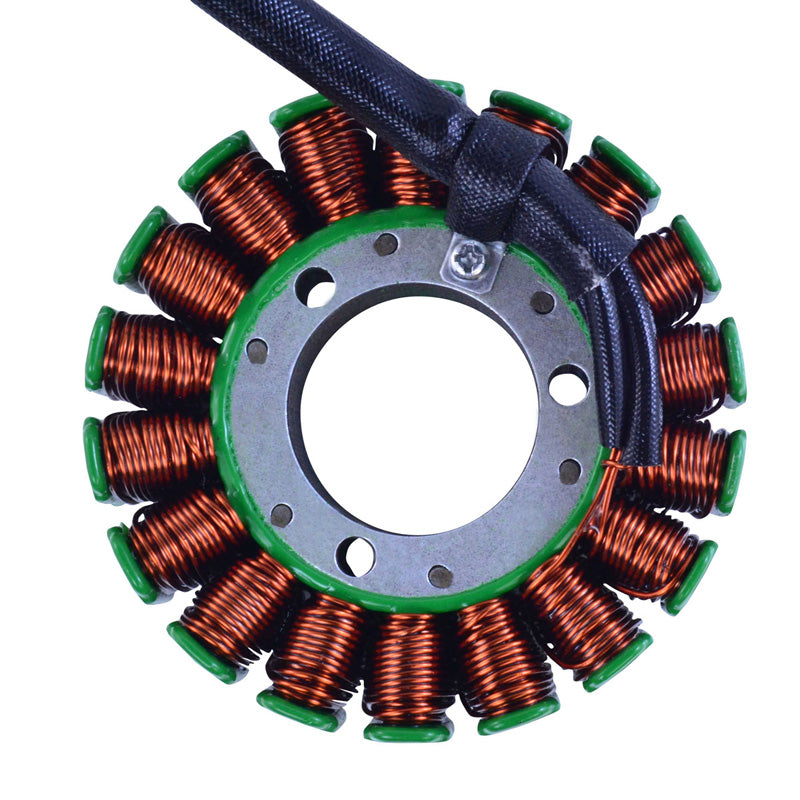

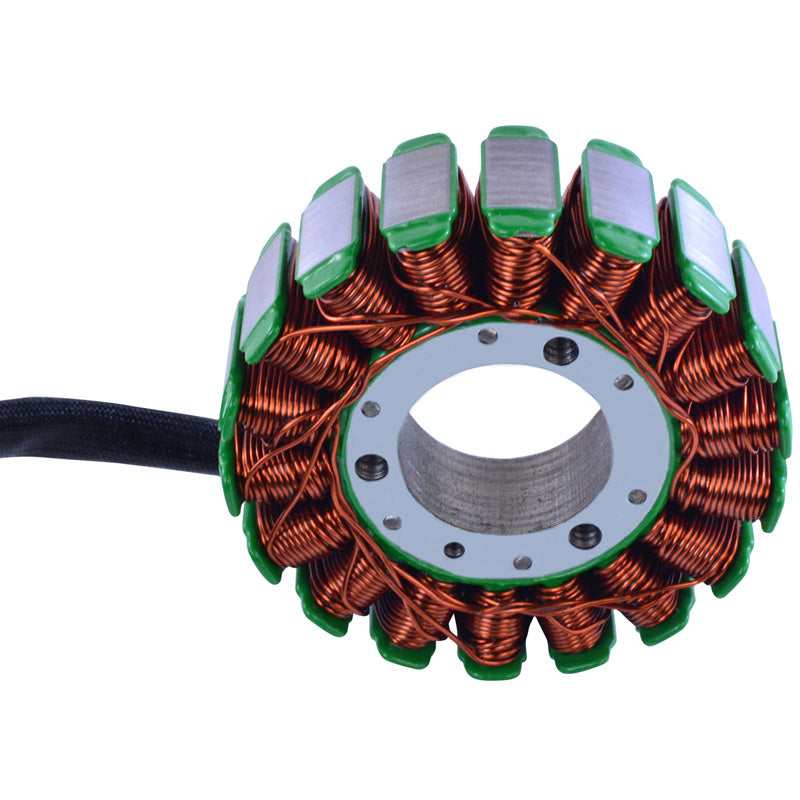

Specifications:
Dimensions :
Interior diameter : 35 mm
Exterior diameter : 93 mm

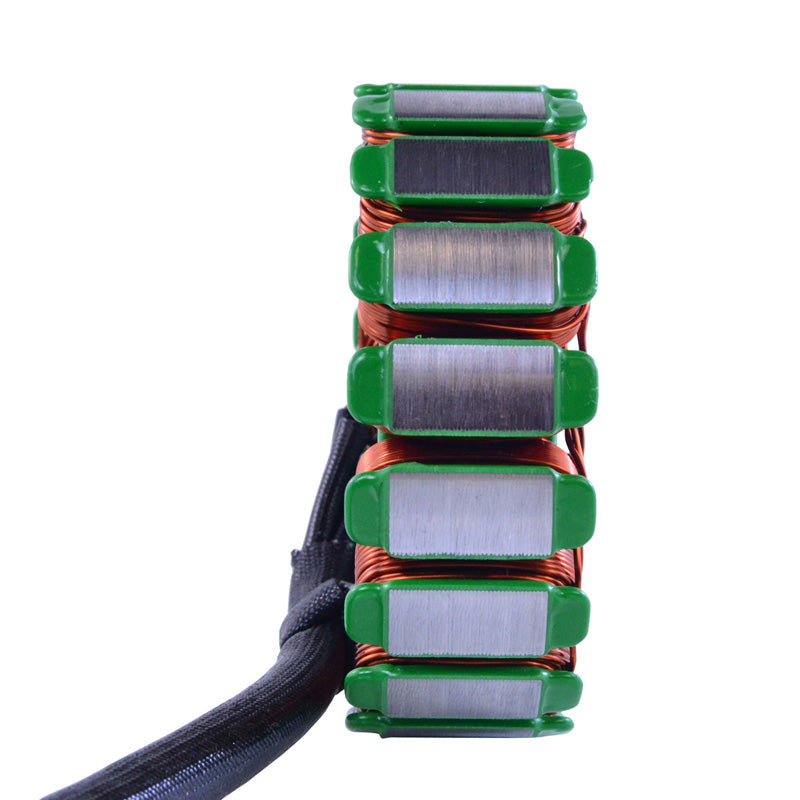

Thickness : 22 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 931 mm and 420 mm
Length of pickup coil's wire to grommet : 60 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4 ohms +-20%
Pickup : Between Blue and White = 250 ohms +-20%
Alternator to ground = O.L
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
