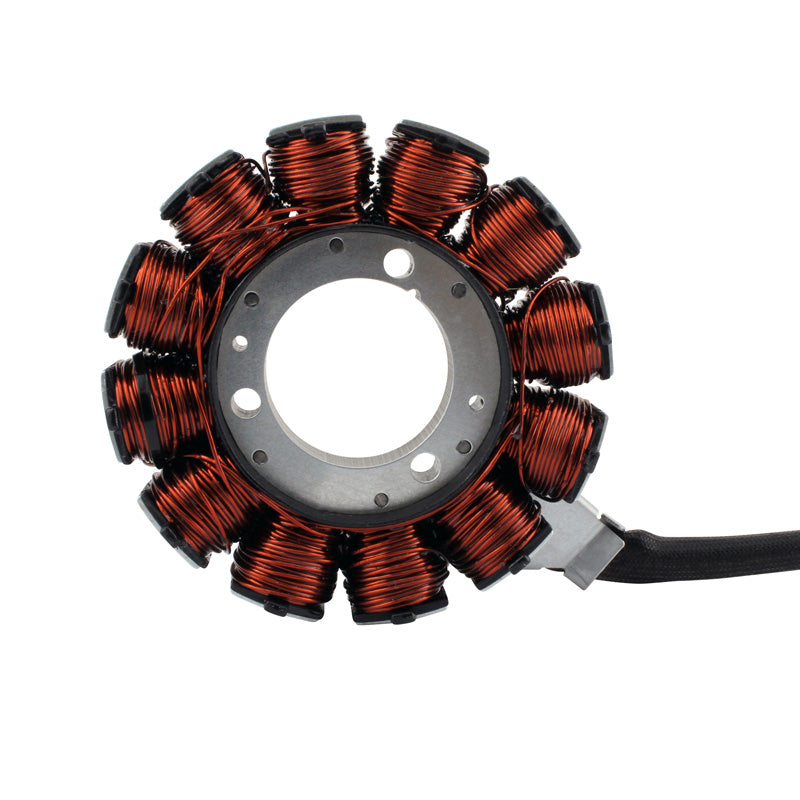

RMS STATOR CAN-AM MAVERICK 1000 21-24 RMS010-108366
RMS STATOR CAN-AM MAVERICK 1000 21-24 RMS010-108366
Regular price
$295.99 CAD
Regular price
Sale price
$295.99 CAD
Quantity
Couldn't load pickup availability
RMS STATOR CAN-AM MAVERICK 1000 21-24 RMS010-108366
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials.
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Connectors included.
- Rubber grommet included.
| Interior diameter | 42 mm |
| Exterior diameter | 115 mm |
| Thickness | 17 mm |
| Length of wires stator to grommet | 280 mm |
| Length of wires grommet to plug | 995 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Number of poles | 12 |
| Wire to wire resistance | |
| Alternator: Yellow to Yellow | 0.3 ohms +/-20% |
| Alternator: Yellow to ground |
O.L |
