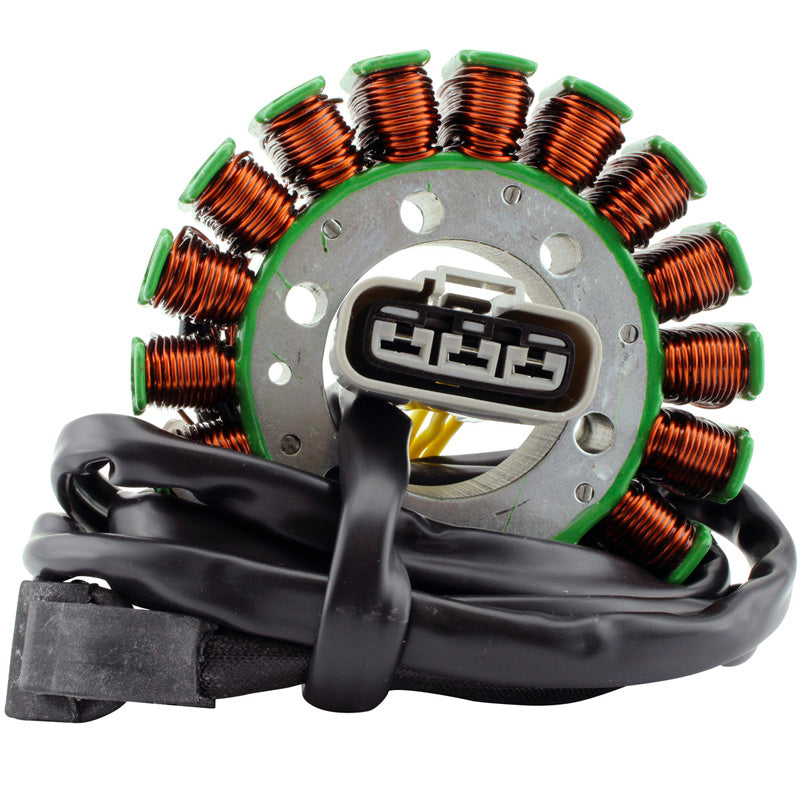

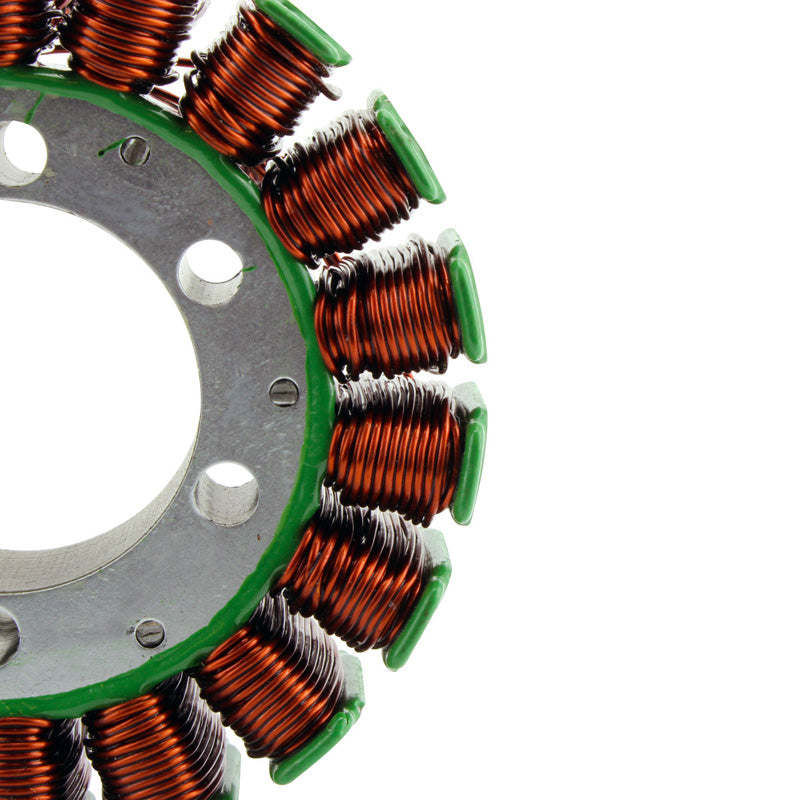

Highest grade of copper winding, resistant to 200 degrees Celsius

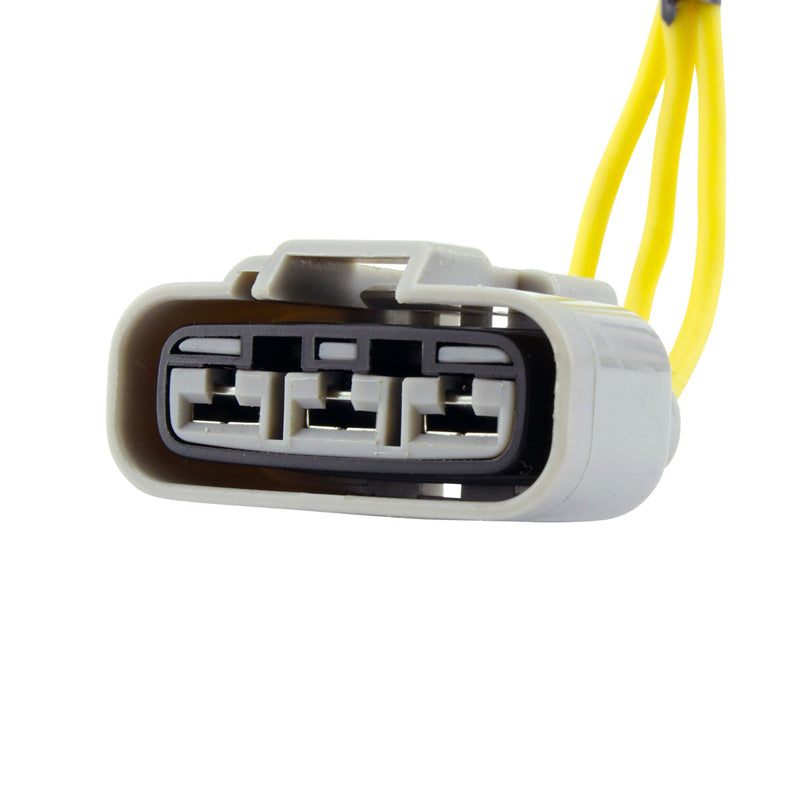

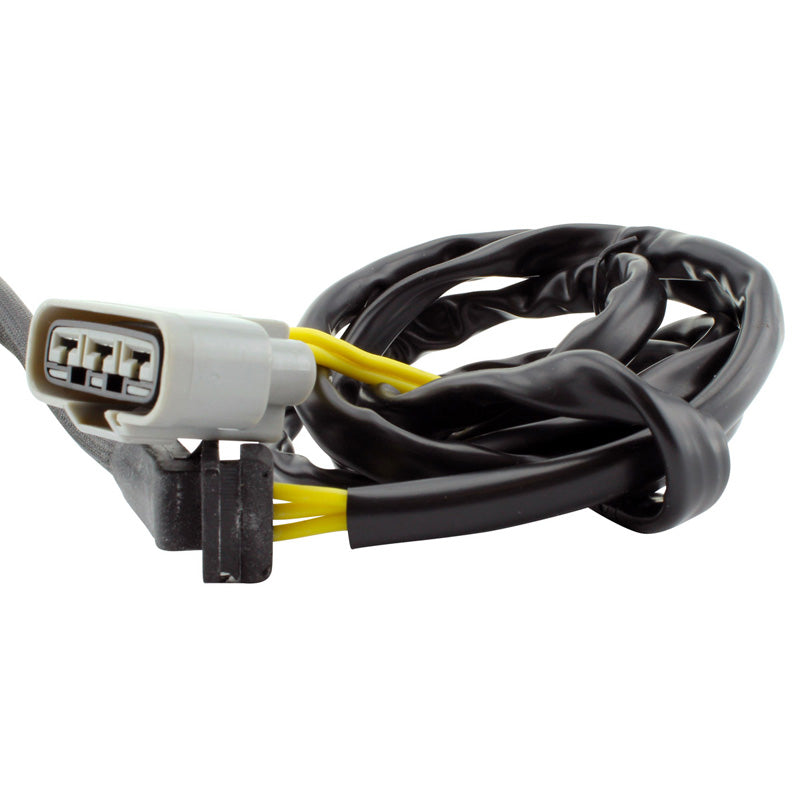

Connectors included

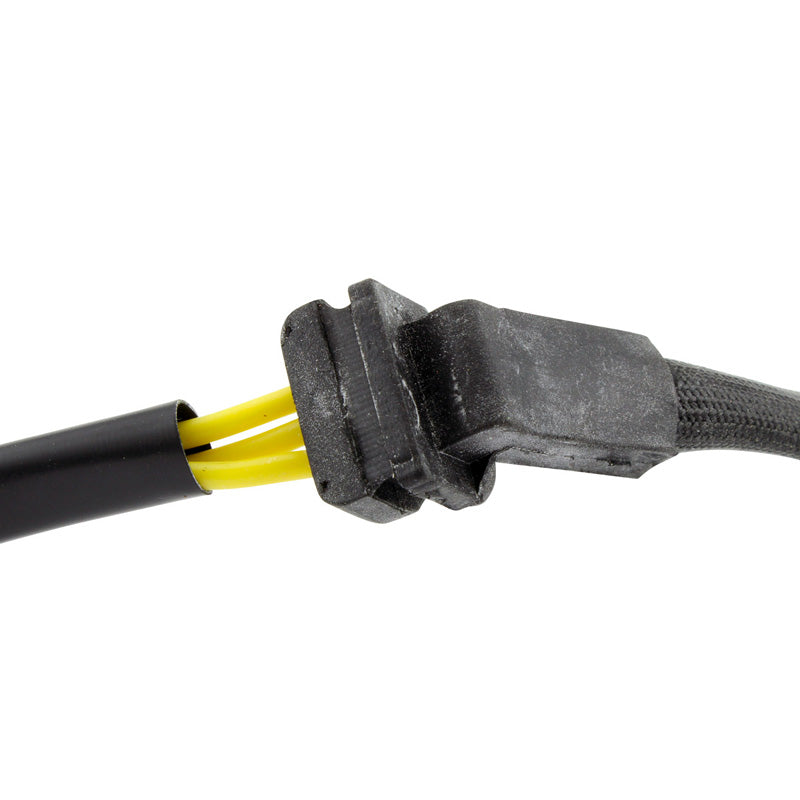

Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 104 mm
Thickness : 24 mm
Length of wires stator to grommet : 155 mm
Length of wires grommet to plug : 1420 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18
Alternator :Yellow to Yellow = 0.7 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
Fitment notice:
Please Note There are two possible stator for most of the Outlander models from 2016 through 2019. This stator is for all the models but the standard packages.
