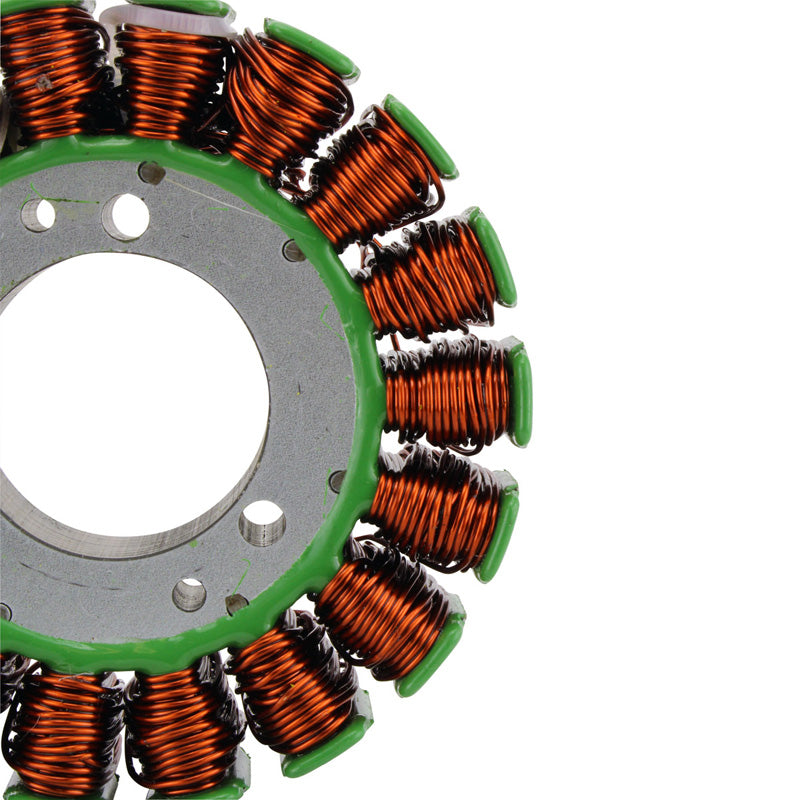

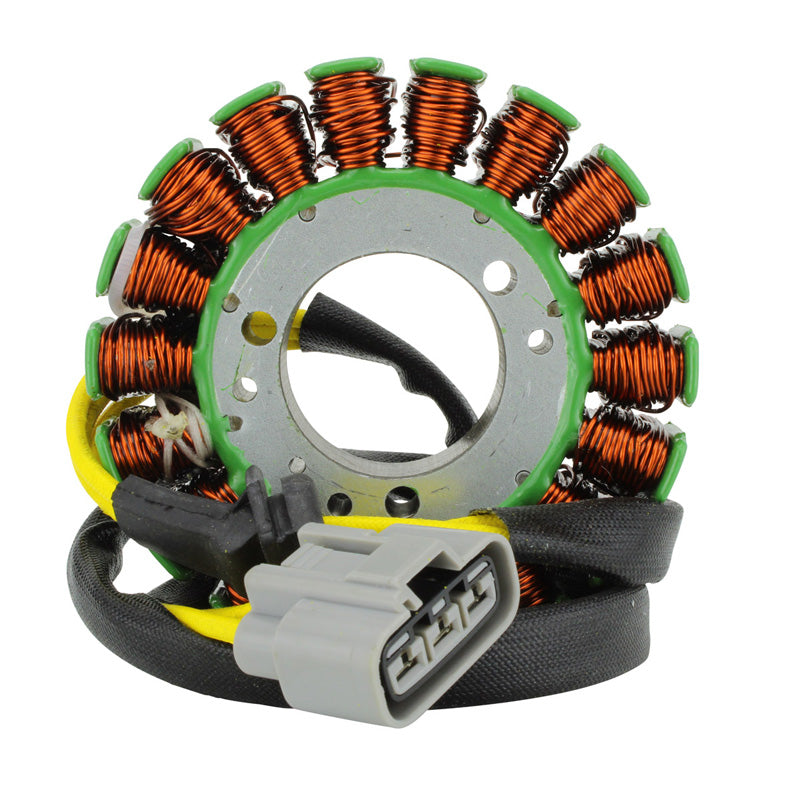

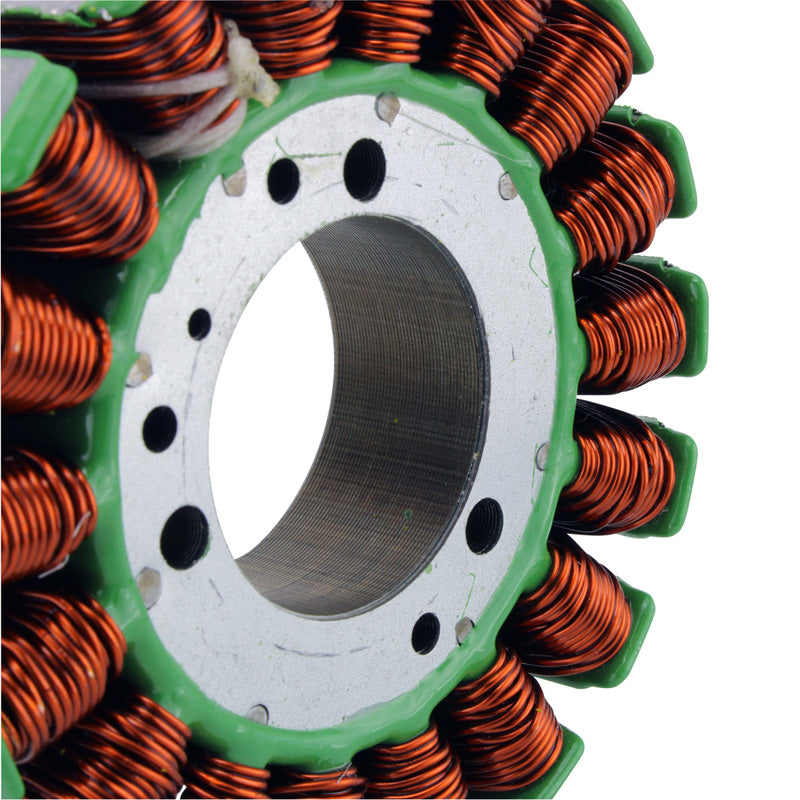

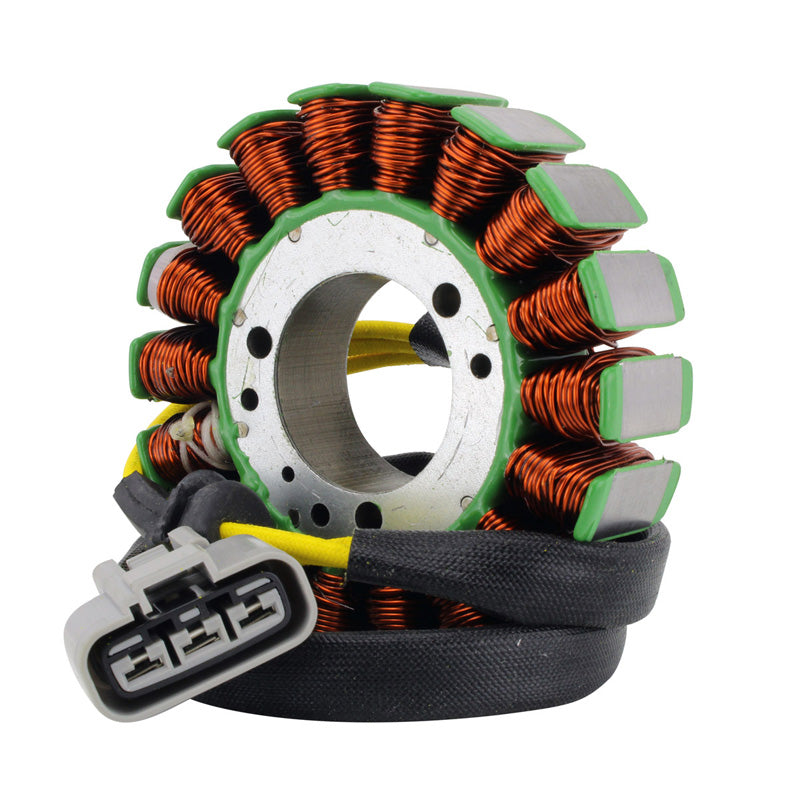

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

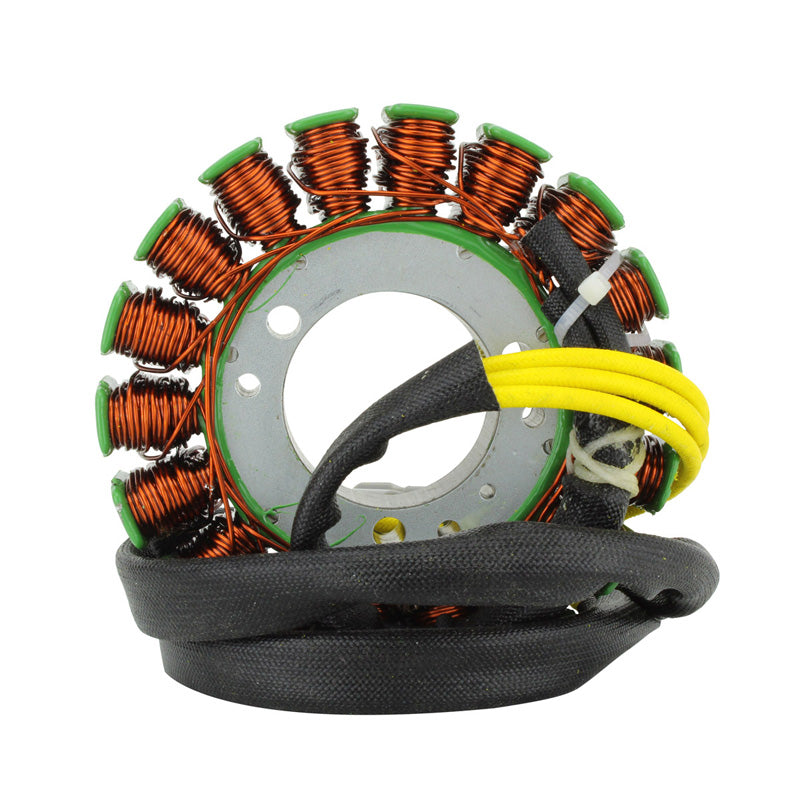

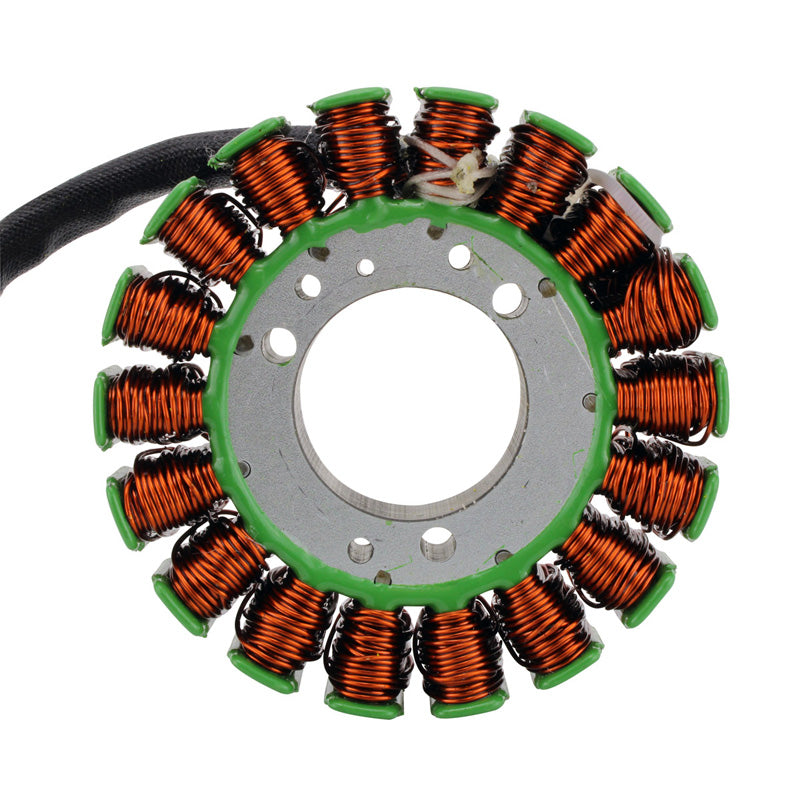

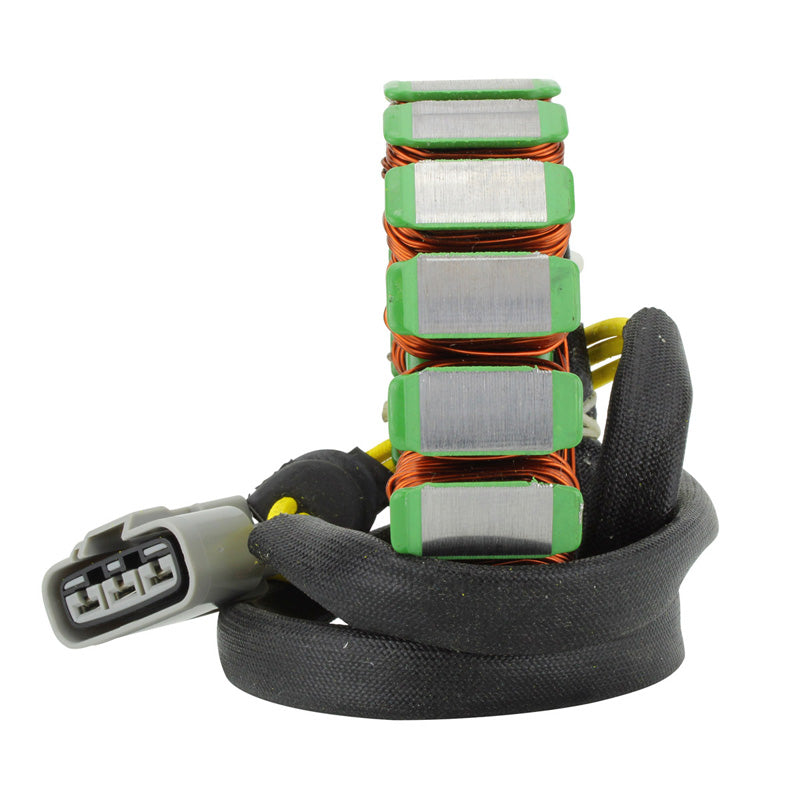

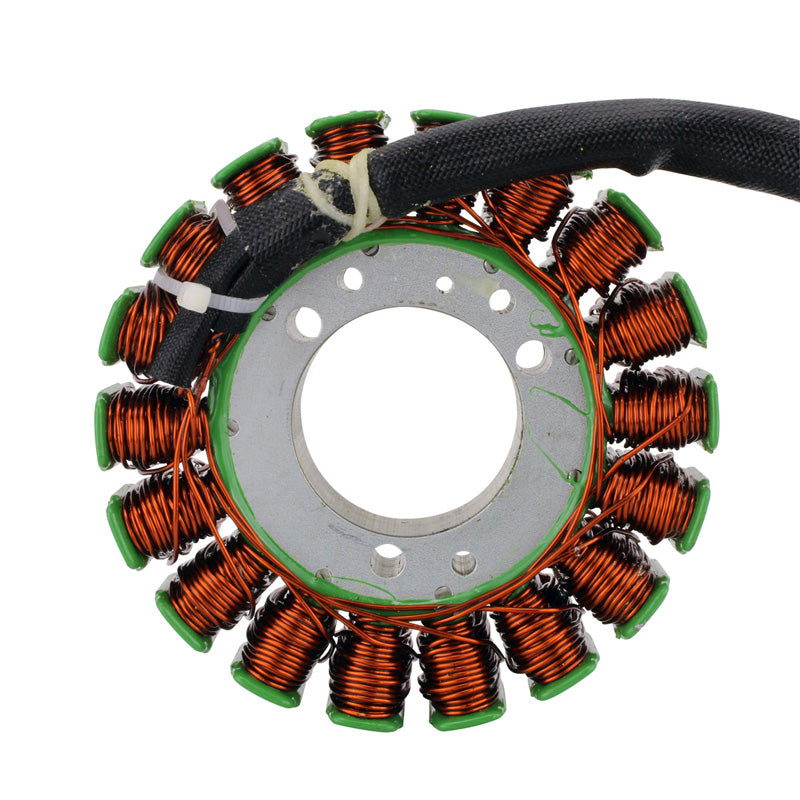

Specifications:
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 115 mm

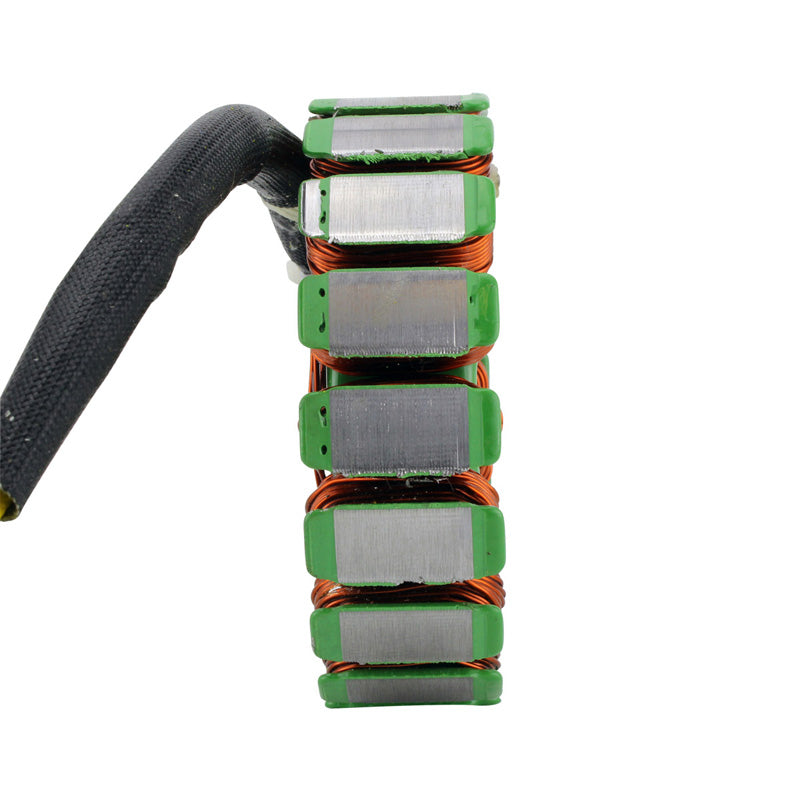

Thickness : 21 mm

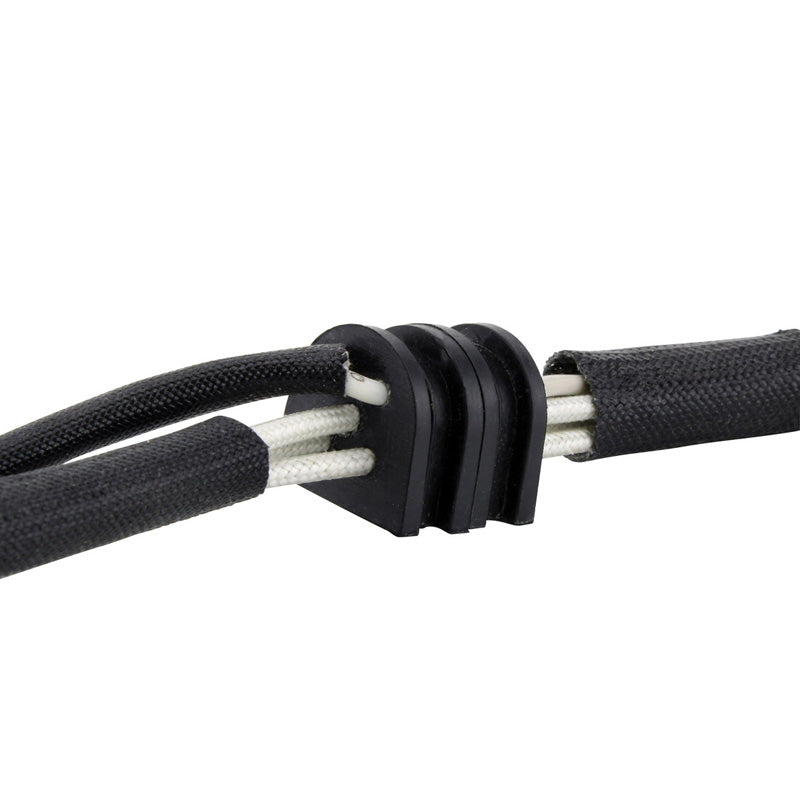

Length of wires stator to grommet : 145 mm
Length of wires grommet to plug : 580 mm
Other specifications :
Number of wires : 3

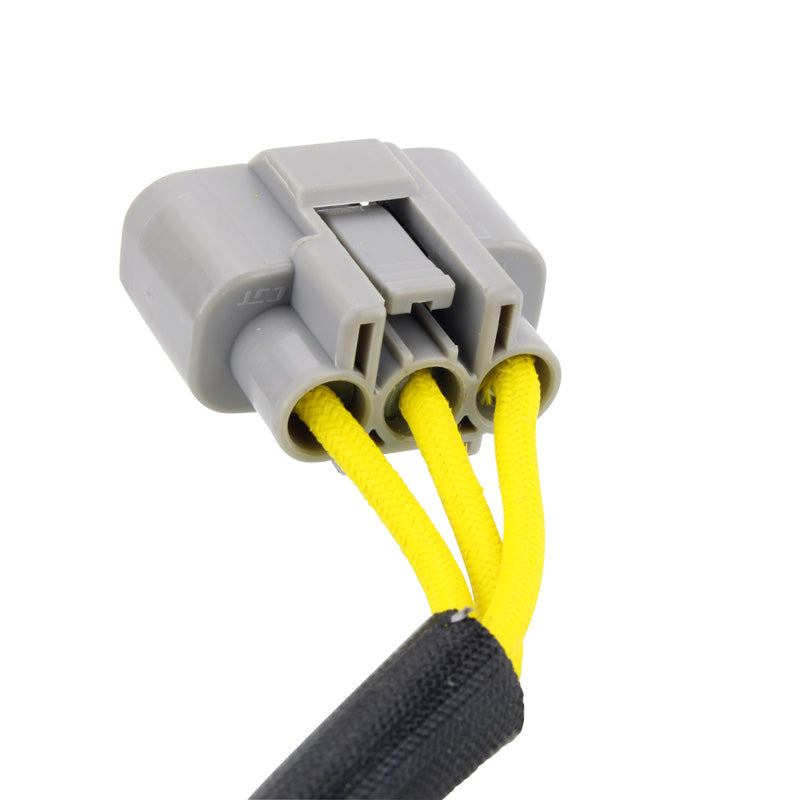

Number of plugs : 1
Number of pins : 3
Number of poles : 18
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.5 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
