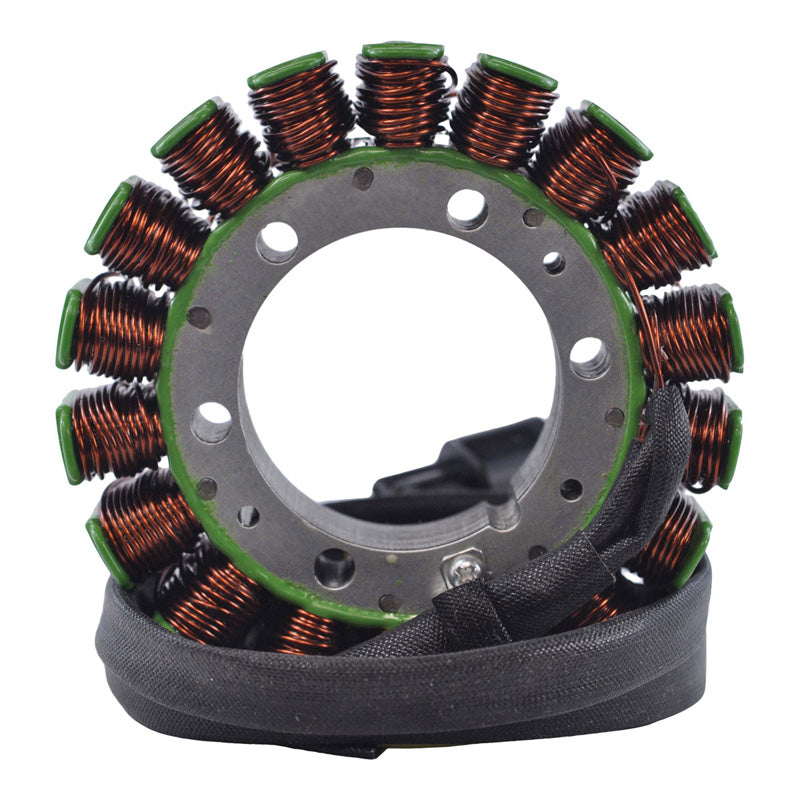

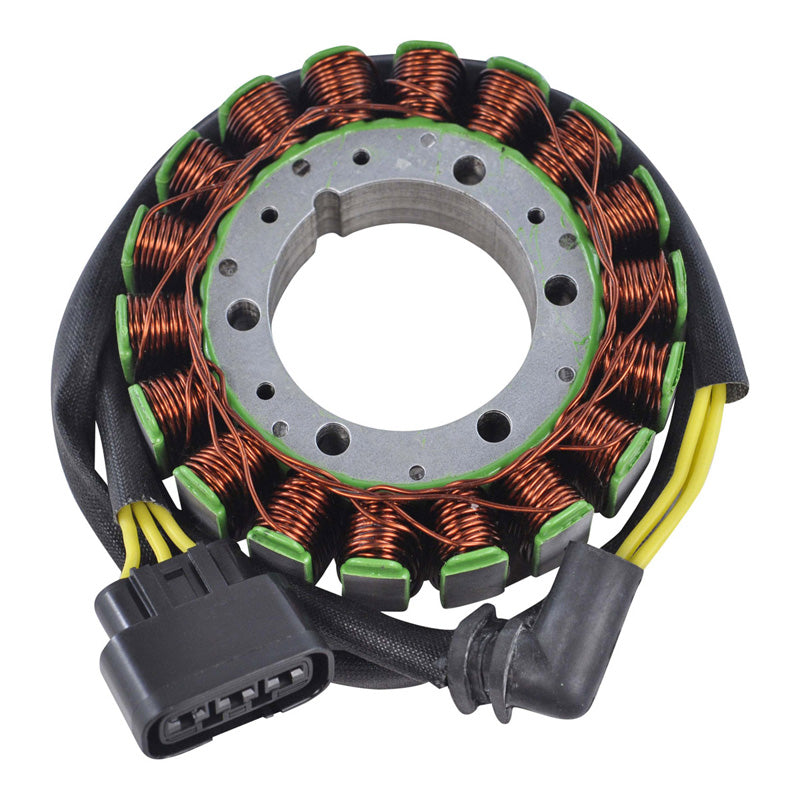

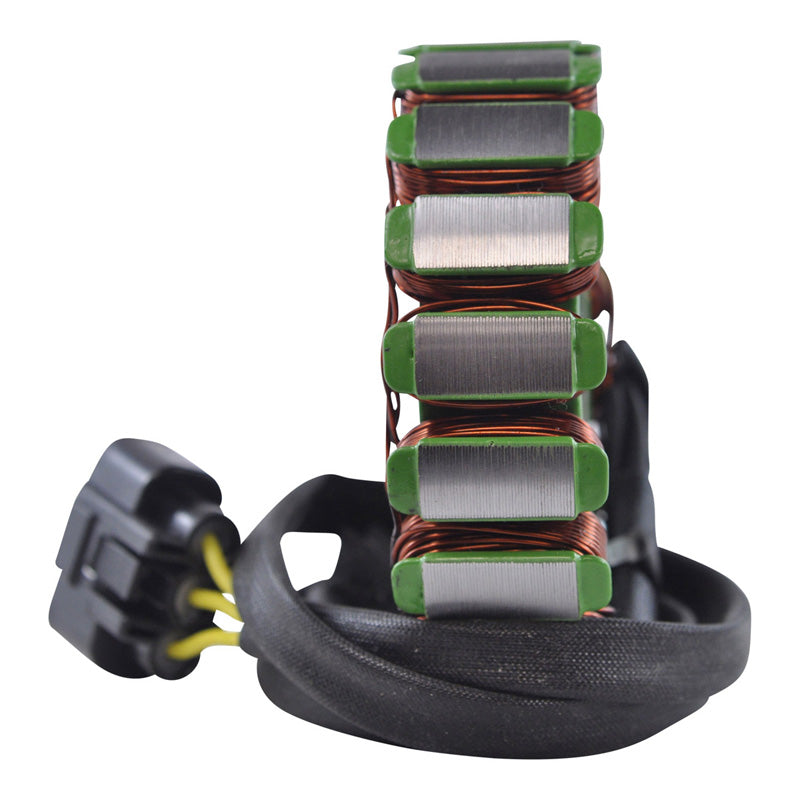

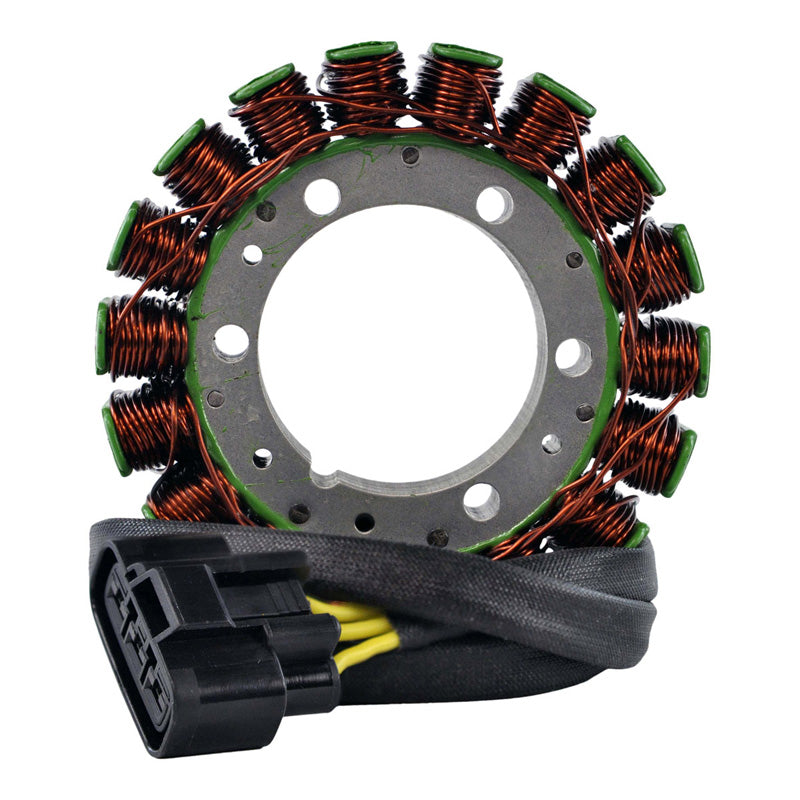

Highest grade copper windings, resistant to 200 degrees Celsius.

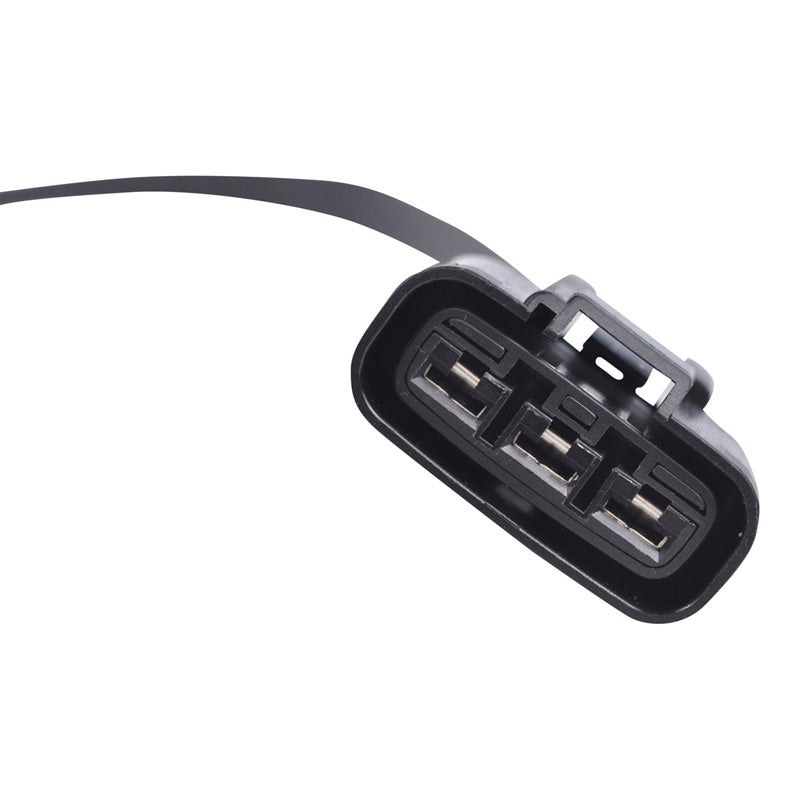

Connector included
Rubber grommet included
All product shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimension :
Interior diameter = 54 mm
Exterior diameter = 115 mm
Width = 25 mm
Other specifications :
Number of wires = 3
Number of plug = 1
Number of terminals = 3
Harness length Stator to grommet = 140 mm
Harness length grommet to plug = 780 mm
Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.5 ohms +/- 20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
