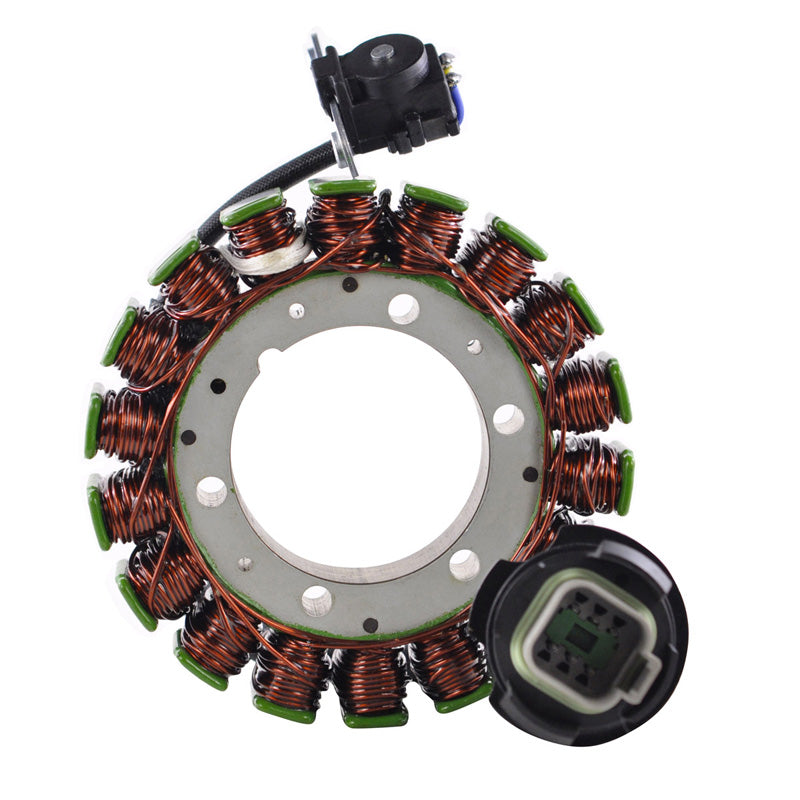

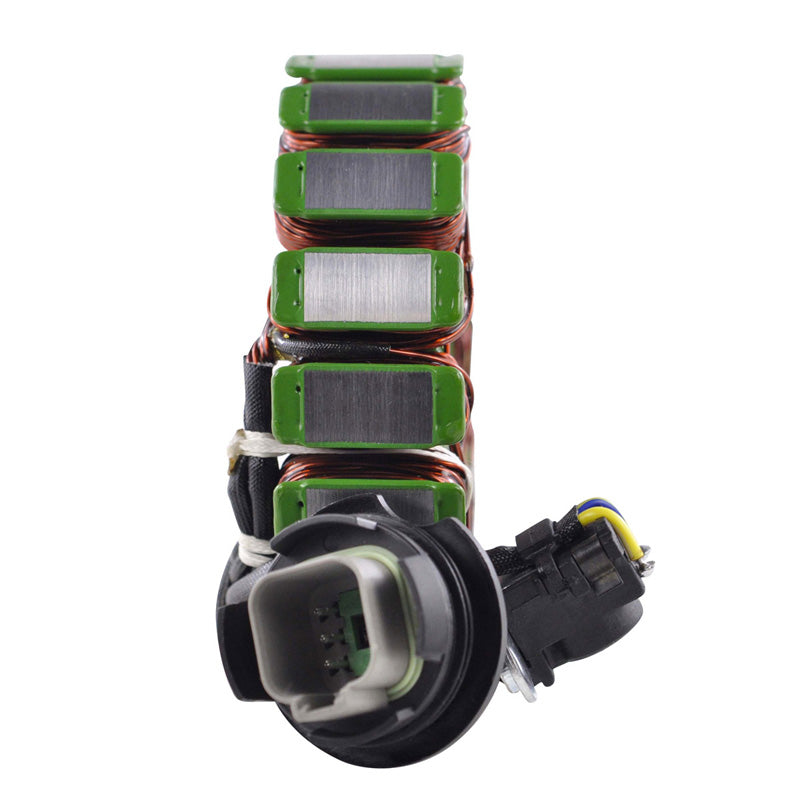

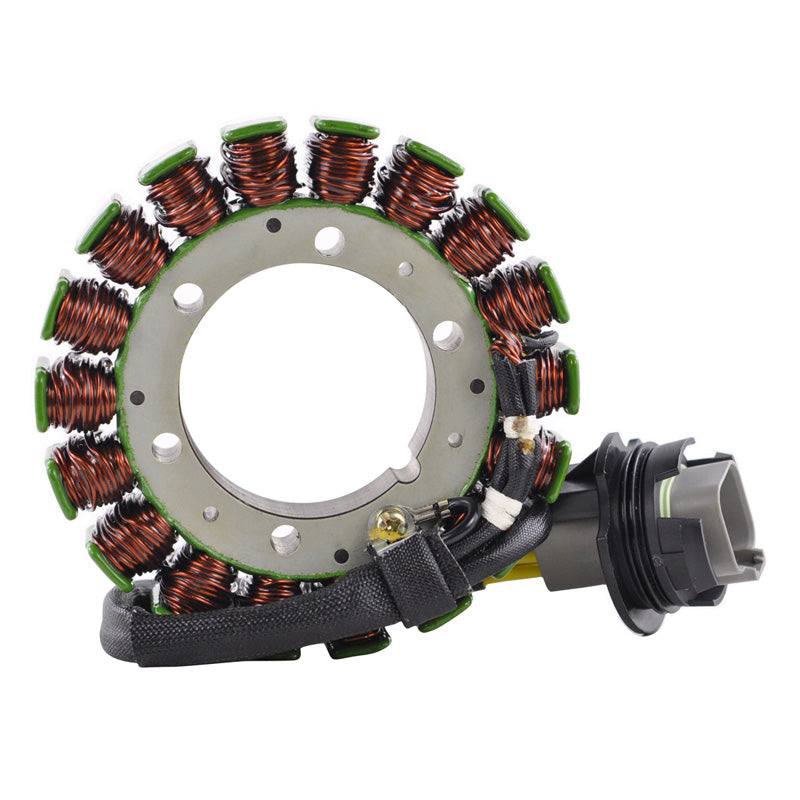

RMS STATOR CAN-AM TRAXTER 500/650 CC 99-05 RM01338

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

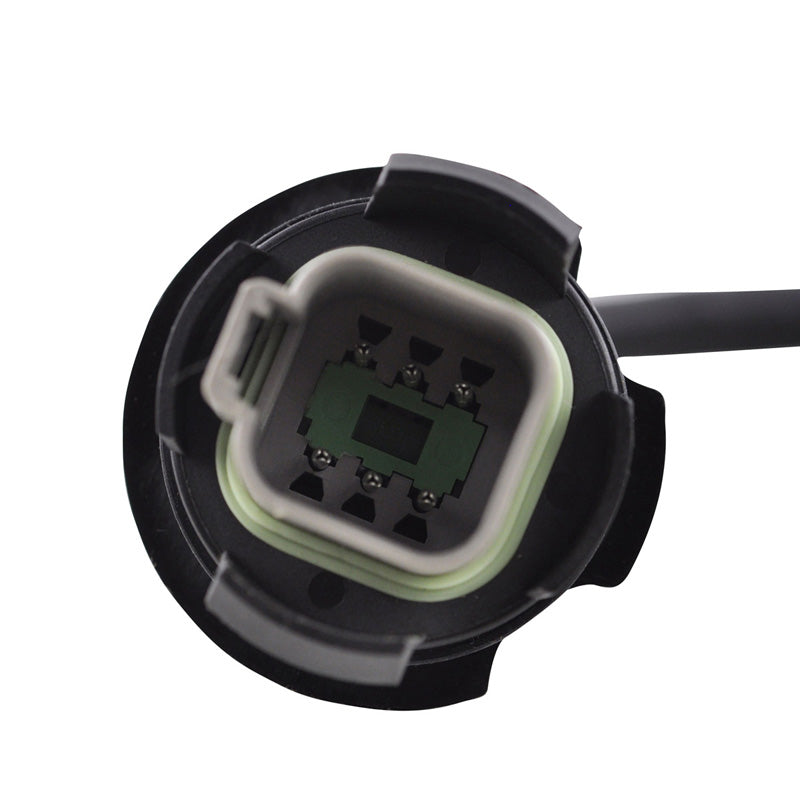

• Connector included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 53 mm
Exterior diameter : 115 mm
Thickness : 24 mm
Length of Stator to plug : 183 mm
Length of pickup coil's wire to stator : 70 mm

Other specifications :
Number of wires : 6
Number of plugs : 1
Number of pins : 6

Alternator :Yellow between each Yellow = 0.4 ohms +-20%
Pickup :Blue to White = 245 ohms +-20%
Other : Black to Ground = O.L. ON DISPLAY

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
