RMS STATOR CF MOTO CF 500|UFORCE 500 07-16 RMS010-100032

RMS STATOR CF MOTO CF 500|UFORCE 500 07-16 RMS010-100032

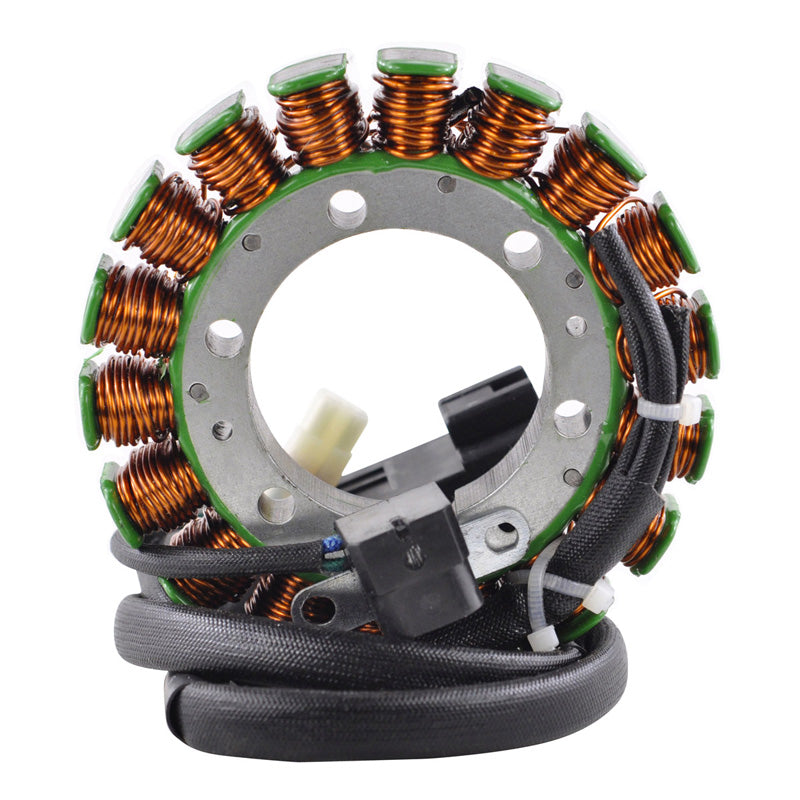

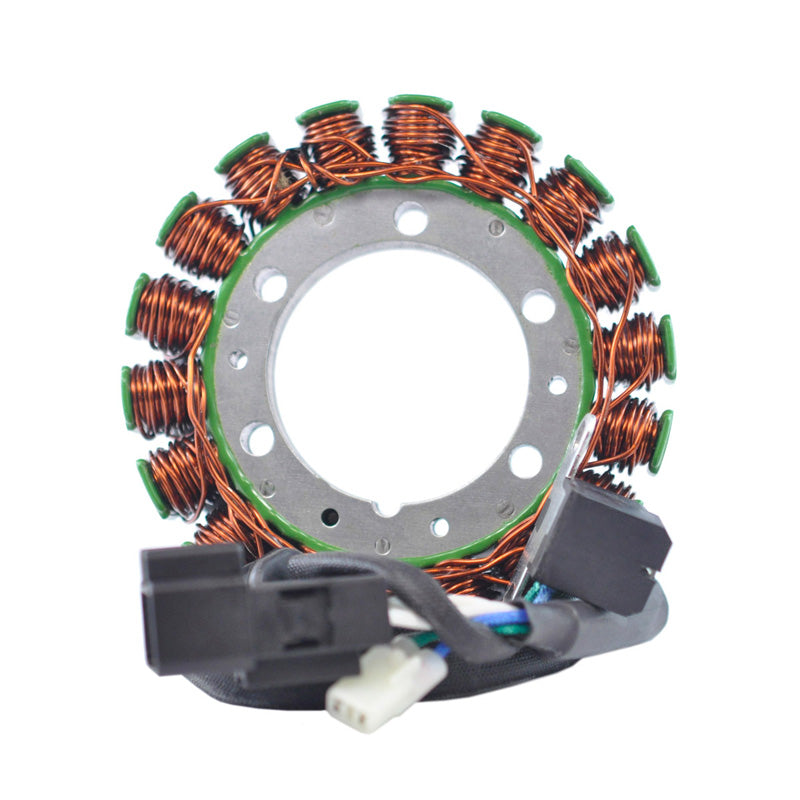

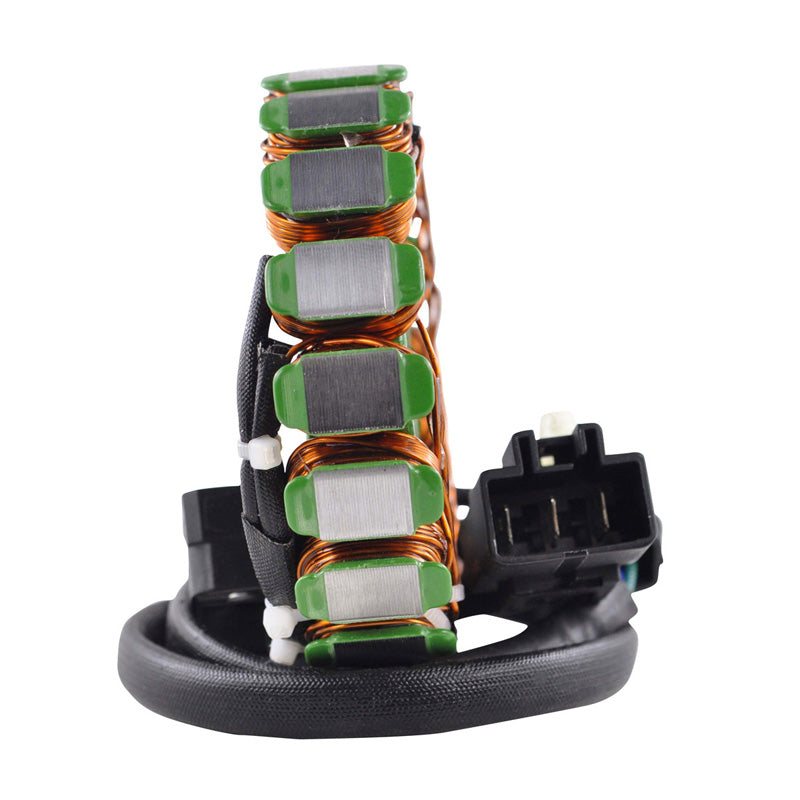

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

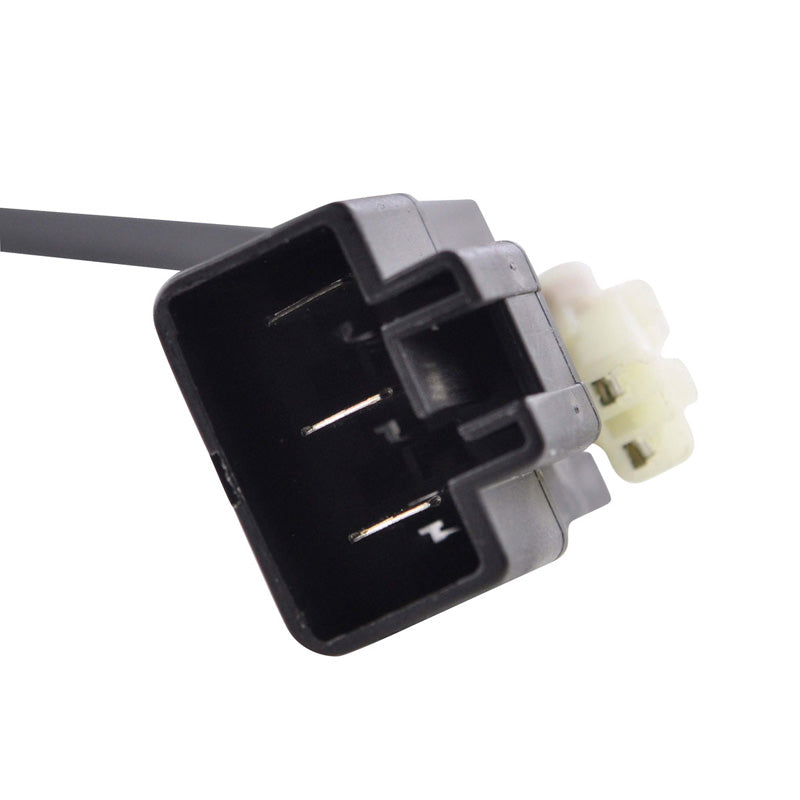

• Connector included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 54mm
Exterior diameter : 115mm
Thickness : 18mm
Length of wires stator to grommet : 114 mm
Length of wires grommet to plug : 85 mm
Length of pickup coil's wire to grommet : 560 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +/-20%
Pickup : Blue To Green = 200 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
