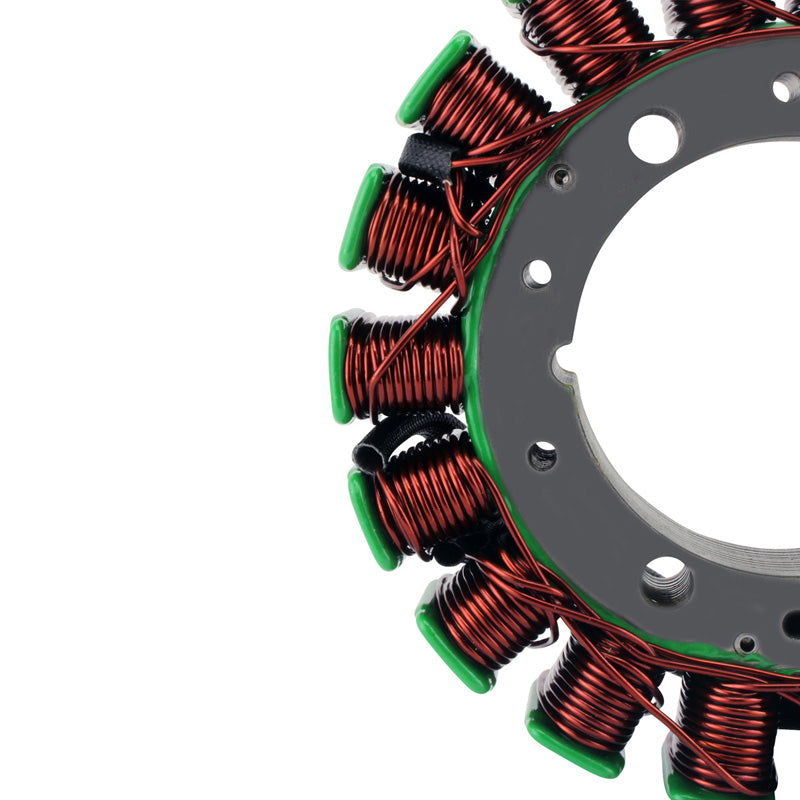

Highest grade of copper winding, resistant to 200 degrees Celsius

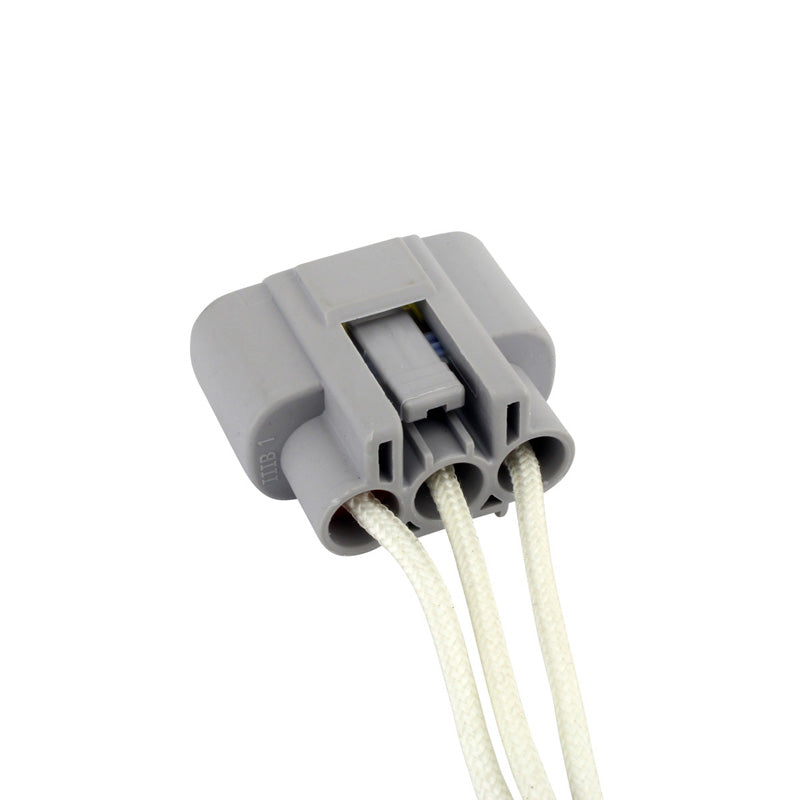

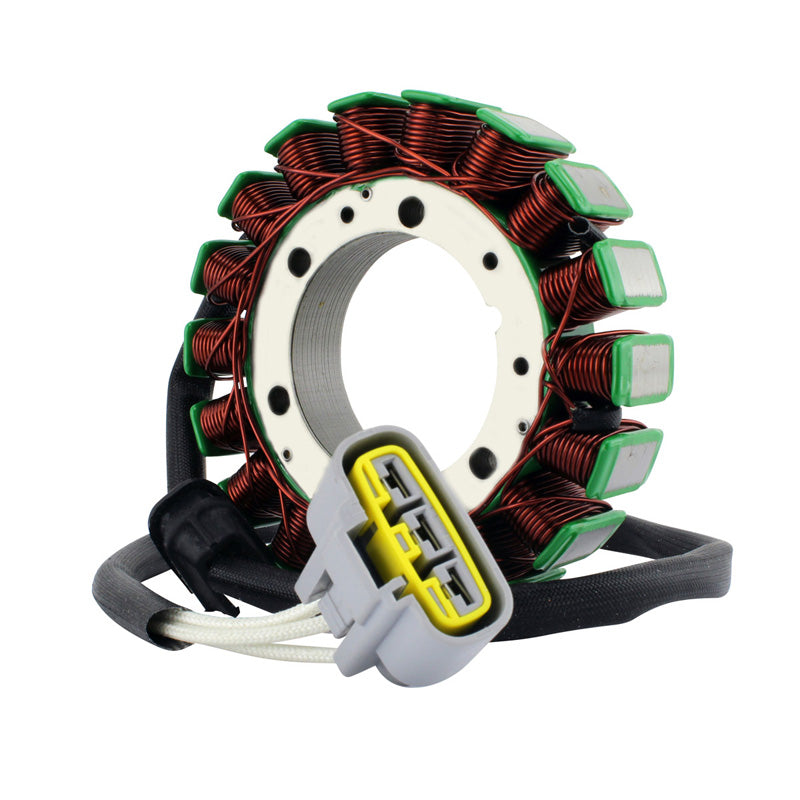

Connectors included

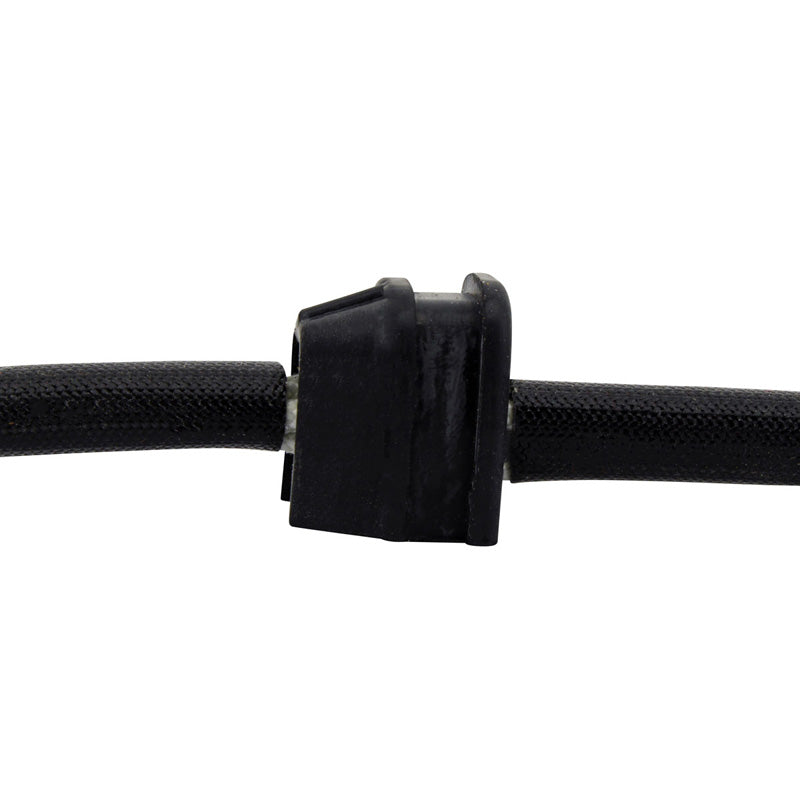

Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

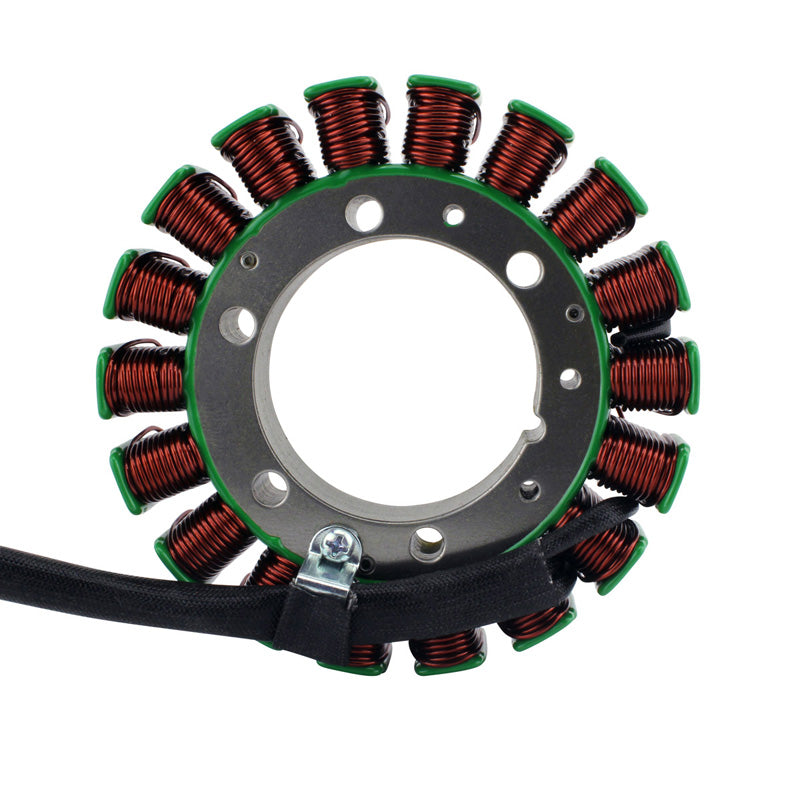

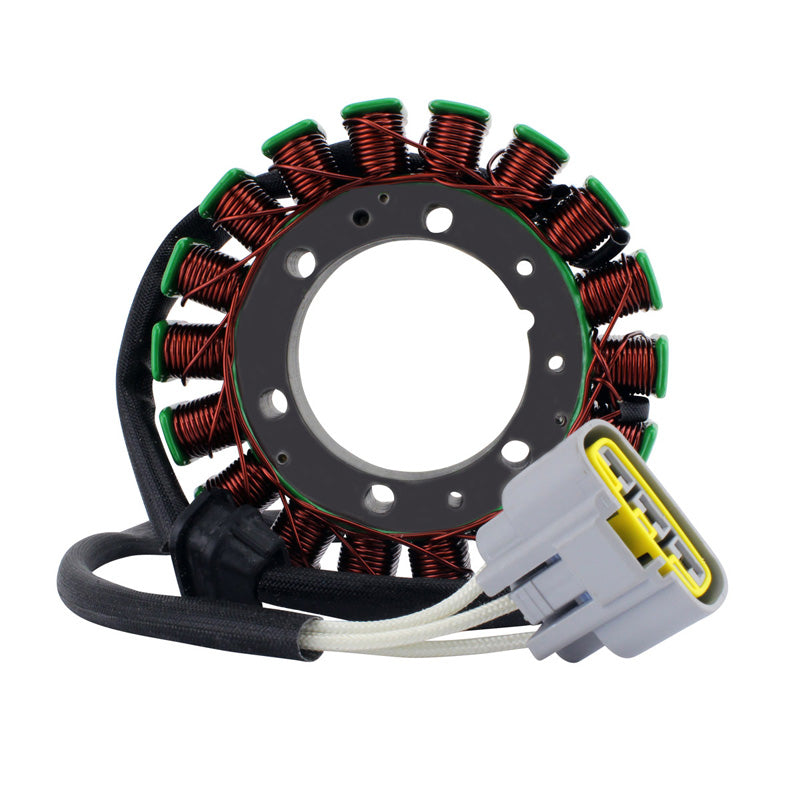

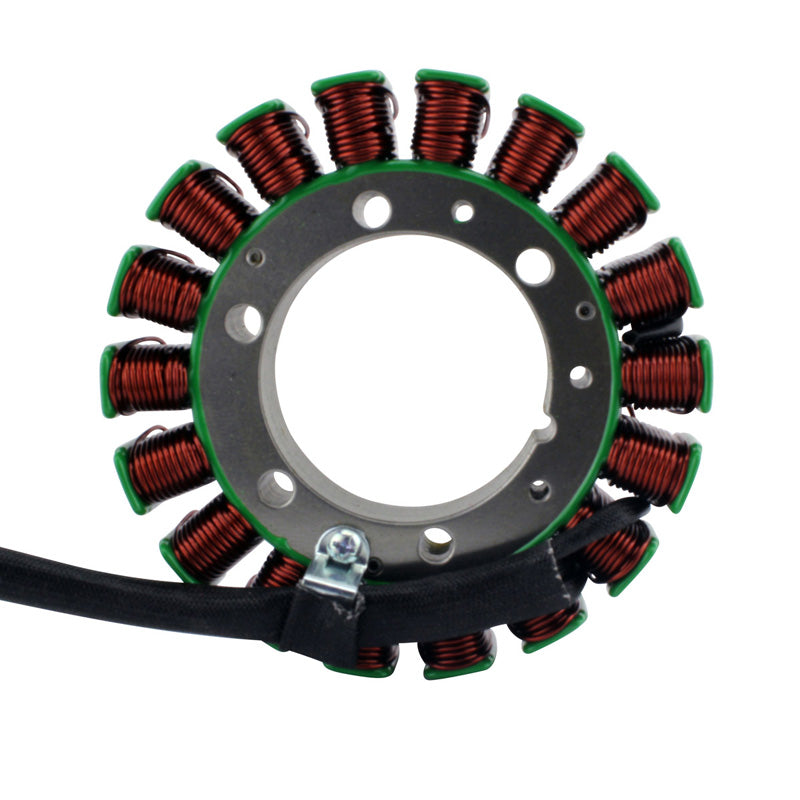

Specifications:
Dimensions:
Interior diameter: 54 mm
Exterior diameter: 115 mm

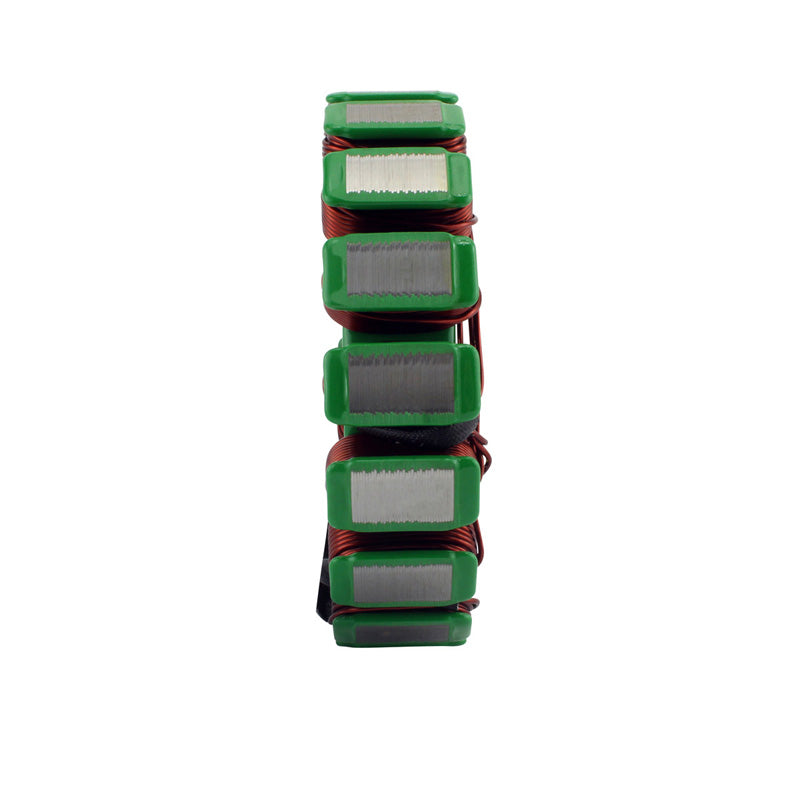

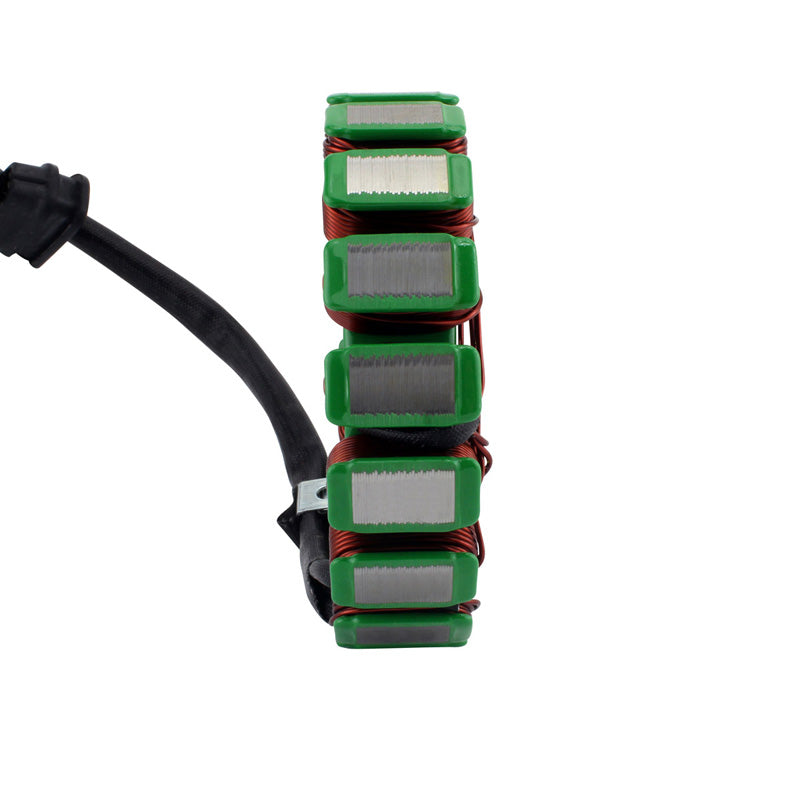

Thickness: 18 mm
Length of wires stator to grommet: 125 mm
Length of wires grommet to plug: 480 mm
Other specifications:
Number of wires: 3

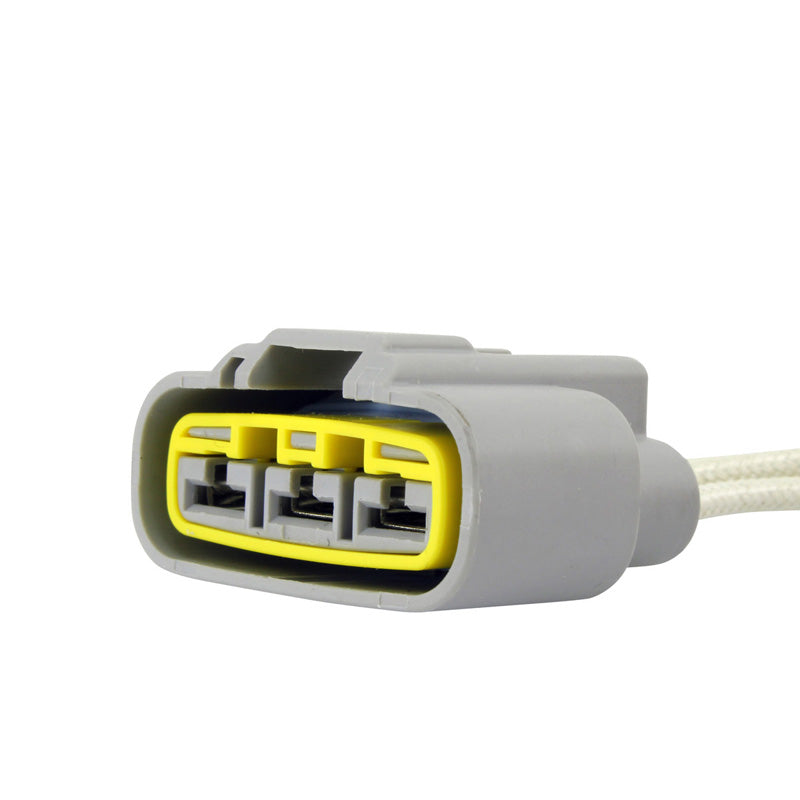

Number of plugs: 1
Number of pins: 3

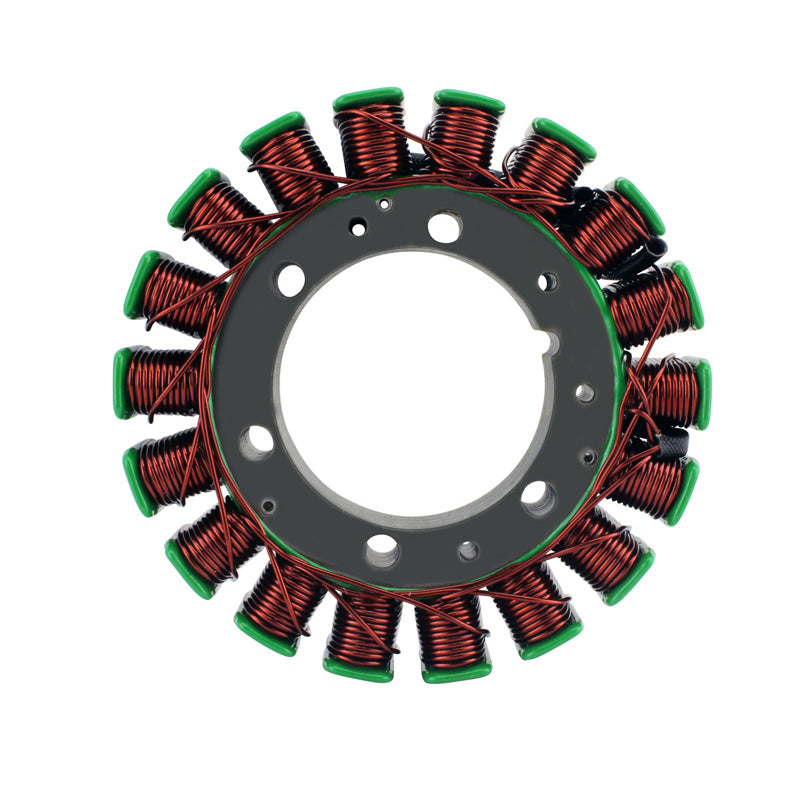

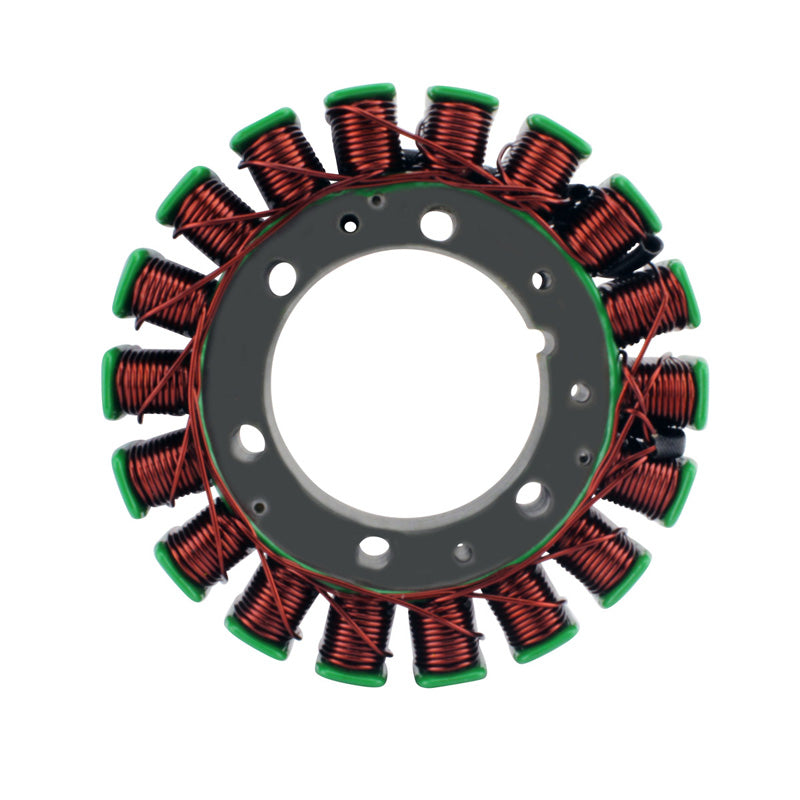

Number of poles: 18
Alternator: Yellow to Yellow = 0.6 ohms +-20%
Alternator: Yellow to ground = O.L
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
