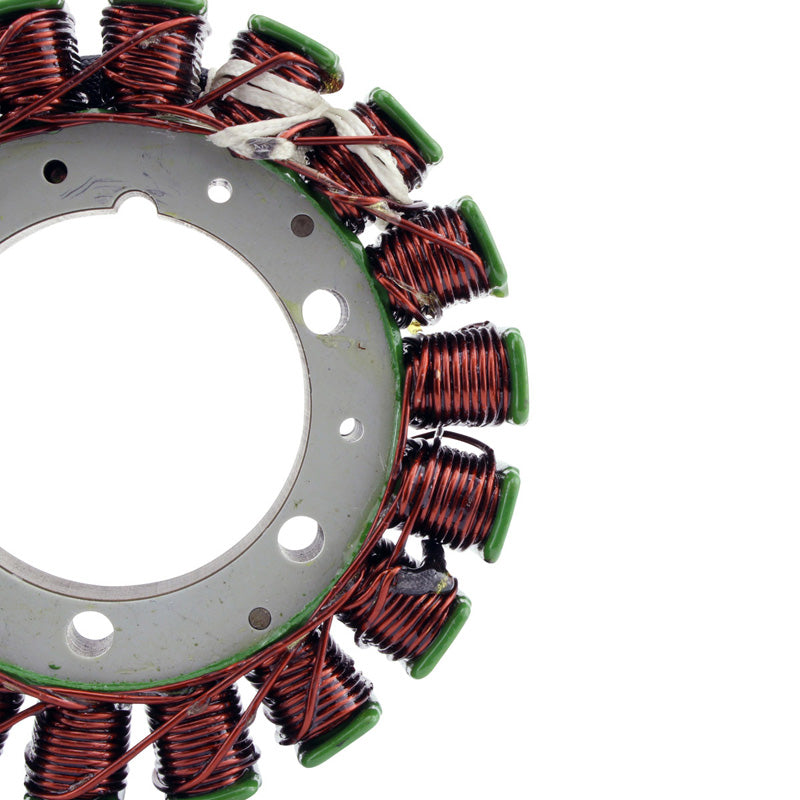

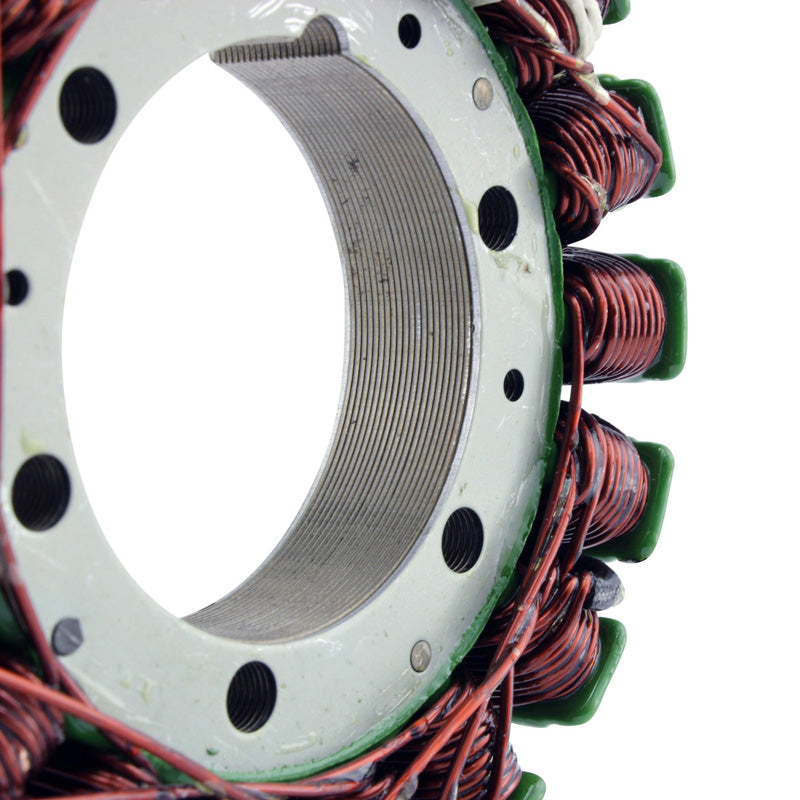

Highest grade of copper winding, resistant to 200 degrees Celsius

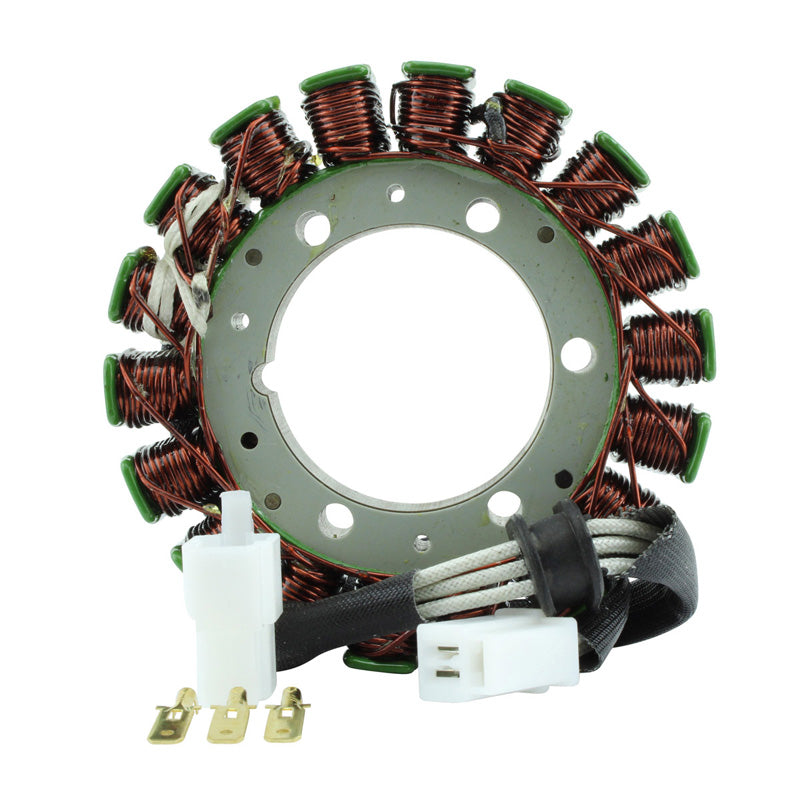

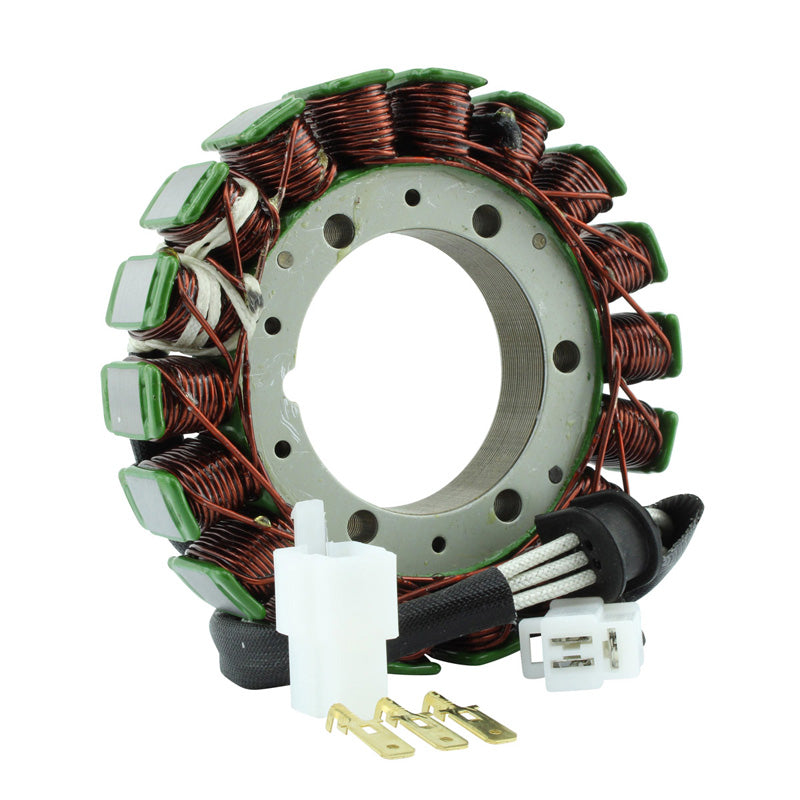

Connectors included

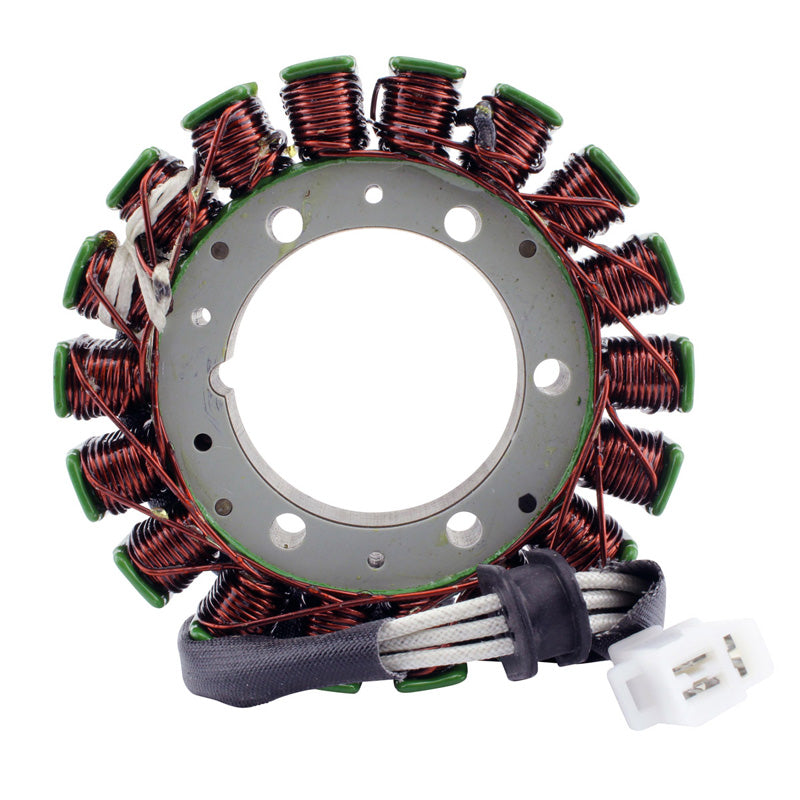

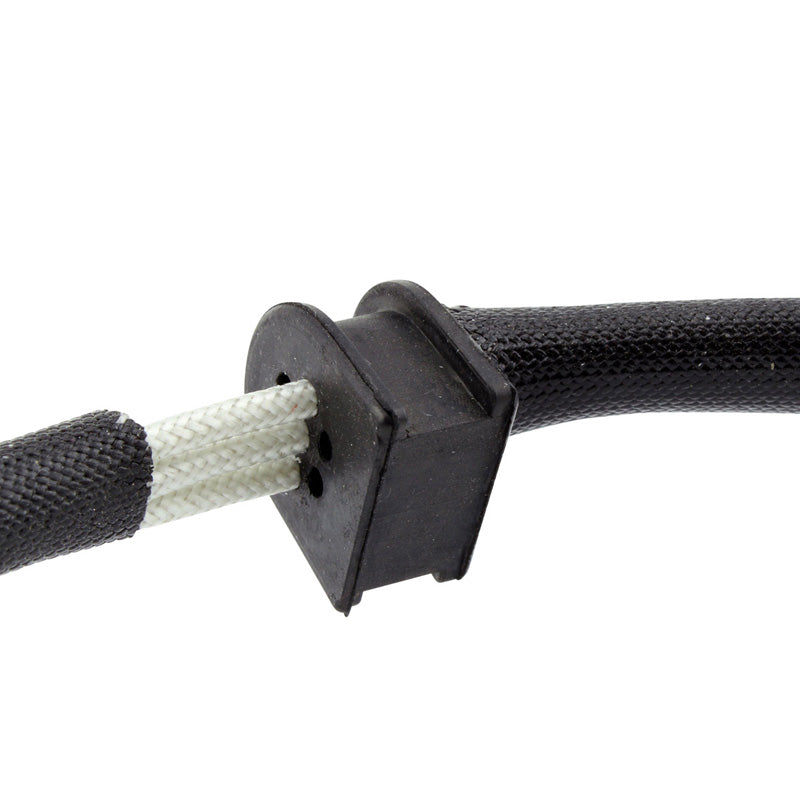

Rubber grommet included
All products shipped are tested

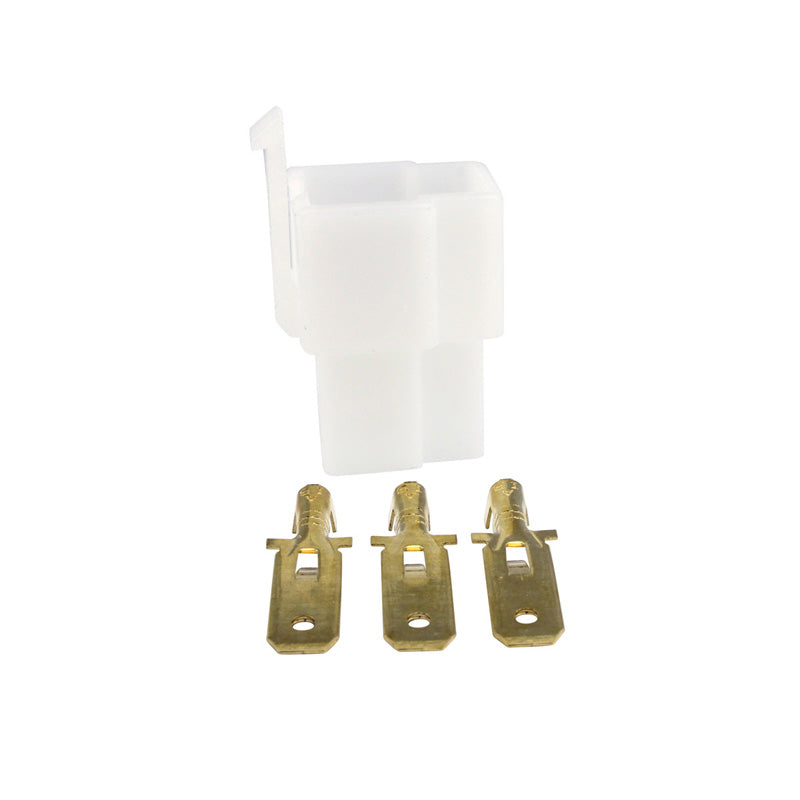

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions :

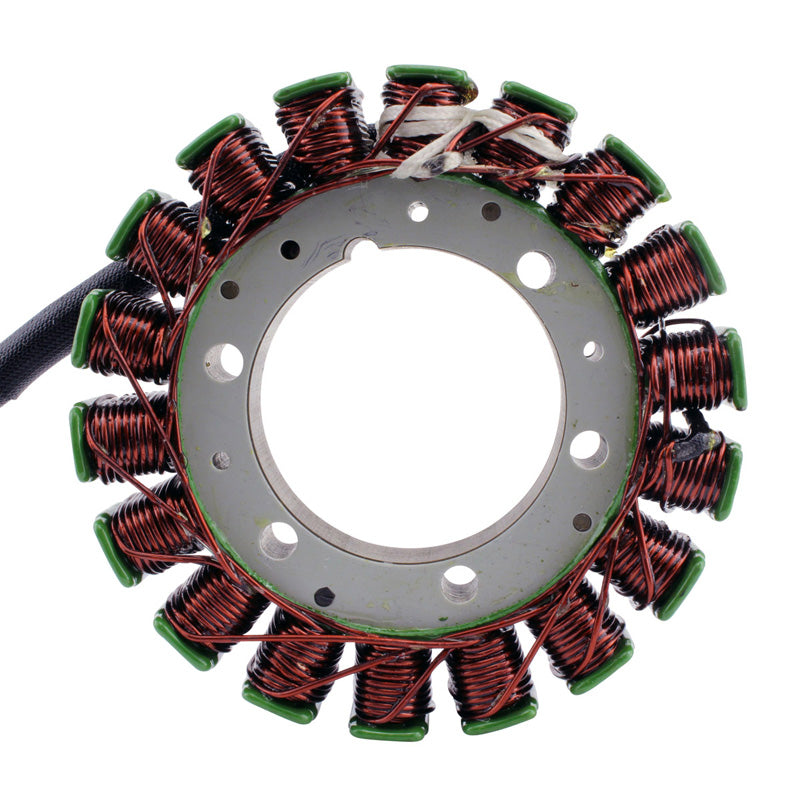

Interior diameter : 54 mm
Exterior diameter : 115 mm

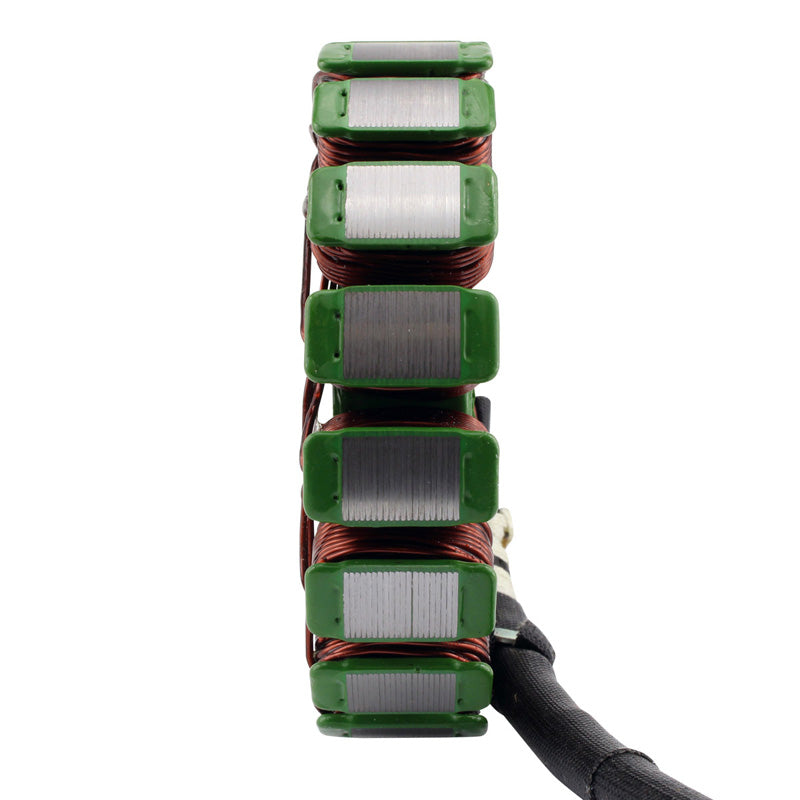

Thickness : 19 mm
Length of wires stator to grommet : 140 mm
Length of wires grommet to plug : 190 mm
Other specifications :
Number of wires : 3

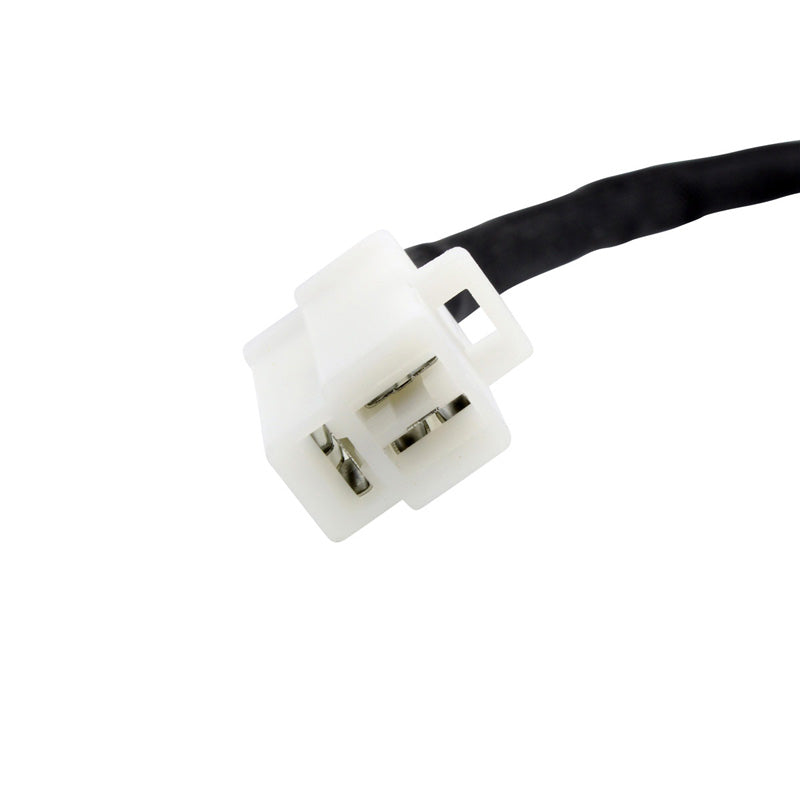

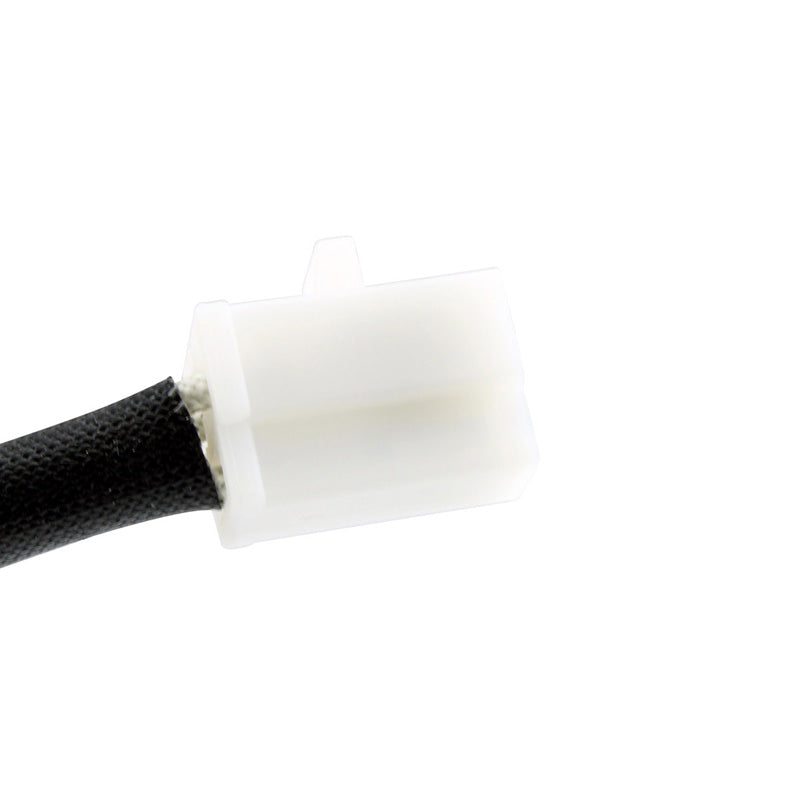

Number of plugs : 1
Number of pins : 3

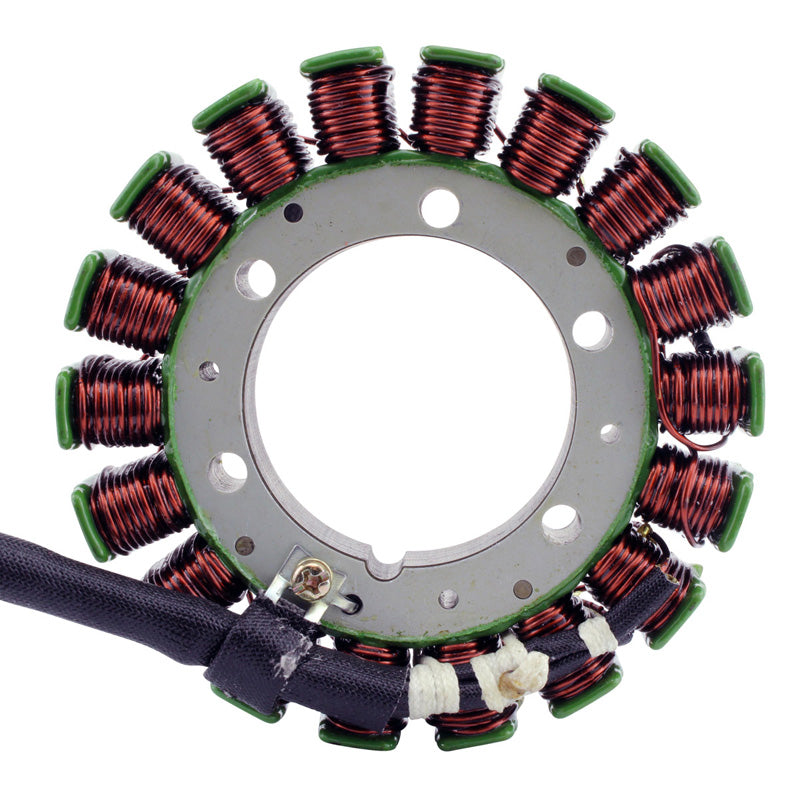

Number of poles : 18
Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
Fitment notice:
Please take note : There are 2 possible stators for Ducati Multistrada 2003-2006. This stator has an outside diameter of 115 mm, an inner diameter of 54 mm and a stack height of 19 mm.
