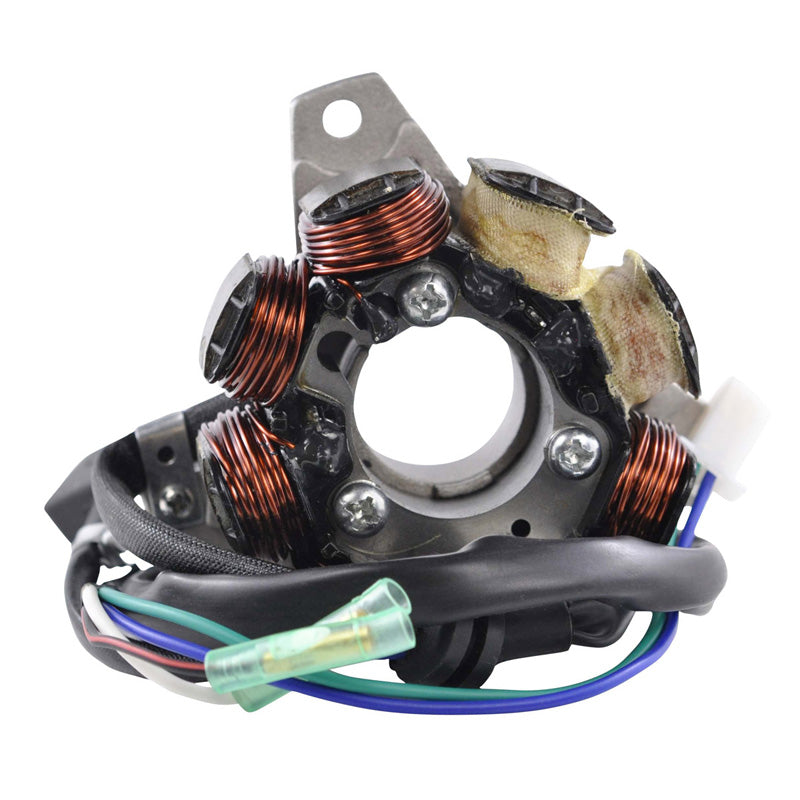

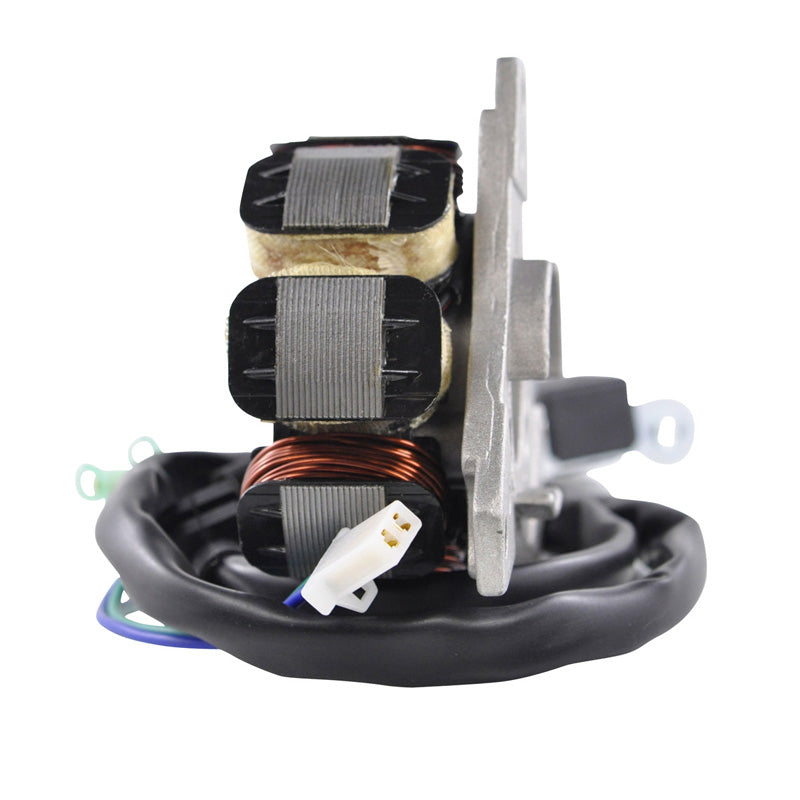

Brand new high output aftermarket stator 200W

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

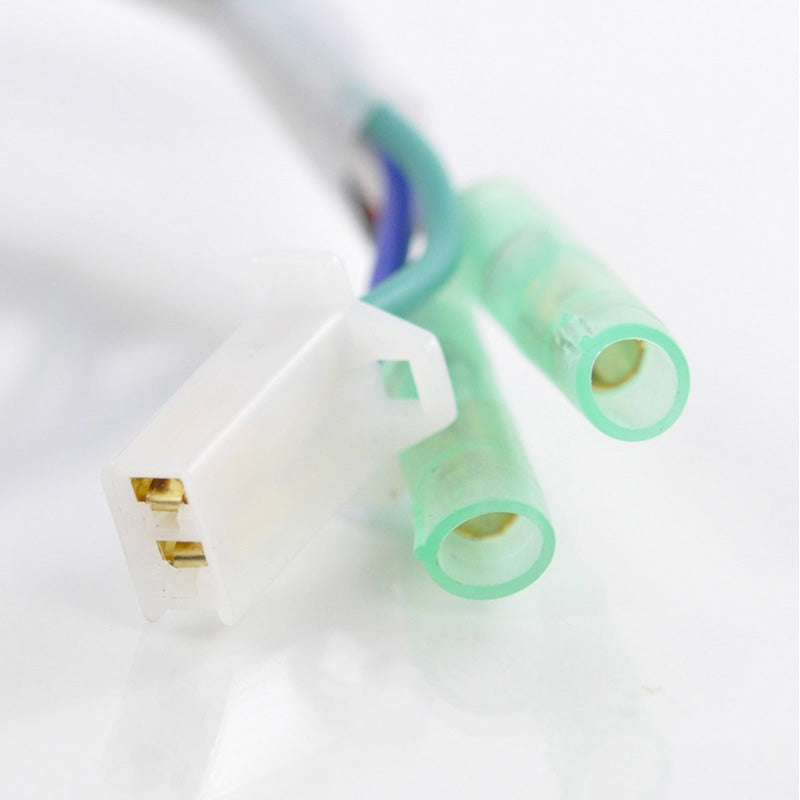

• Connector included
• Rubber grommet included

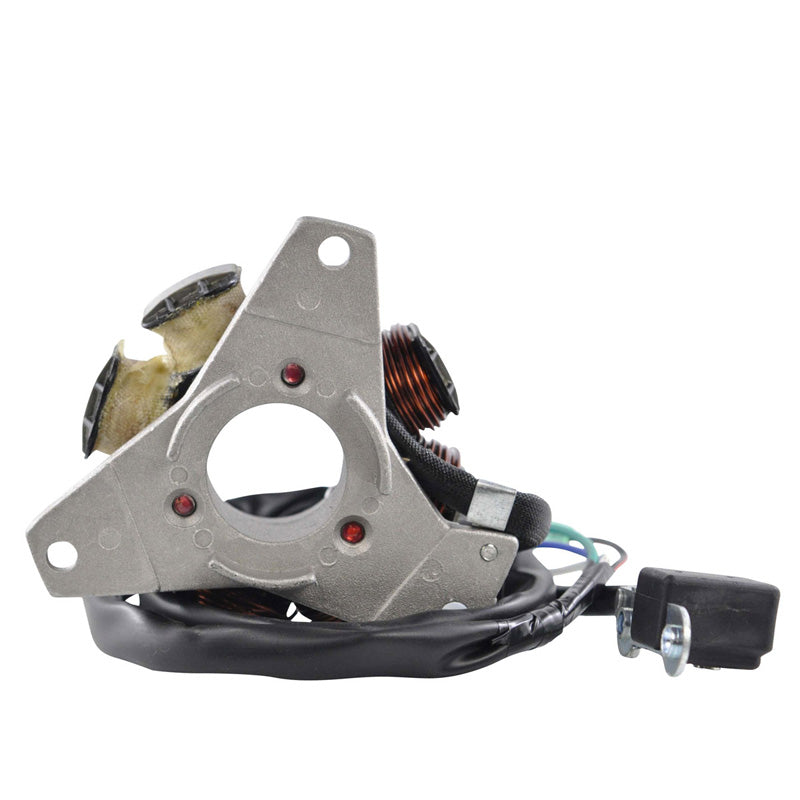

• Back Plate included
• All products shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 34mm
Exterior diameter : 88mm
Thickness : 17mm
Fixation holes center to center : 35mm
Length of wires stator to grommet : 60mm
Length of wires grommet to plug : 60mm & 620mm
Length of pickup coil's wire to grommet : 80mm

Other specifications :
Number of wires : 4
Number of plugs : 3
Number of pins : 4

Wire to wire resistance :
Alternator : White to Ground = 0.4 ohms +/-20%
Pickup : Green to Blue = 115 ohms +/-20%
Source : Black/Red to Ground = 210 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
