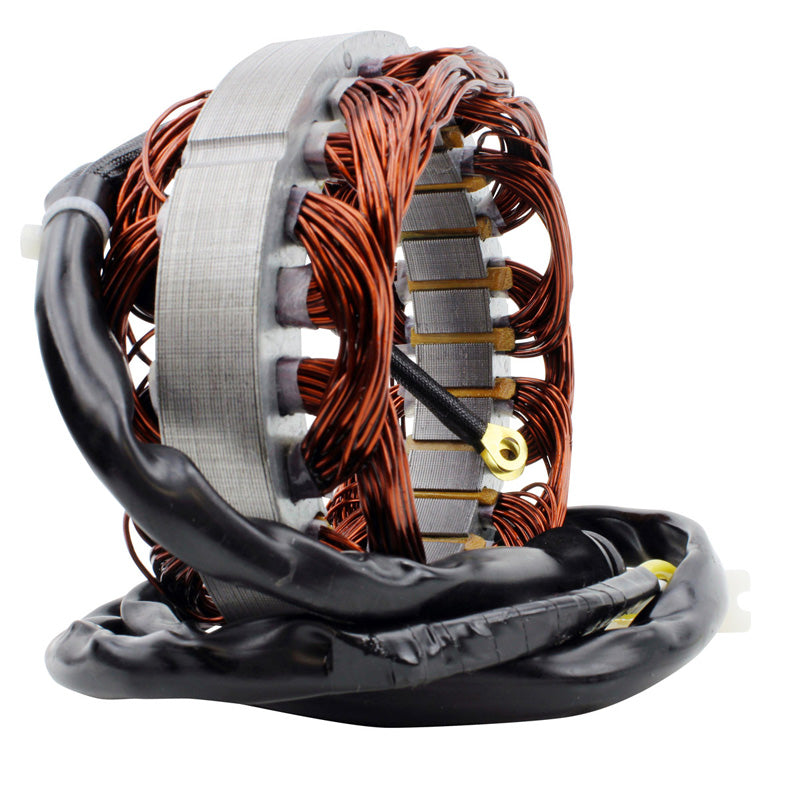

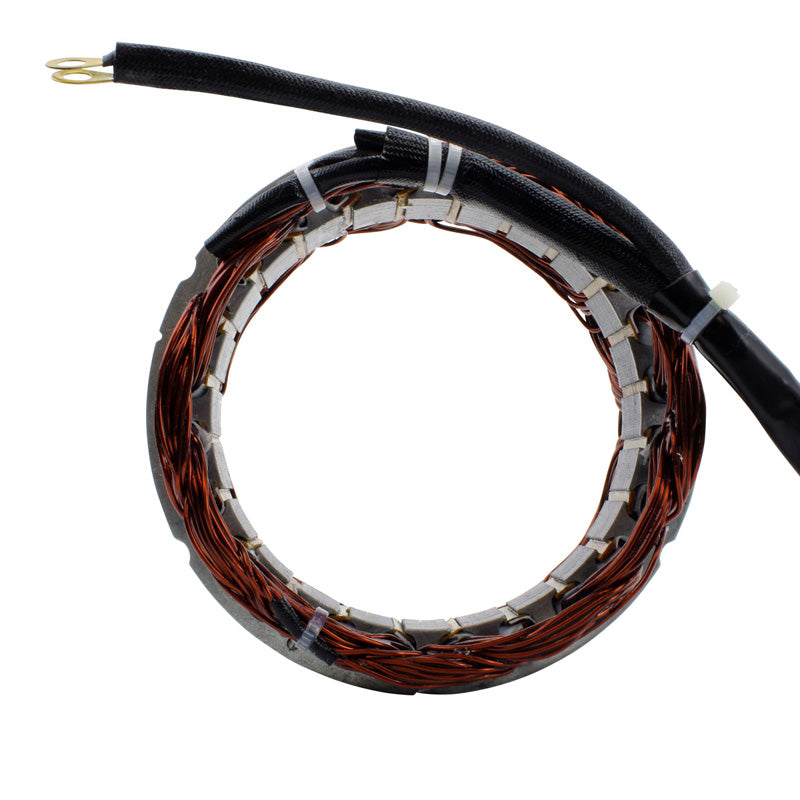

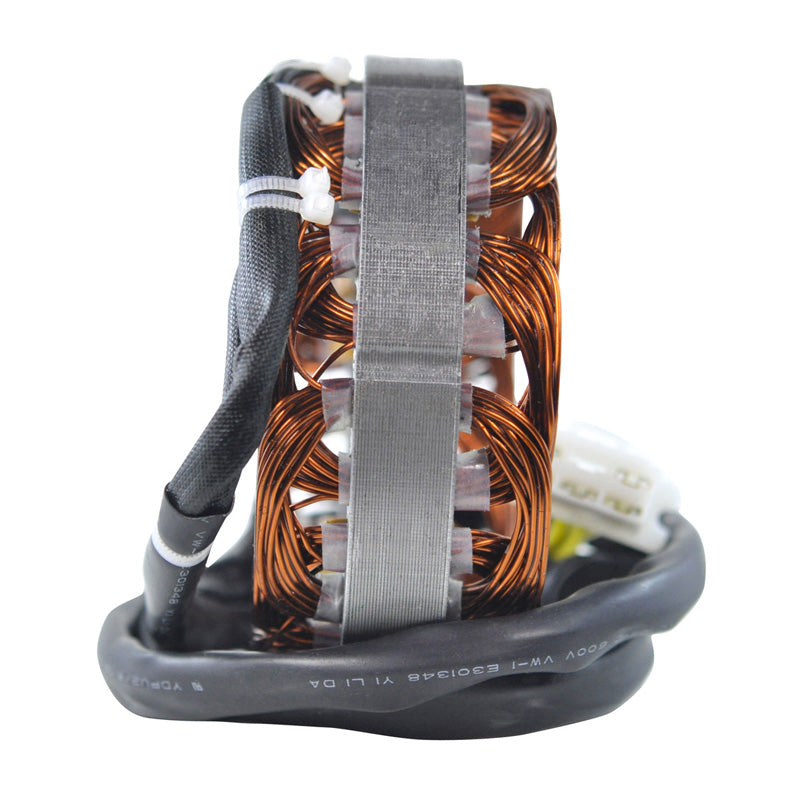

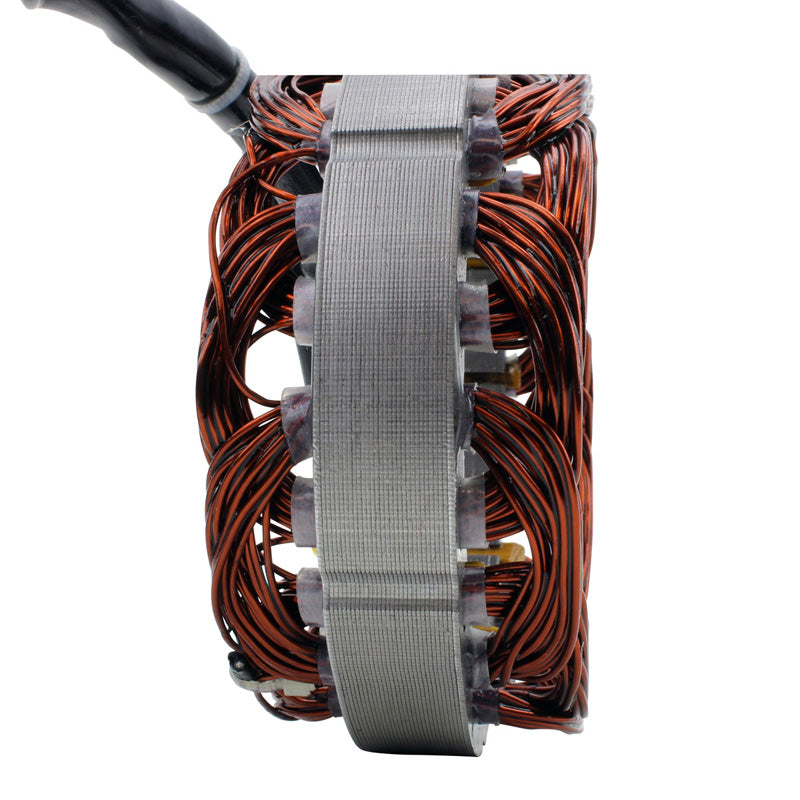

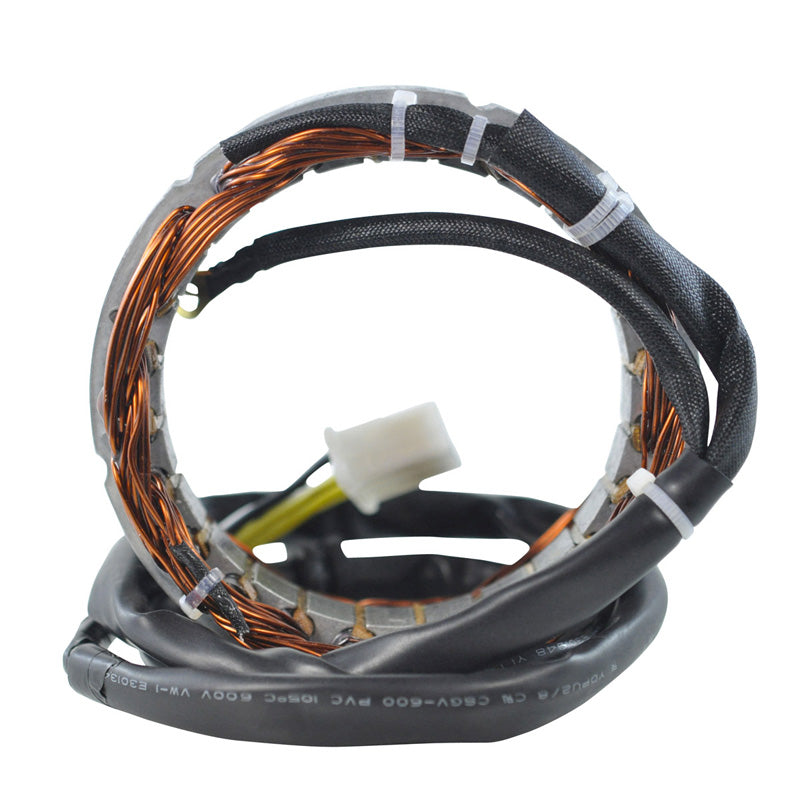

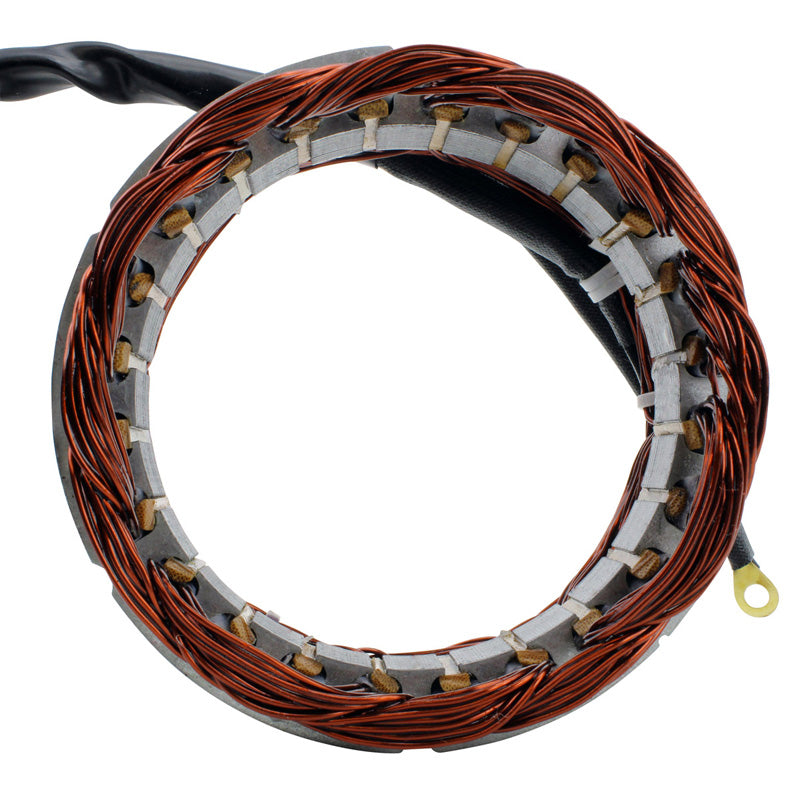

Highest grade copper windings, resistant to 200 degrees Celsius.

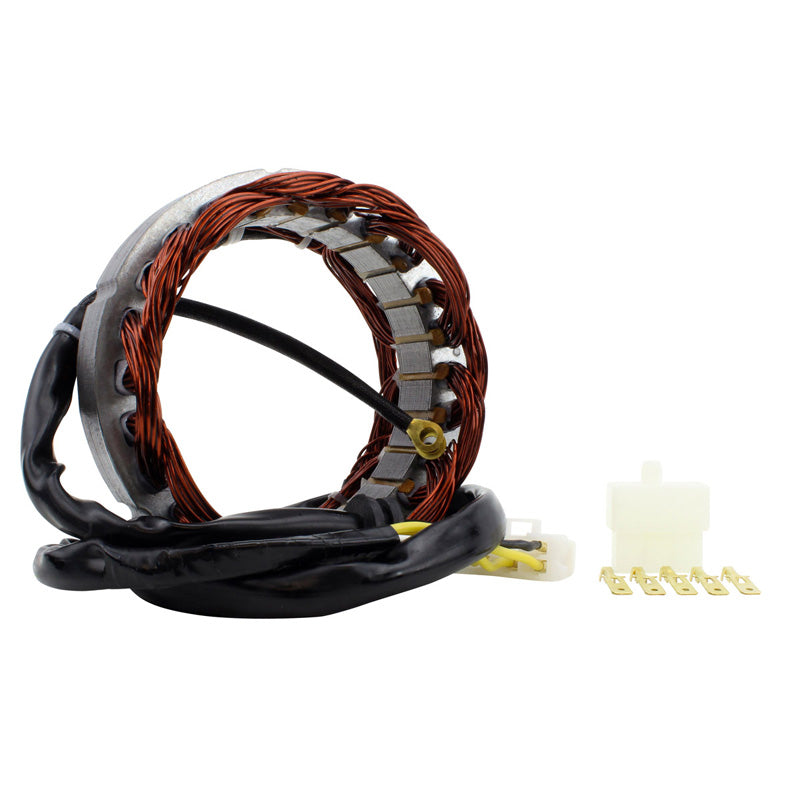

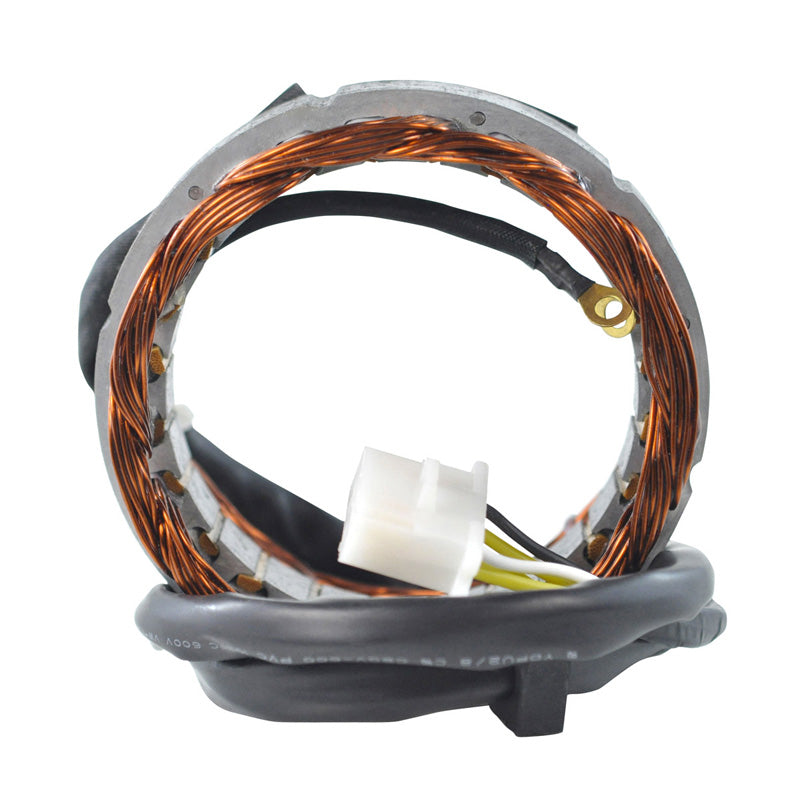

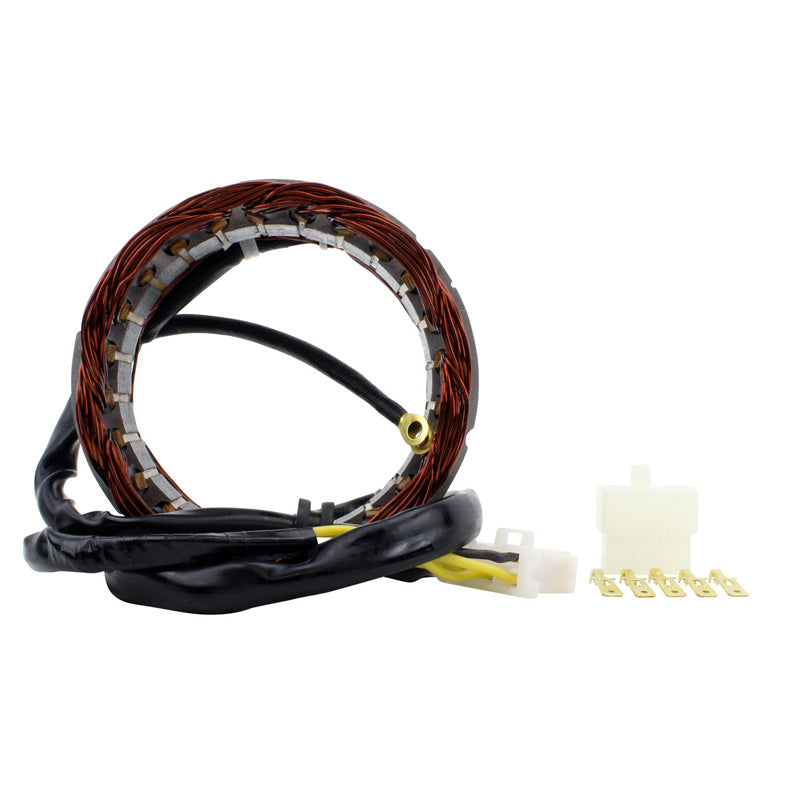

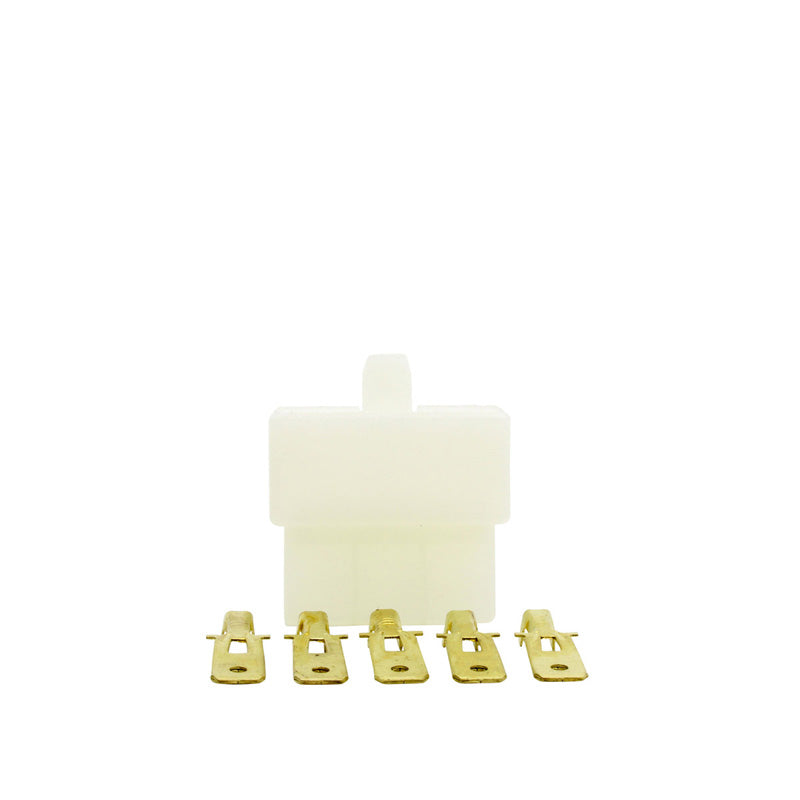

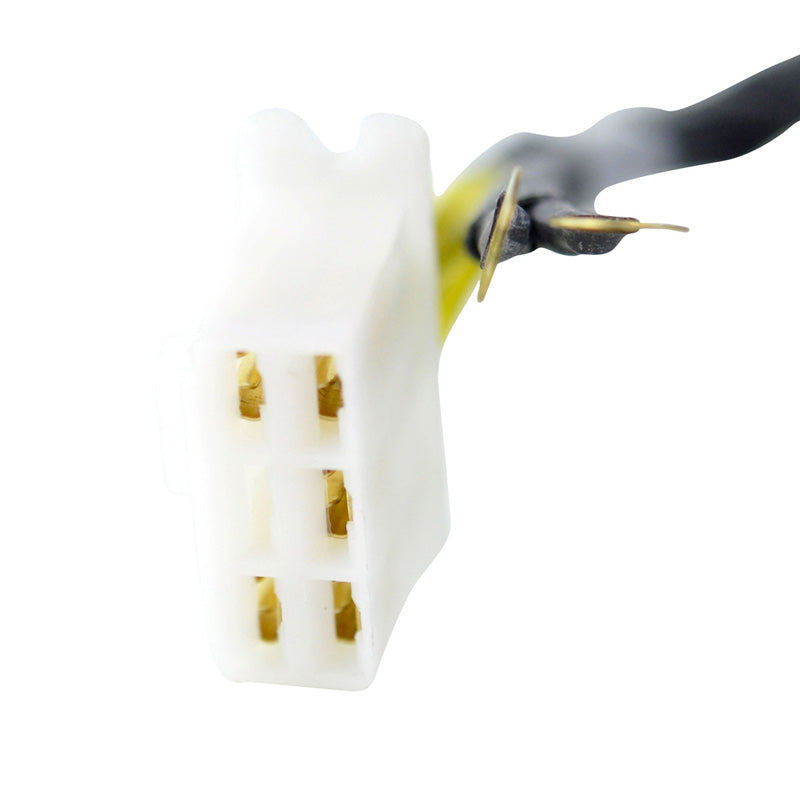

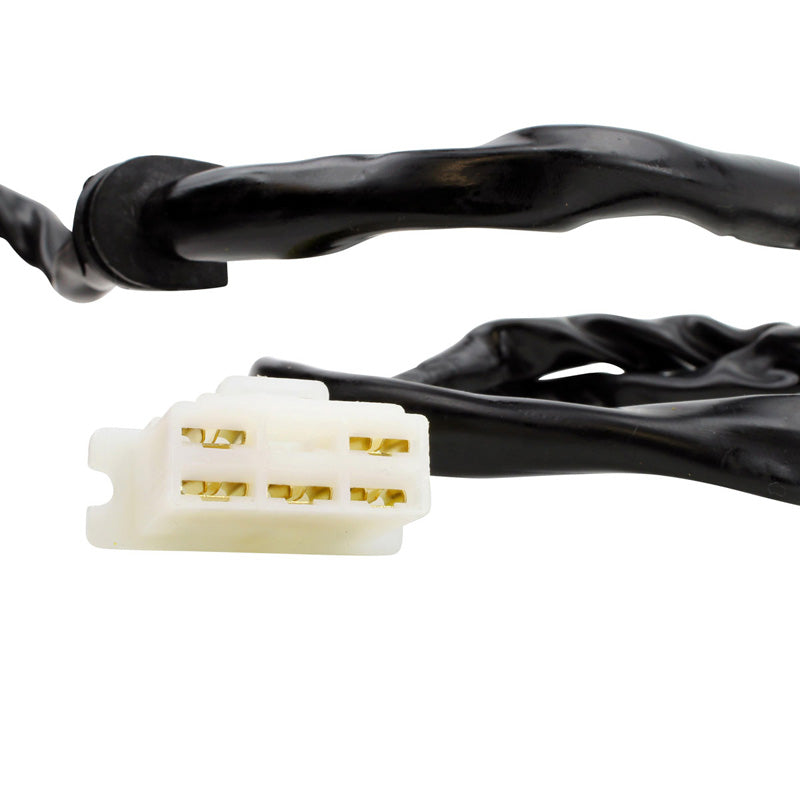

Connector included
Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 94mm
Exterior diameter : 124mm
Thickness : 15mm
Length of wires stator to grommet : 300mm
Length of wires grommet to plug : 652mm
Other specifications :
Number of wires : 5
Number of plugs : 1
Number of pins : 5
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.6ohms +/-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
