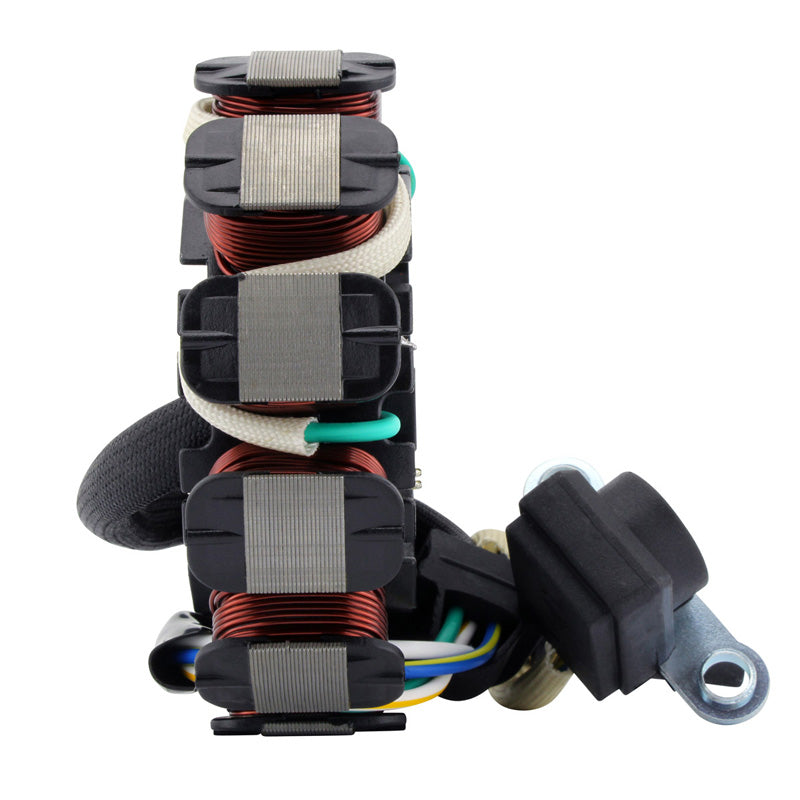

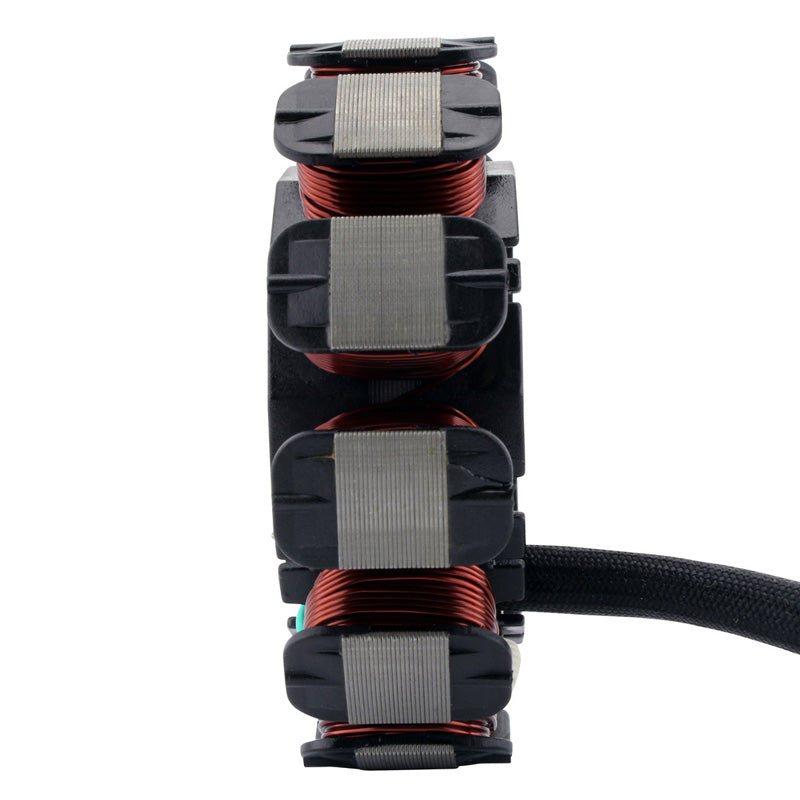

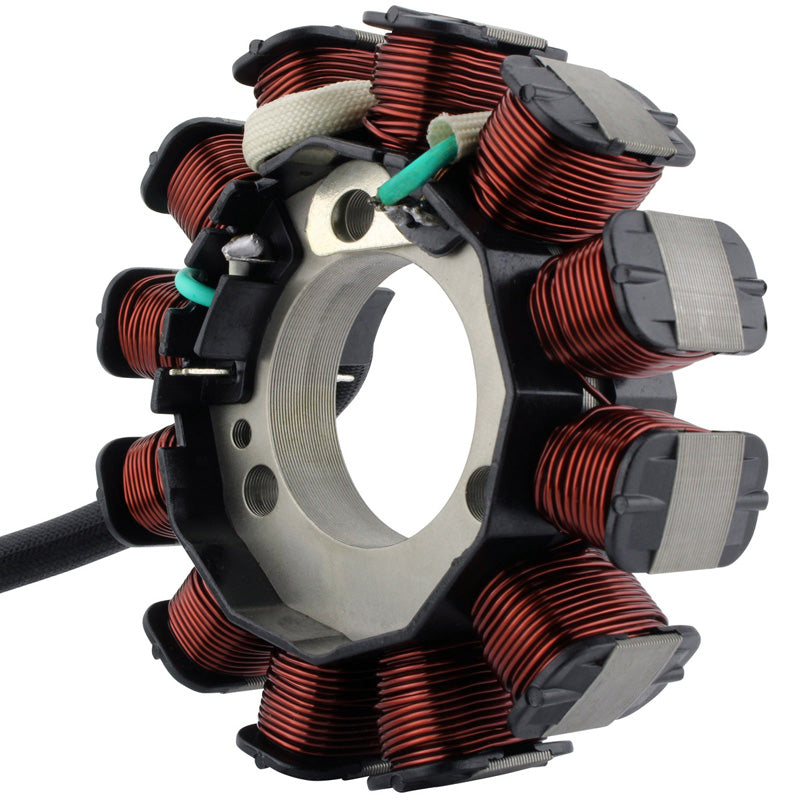

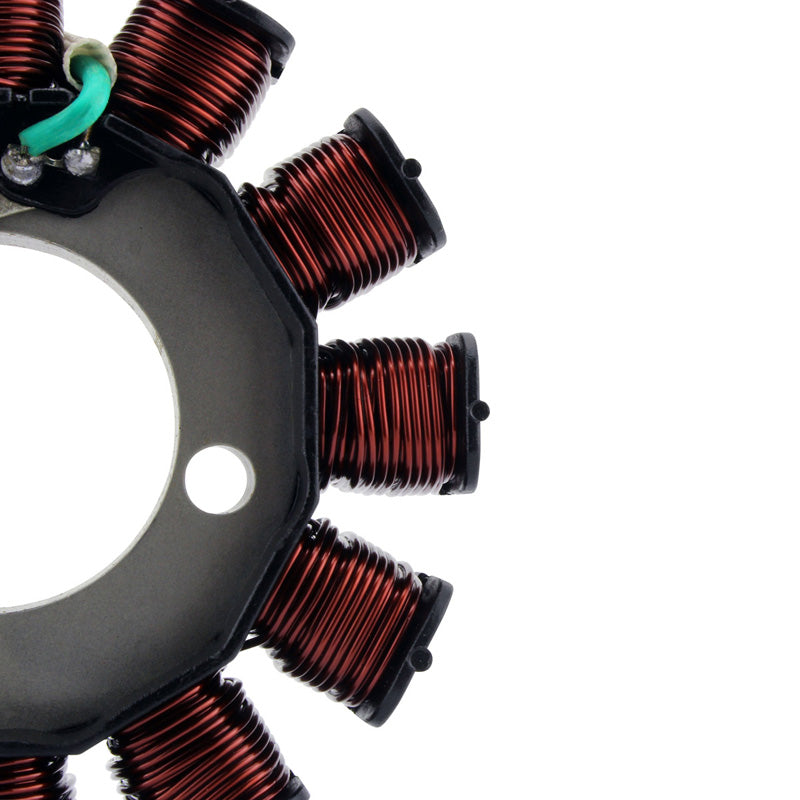

Highest grade of copper winding, resistant to 200 degrees Celsius.

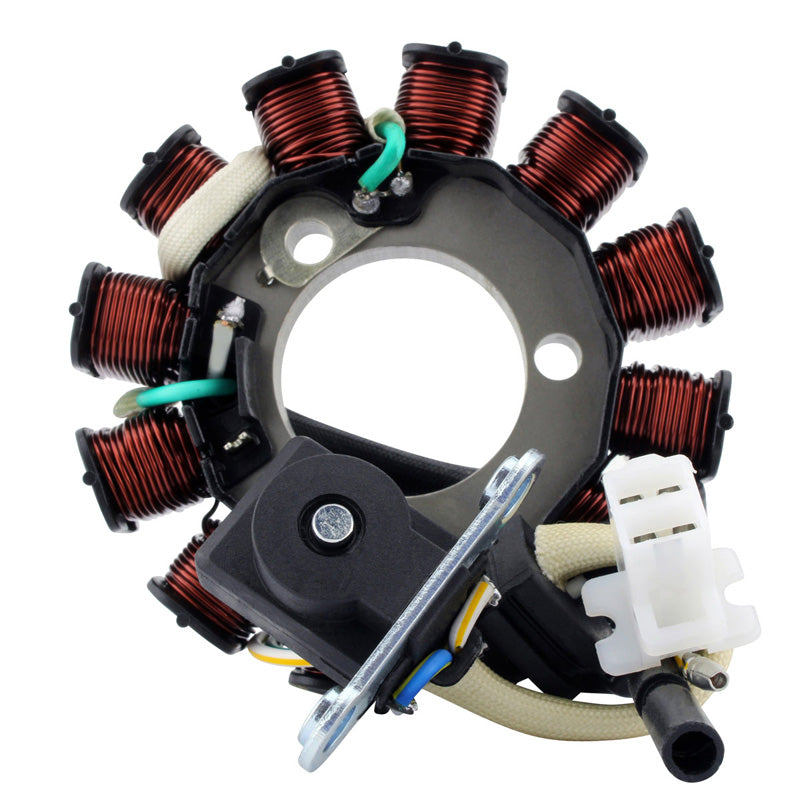

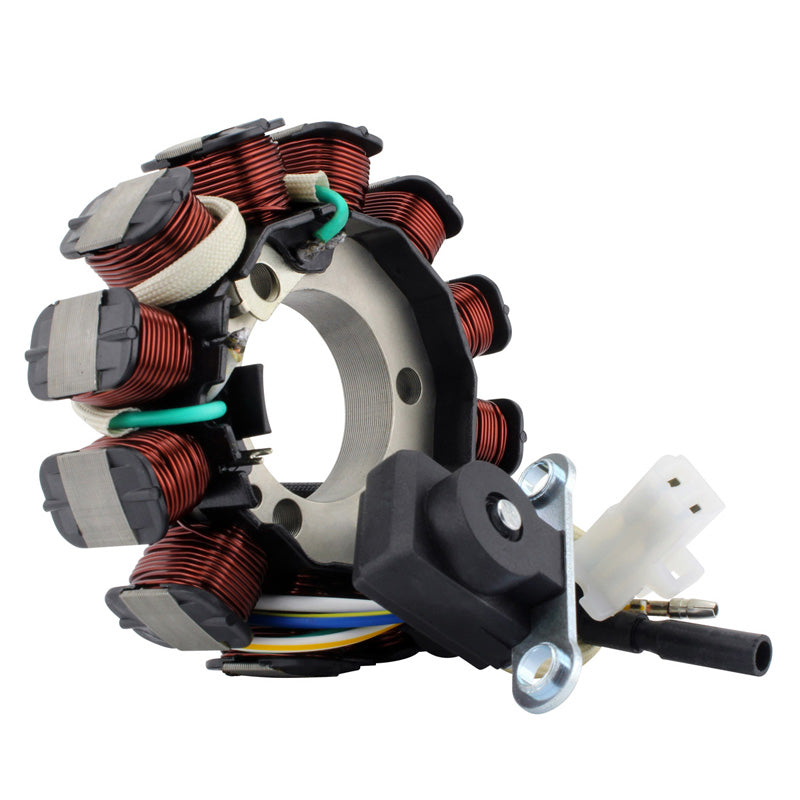

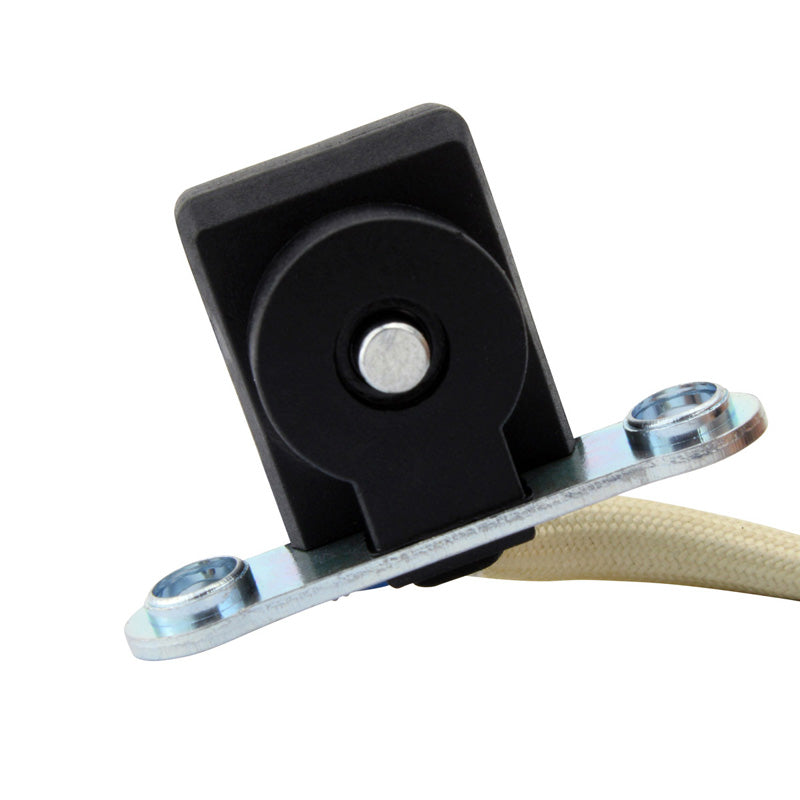

Pick up pulsar coil included

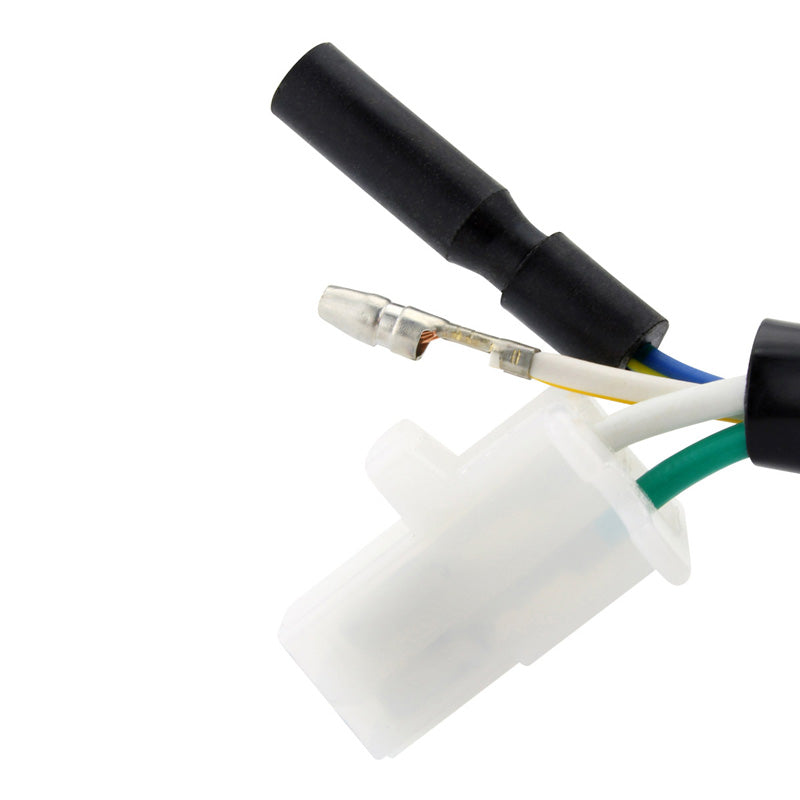

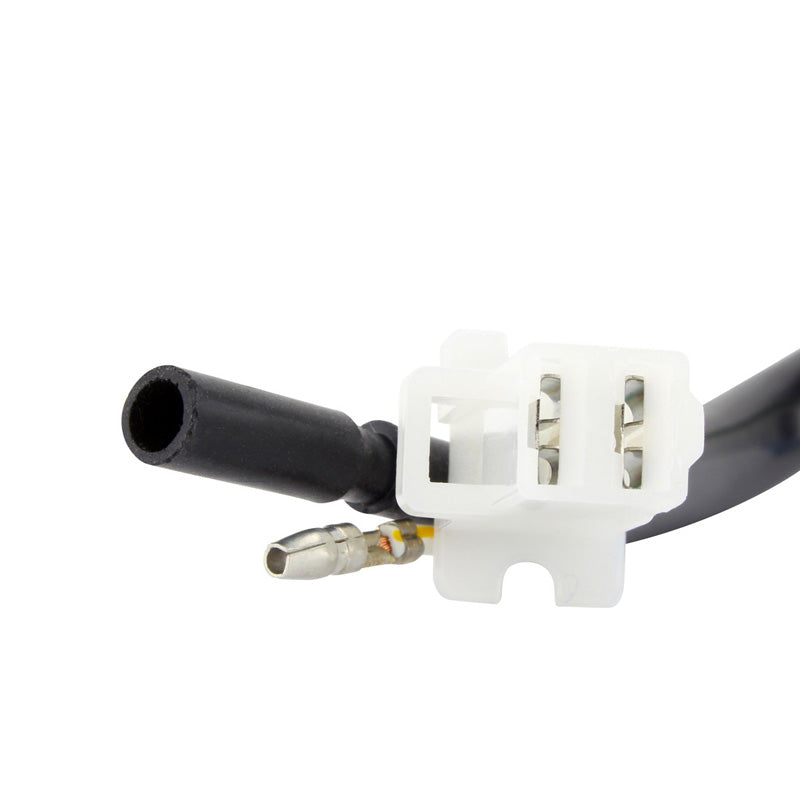

Connectors included

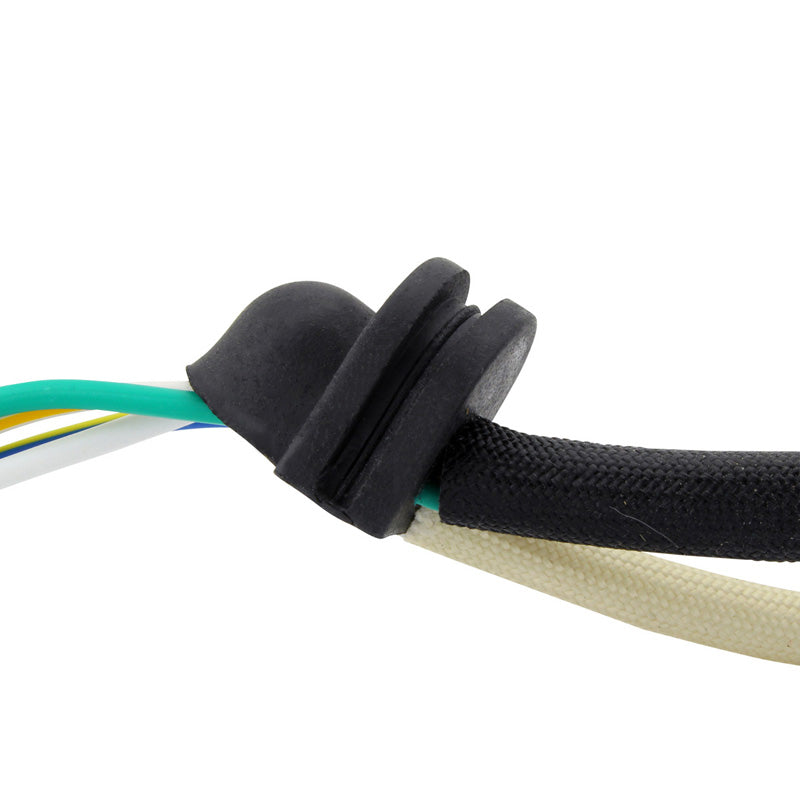

Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

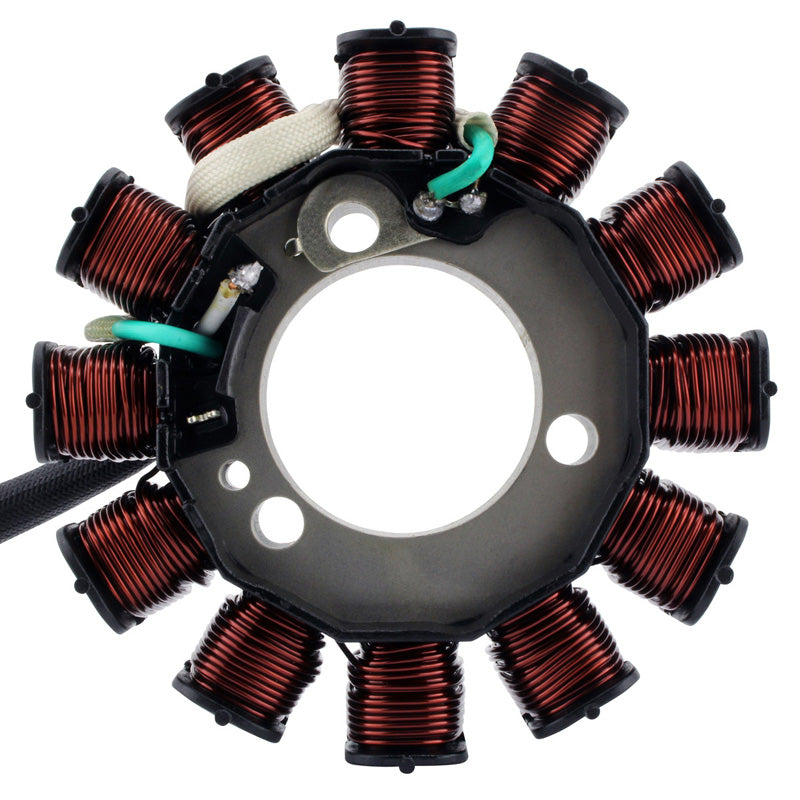

Specifications:
Dimensions:
Interior diameter: 35 mm
Exterior diameter: 92 mm
Thickness: 14 mm
Length of wires stator to grommet: 130 mm
Length of wires grommet to plug: 120 mm
Length of pickup coil's wire to grommet: 90 mm
Other specifications:
Number of wires: 4
Number of plugs: 3
Number of pins: 4

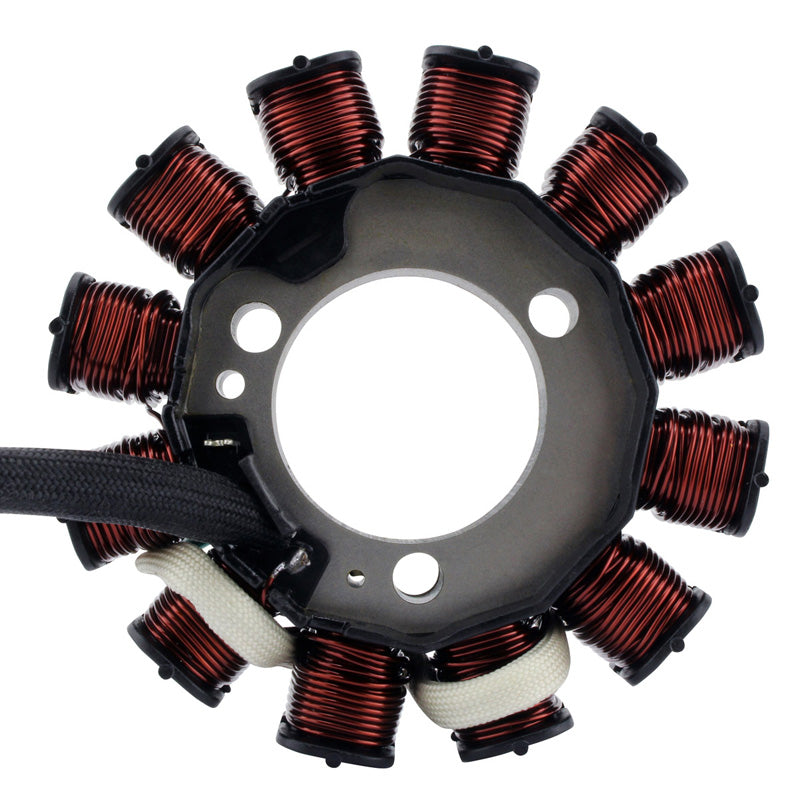

Number of poles: 12
Wire to wire resistance:
Alternator White to Geen: = 0.9 ohms +-20%
Pickup: White/Yellow to Blue/Yellow = 115 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
