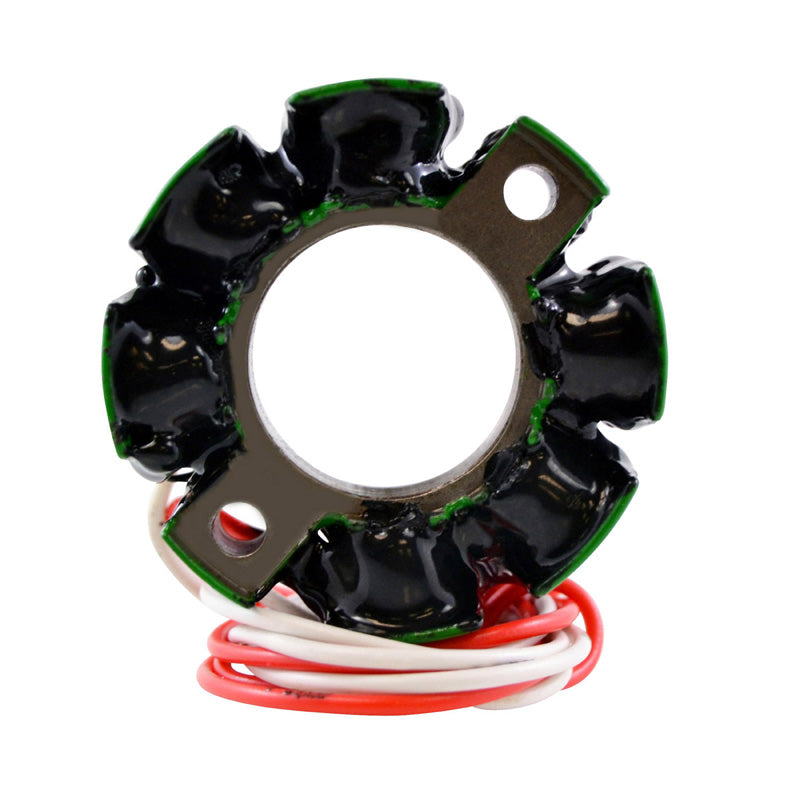

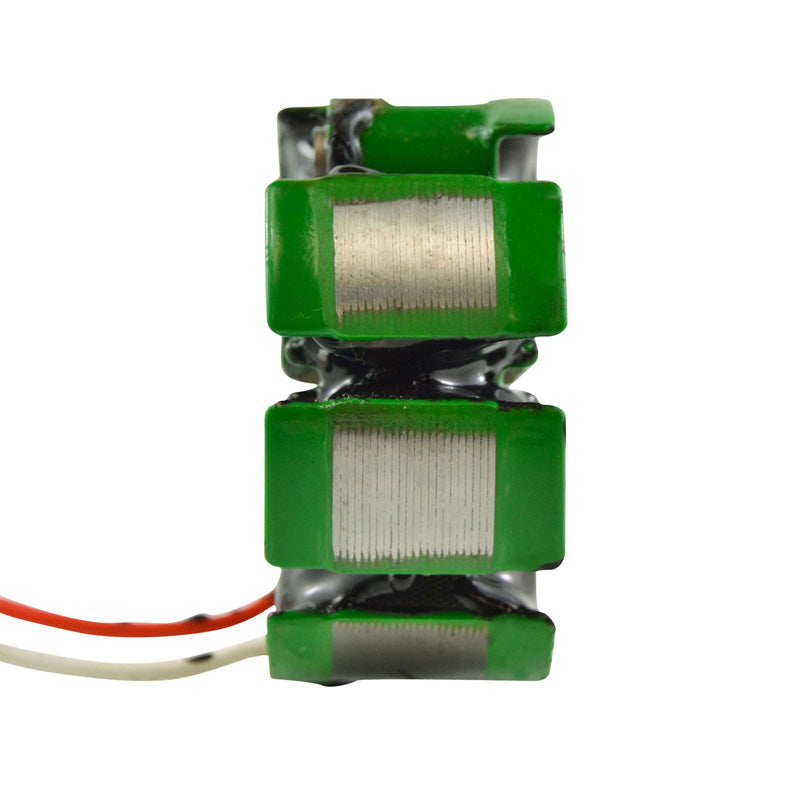

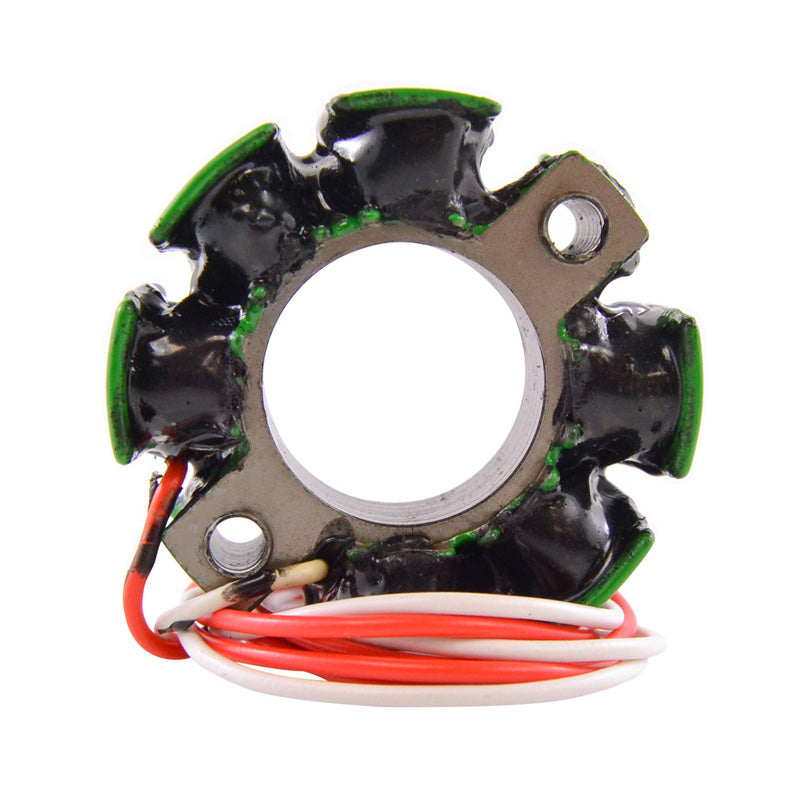

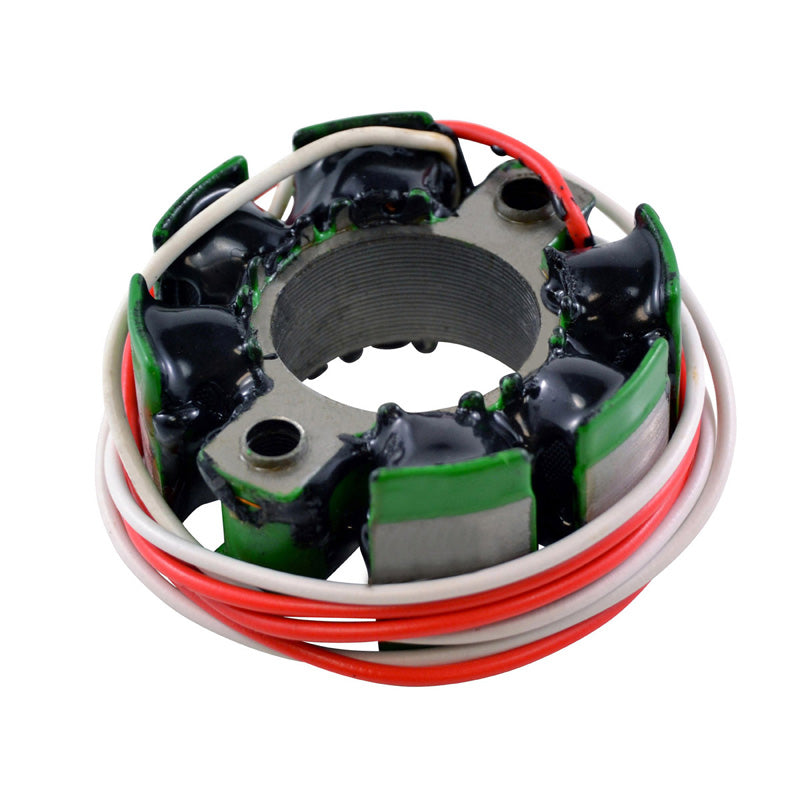

RMS STATOR HON CR125/250/500 84-86|YAM YZ250 85-86 RM01294

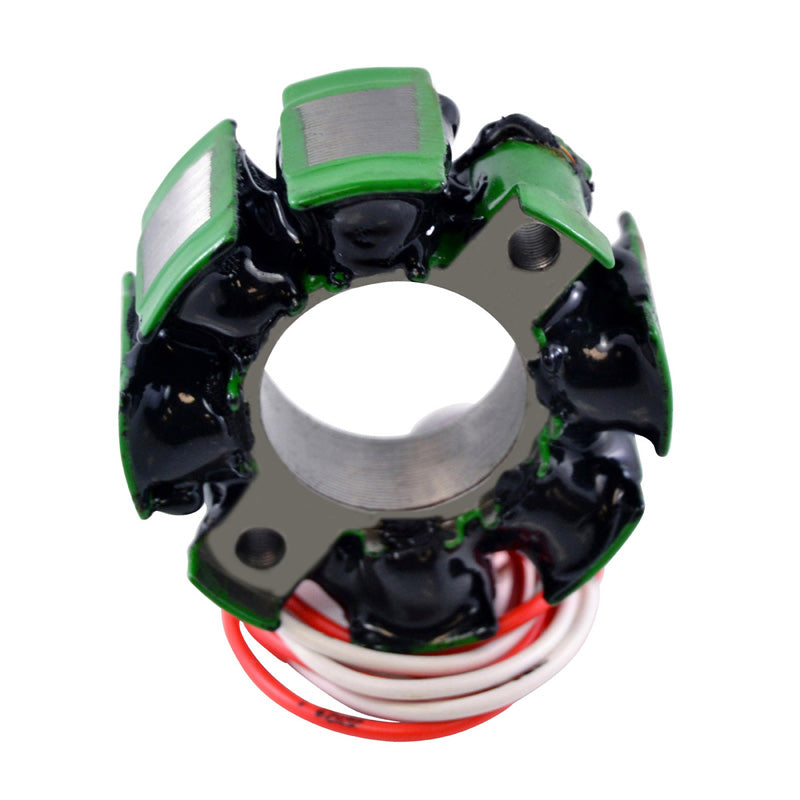

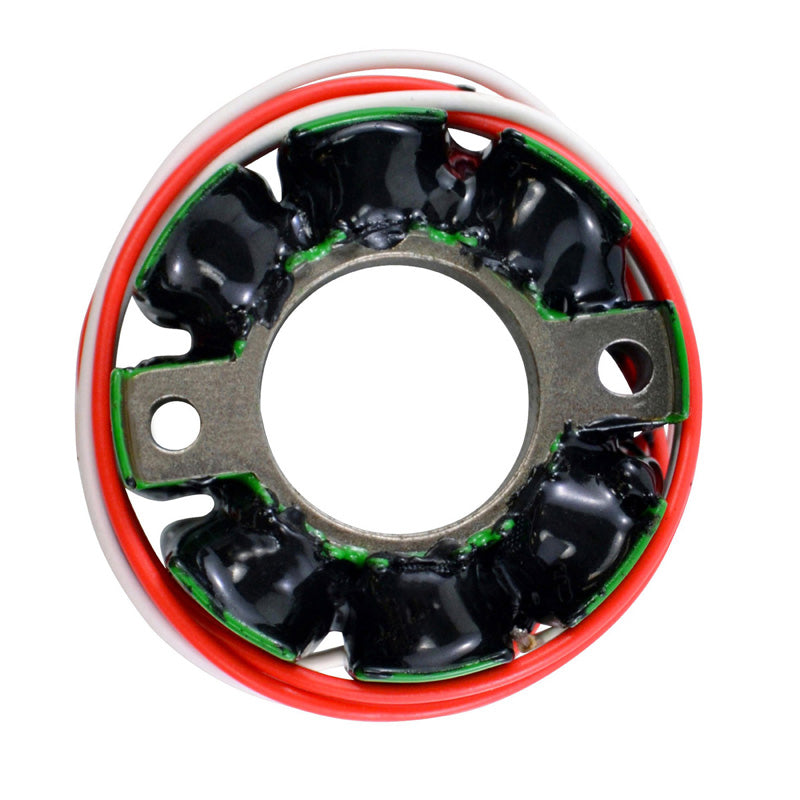

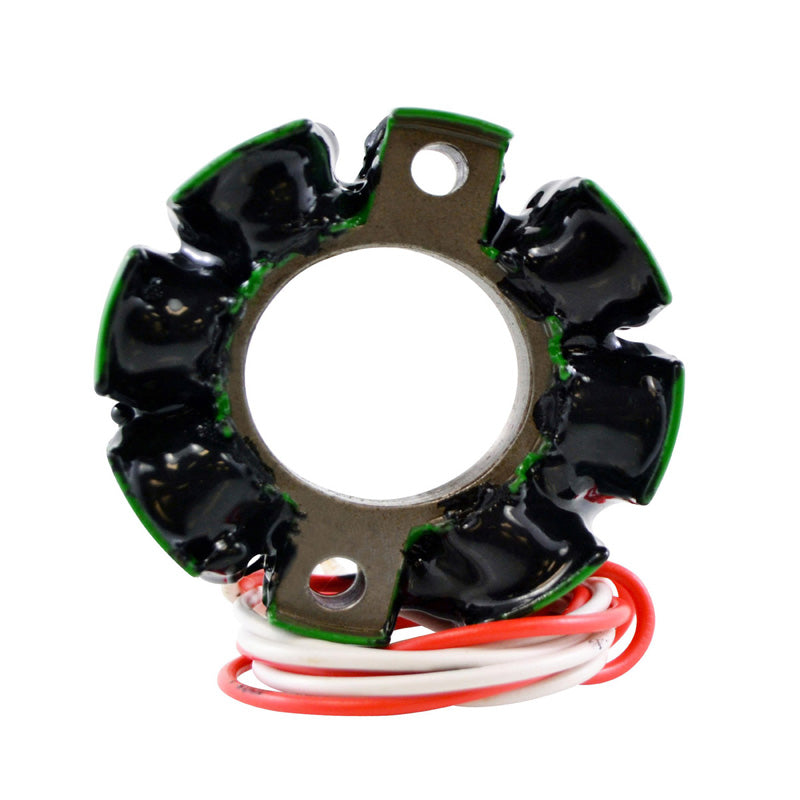

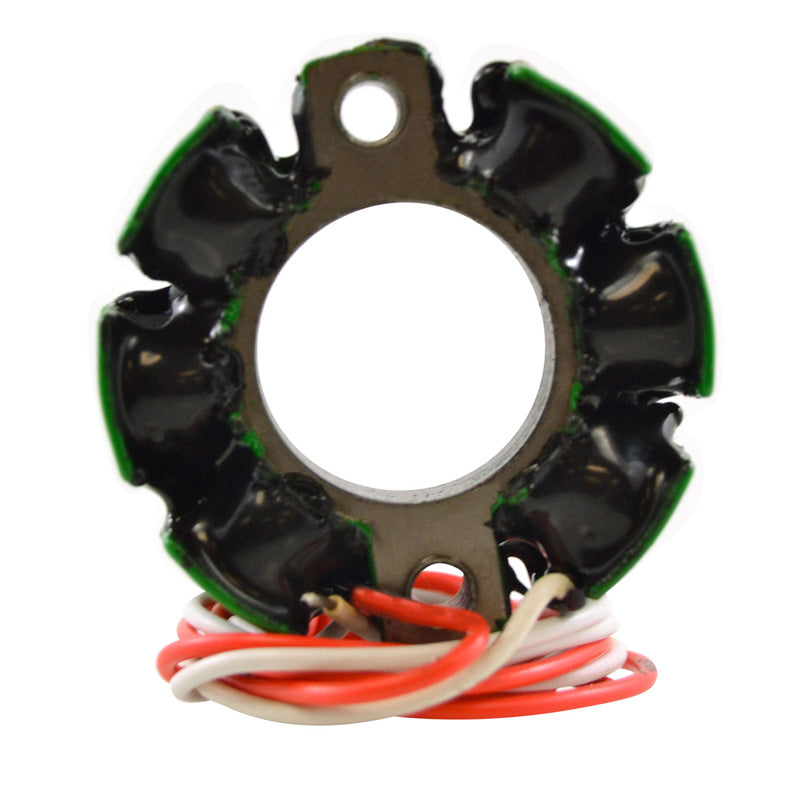

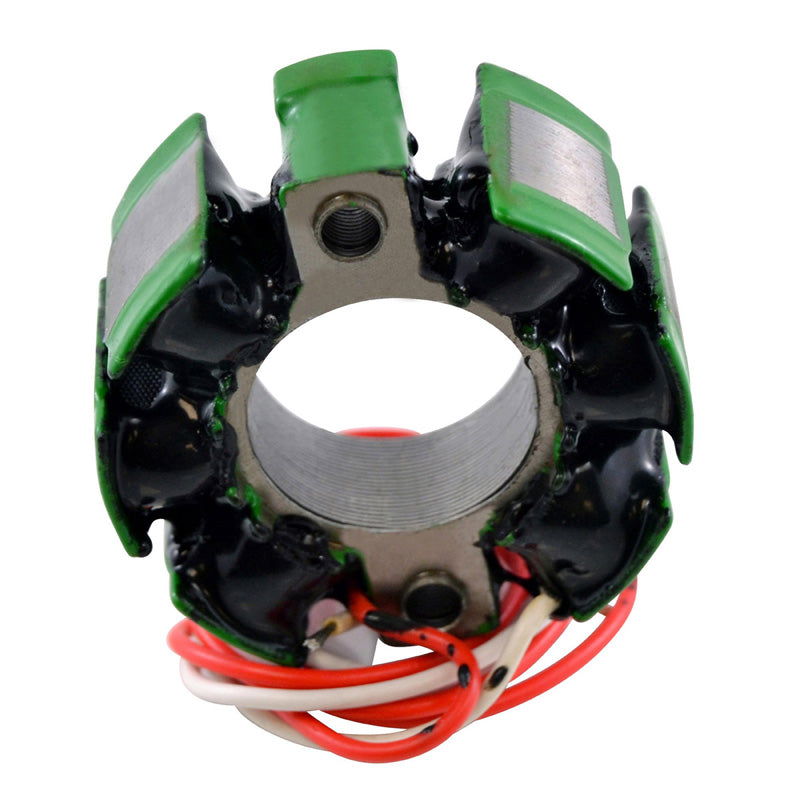

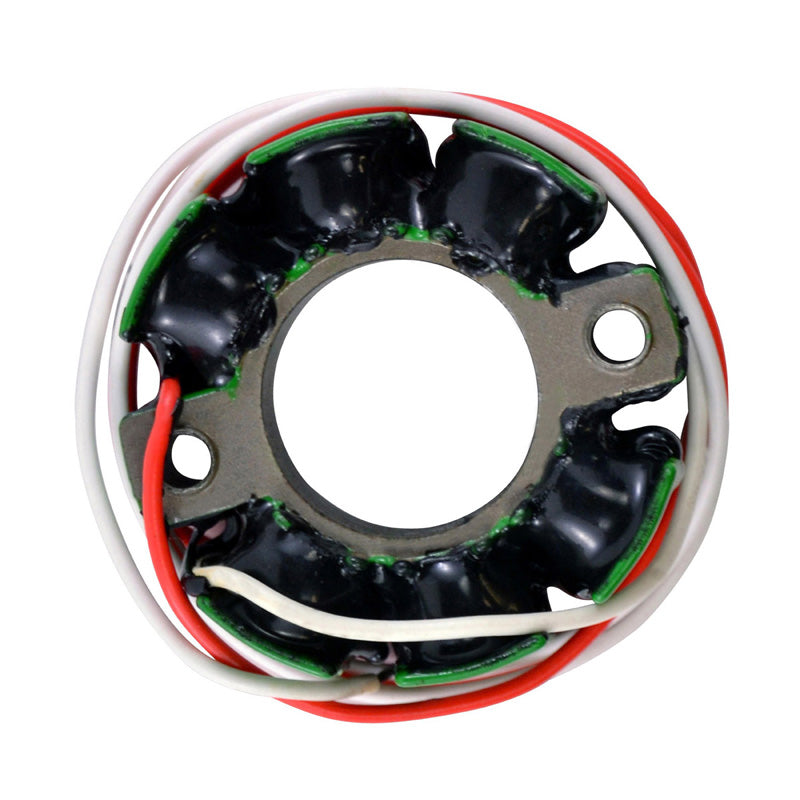

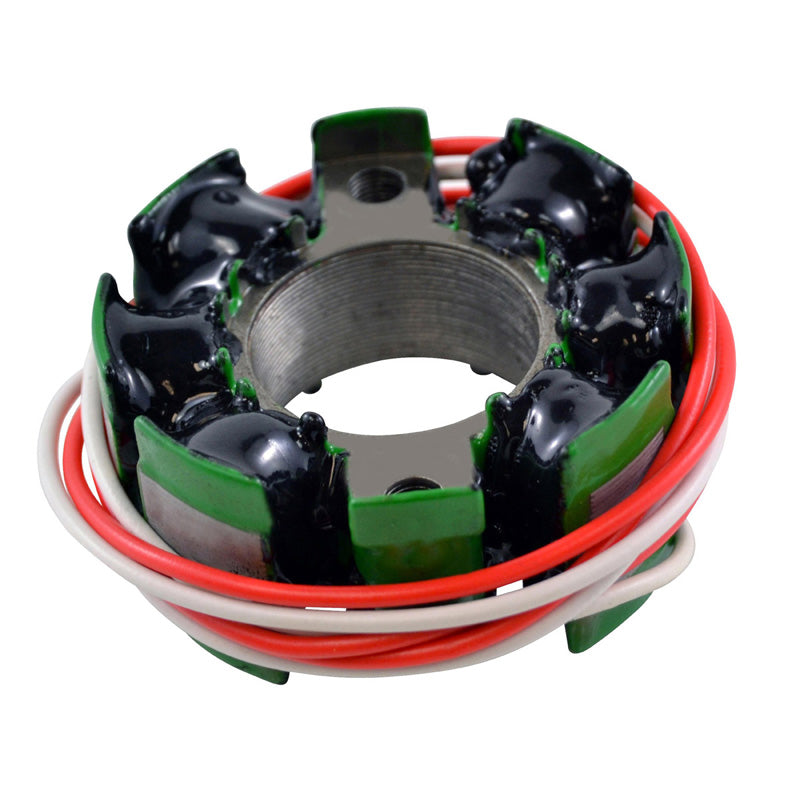

Brand new stator

• You must re-install your original grommet and the new connector (see picture).
• Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 28 mm
Exterior diameter : 58 mm
Thickness : 16 mm
Length of wires stator to terminals : 75 mm

Other specifications :

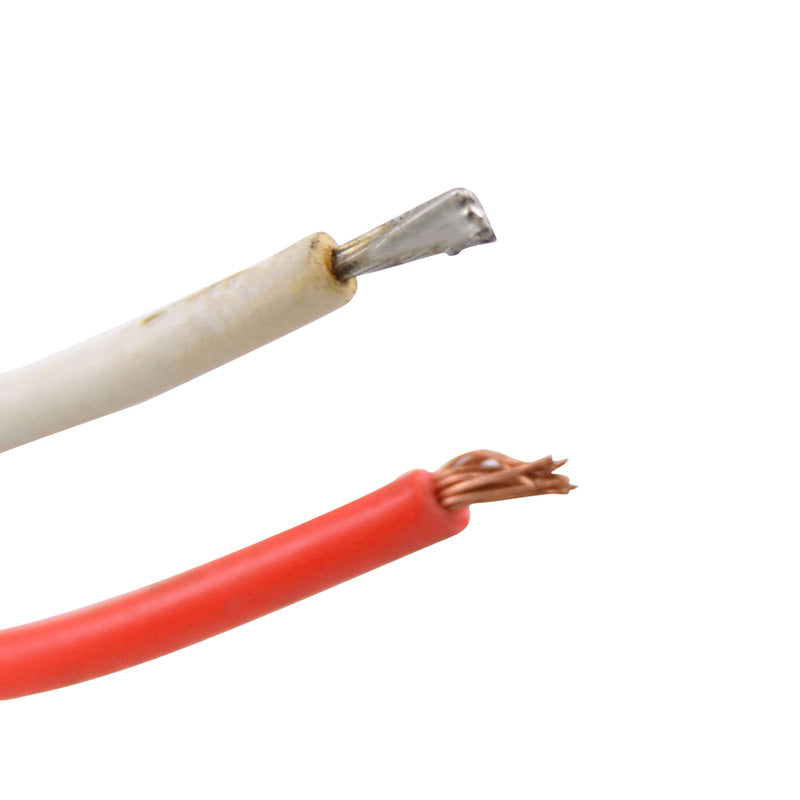

Number of wires : 2

Wire to wire resistance :
Source : White to Red = 160 ohms +-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
