Highest grade of copper winding, resistant to 200 degrees Celsius
Pick up pulsar coil included

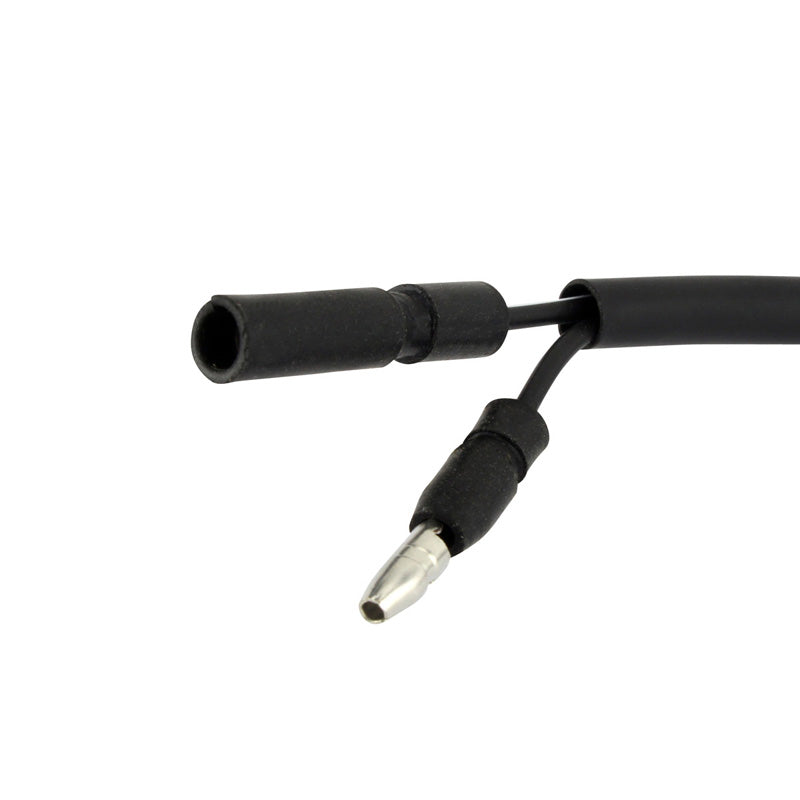

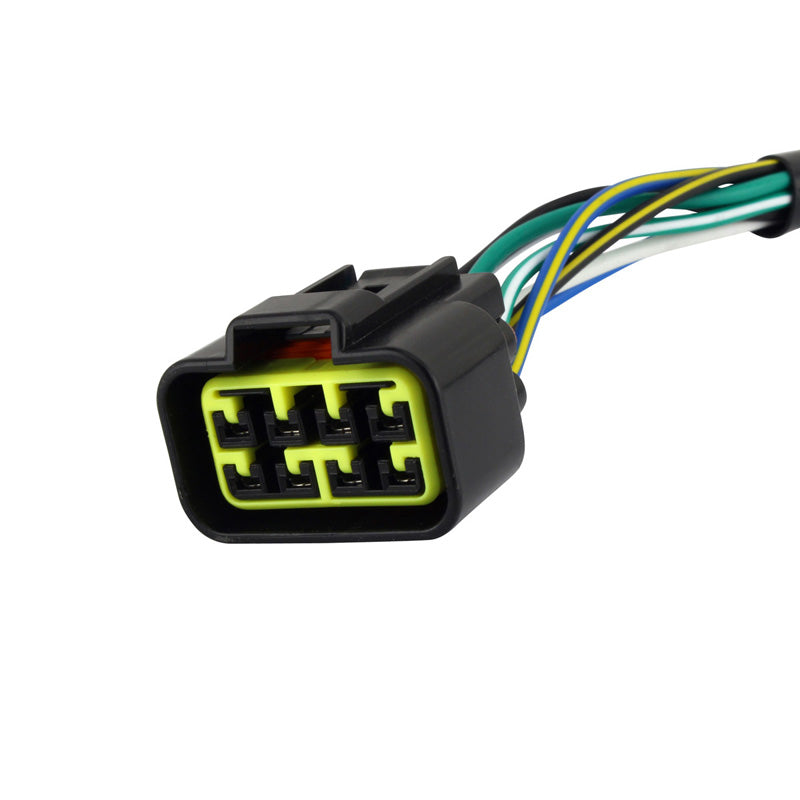

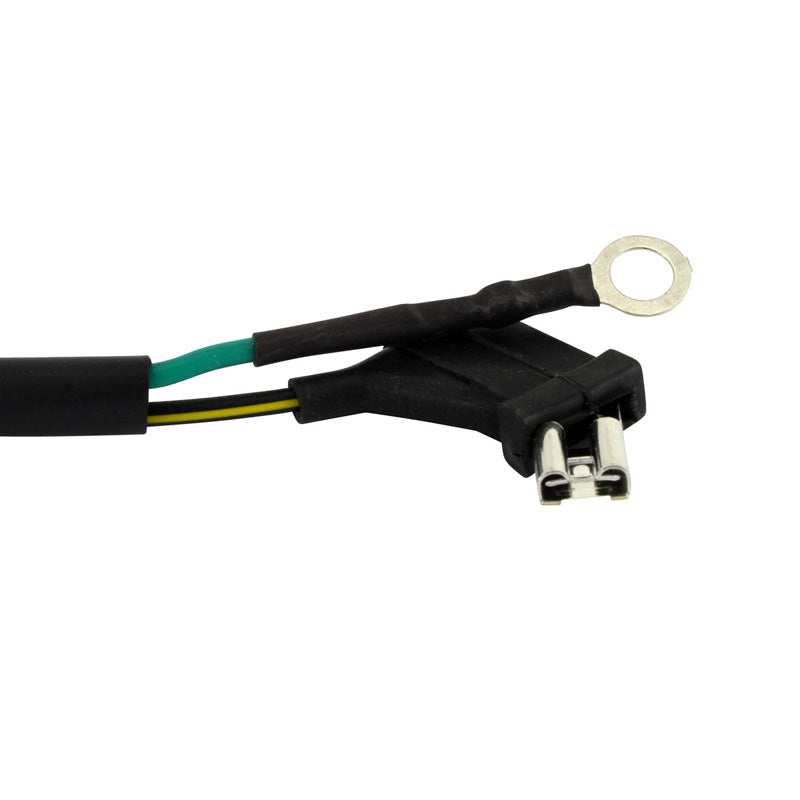

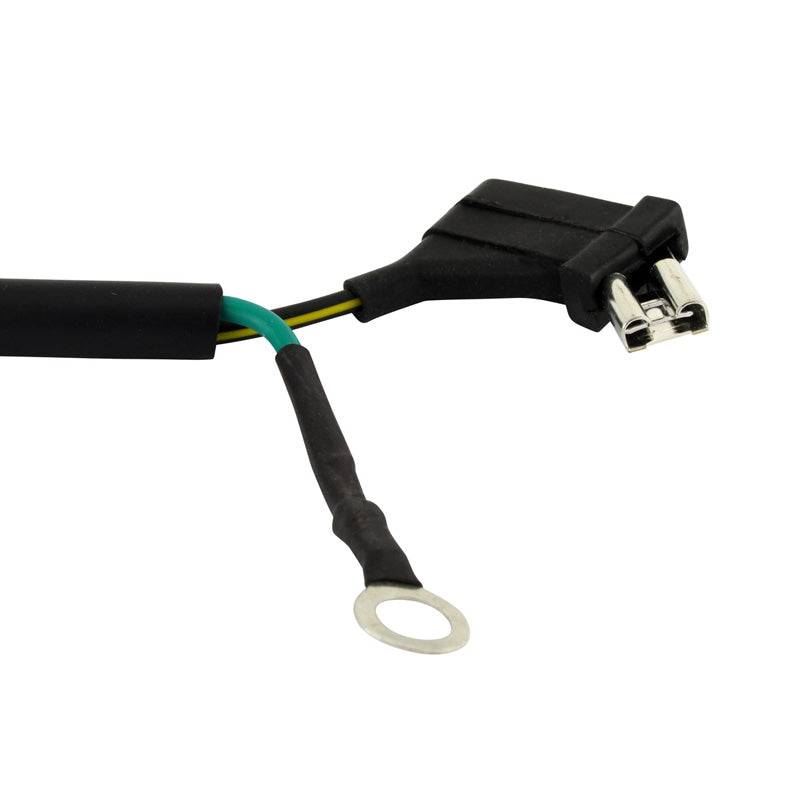

Connectors included
Rubber grommet included

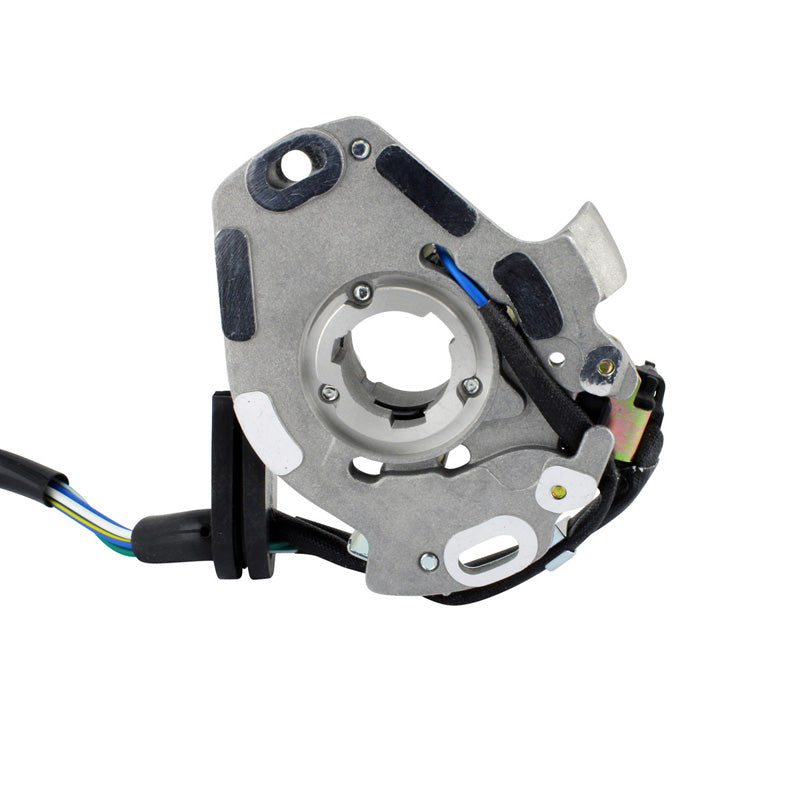

Back Plate included
All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions:
Interior diameter: 27 mm
Exterior diameter: 60 mm
Thickness: 13 mm
Length of wires stator to grommet: 120 mm
Length of wires grommet to plug: 790 mm
Length of pickup coil's wire to grommet: 120 mm
Other specifications:
Number of wires: 8
Number of plugs: 3
Number of pins: 12
Number of poles: 8
Wire to wire resistance:
Pickup: Blue/Yellow to Green/White = 259 ohms +-20%
Source: Blue to White = 26 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
