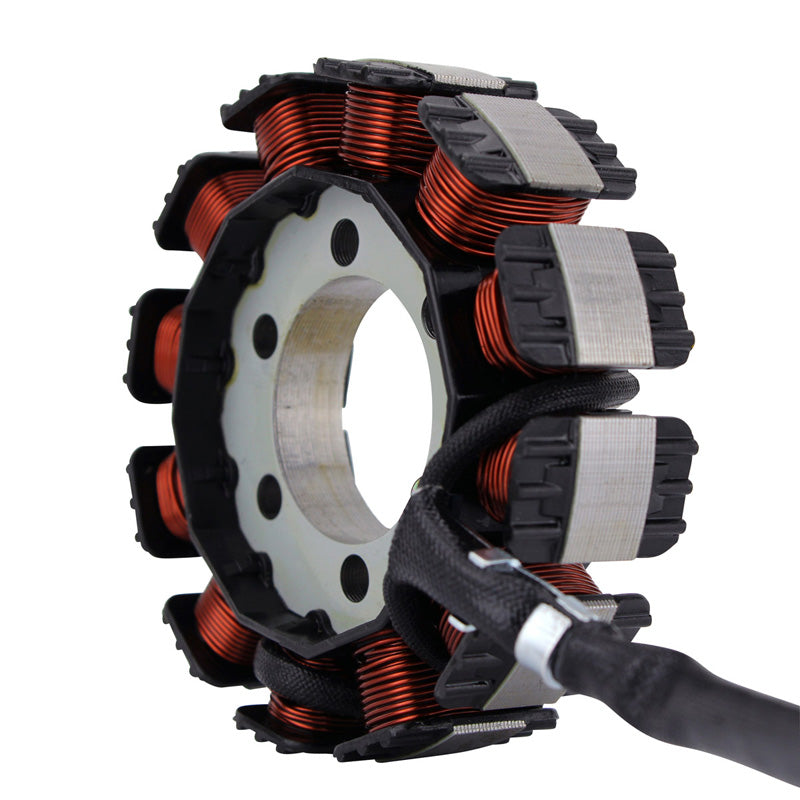

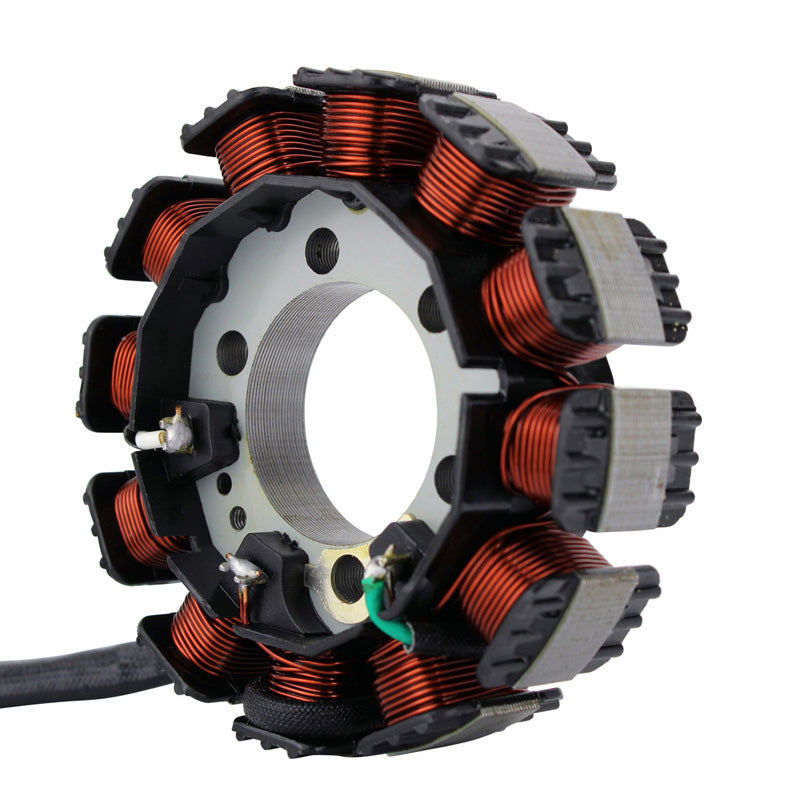

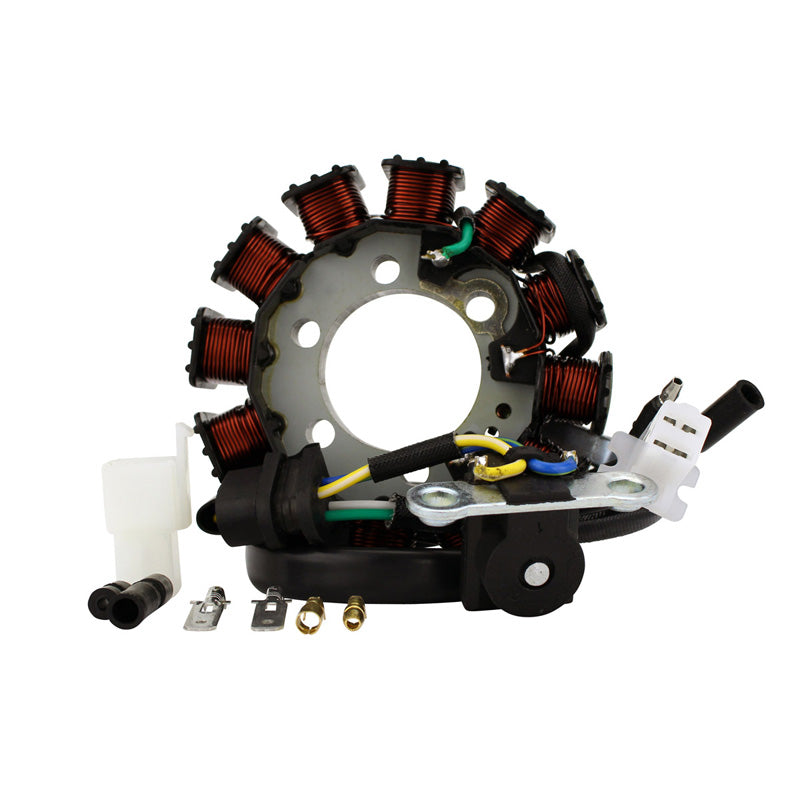

Highest grade of copper winding, resistant to 200 degrees Celsius

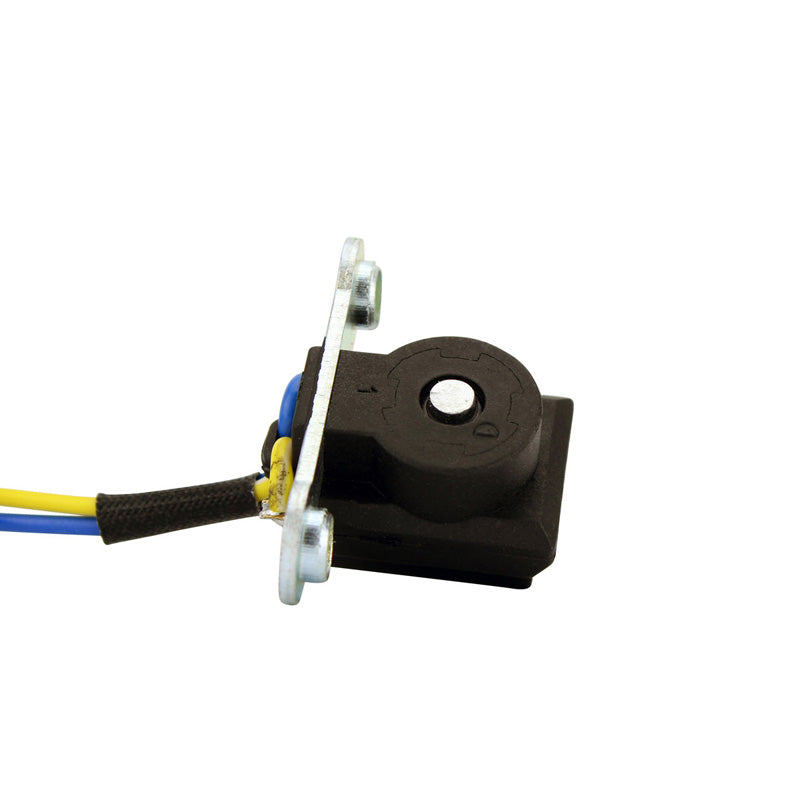

Pick up pulsar coil included

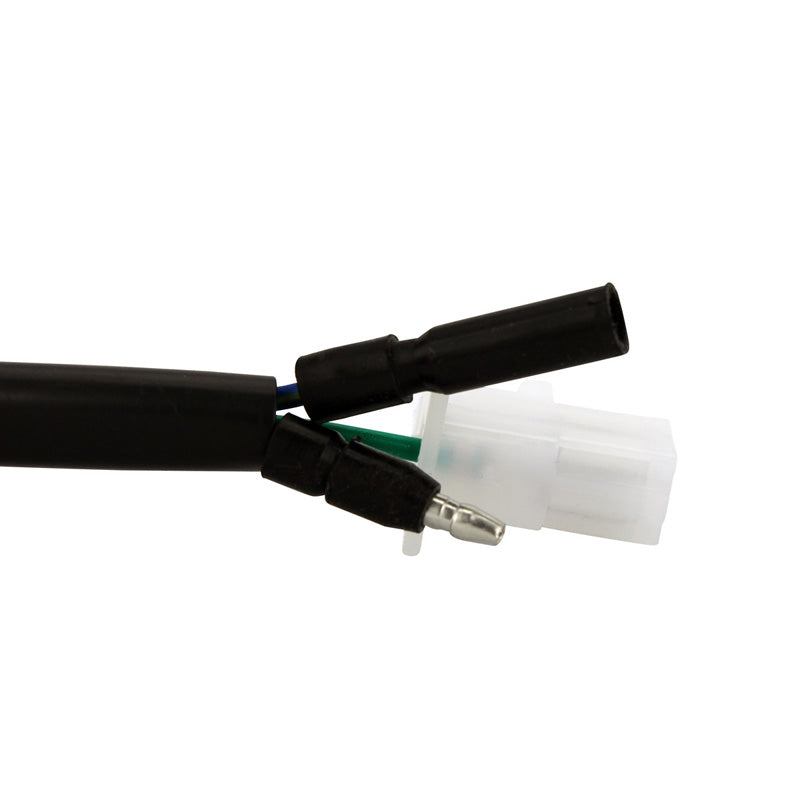

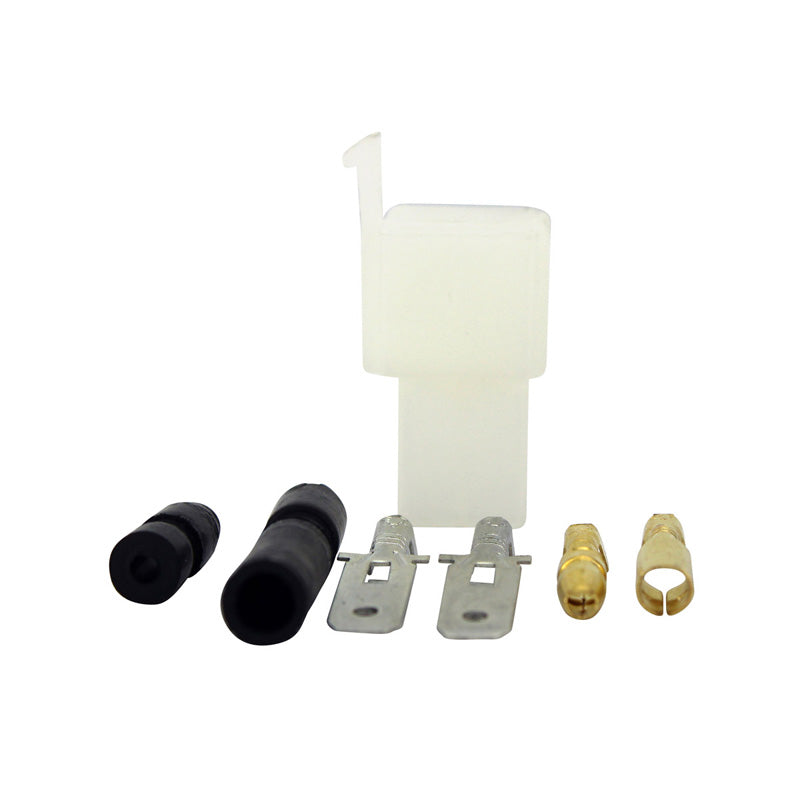

Connectors included

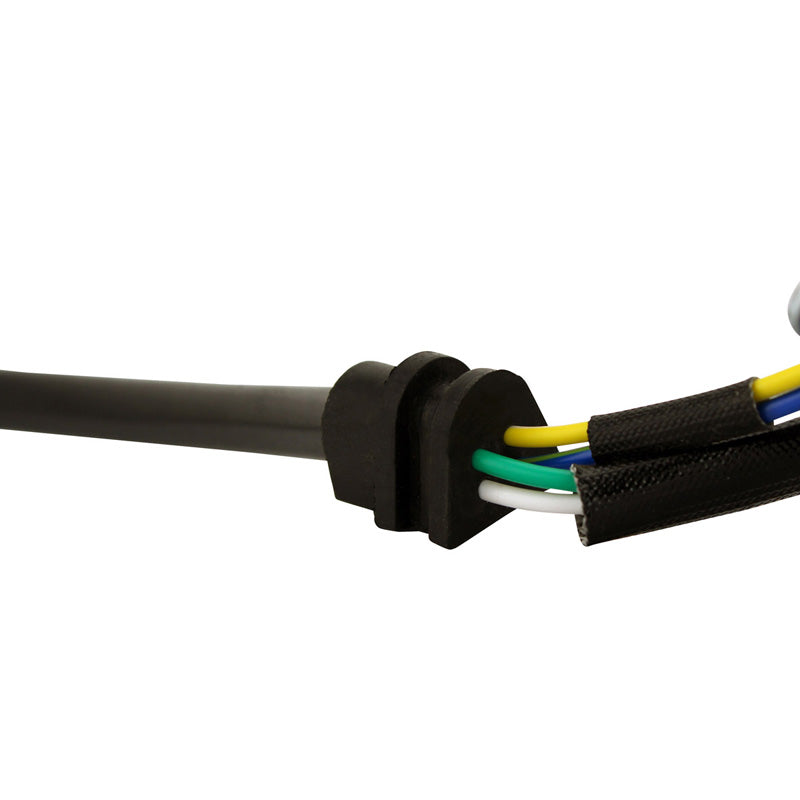

Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions :

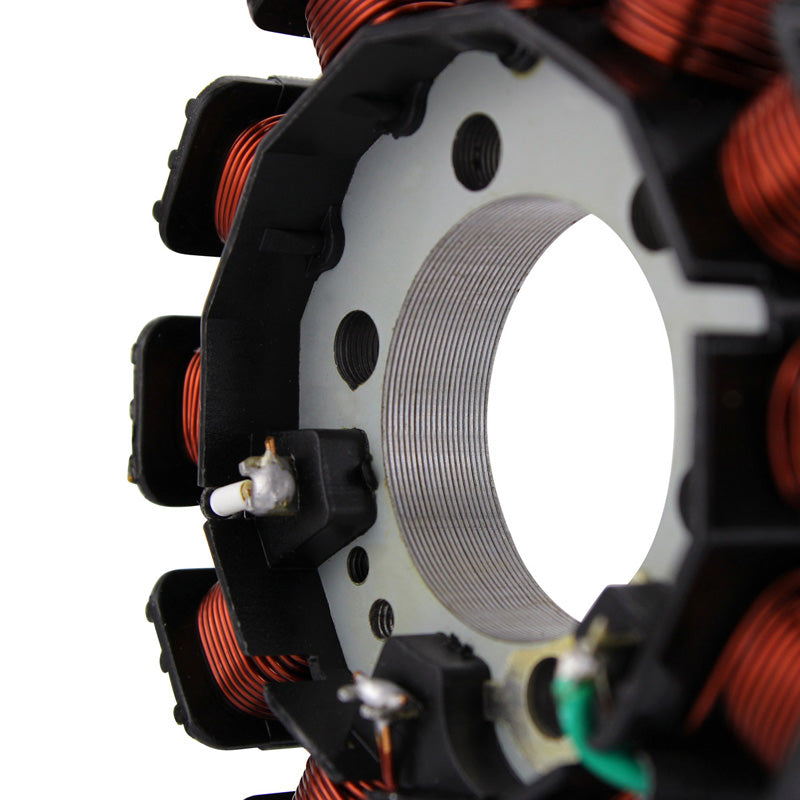

Interior diameter : 35 mm
Exterior diameter : 92 mm

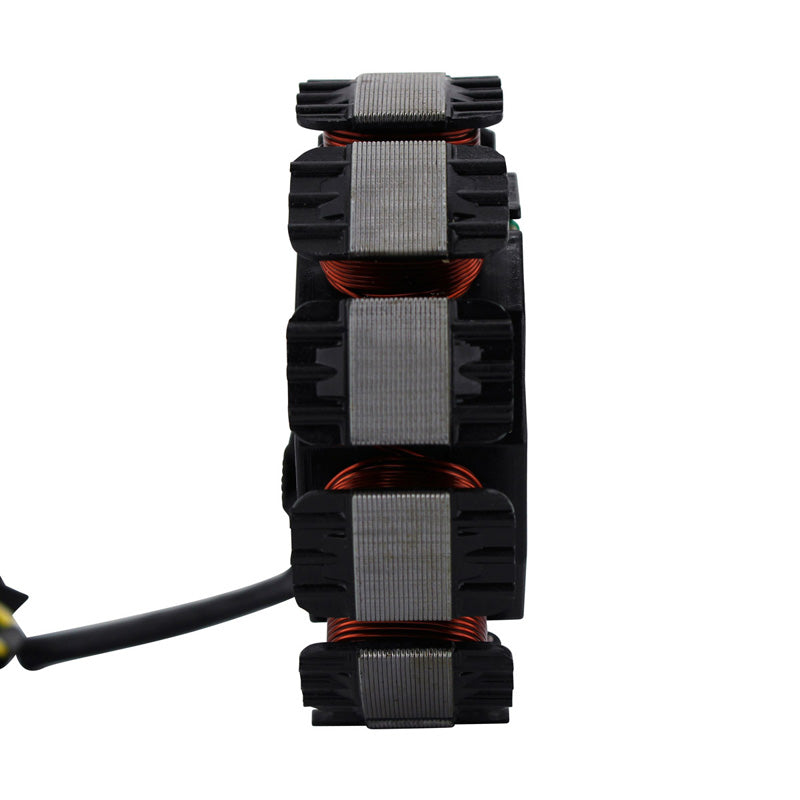

Thickness : 10 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 380 mm
Length of pickup coil's wire to grommet : 20 mm
Other specifications :
Number of wires : 4

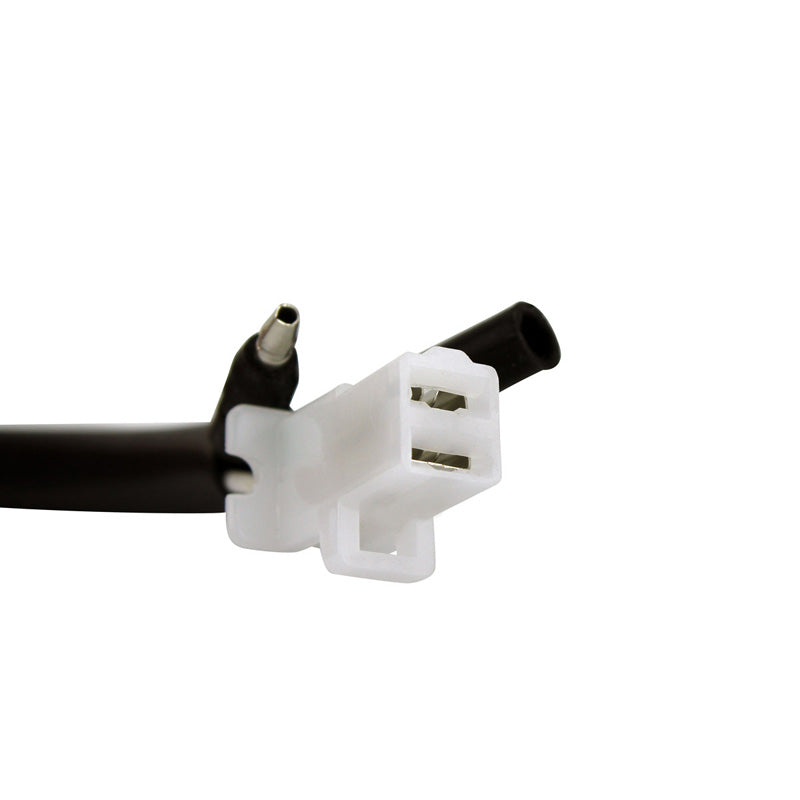

Number of plugs : 3
Number of pins : 4

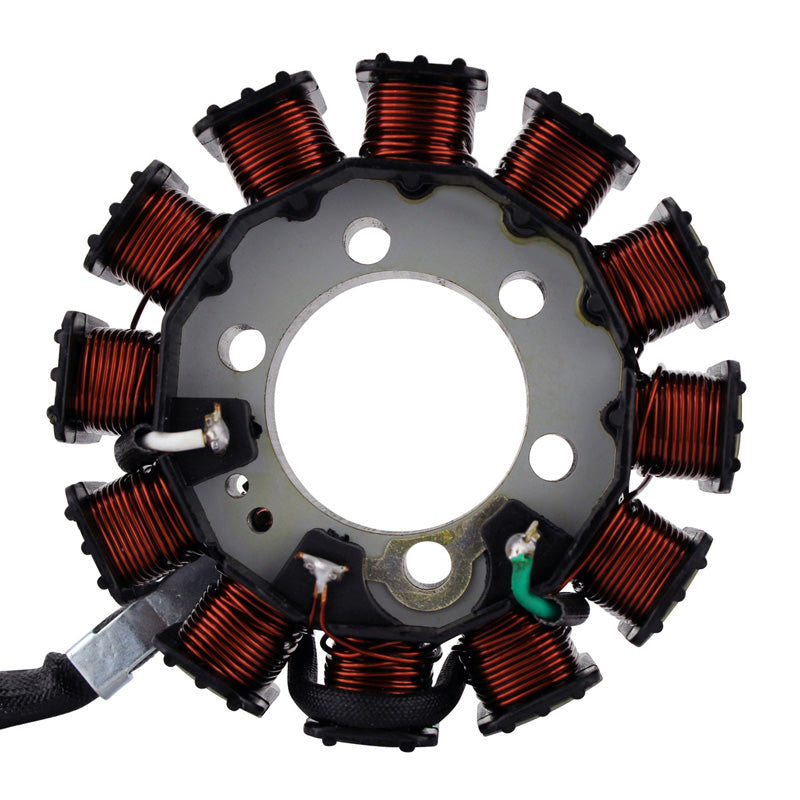

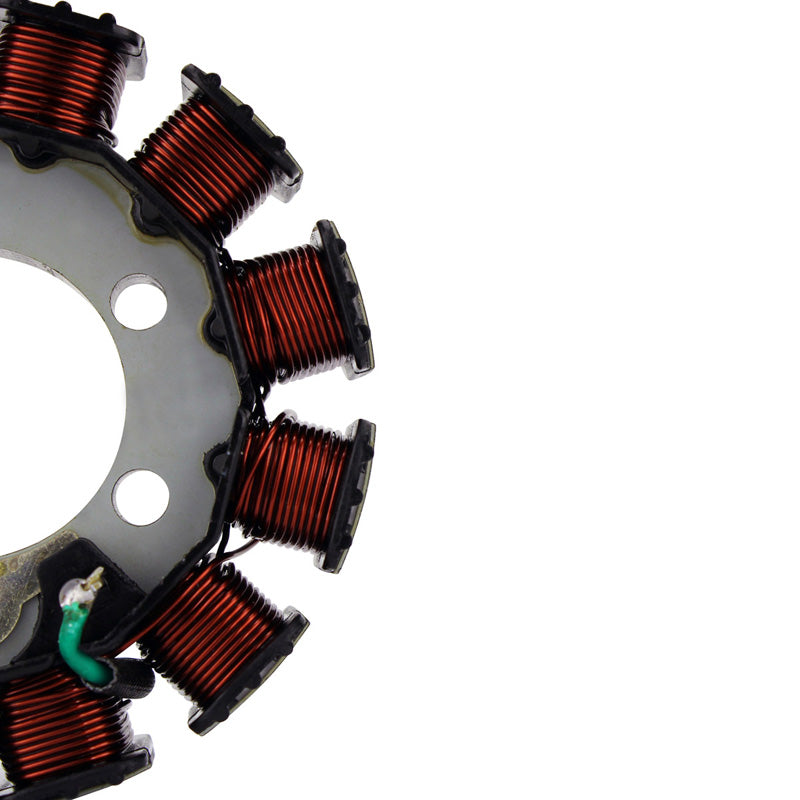

Number of poles : 12
Wire to wire resistance :
Alternator : = White to Green 0.8 ohms +-20%
Pickup : = White/Yellow to Blue/Yellow 194 ohms +-20
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
