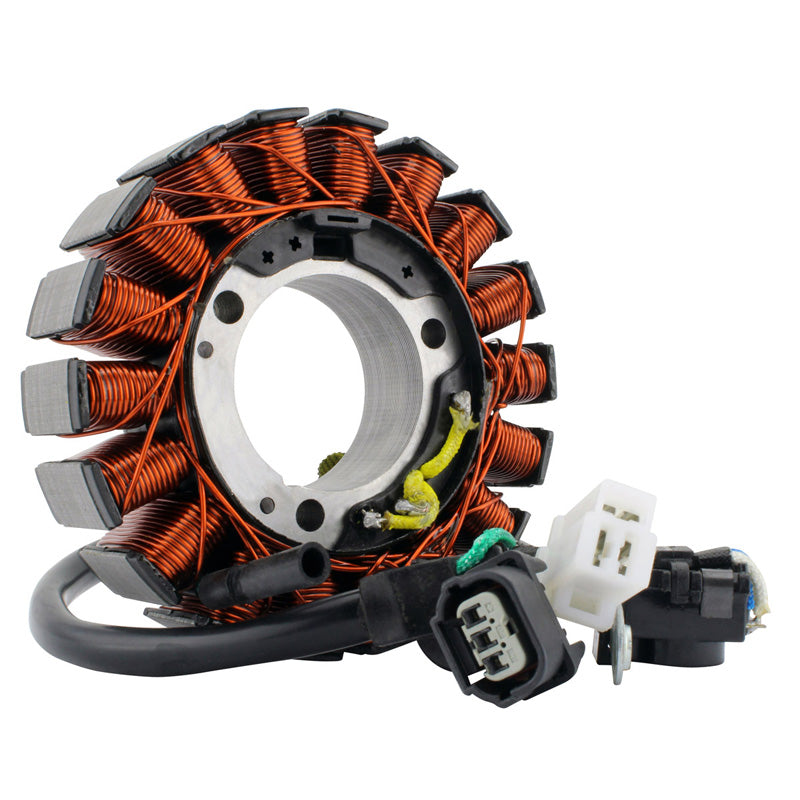

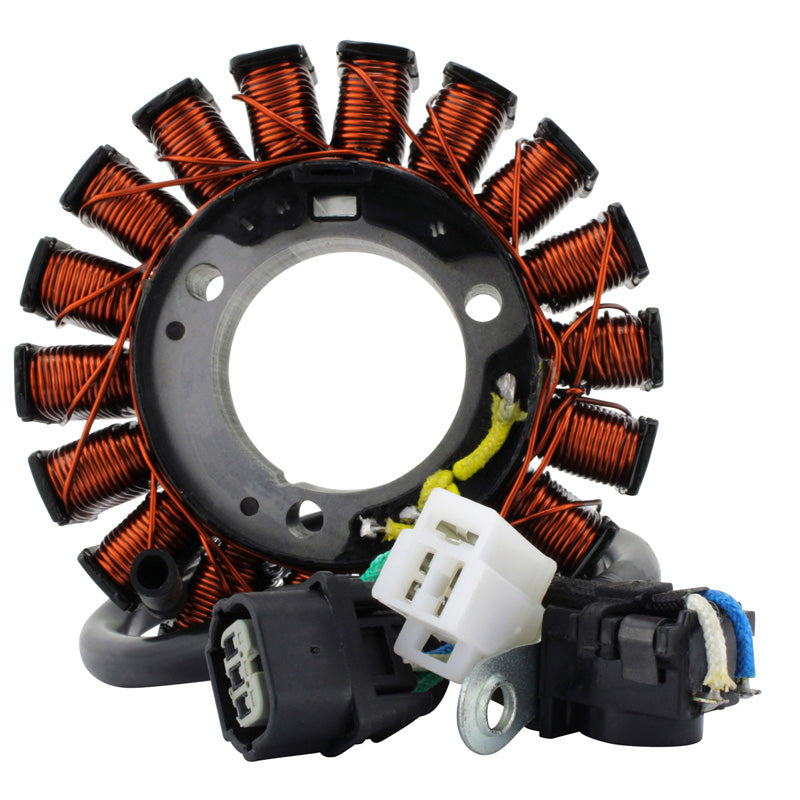

Highest grade of copper winding, resistant to 200 degrees Celsius

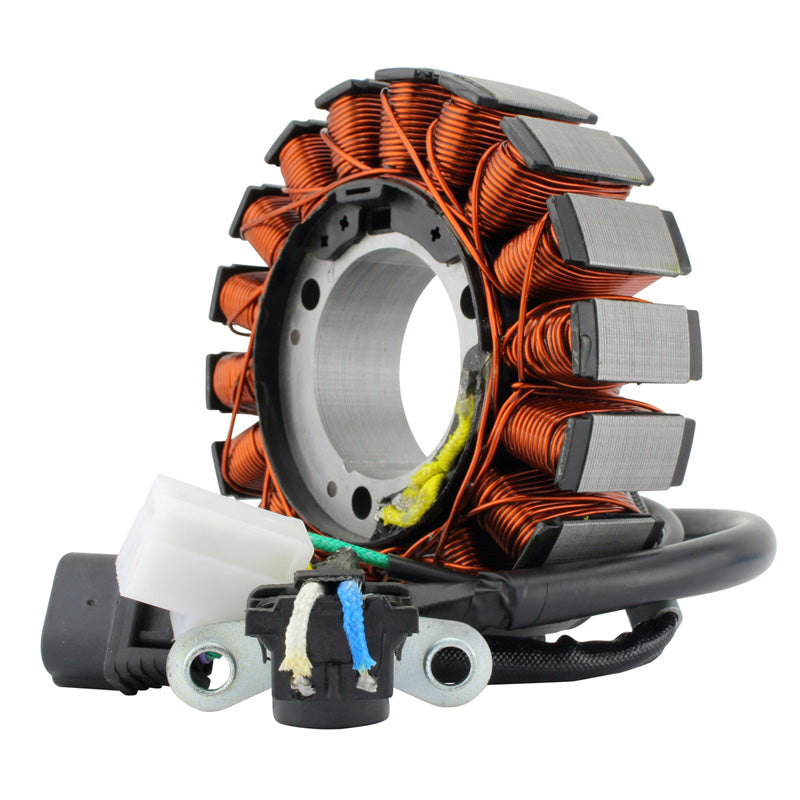

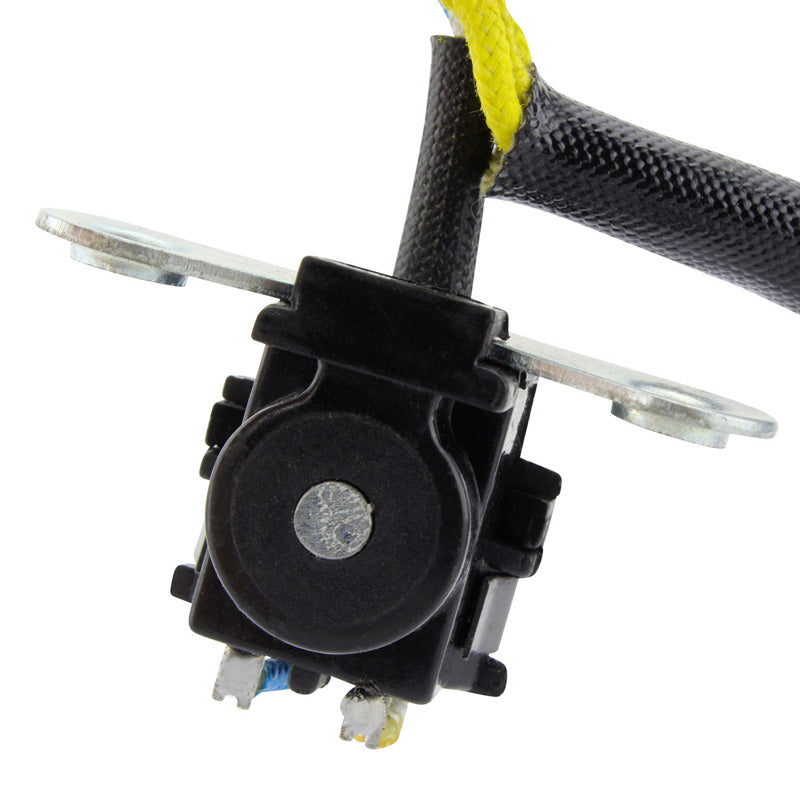

Pick up pulsar coil included

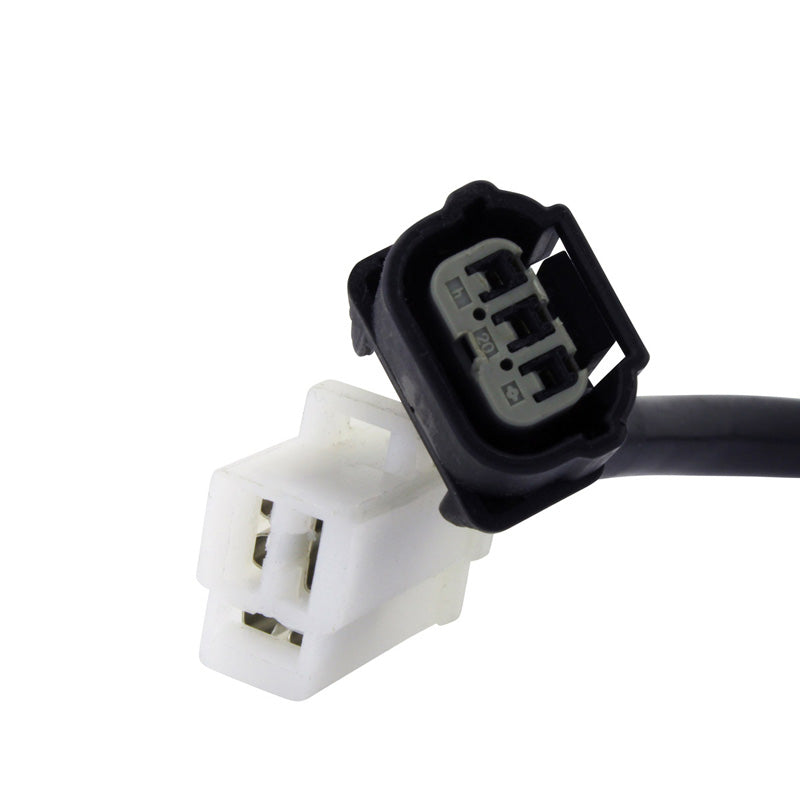

Connectors included

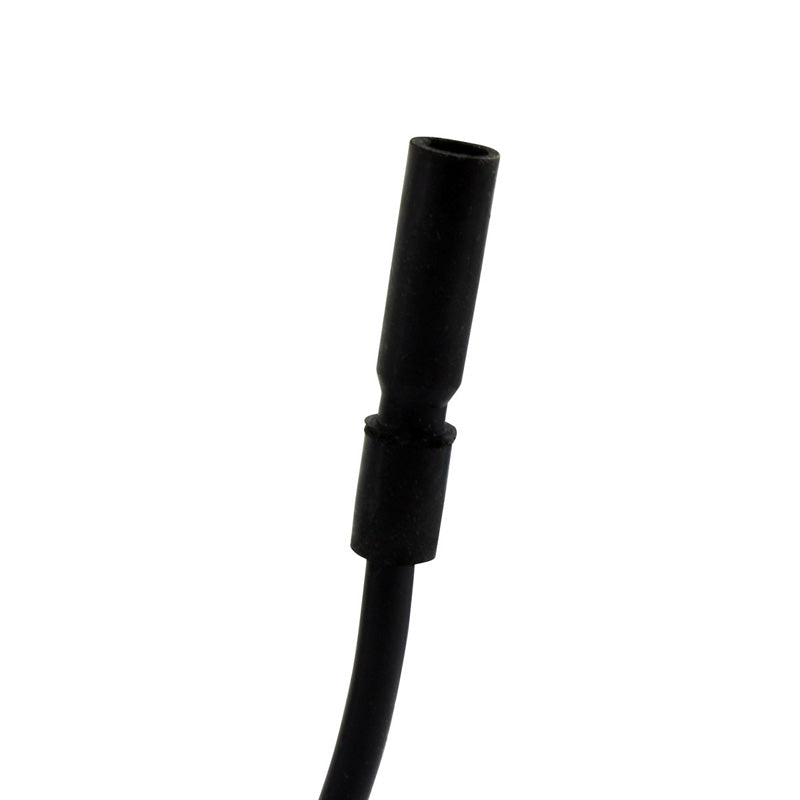

Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions:
Interior diameter: 42 mm
Exterior diameter: 107 mm

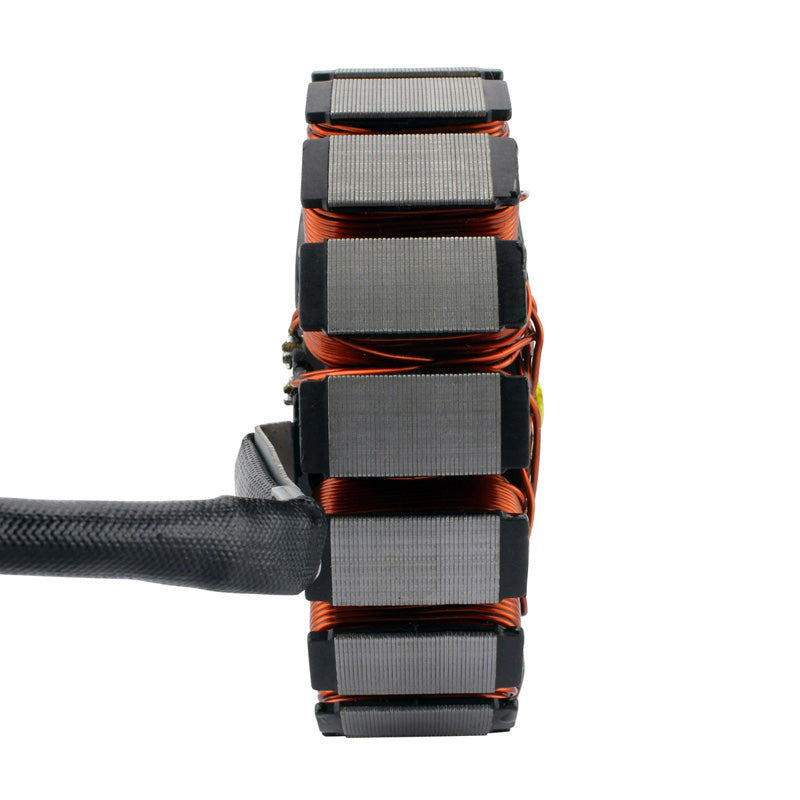

Thickness: 22 mm
Length of wires stator to grommet: 70 mm
Length of wires grommet to plug # 1: 310 mm
Length of wires grommet to plug # 2: 190 mm
Length of pickup coil's wire to grommet: 40 mm
Other specifications:
Number of wires: 6
Number of plugs: 3
Number of pins: 6

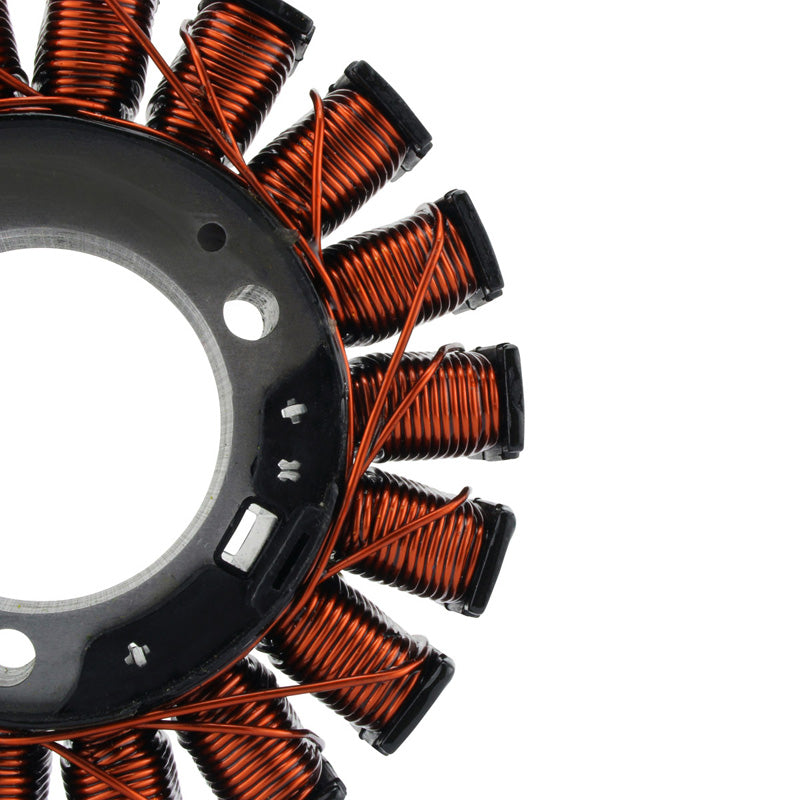

Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.7 ohms +-20%
Pickup: Bleu/Yellow to White/Yellow = 231 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
