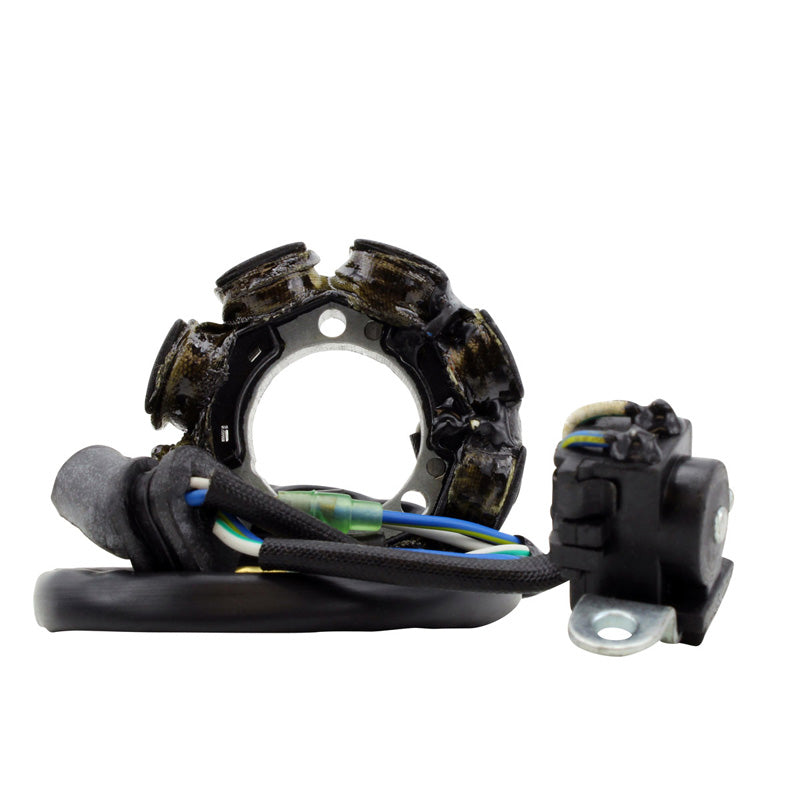

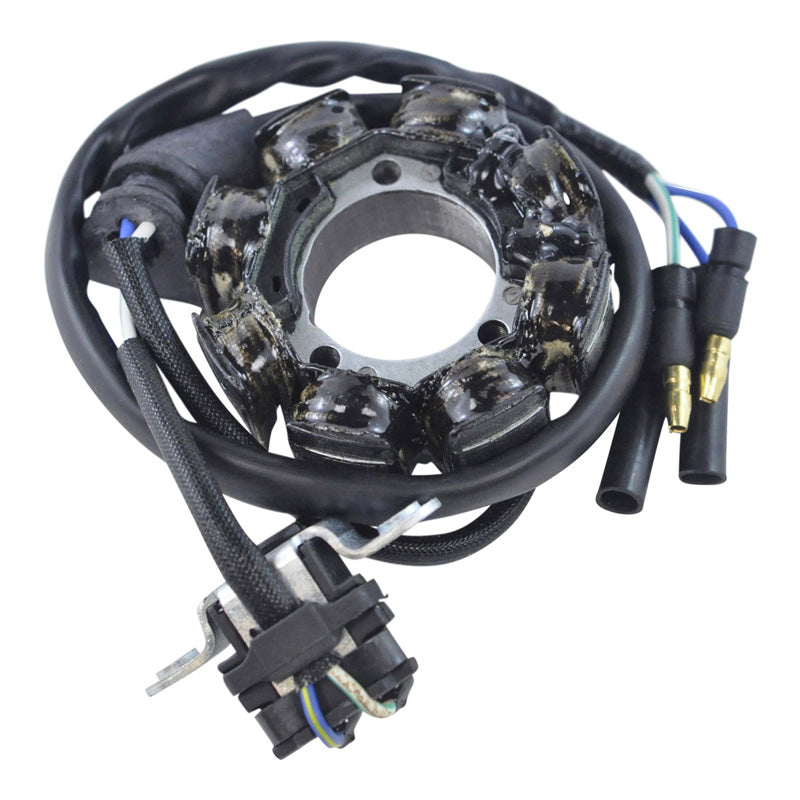

Highest grade copper windings, resistant to 200 degrees Celsius.

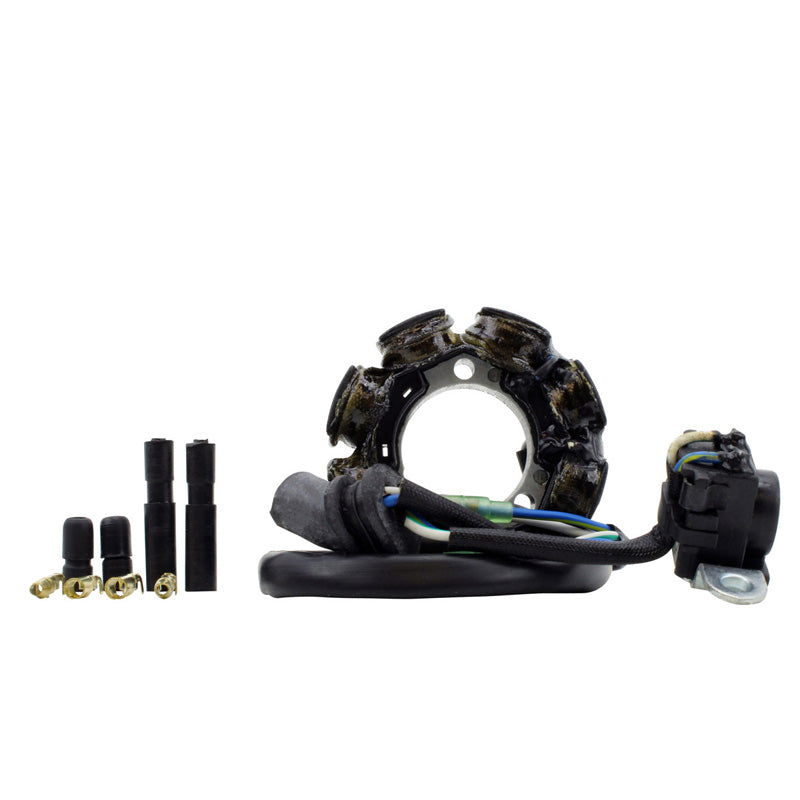

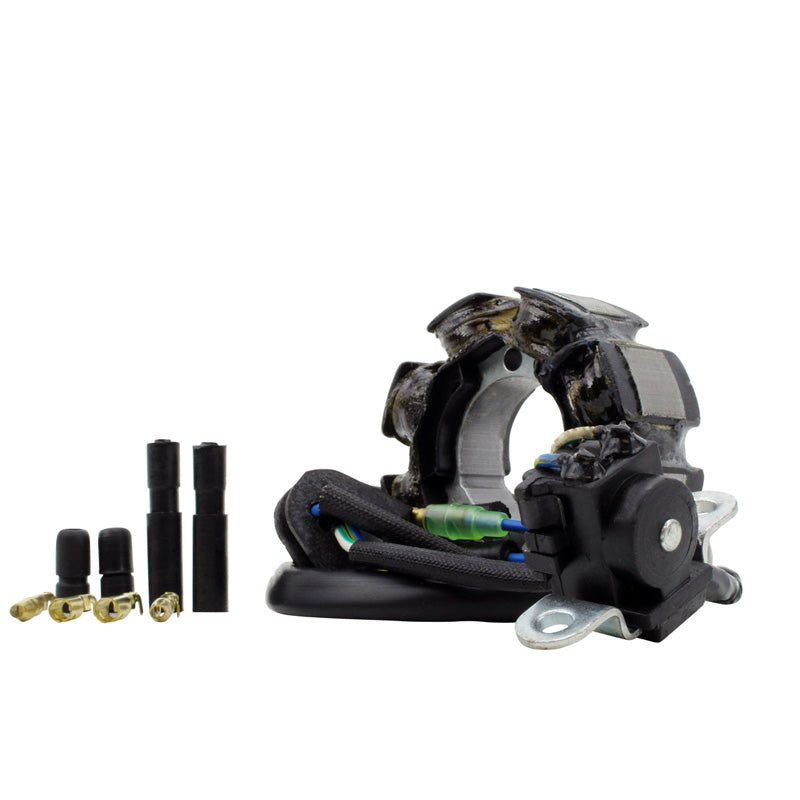

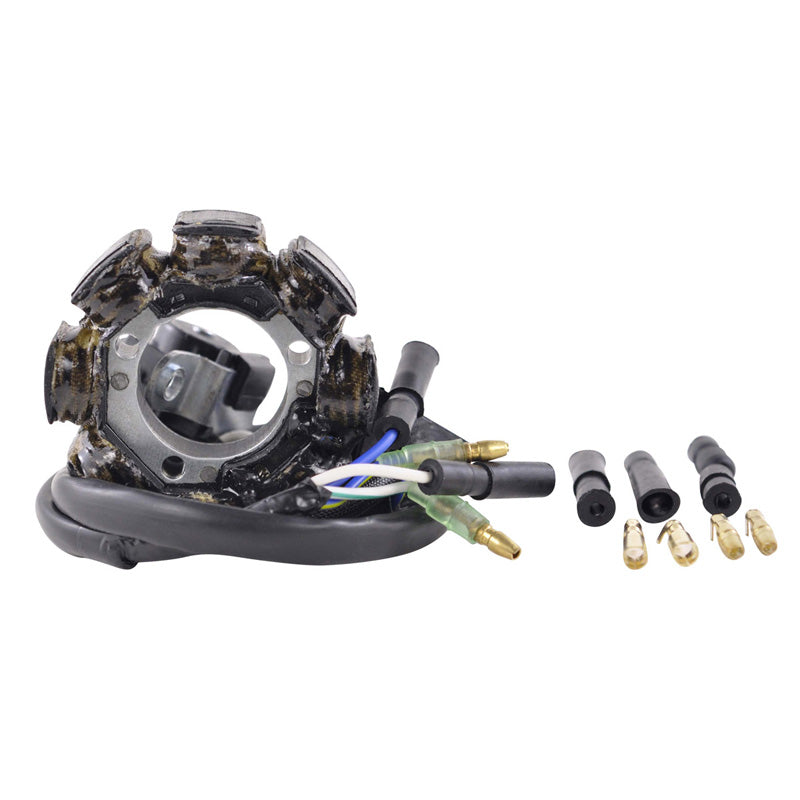

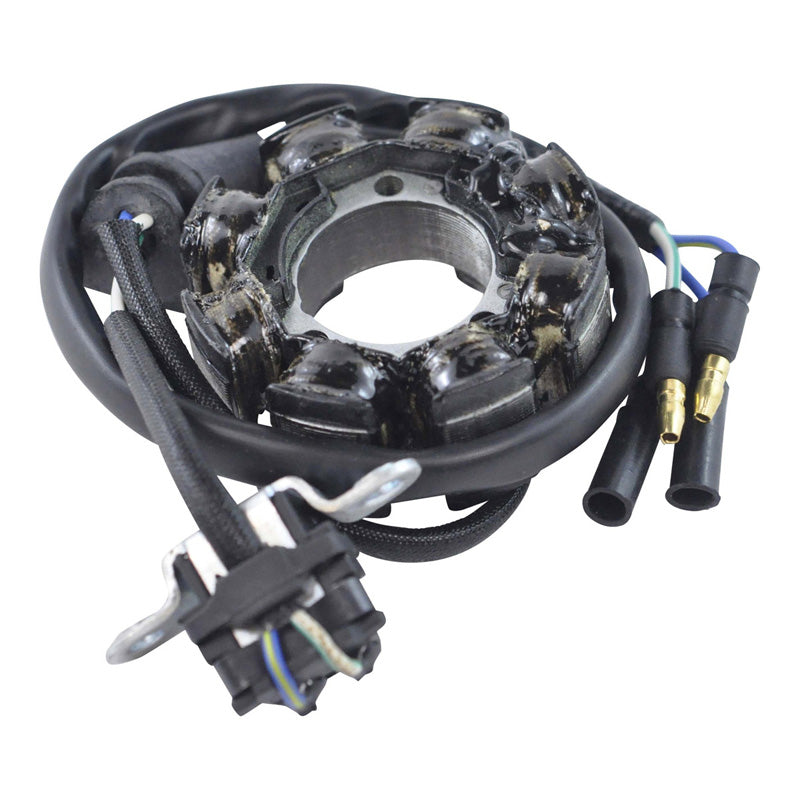

Pick up pulsar coil included

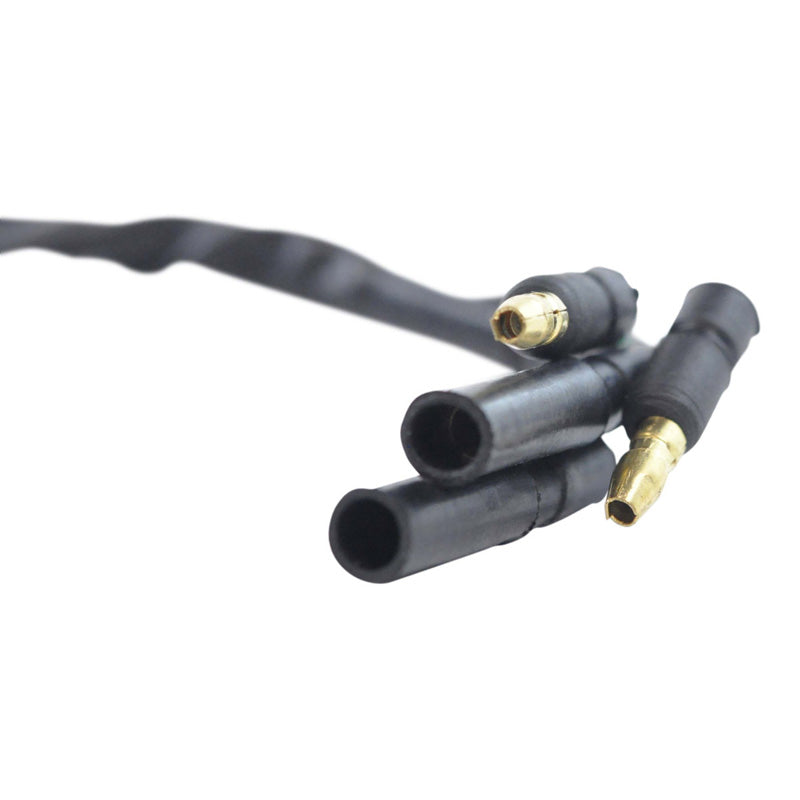

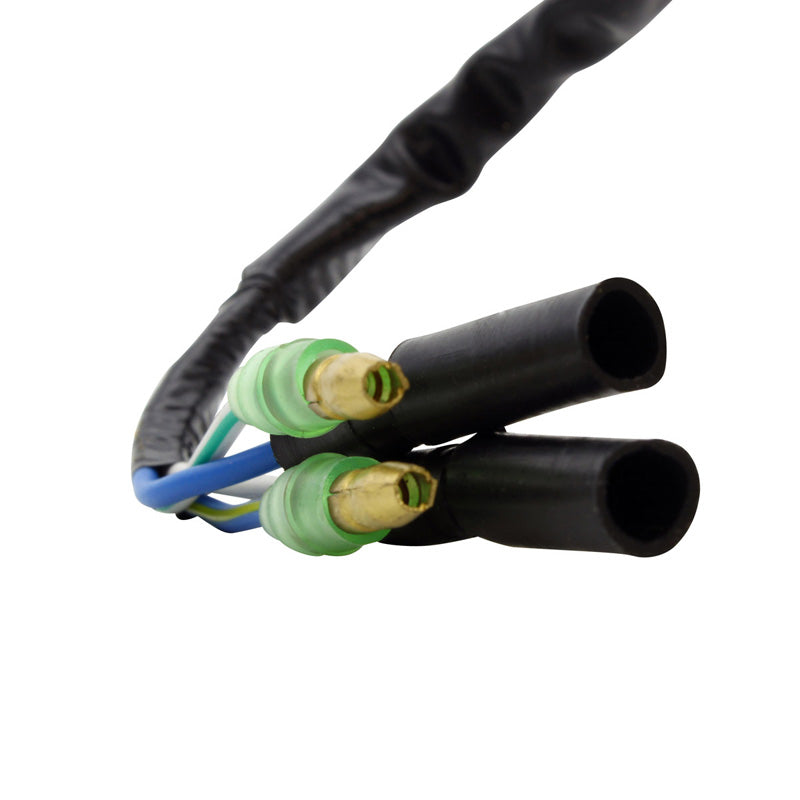

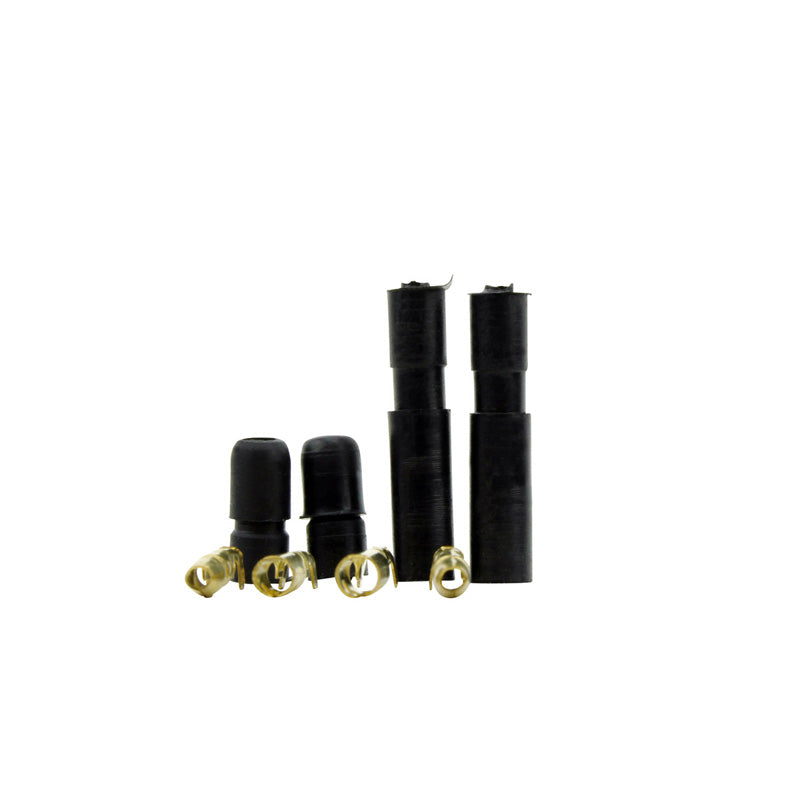

Connector included
Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:

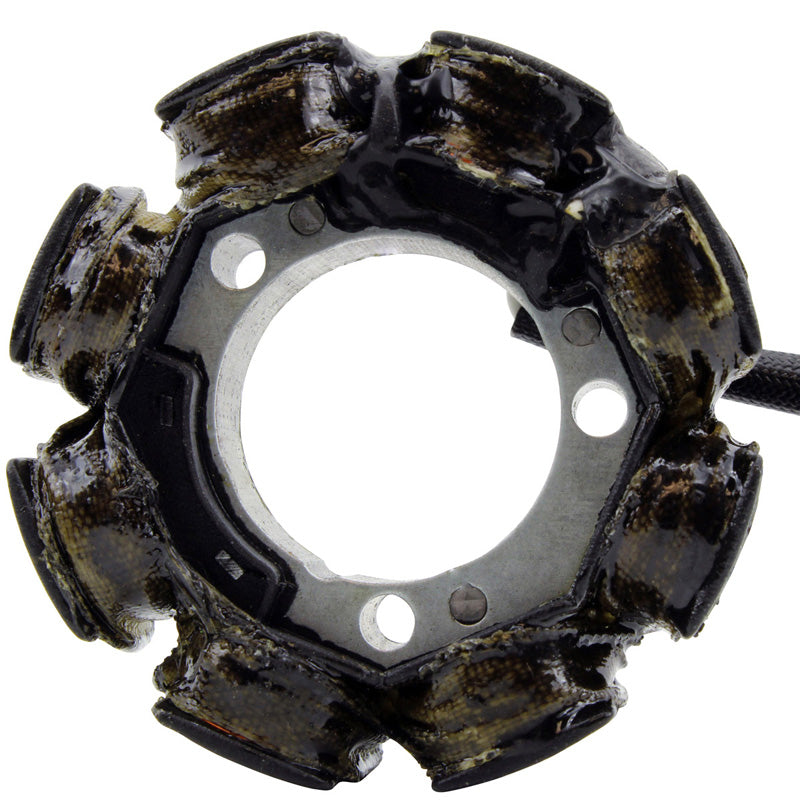

Dimensions :
Interior diameter : 28 mm
Exterior diameter : 60 mm
Thickness : 14 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 400 mm
Length of pickup coil's wire to grommet : 70 mm
Other specifications :
Number of wires : 4
Number of pins : 4
Wire to wire resistance :
Pickup : White/Green to Blue/Yellow = 285 ohms +/-20%
Source : Blue to White = 23 ohms +/-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
