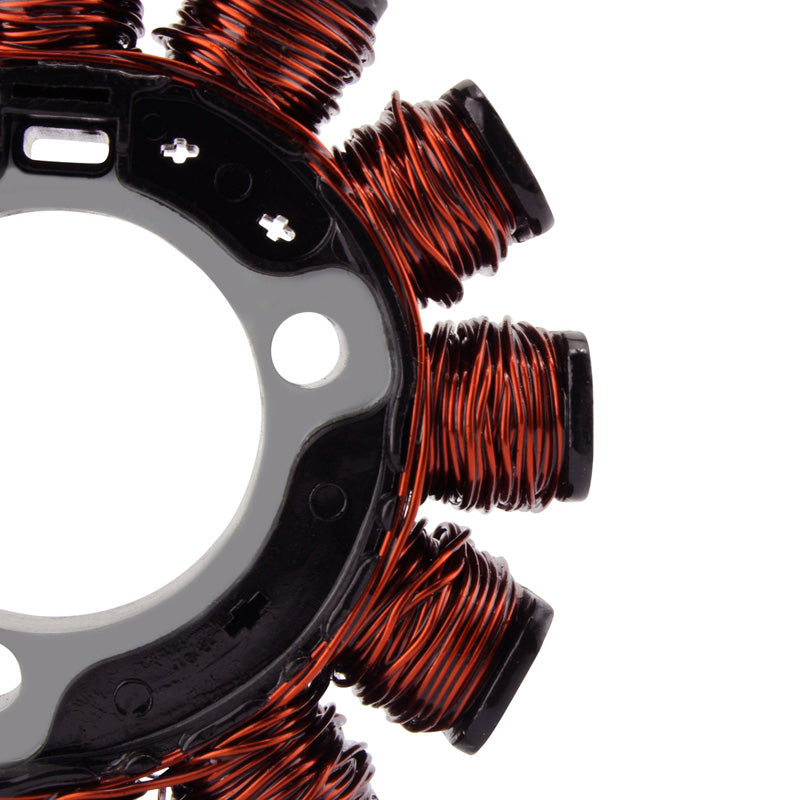

Highest grade of copper winding, resistant to 200 degrees Celsius

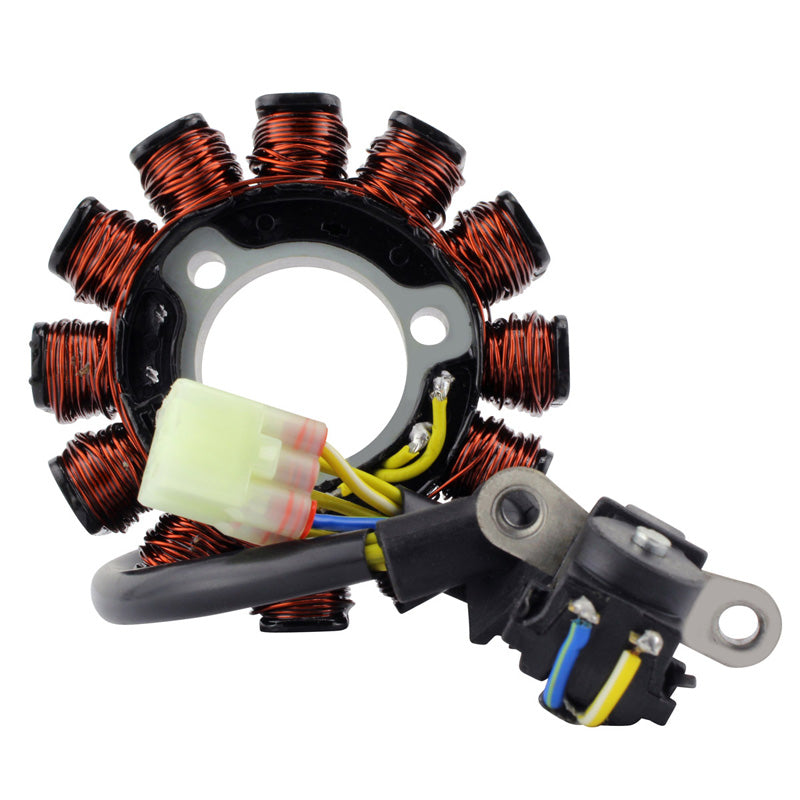

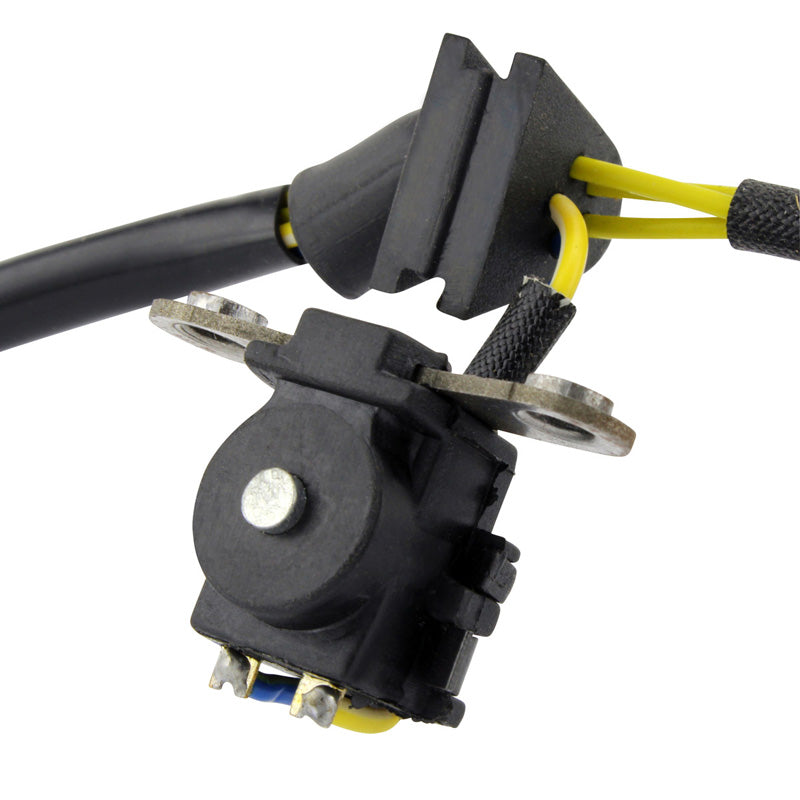

Pick up pulsar coil included

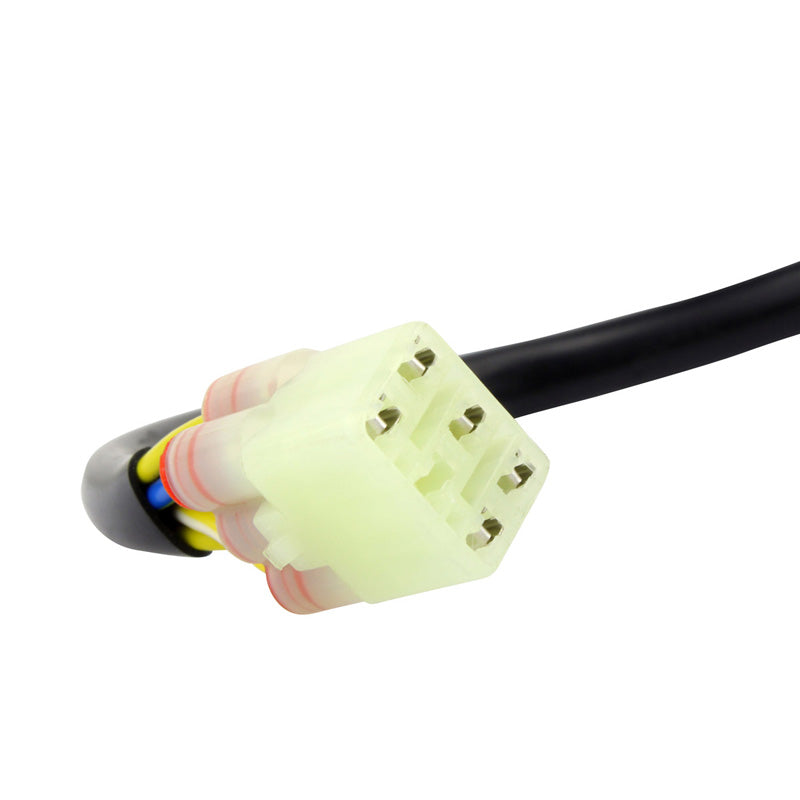

Connectors included
Rubber grommet included
All products shipped are tested
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions:
Interior diameter: 35 mm
Exterior diameter: 89 mm
Thickness: 12 mm
Length of wires stator to grommet: 70 mm
Length of wires grommet to plug: 240 mm
Length of pickup coil's wire to grommet: 40 mm
Other specifications:
Number of wires: 5
Number of plugs: 1
Number of pins: 5
Number of poles: 12
Wire to wire resistance:
Alternator: Yellow to Yellow = 1.3 ohms +-20%
Alternator: Yellow to ground = O.L
Pickup: Blue/Yellow to White/Yellow = 244 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
