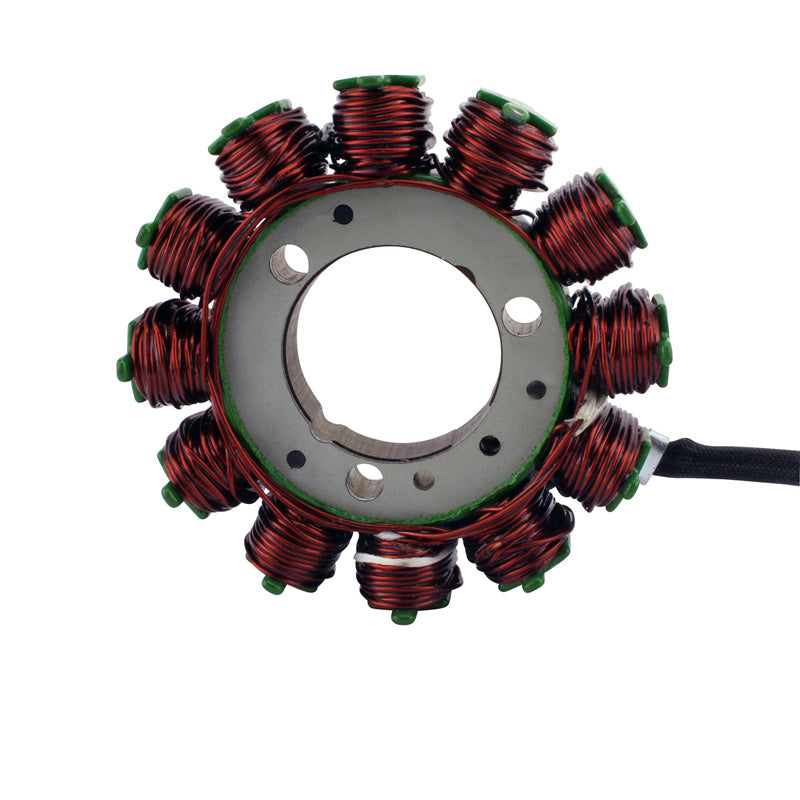

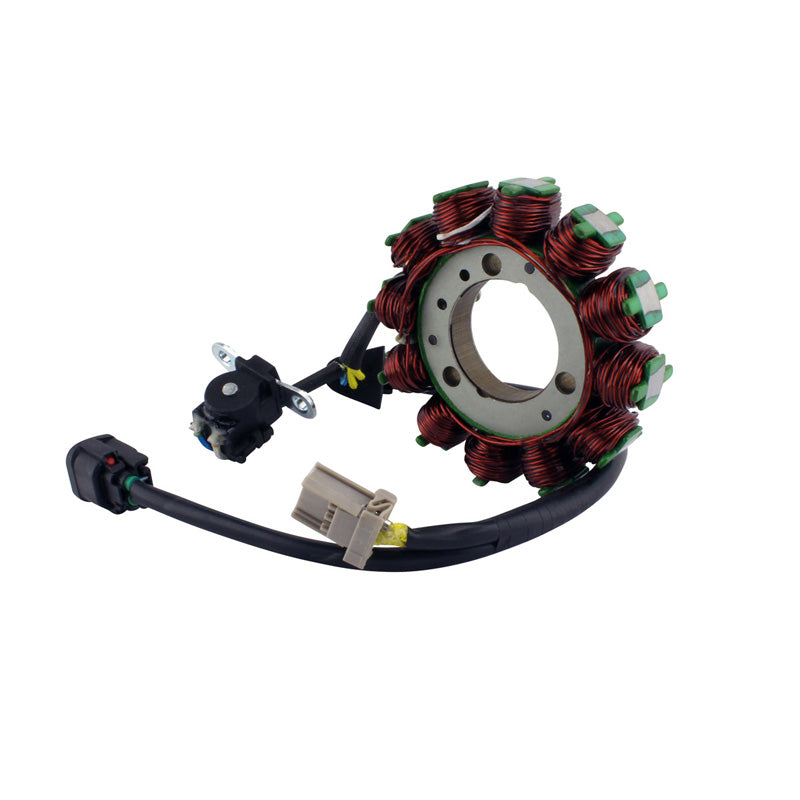

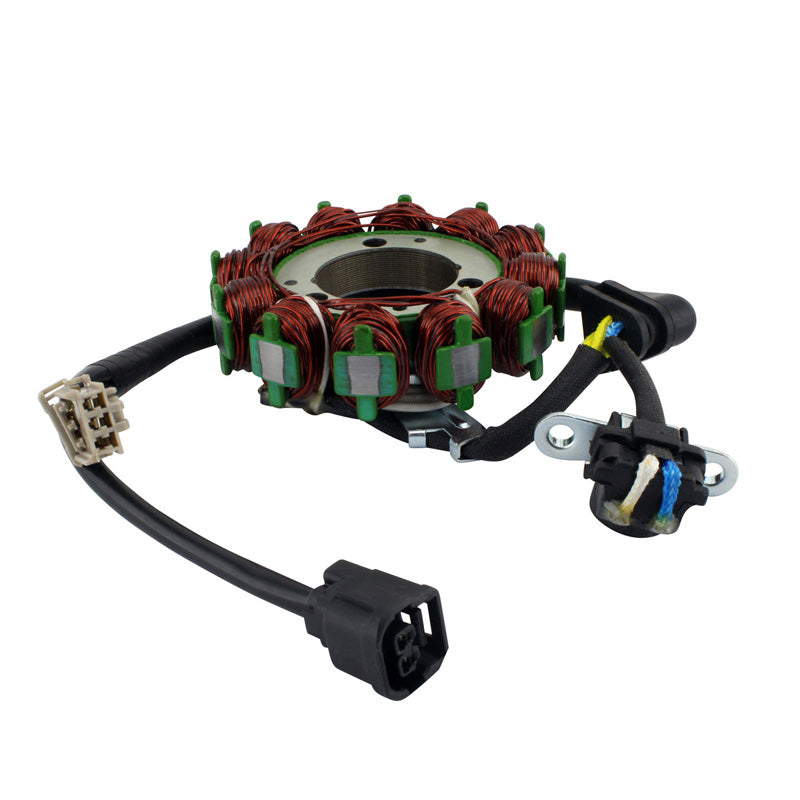

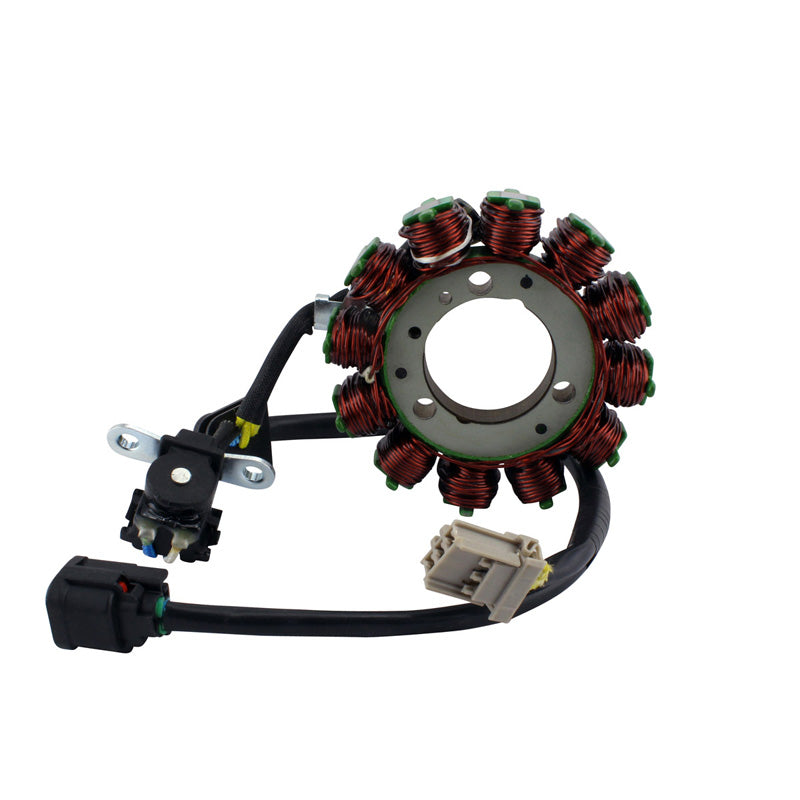

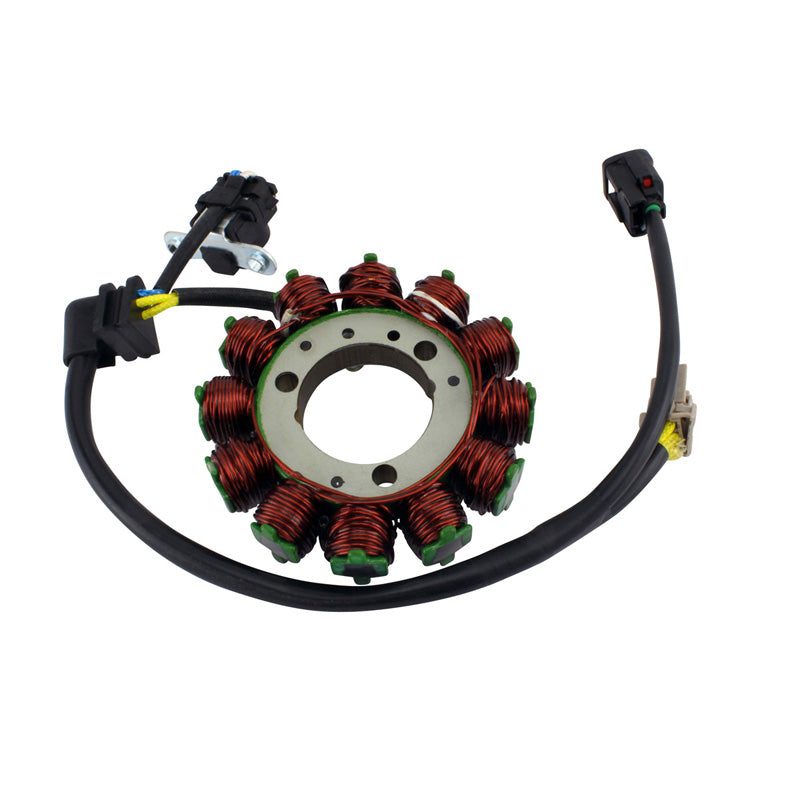

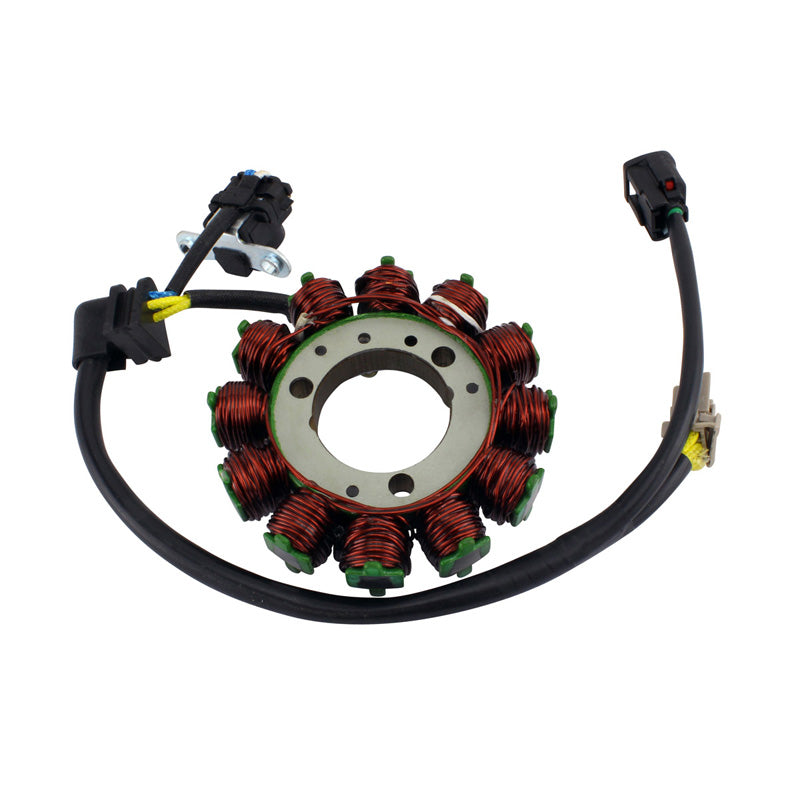

Highest grade of copper winding, resistant to 200 degrees Celsius

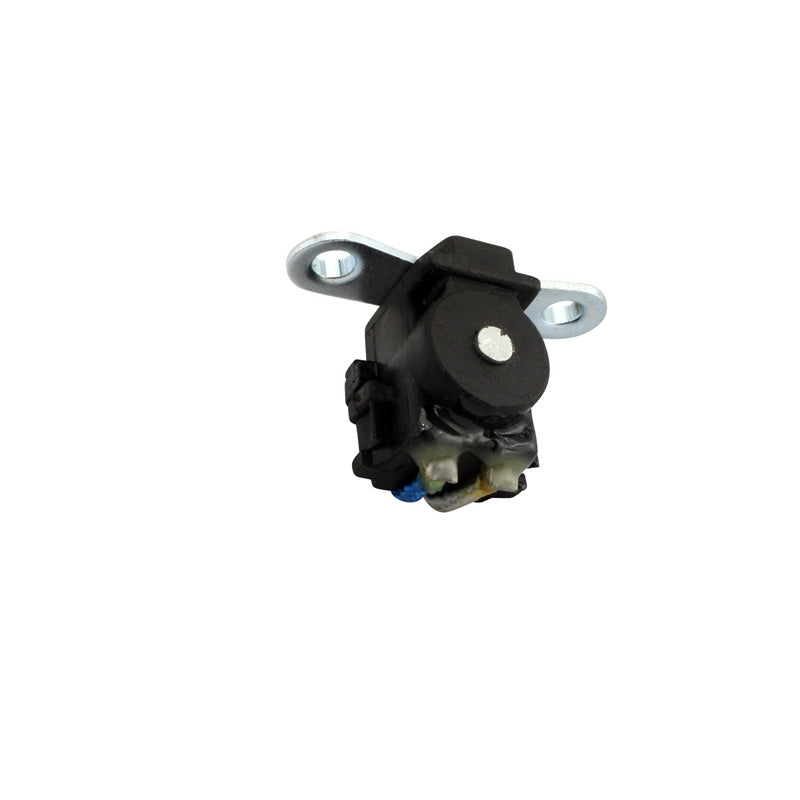

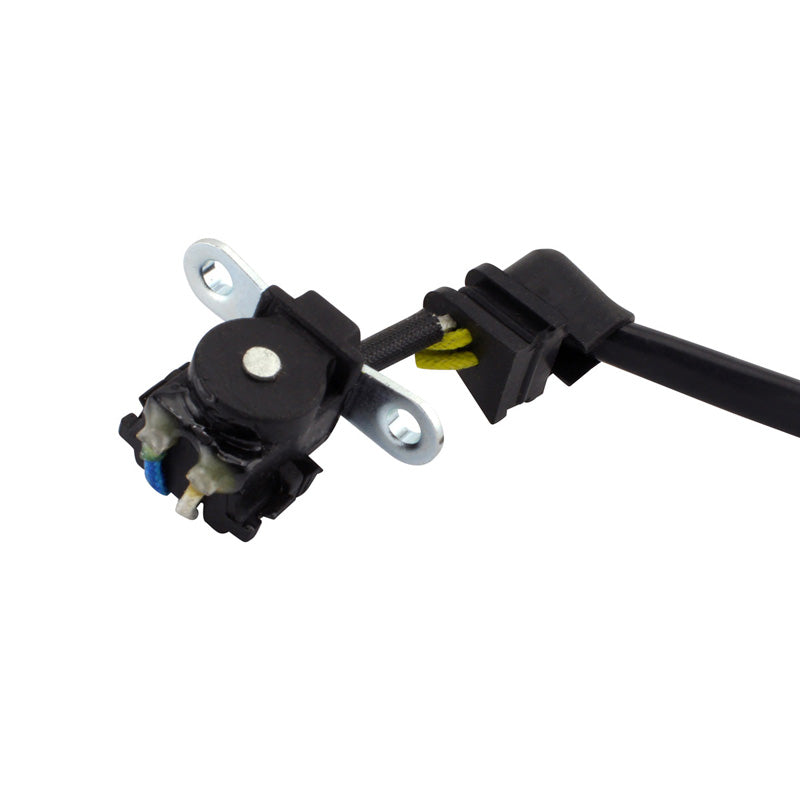

Pick up pulsar coil included

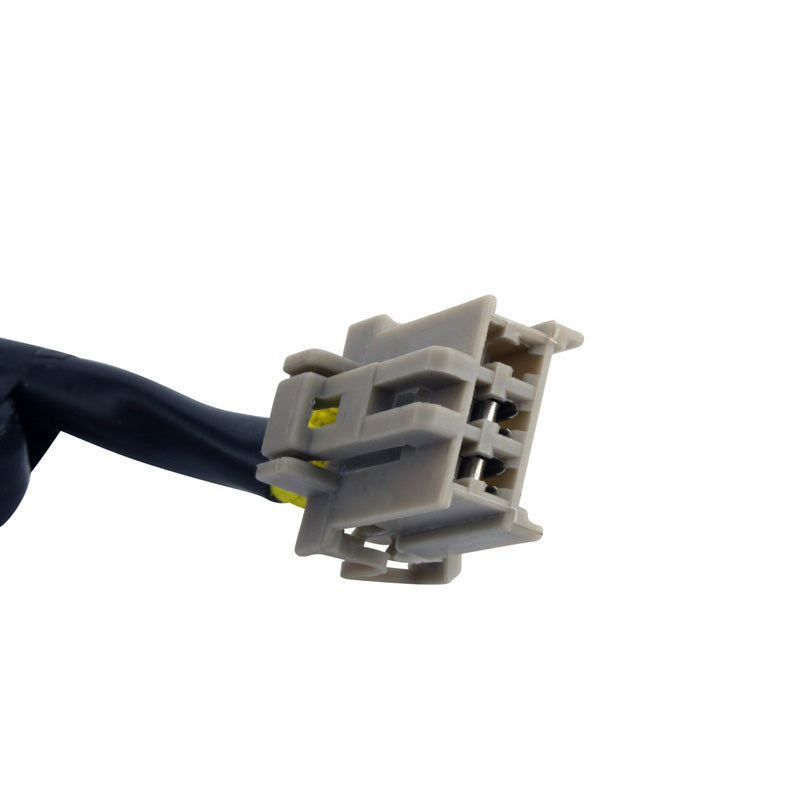

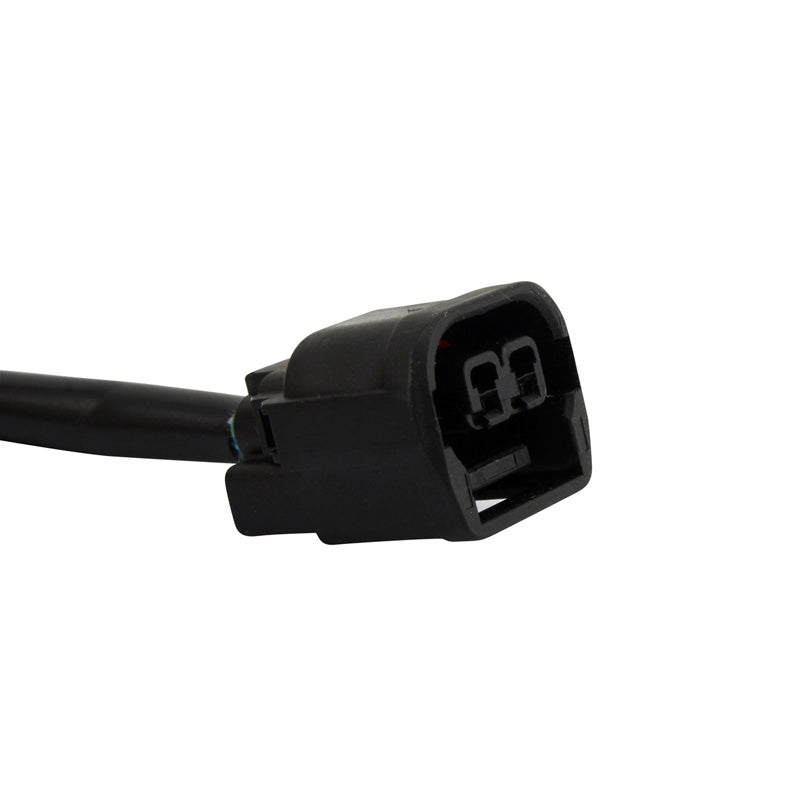

Connectors included
Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions:
Interior diameter: 35 mm
Exterior diameter: 89 mm
Thickness: 9 mm
Length of wires stator to grommet: 60 mm
Length of wires grommet to plug: 215 mm
Length of pickup coil's wire to grommet: 45 mm
Other specifications:
Number of wires: 5

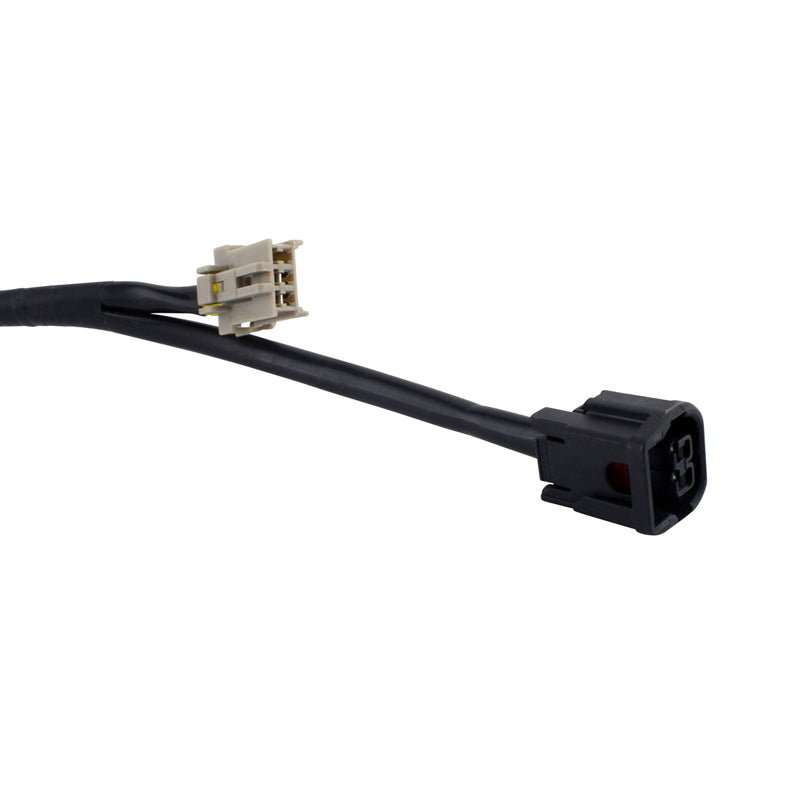

Number of plugs: 2
Number of pins: 5

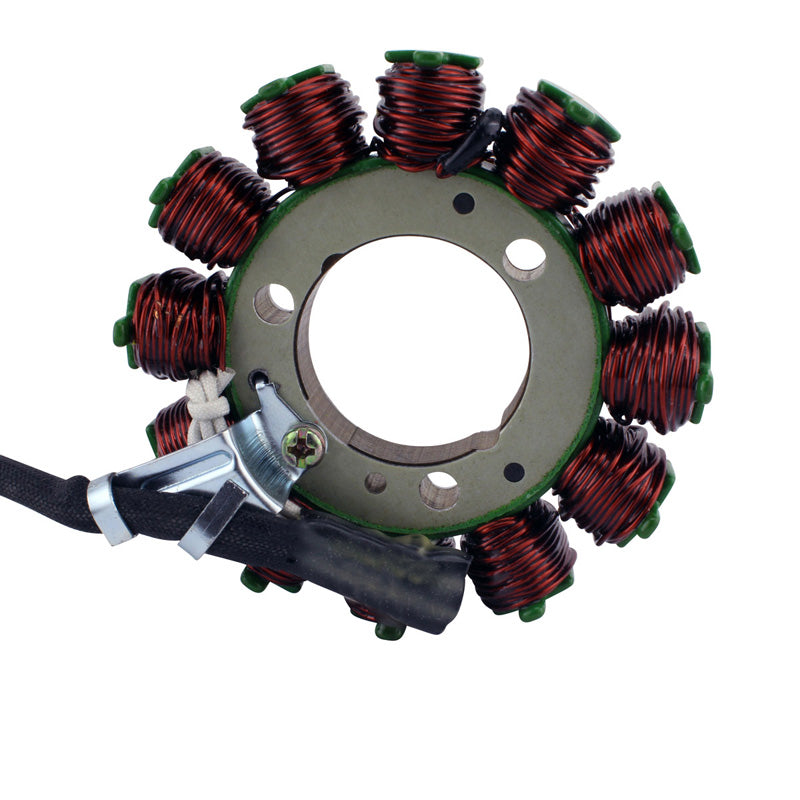

Number of poles: 12
Wire to wire resistance:
Alternator: Yellow to Yellow = 1 ohms +-20%
Pickup: Blue/Yellow to White/Yellow = 240 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
