RMS STATOR HON GL/CX500/650|VT750/1100C 81-91 RM01014

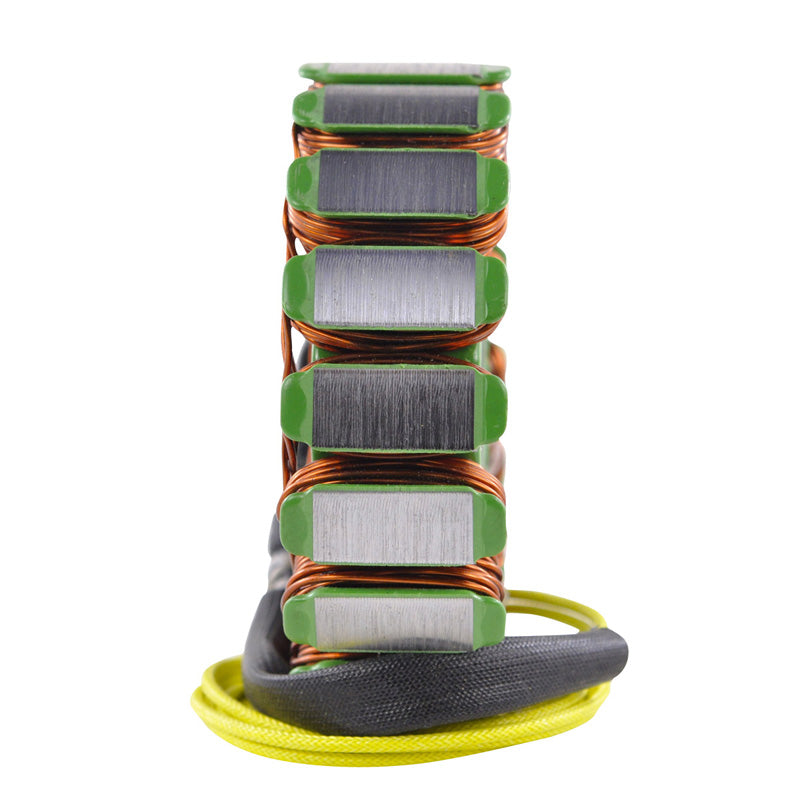

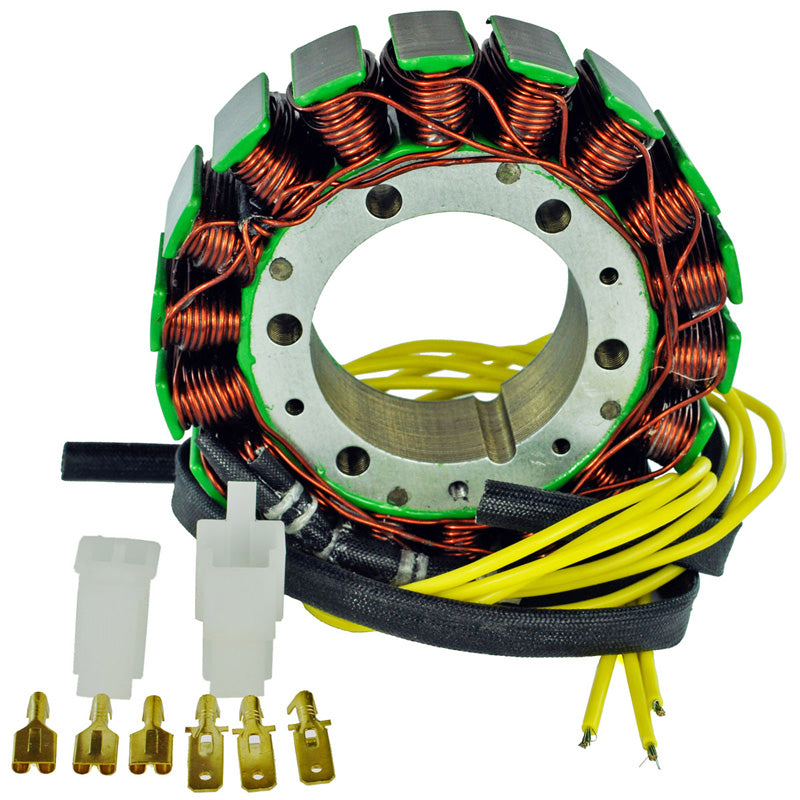

Brand new generator stator

• You must re-install your original grommet (see picture).
• Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install.
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• All product shipped are tested

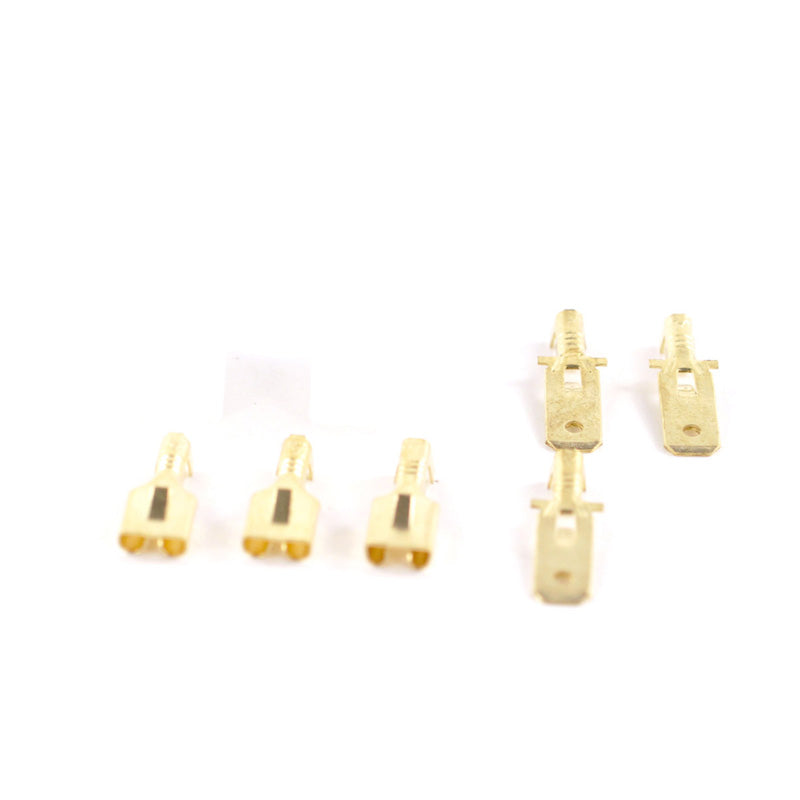

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 53 mm
Exterior diameter : 115 mm
Thickness : 27 mm

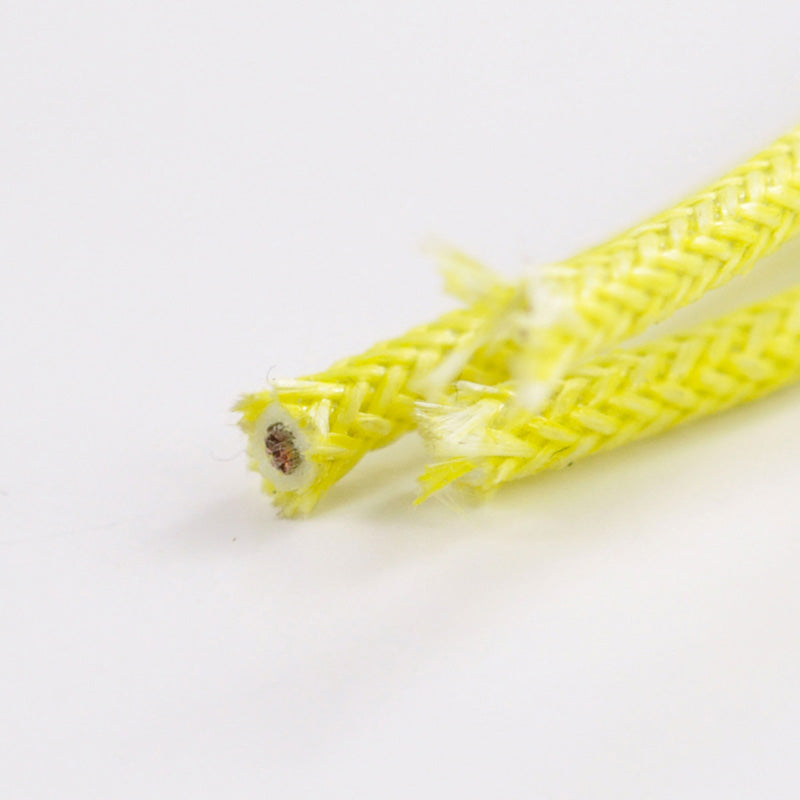

Length of wires stator to terminals : 600 mm


Other specifications :
Number of wires : 3
Number of plugs : 0
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4 ohms +/-20%
Alternator : Yellow to Ground = O.L. on display

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
