RMS STATOR HON GL1000/1100/1200 75-87 RM01006

RMS STATOR HON GL1000/1100/1200 75-87 RM01006

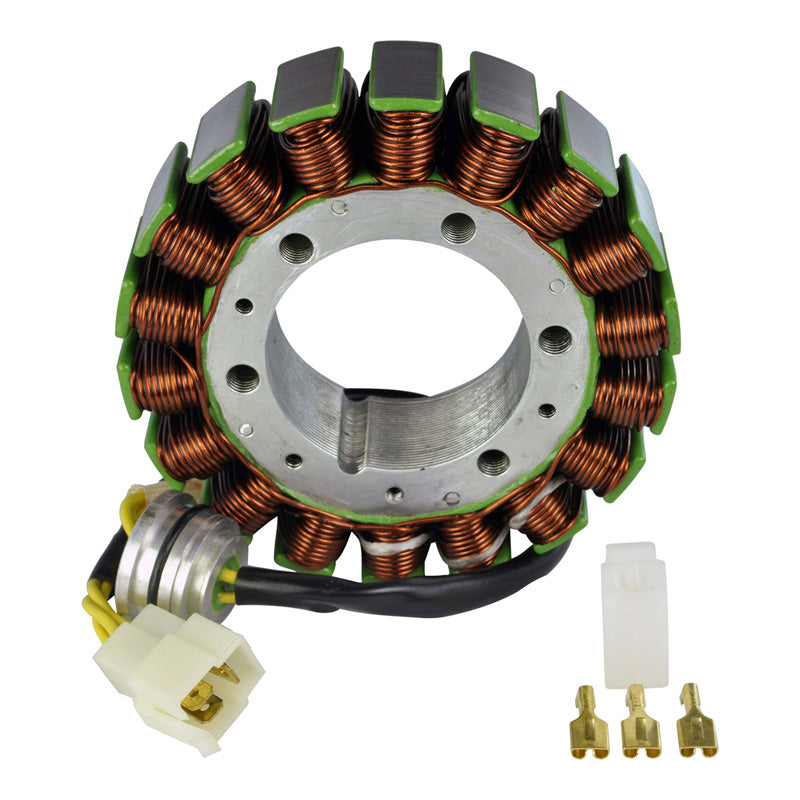

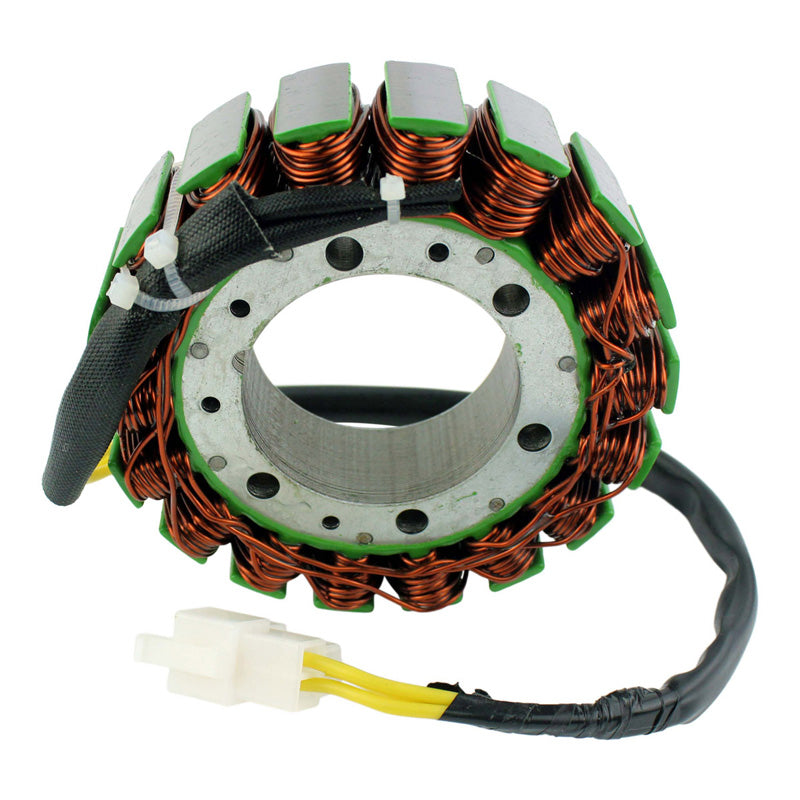

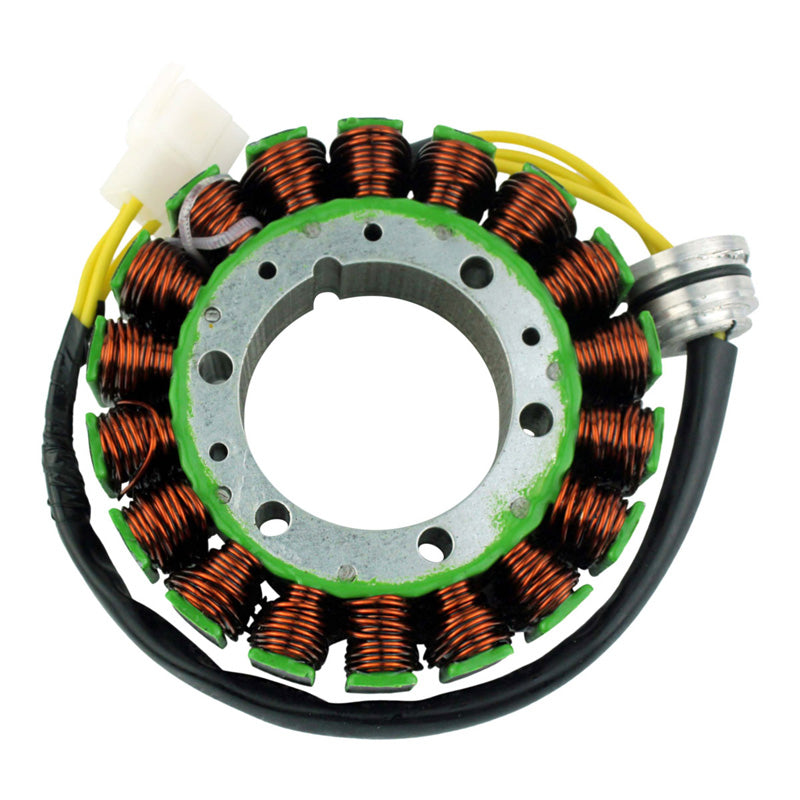

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

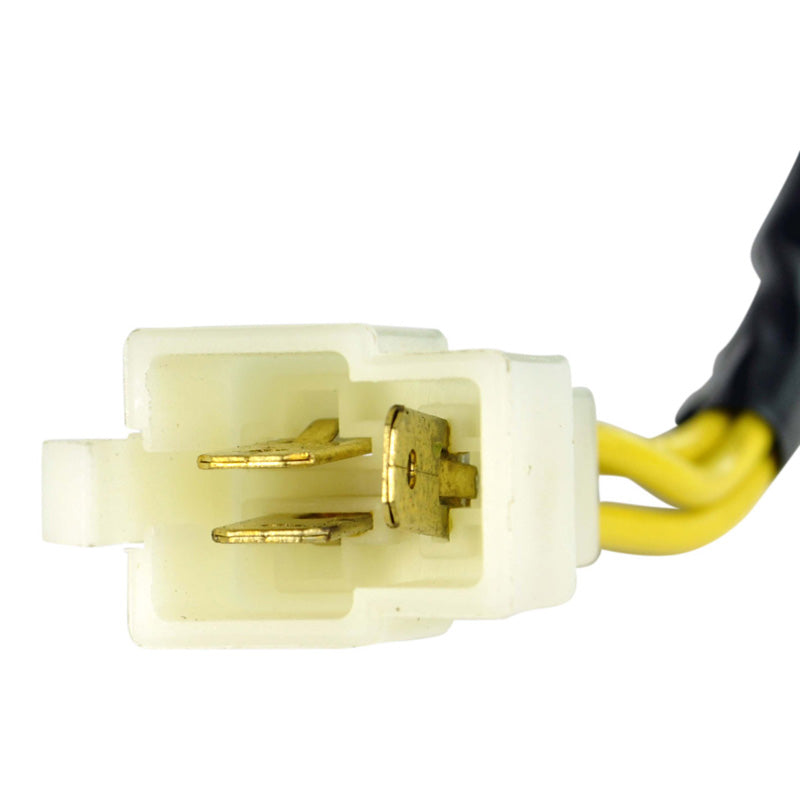

• Connector included
• Rubber grommet included
• All product shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 54mm
Exterior diameter : 114mm
Thickness : 28mm
Length of wires stator to grommet : 90mm
Length of wires grommet to plug : 280mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4ohms +/-20%
Alternator : Yellow to Ground = 0.L

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
