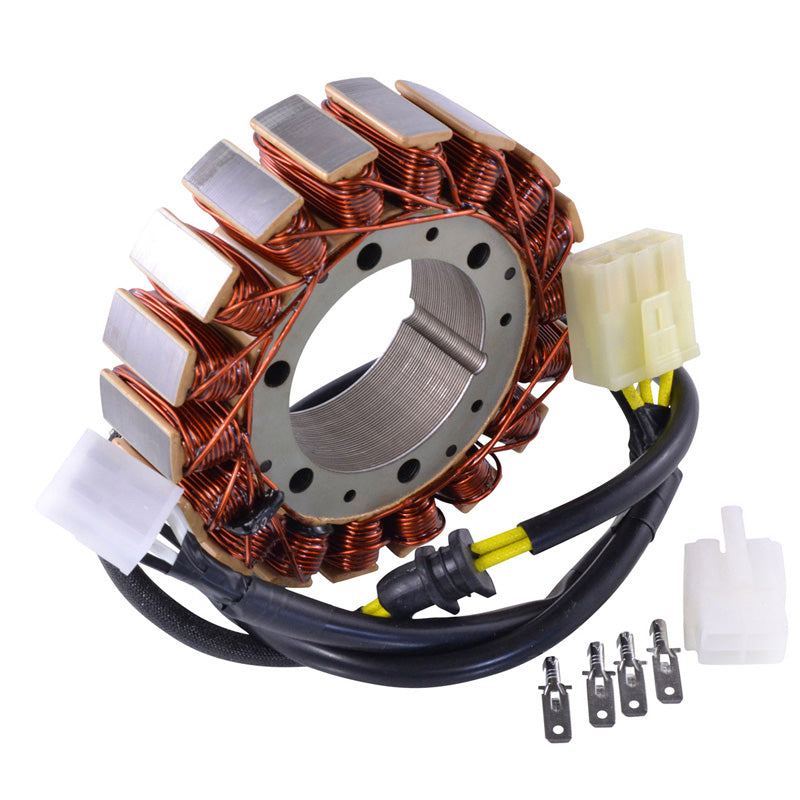

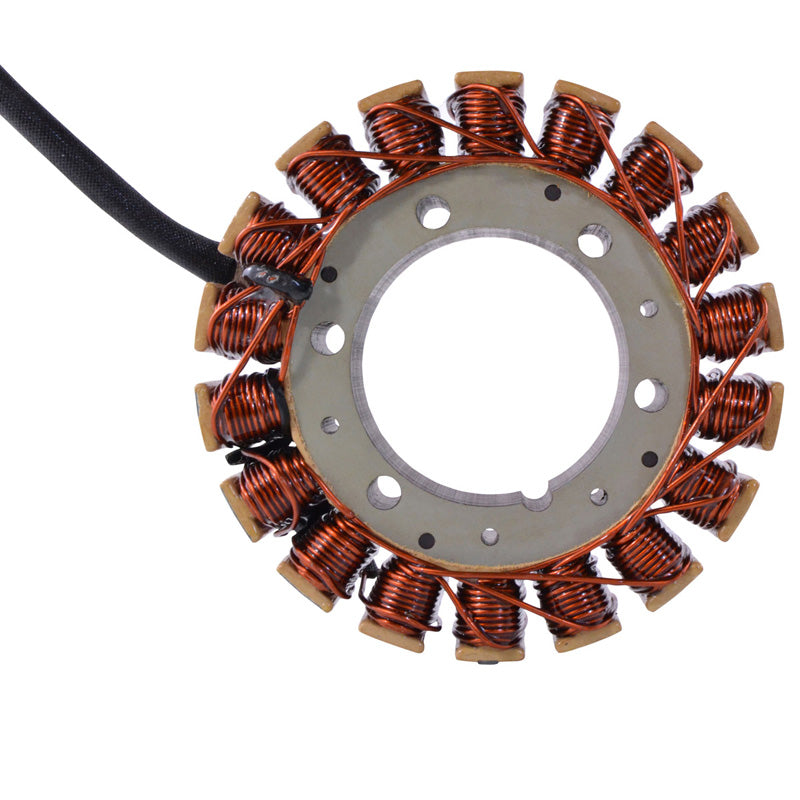

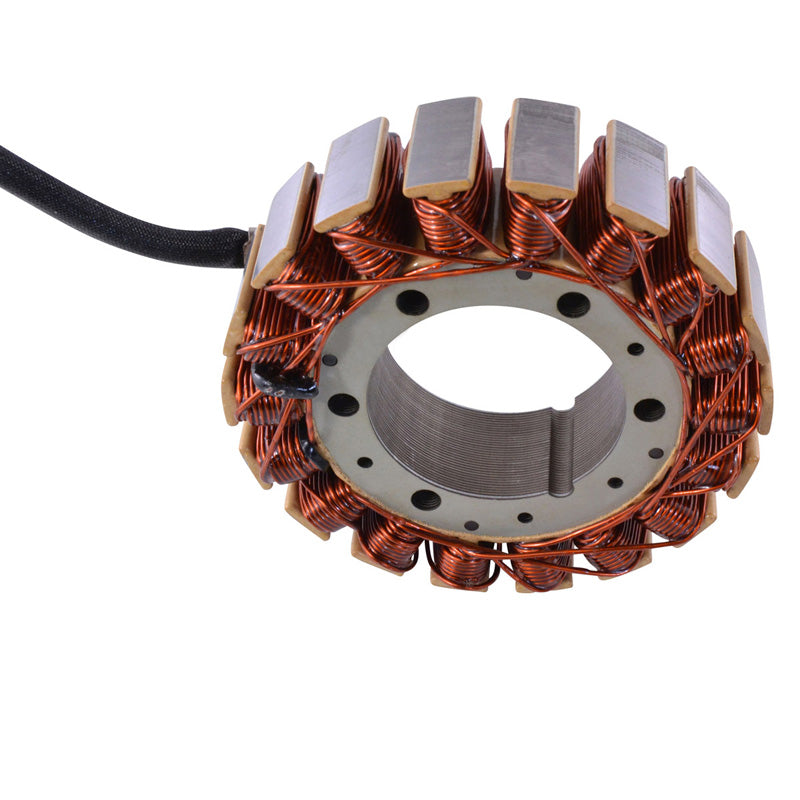

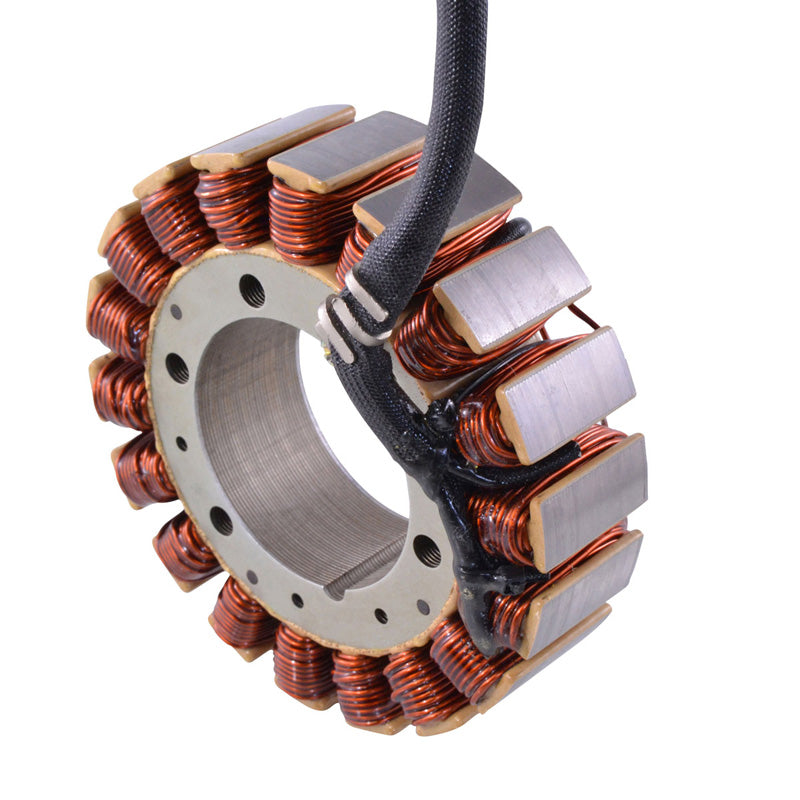

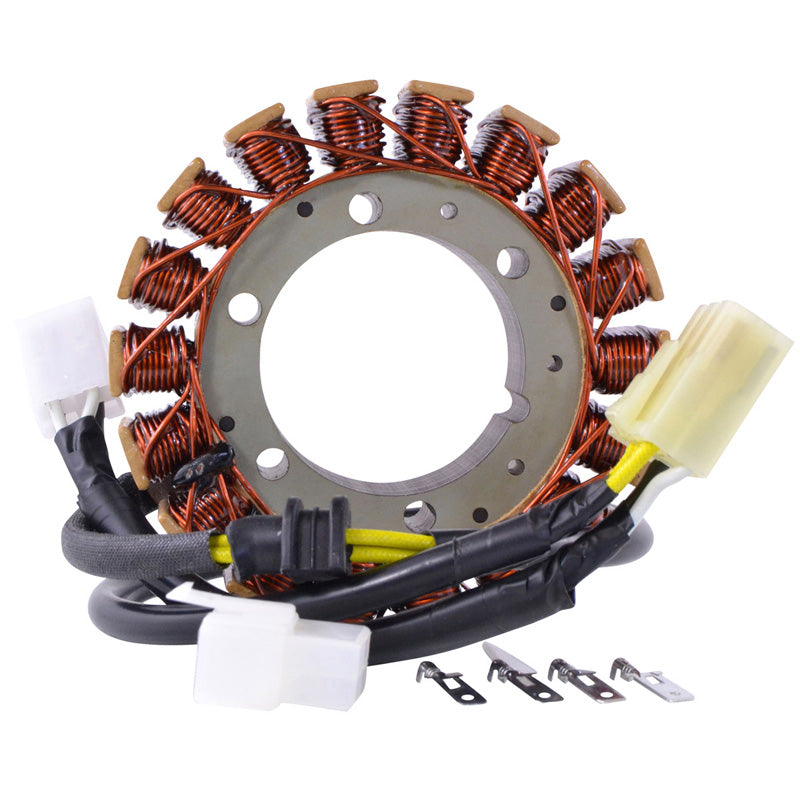

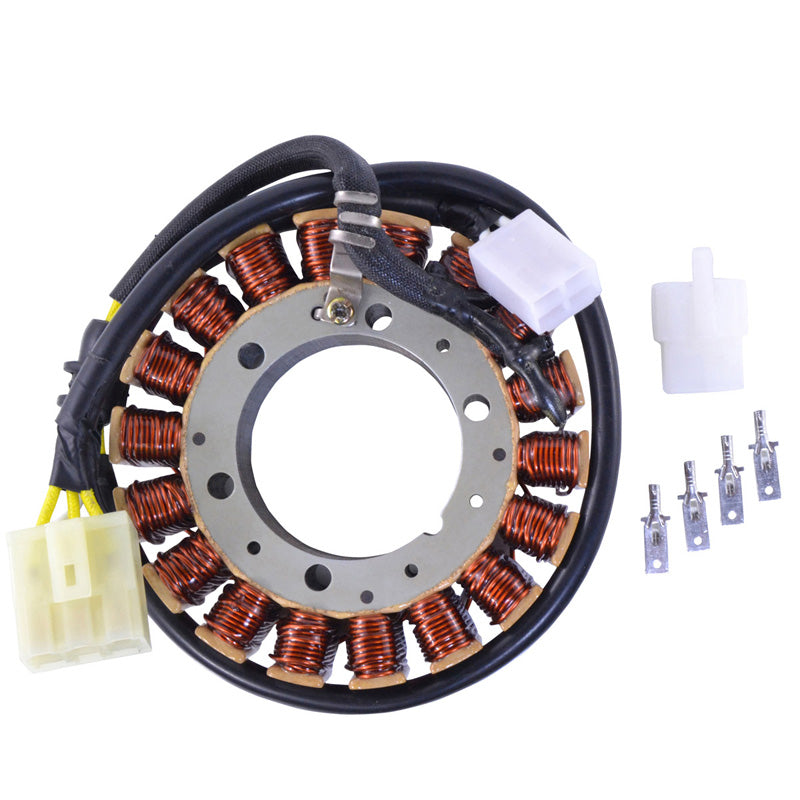

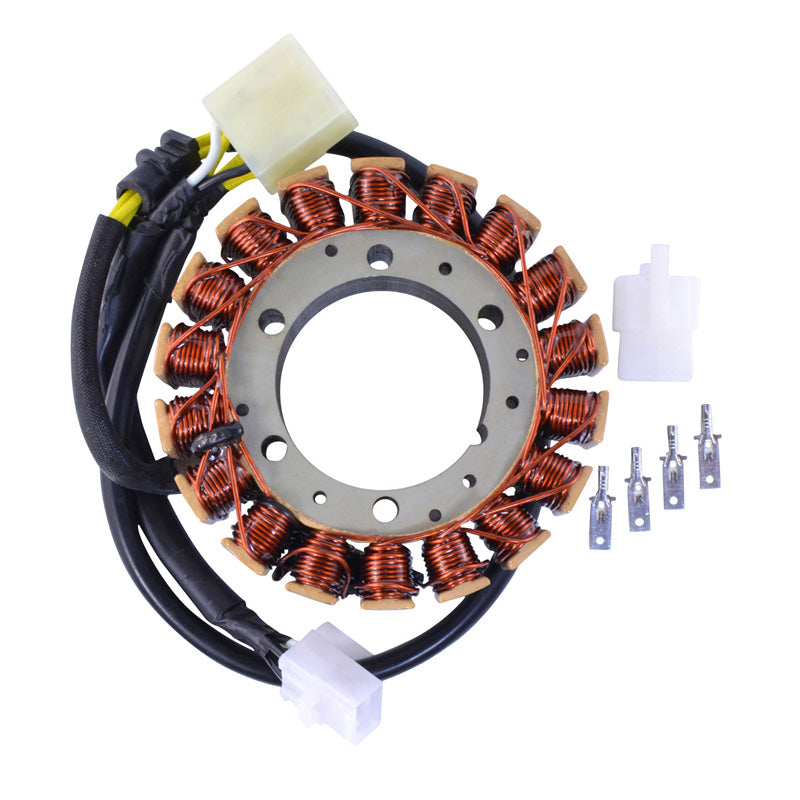

RMS STATOR HON PC 800 PACIFIC COAST 90-98 RMS010-103812

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation

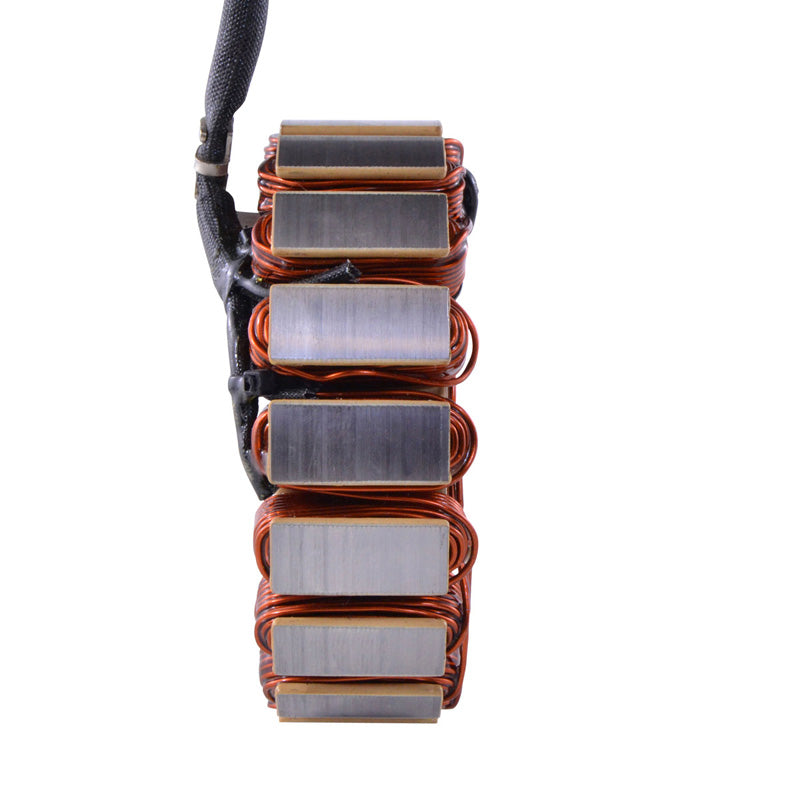

• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

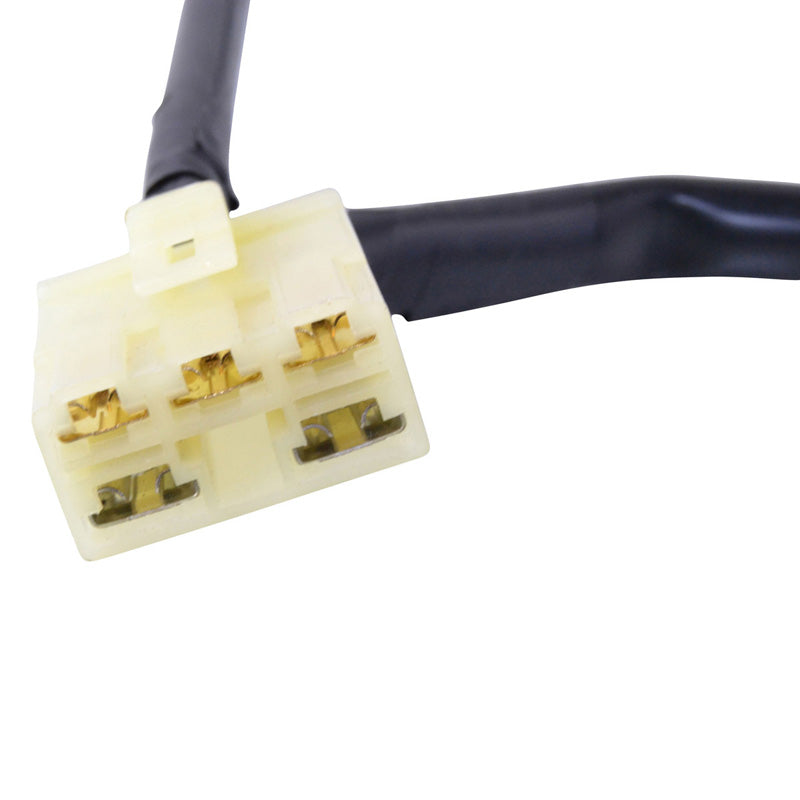

• Connector included

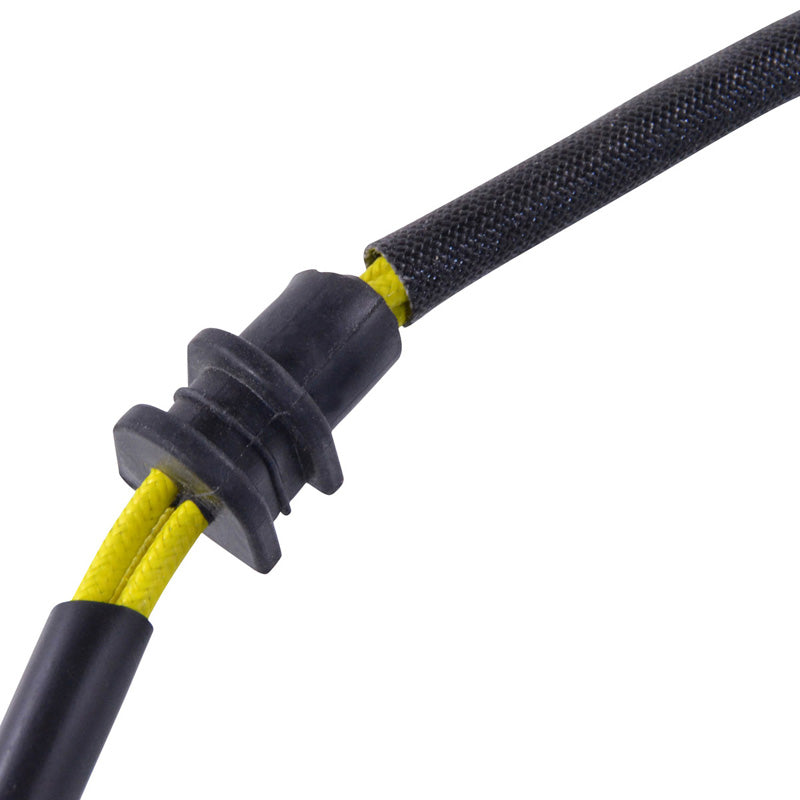

• Rubber grommet included
• All products shipped are tested

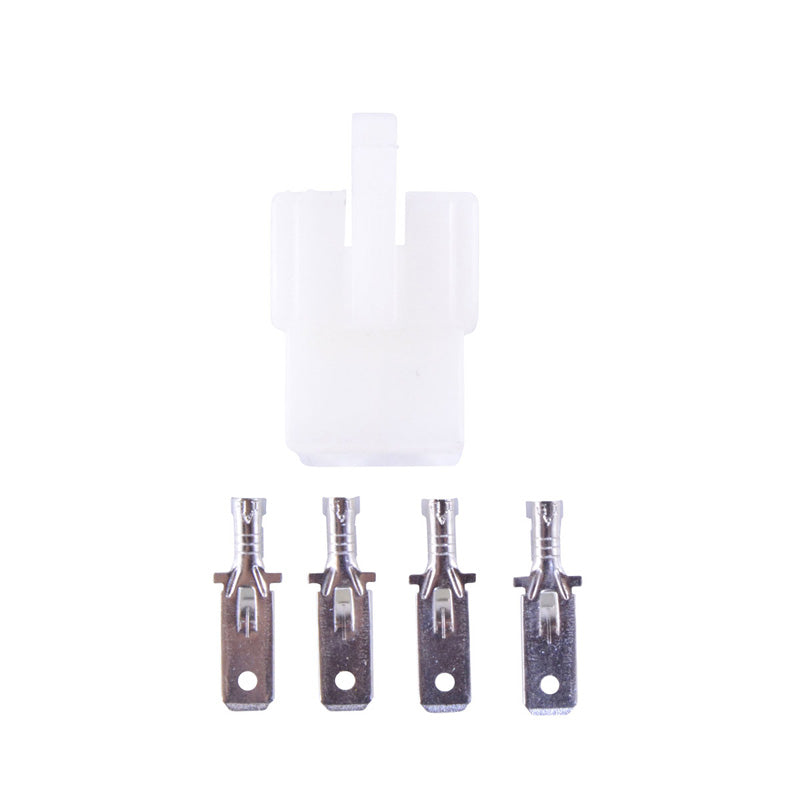

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 29 mm

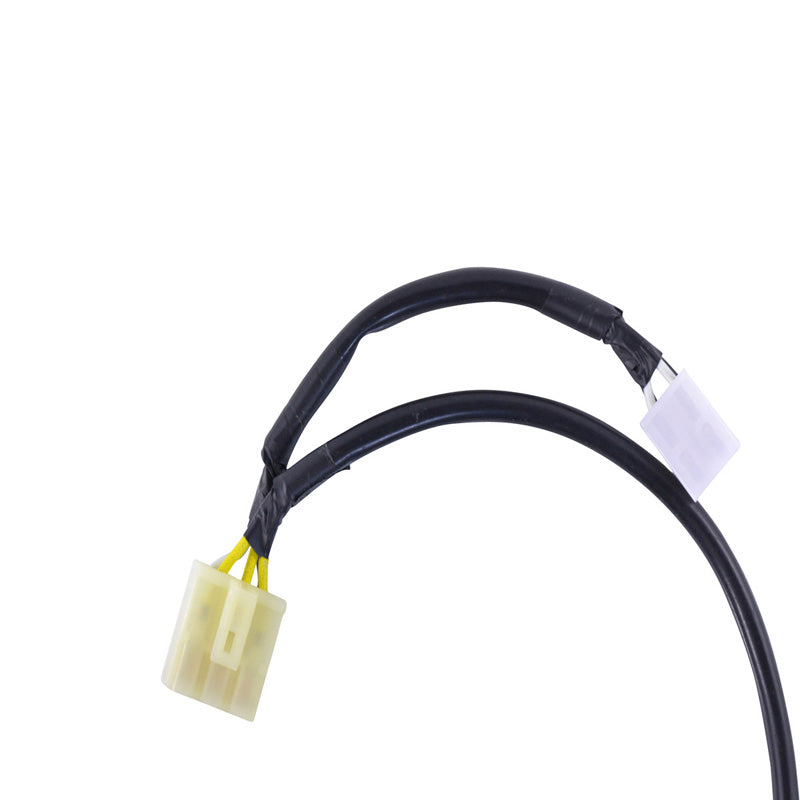

Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 420 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Between Each Yellow = 0.4 ohms +-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
