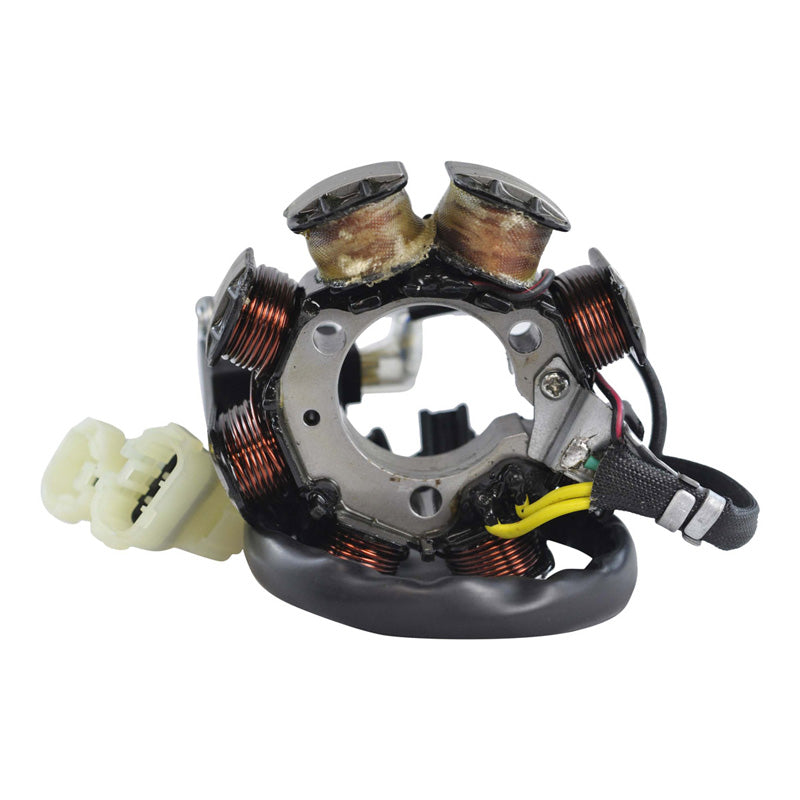

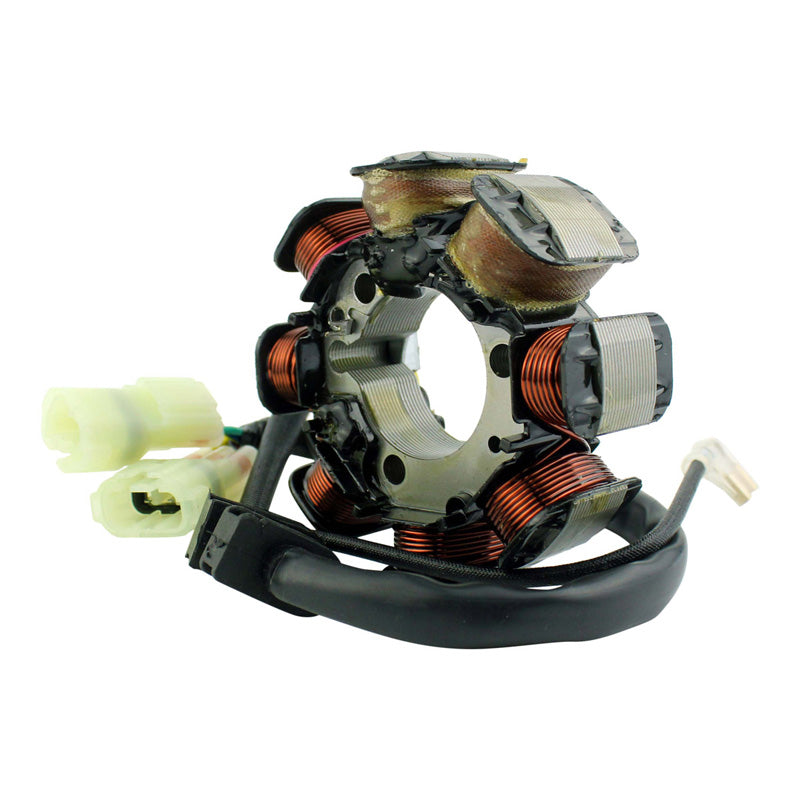

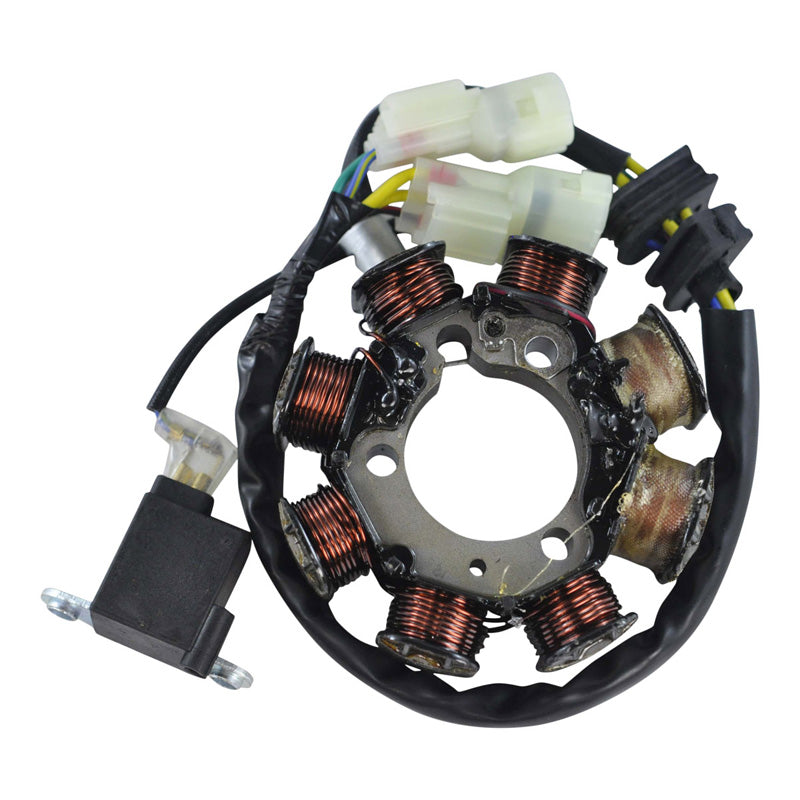

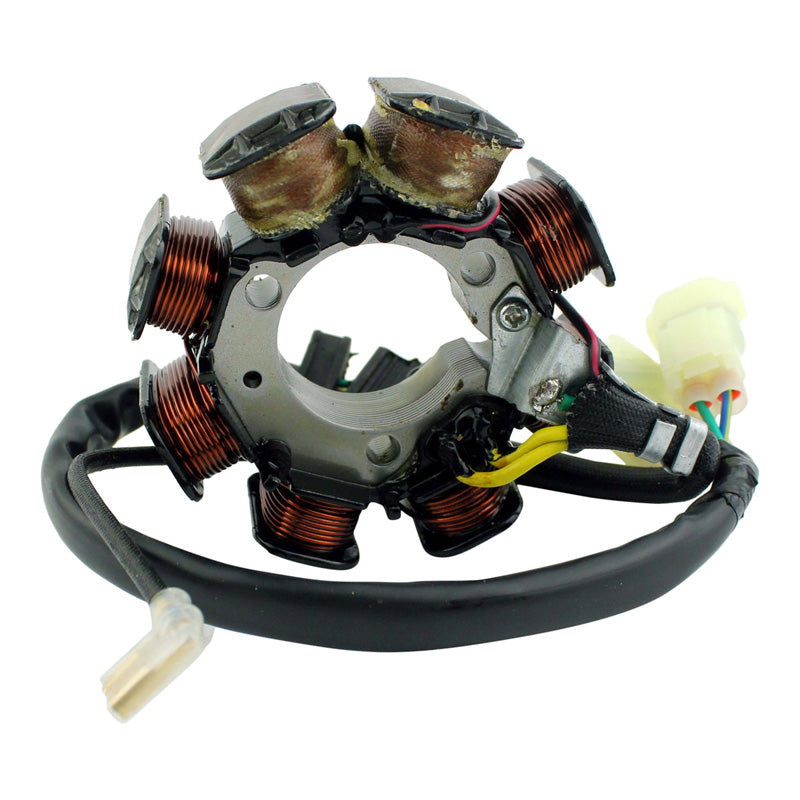

RMS STATOR HON TRX250TE/TM 05-20 RM01153

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

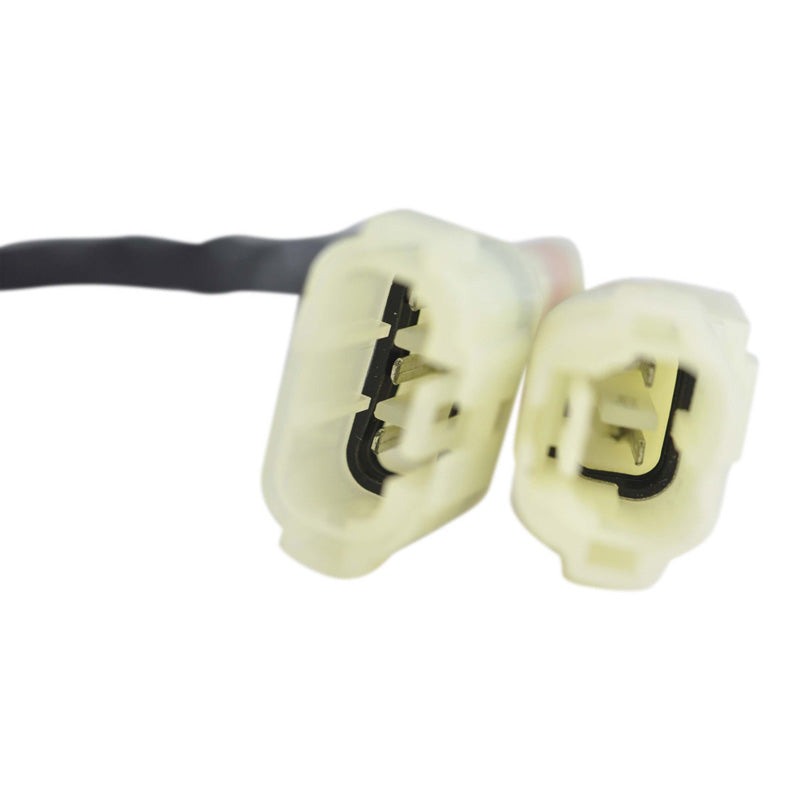

• Connector included
• Rubber grommet included
• Pick-up coil included
• All product shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Number of wires : 5
Number of plugs : 2
Number of terminals : 5
Harness length - Stator to grommet (mm) : 92
Harness length - Grommet to plug (mm) : 250
Pick-up coil wire length - Coil to grommet (mm) : 120
Inside diameter (mm) : 35
Outside diameter (mm) : 88
Thickness (mm) : 18

Alternator resistance (Yellow to Yellow) : 0.4 ohms +/- 20%
Source 1 resistance (Black/Red to Green) : 185 ohms +/- 20%
Pick-up 1 resistance (Blue/White to Green): 280 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
