Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included

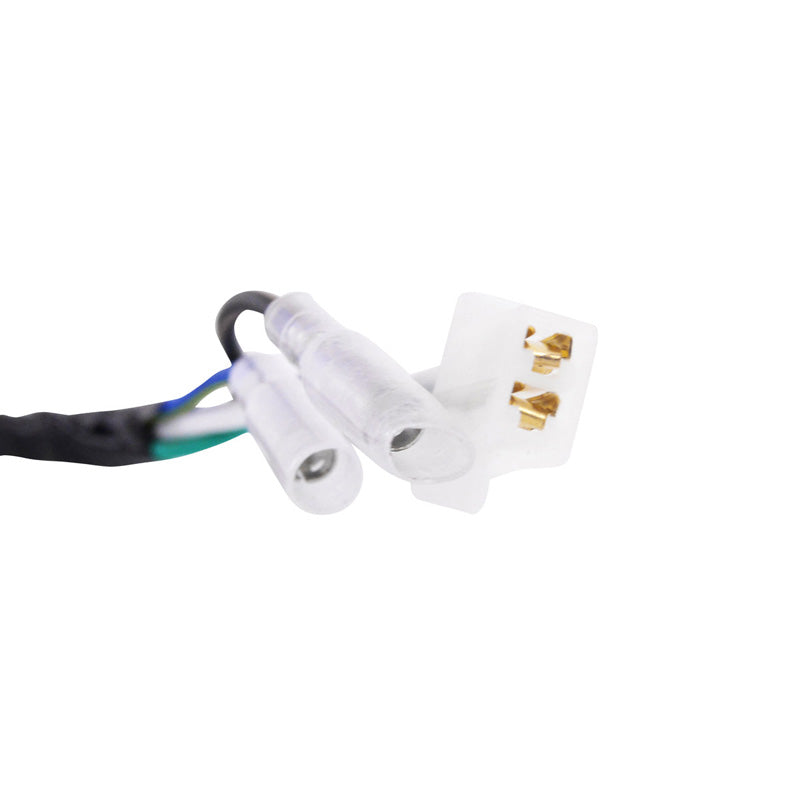

Connector included
Rubber grommet included
All products shipped are tested
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 35mm
Exterior diameter : 88mm
Thickness : 18mm
Length of wires stator to grommet : 80mm
Length of wires grommet to plug : 210mm
Length of pickup coil's wire to grommet : 110mm
Other specifications :
Number of wires : 4
Number of plugs : 4
Number of pins : 4
Wire to wire resistance :
Alternator : Green to White = 0.4ohms +/-20%
Pickup : Green to Blue/Yellow = 330ohms +/-20%
Source : Black/Red to Green = 180 ohms +/-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
