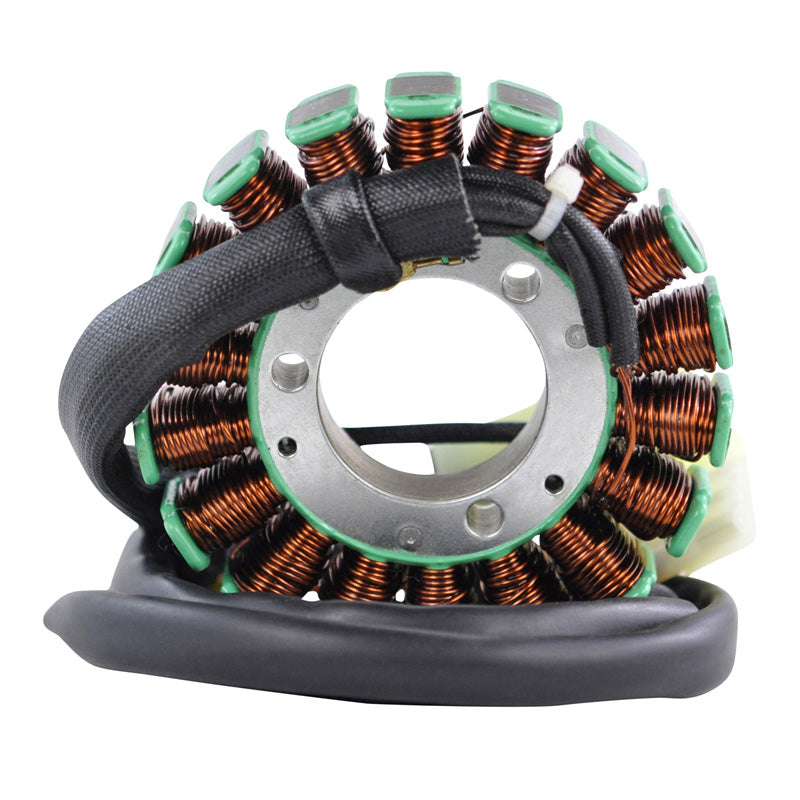

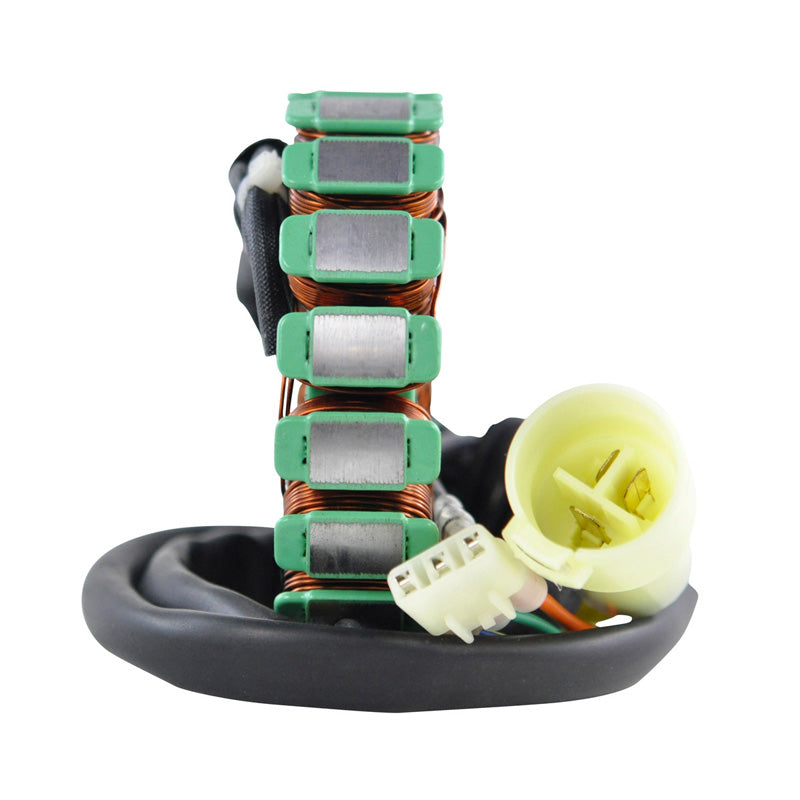

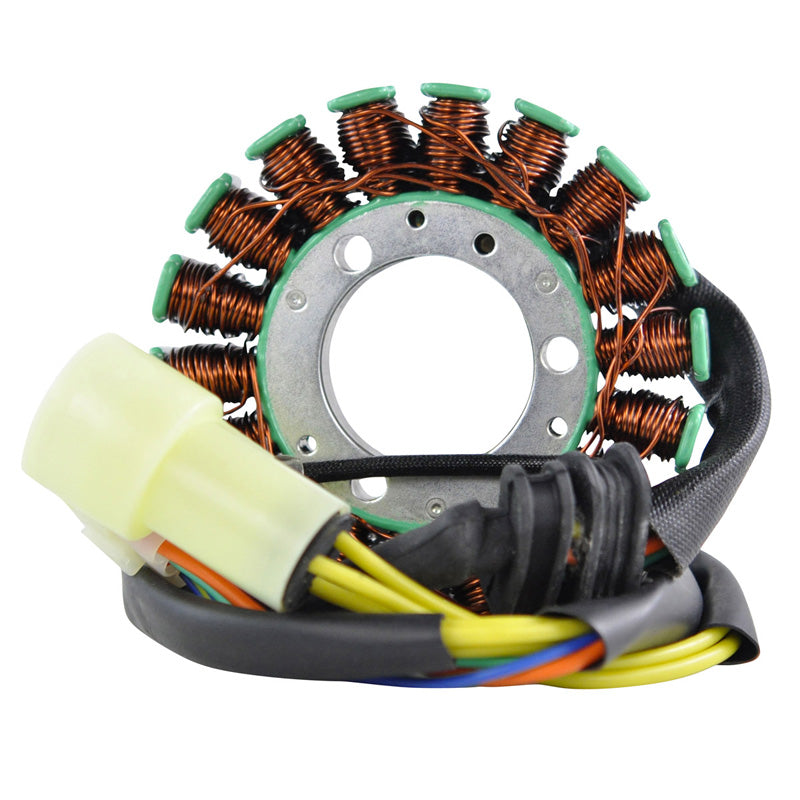

RMS STATOR HON TRX300X/EX 93-09 RM01150

Brand new stator.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials.
• Highest grade copper windings, resistant to 200 degrees Celsius.

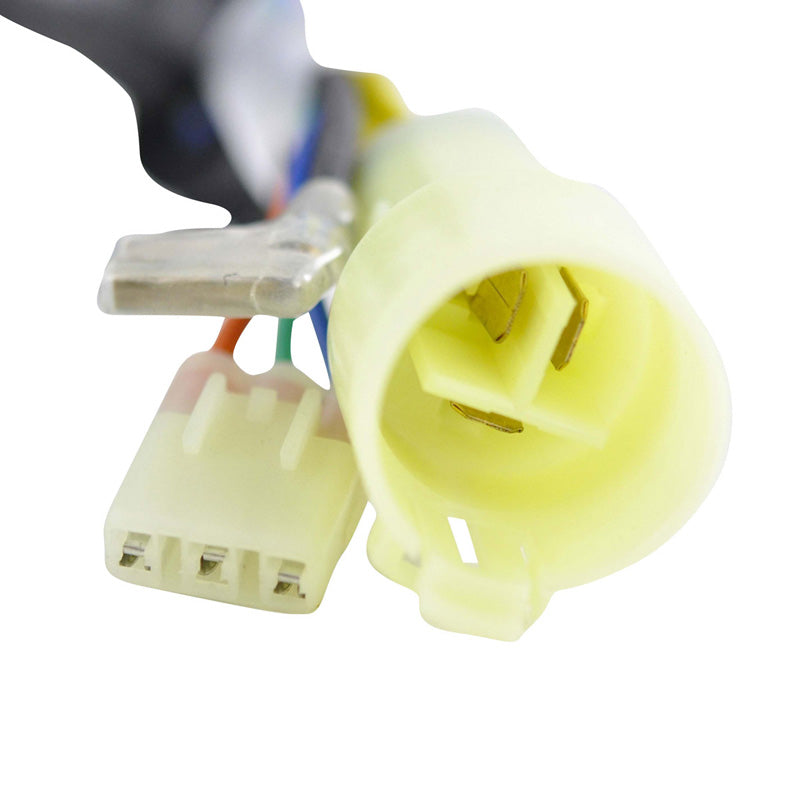

• Connector included.
• Rubber grommet included.
• All products shipped are tested.

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 35 mm
Exterior diameter: 93 mm
Thickness: 15 mm
Length of wires stator to grommet: 95 mm
Length of wires grommet to plug: 75 mm, 275 mm, 540 mm


Other specifications:
Number of wires: 6
Number of plugs: 3
Number of pins: 7

Wire to wire resistance:
Alternator: Yellow Between Each Yellow = 0.4 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
