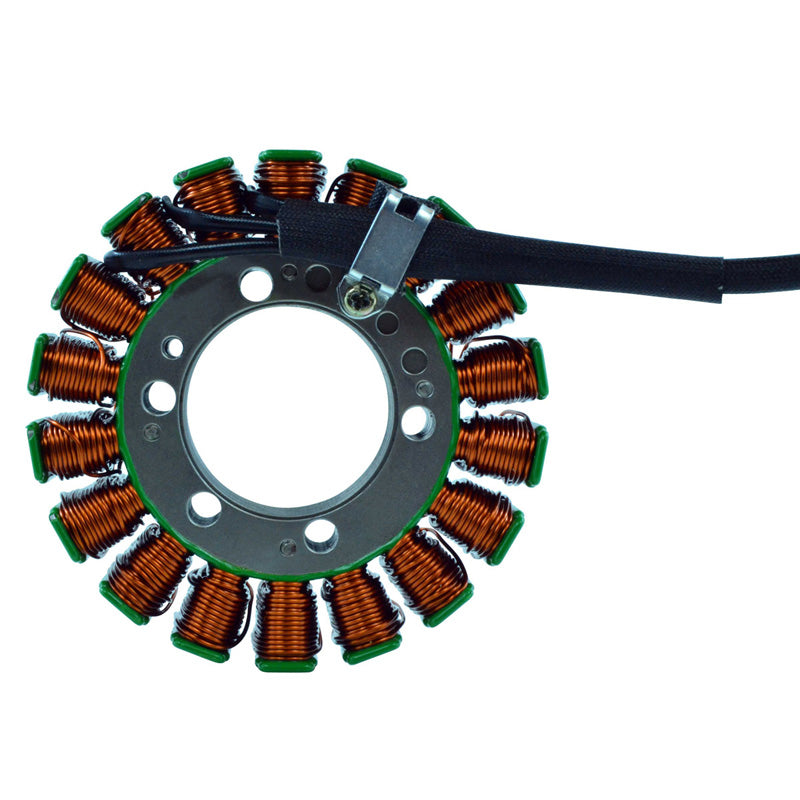

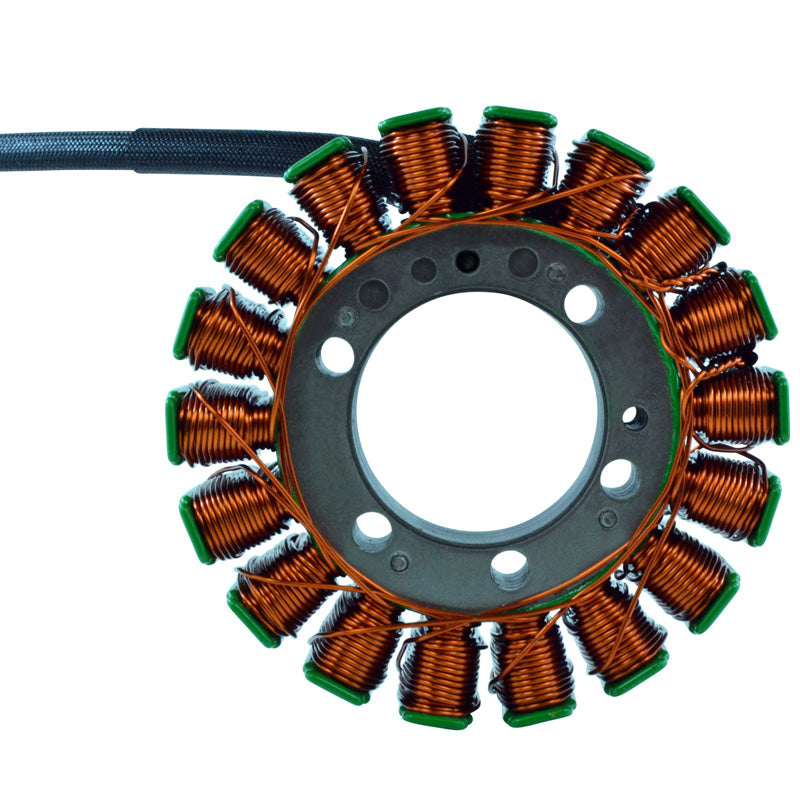

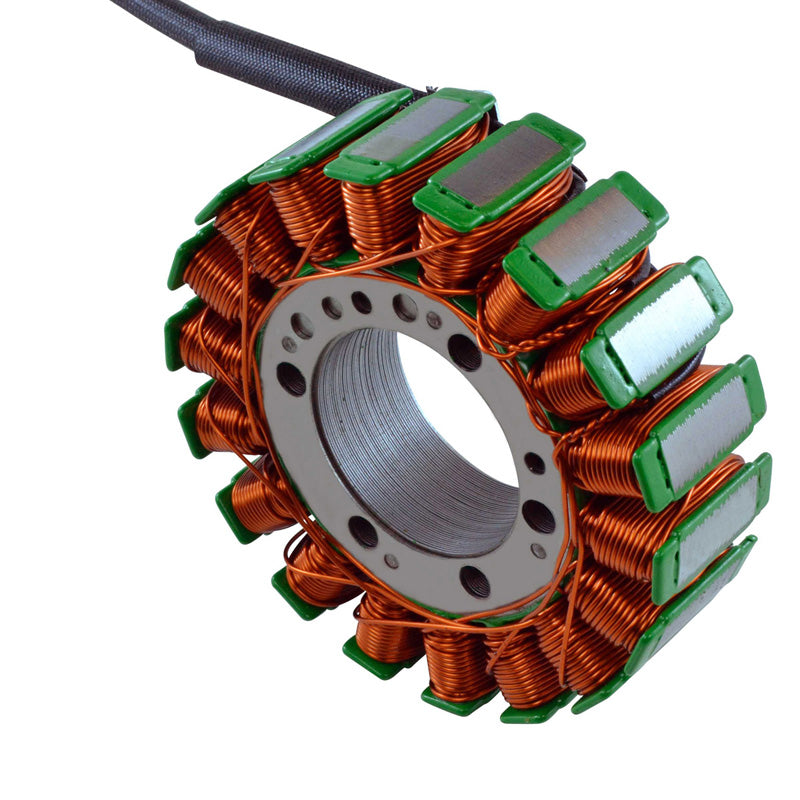

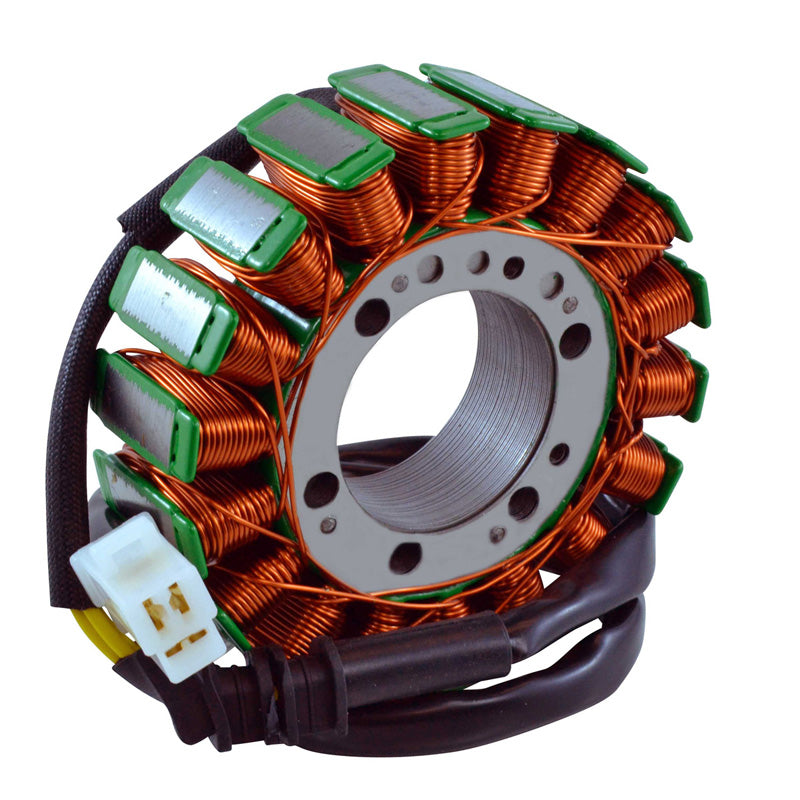

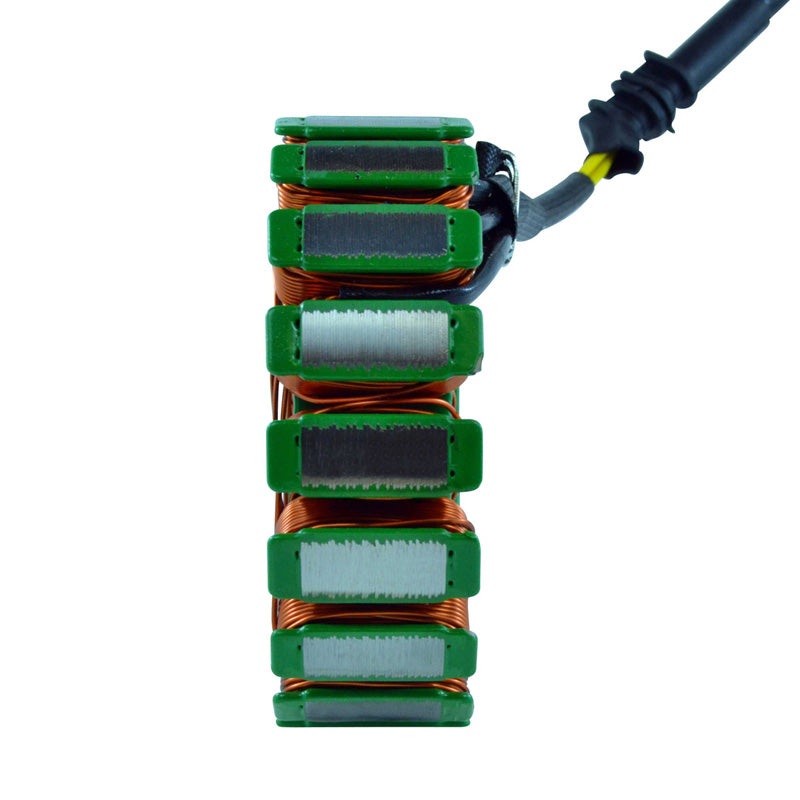

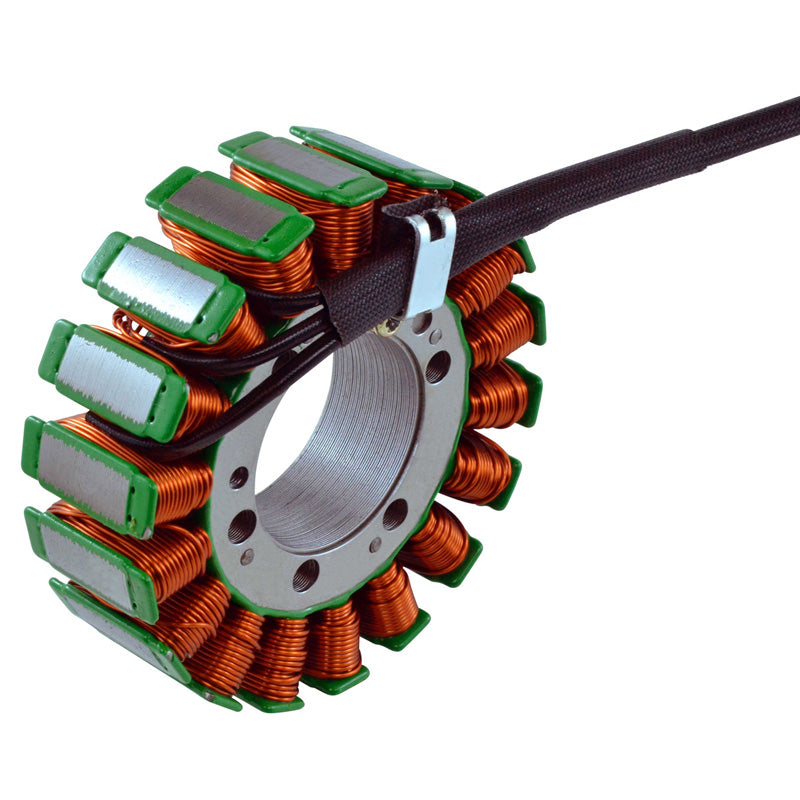

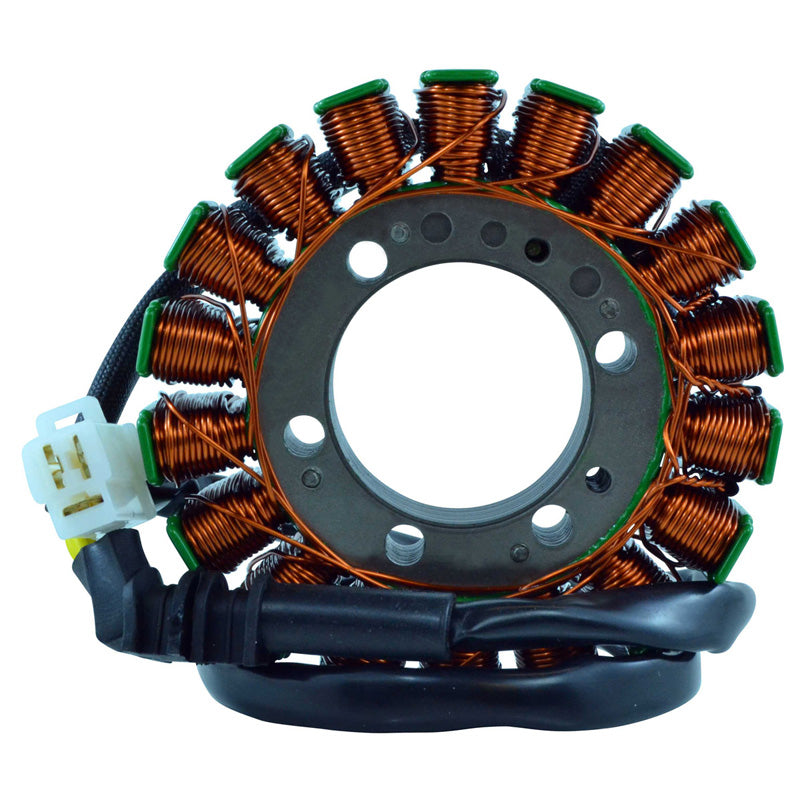

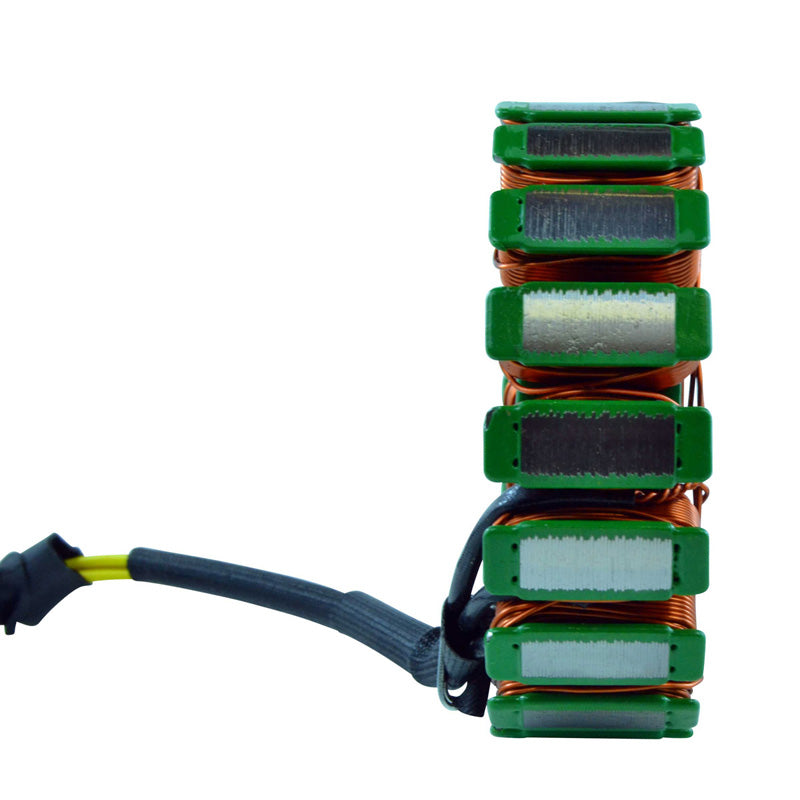

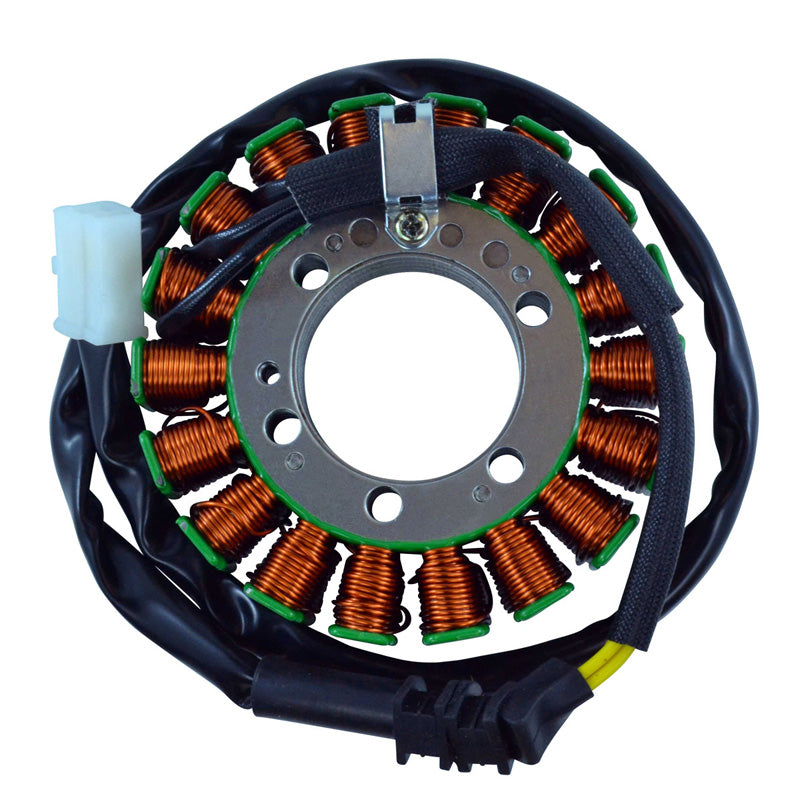

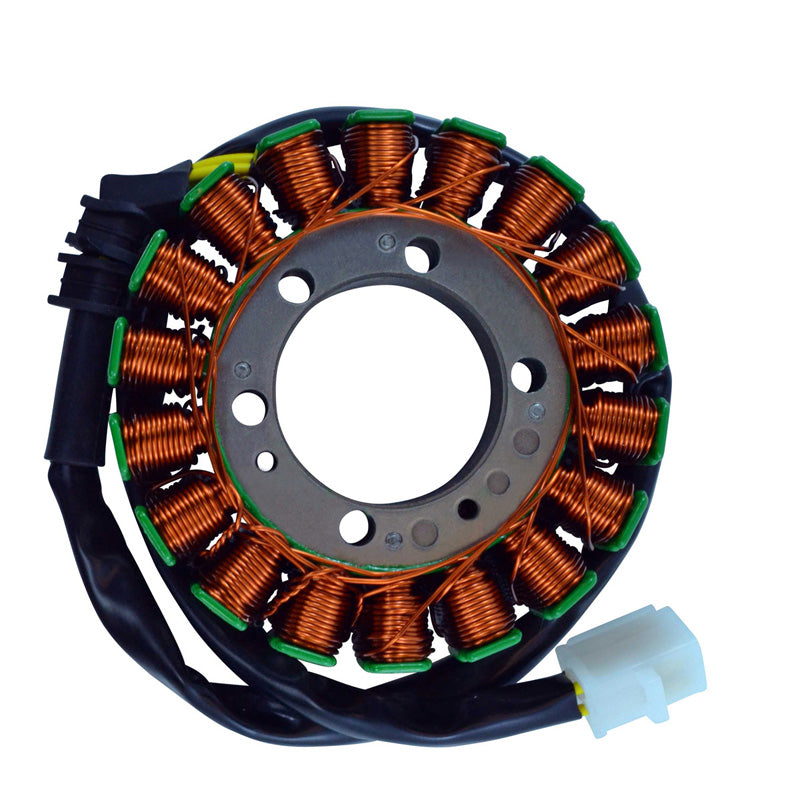

RMS STATOR HON VFR750 INTERCEPTOR 90-93 RMS010-104676

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.

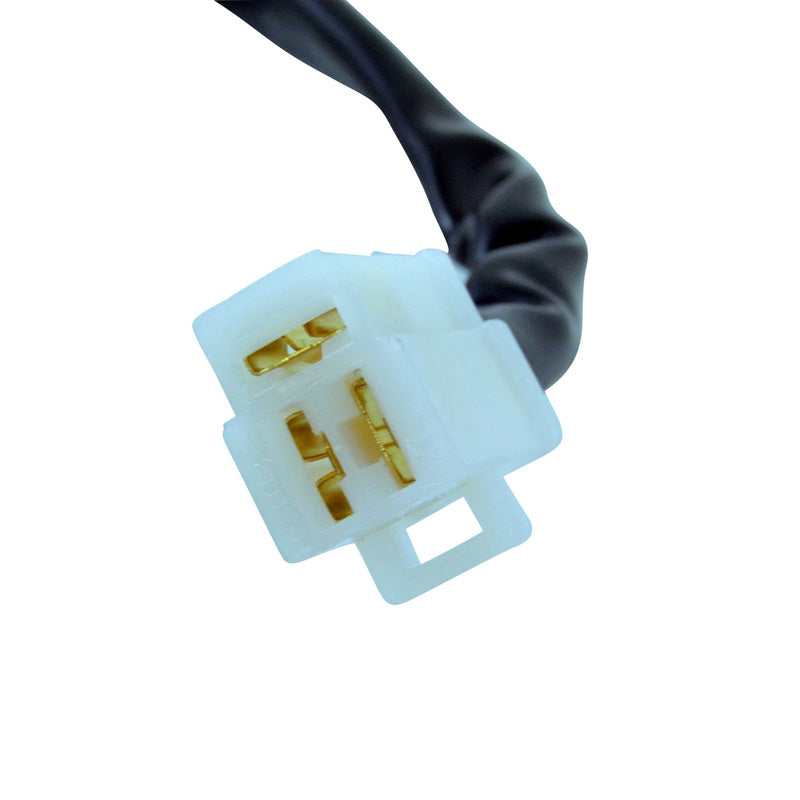

• Connector included

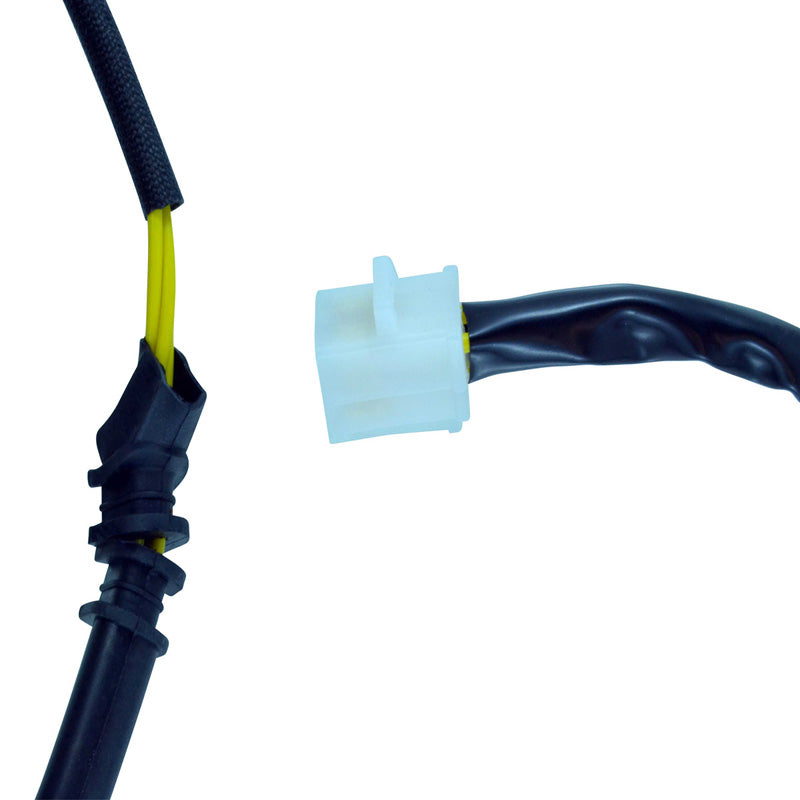

• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 104 mm
Thickness : 23 mm
Length of wires stator to grommet : 115 mm
Length of wires grommet to plug : 510 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.6 ohms +-20%
Alternator to ground = O.L

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
