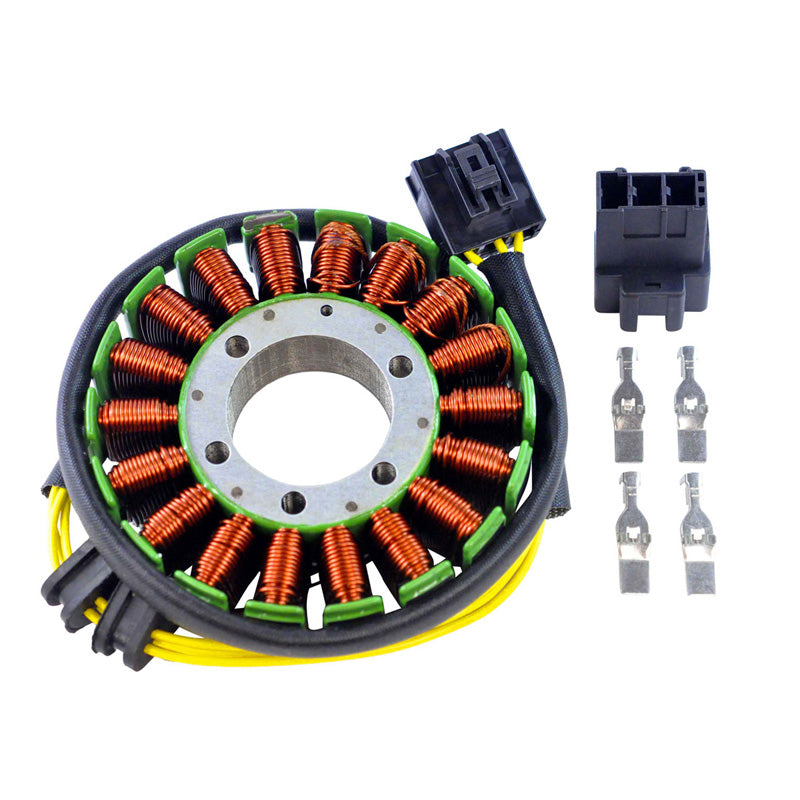

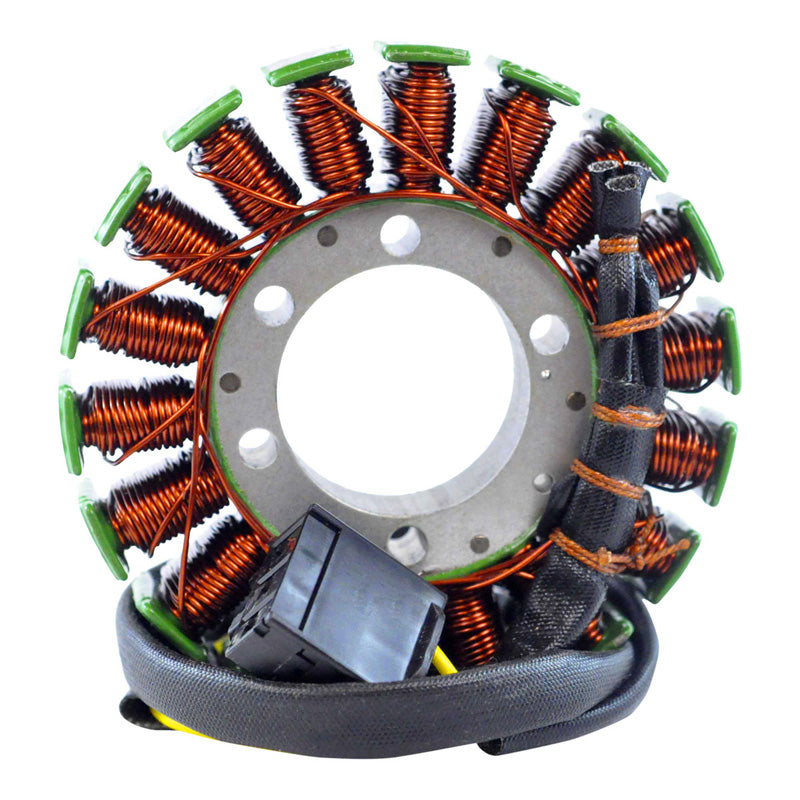

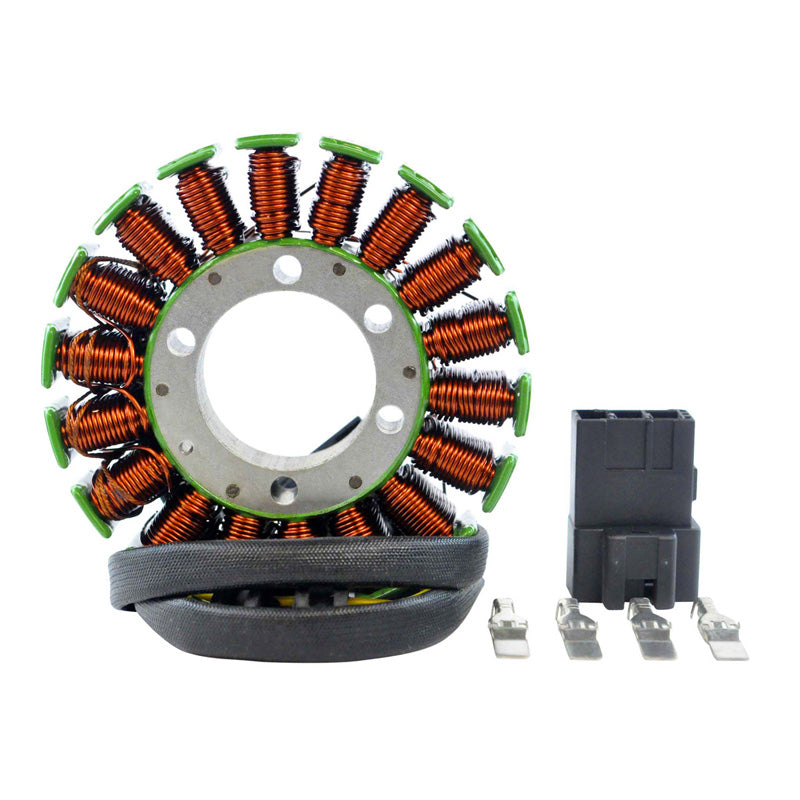

Highest-grade copper windings, resistant to 200 degrees Celsius.

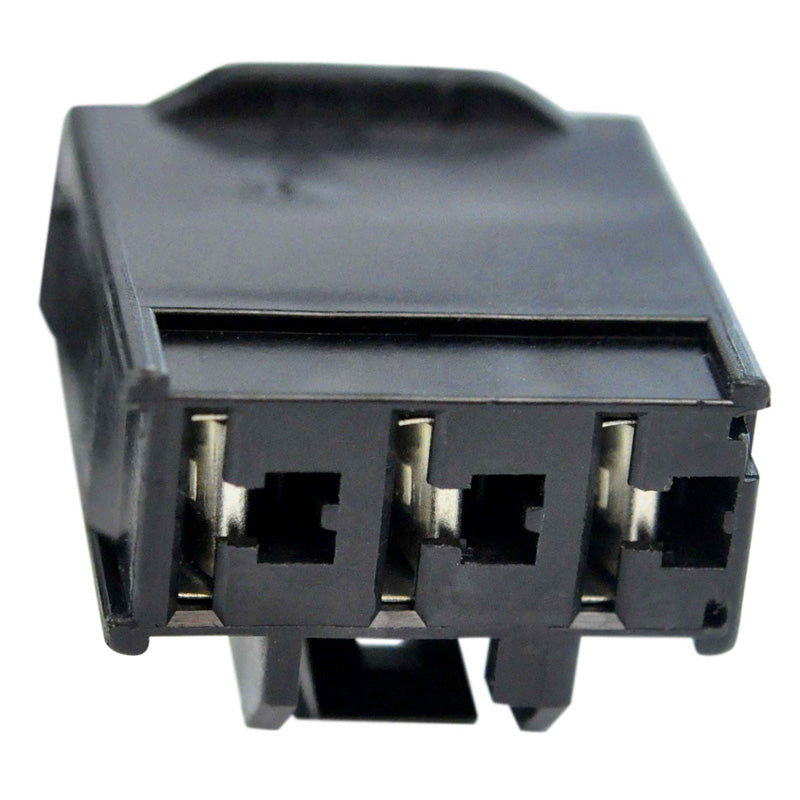

Connector included.
Rubber grommet included.
All products shipped are tested.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions:
Interior diameter: 40 mm
Exterior diameter: 114 mm

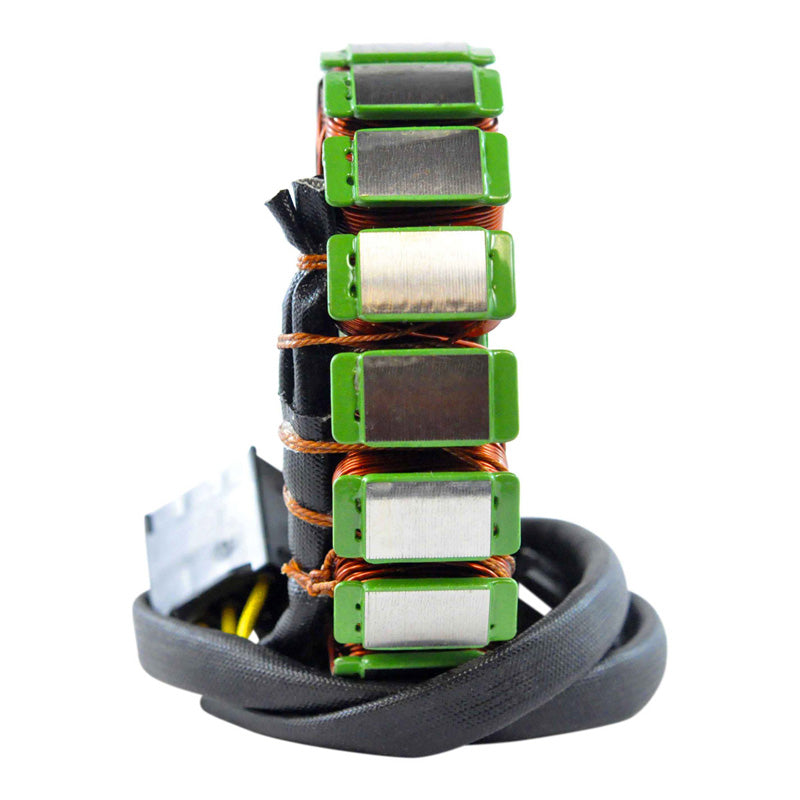

Thickness: 20 mm
Length of wire stator to grommet: 90 mm
Length of wire grommet to plug: 600 mm
Length of pickup coil wire to grommet: N/A
Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Wire to wire resistance:
Alternator: black between each black = 0.4 ohms +/-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
