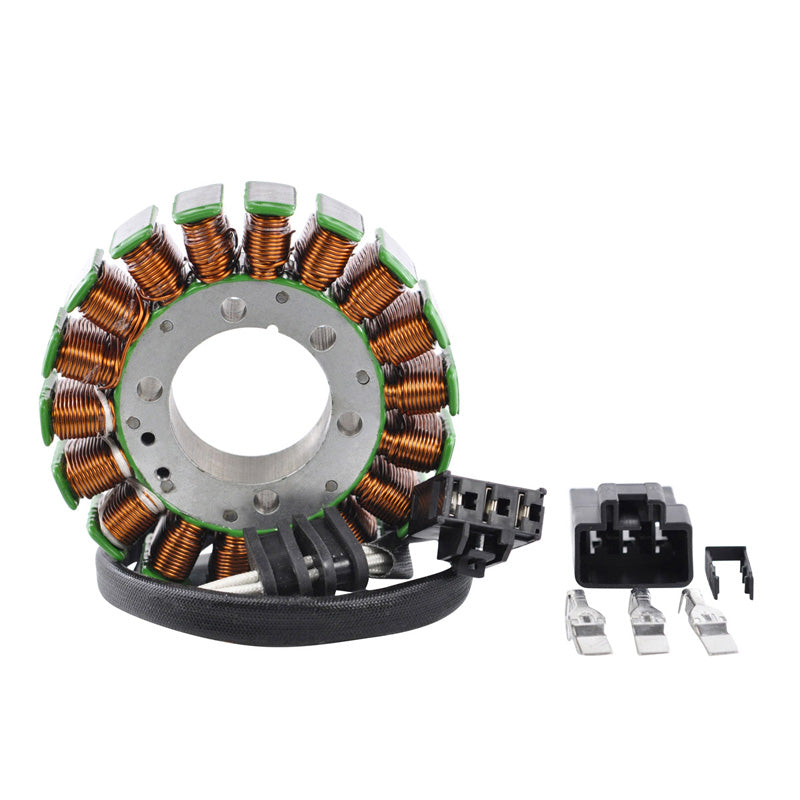

RMS STATOR HON VFR800 INTERCEPTOR|CBR 1100XX 99-03 RMS010-102040
Brand new stator
Plug-and-play unit, direct fit, and very easy to install.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.

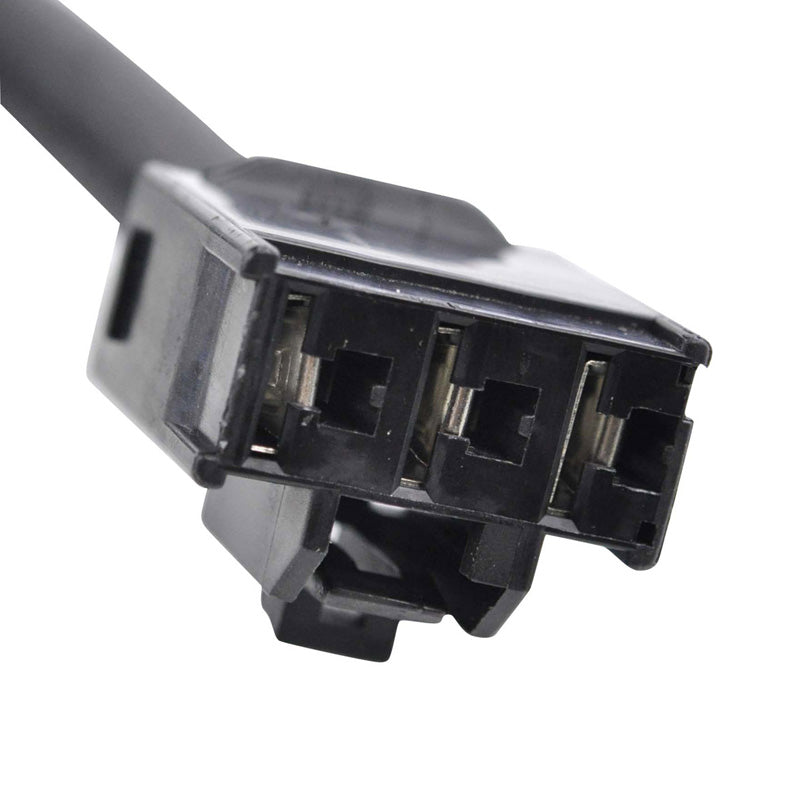

Connector included
Rubber grommet included
All products shipped are tested

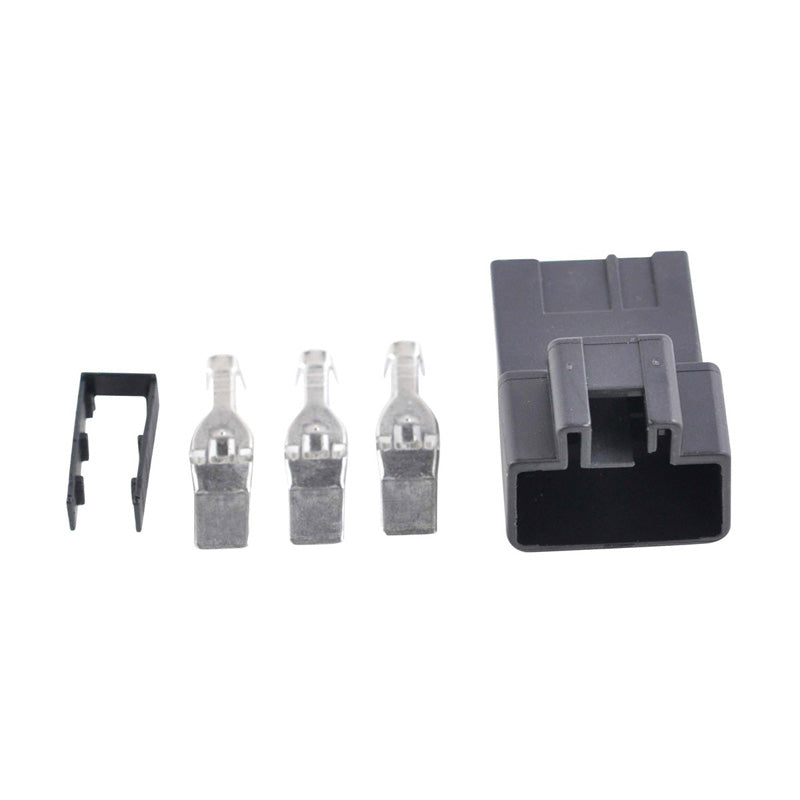

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 108 mm
Thickness : 26 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 500 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : White Between each white = 0.4 ohms+/-20%
Alternator : White to Ground =?O.L. ON DISPLAY
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
