Highest grade of copper winding, resistant to 200 degrees Celsius.

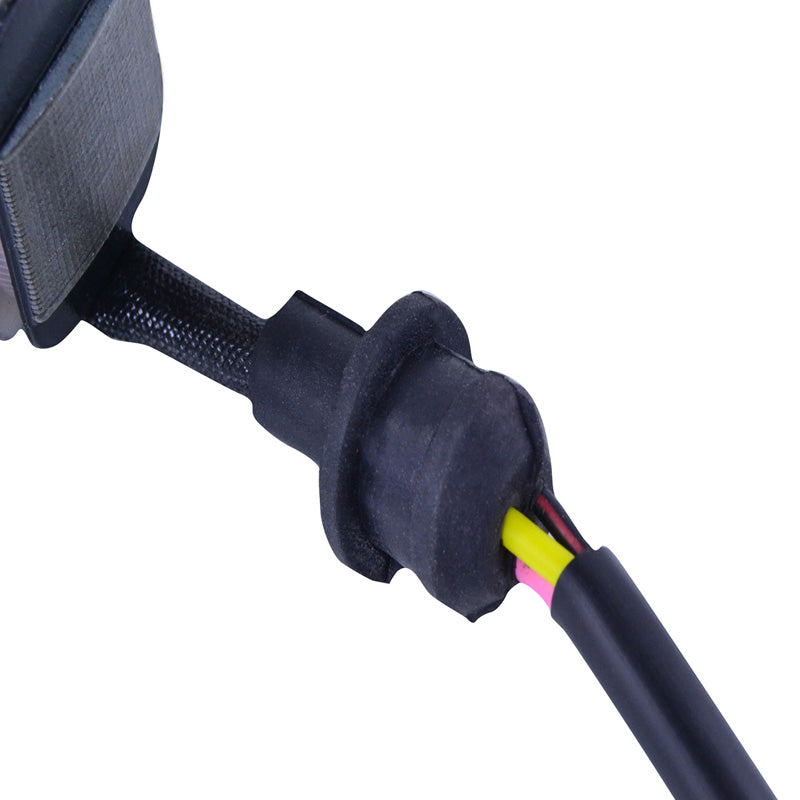

Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

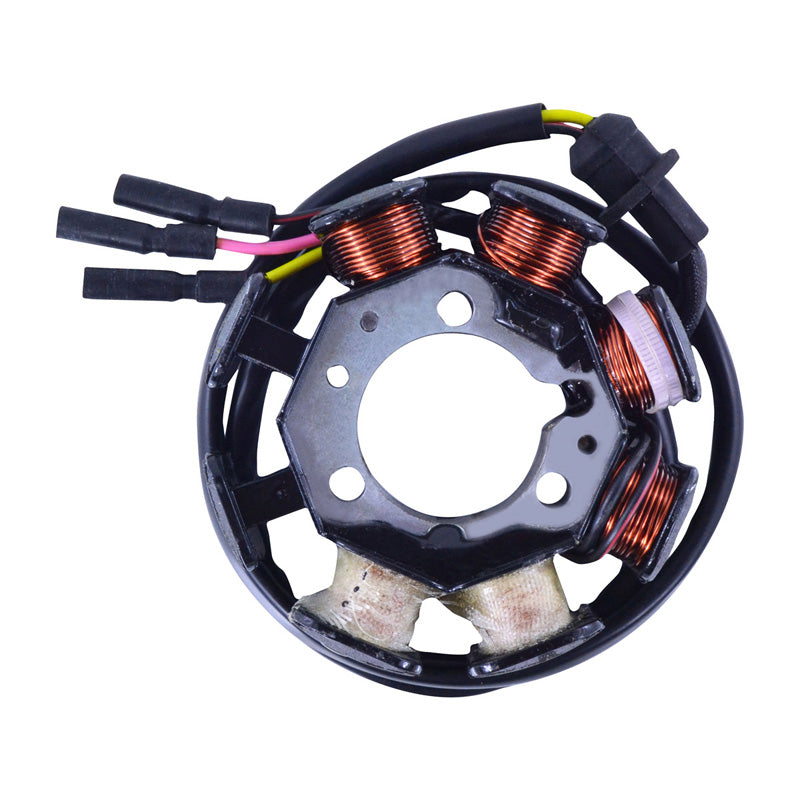

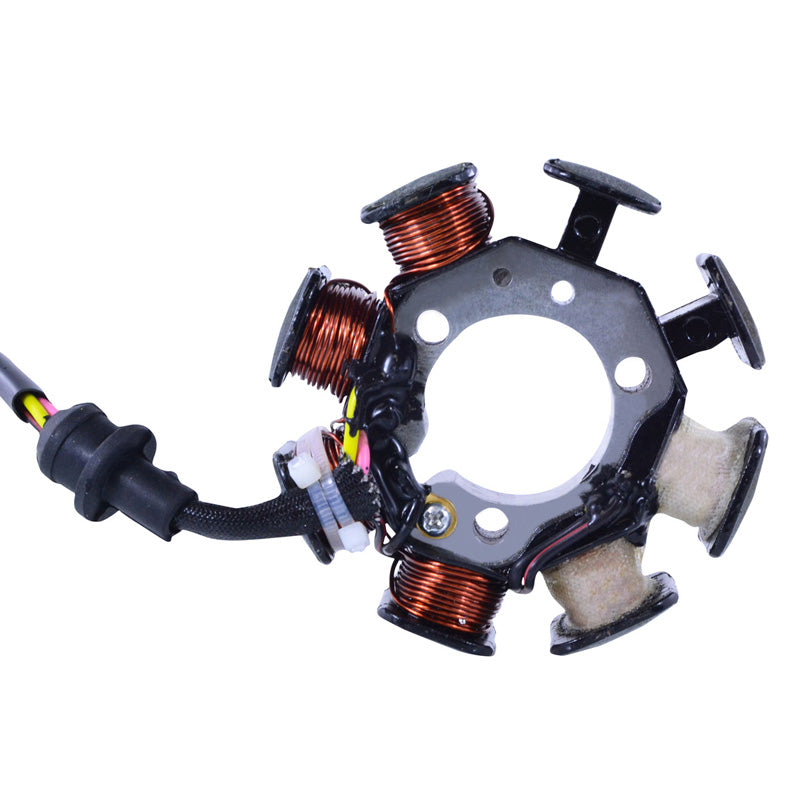

Specifications:

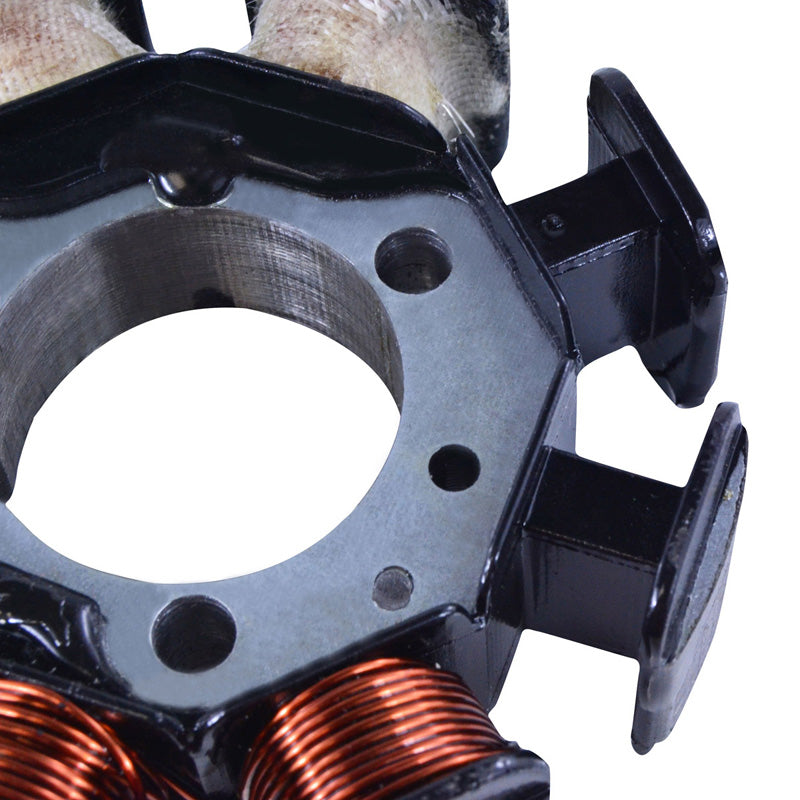

Dimensions :
Interior diameter : 36 mm
Exterior diameter : 96 mm
Thickness : 37 mm
Length of wires stator to grommet : 30 mm
Length of wires grommet to plug : 645 mm
Other specifications :

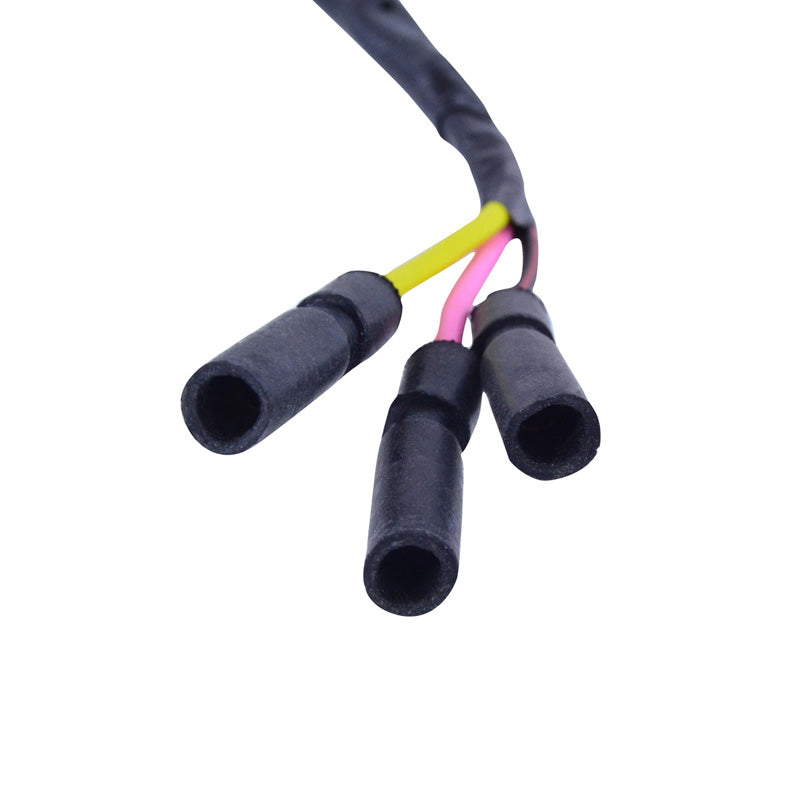

Number of wires : 3
Number of plugs : 3
Number of pins : 3
Number of poles : 8
Wire to wire resistance :
Alternator : Yellow to pink = 0.4 ohms +-20%
Alternator to ground = O.L
Source : Black/red to ground = 350 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
