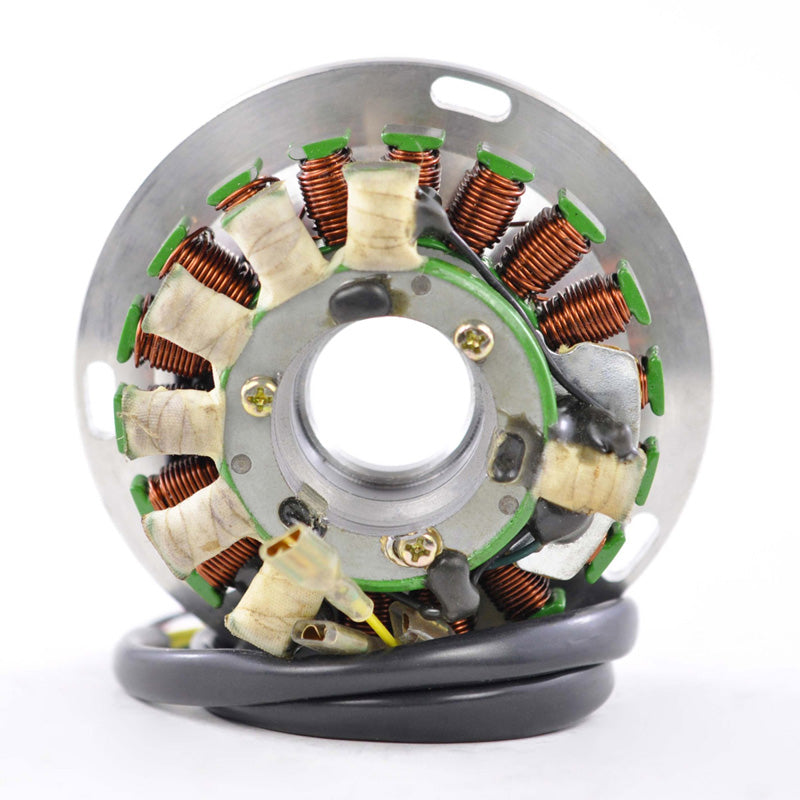

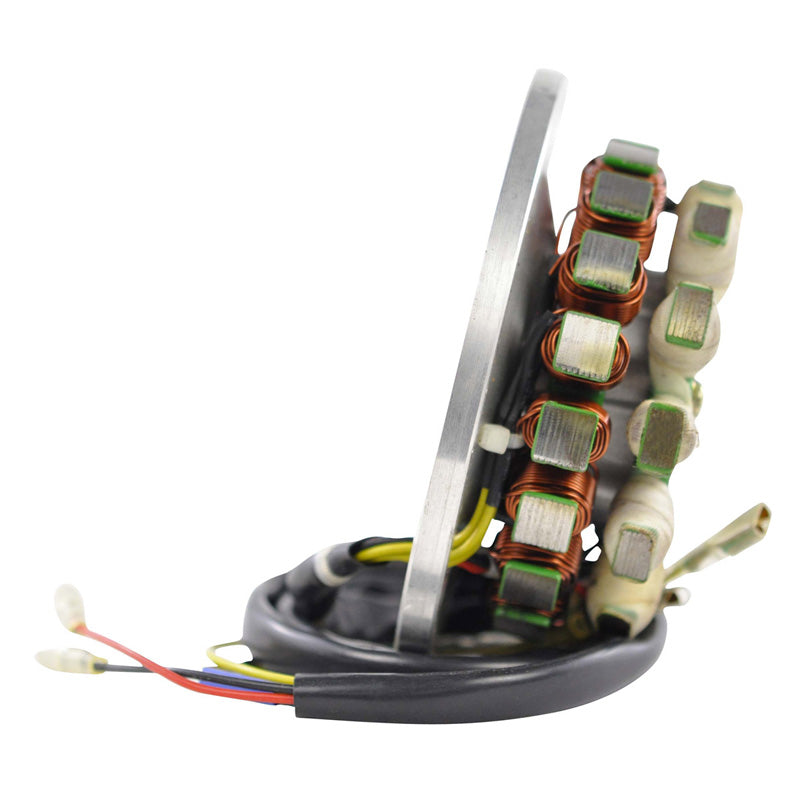

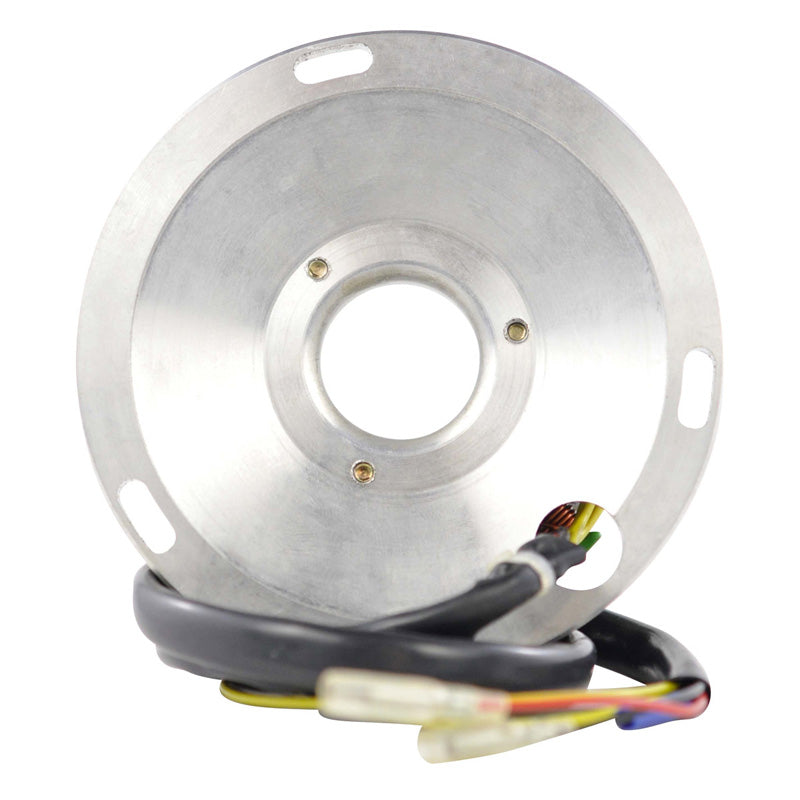

RMS STATOR HUSQ TE 410/510/610 83-86 RM01194

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Back Plate included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 37mm
Exterior diameter: 110mm
Thickness: 40mm
Length of wires stator to terminals: 600mm

Other specifications:
Number of wires: 6
Number of plugs: 0
Number of pins: 6

Wire to wire resistance:
Alternator: = 0.4 ohms +/-20%
Source: 1367 ohms =+/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
