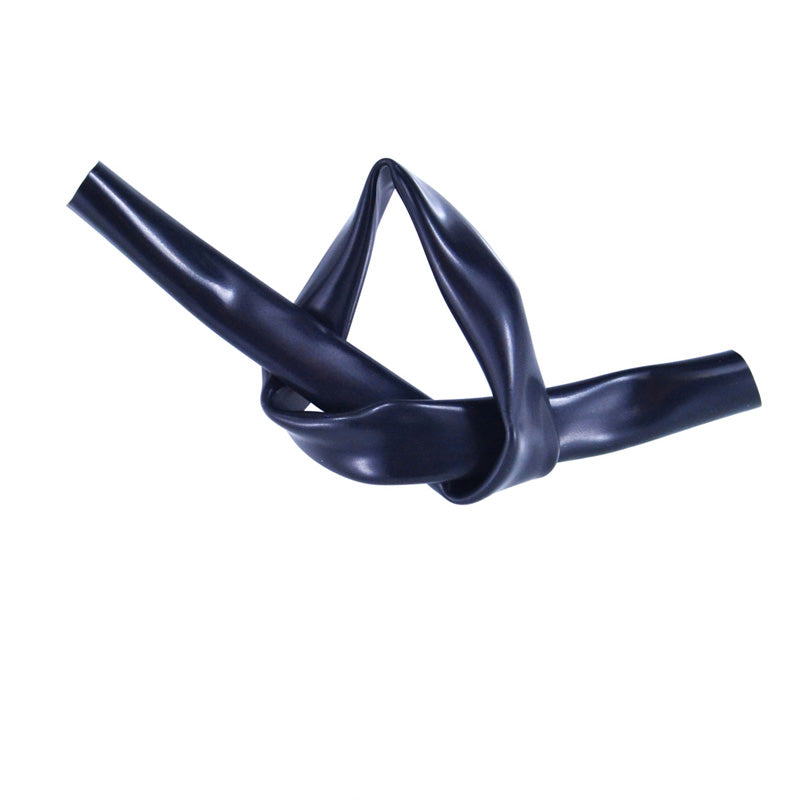

You must re-install your original grommet (see picture).
Highest grade of lamination materials
Highest grade of copper winding, resistant to 200 degrees Celsius.

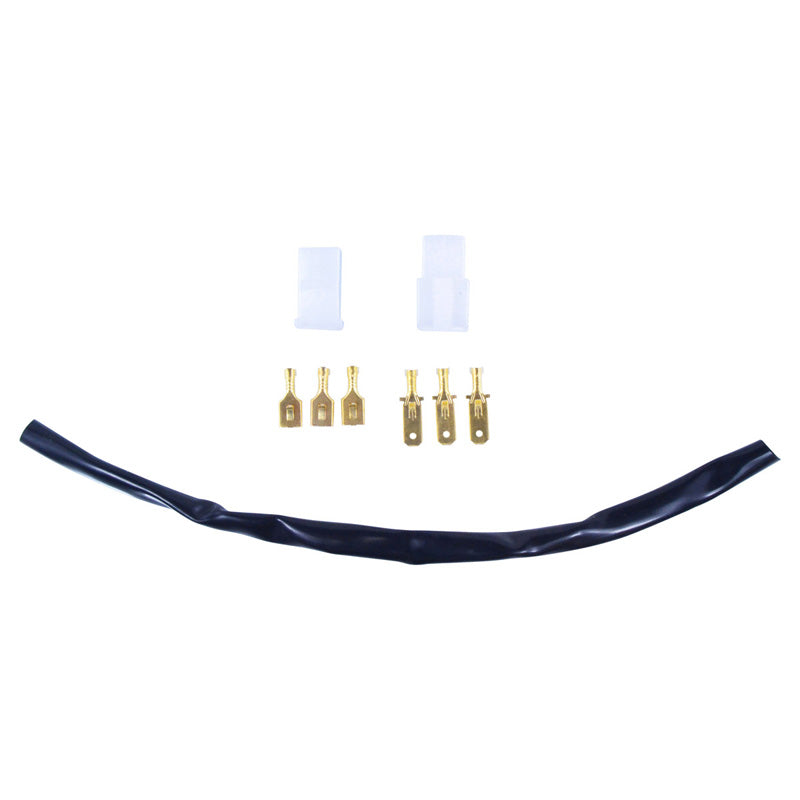

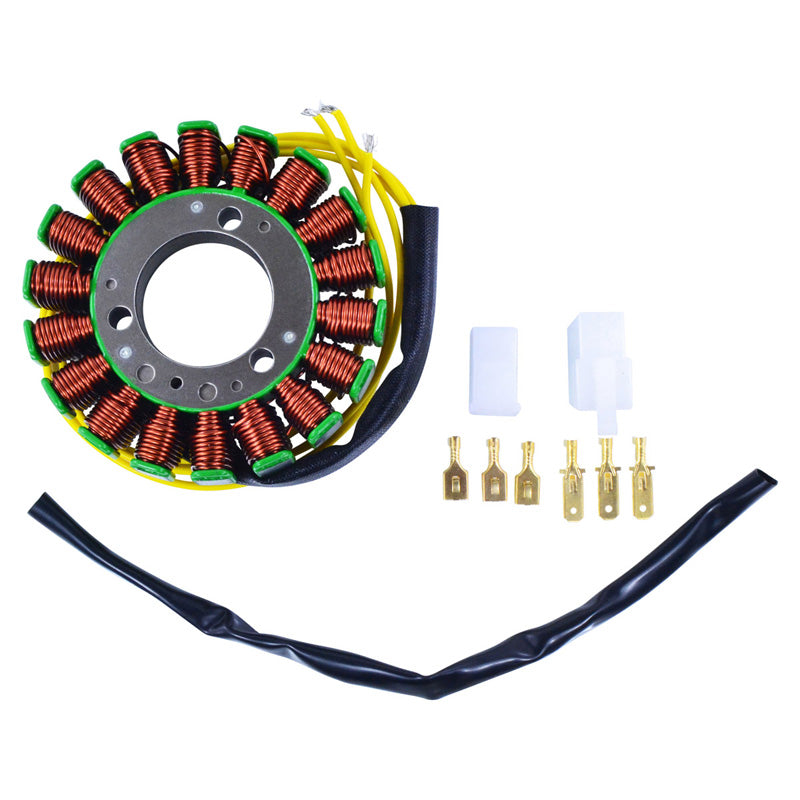

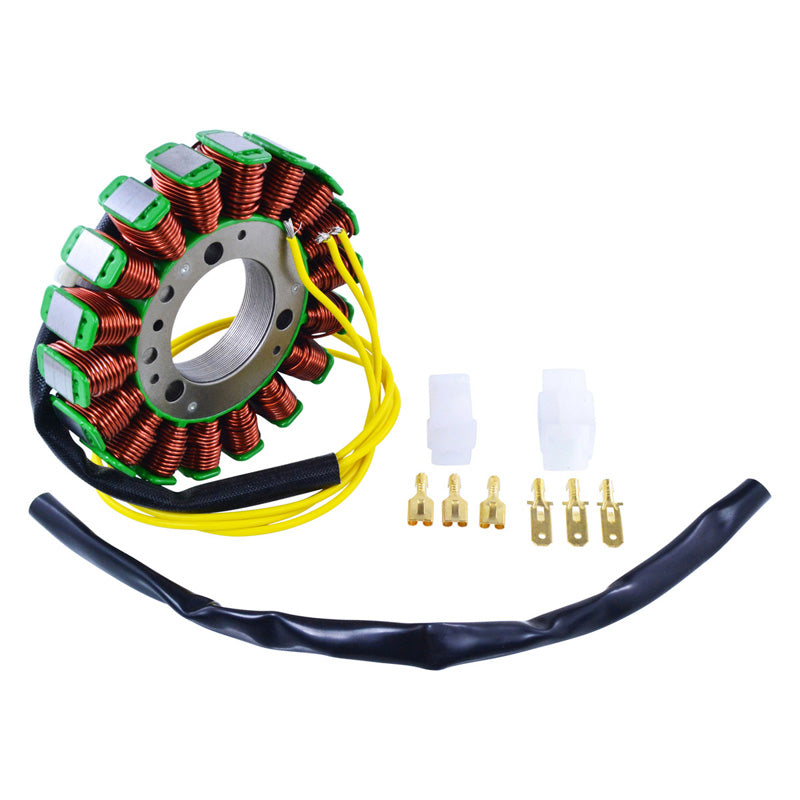

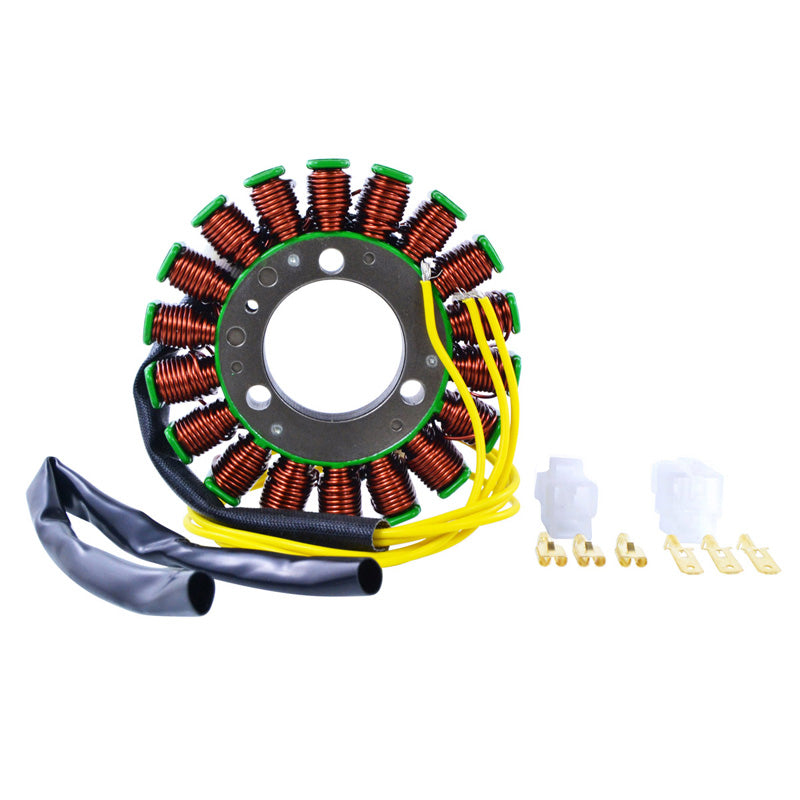

Connector included
All products shipped are tested

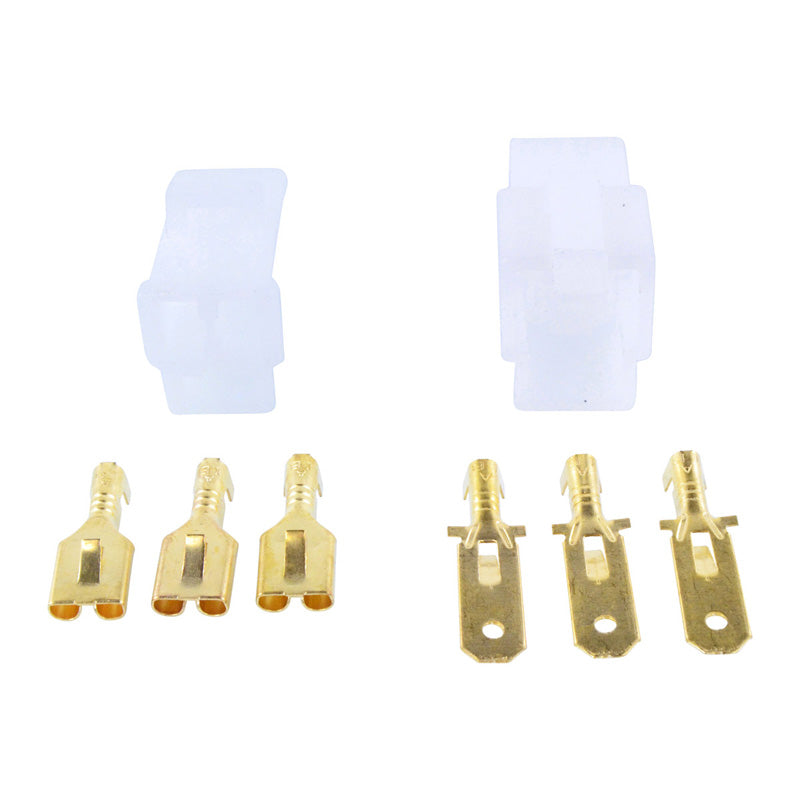

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 38 mm
Exterior diameter : 102 mm
Thickness : 14 mm
Length of wires grommet to plug : 480 mm
Other specifications :

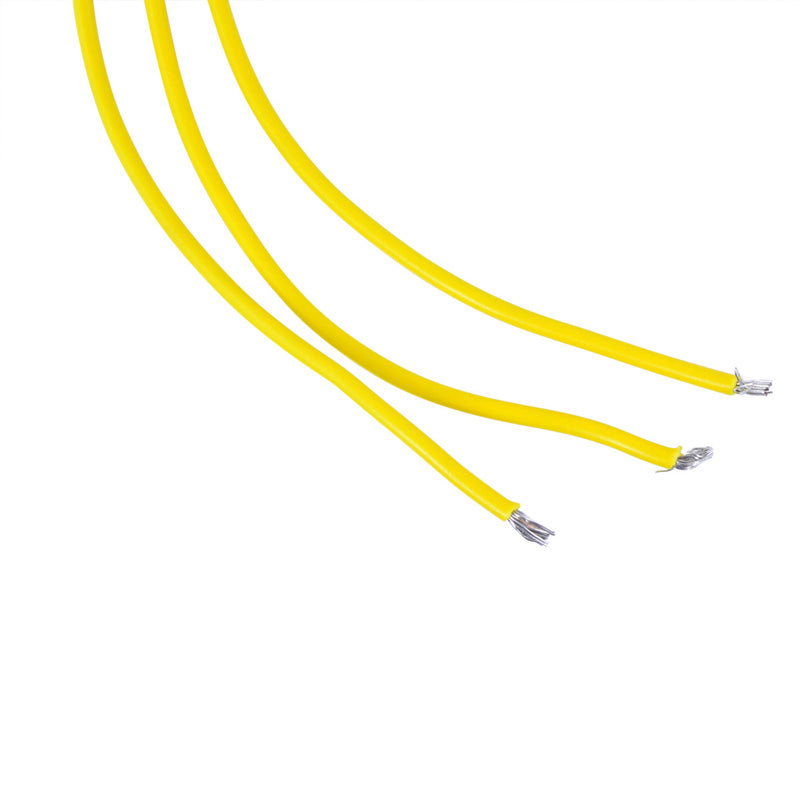

Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18
Wire to wire resistance :
Alternator 3p : Between each Yellow = 0.06 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
