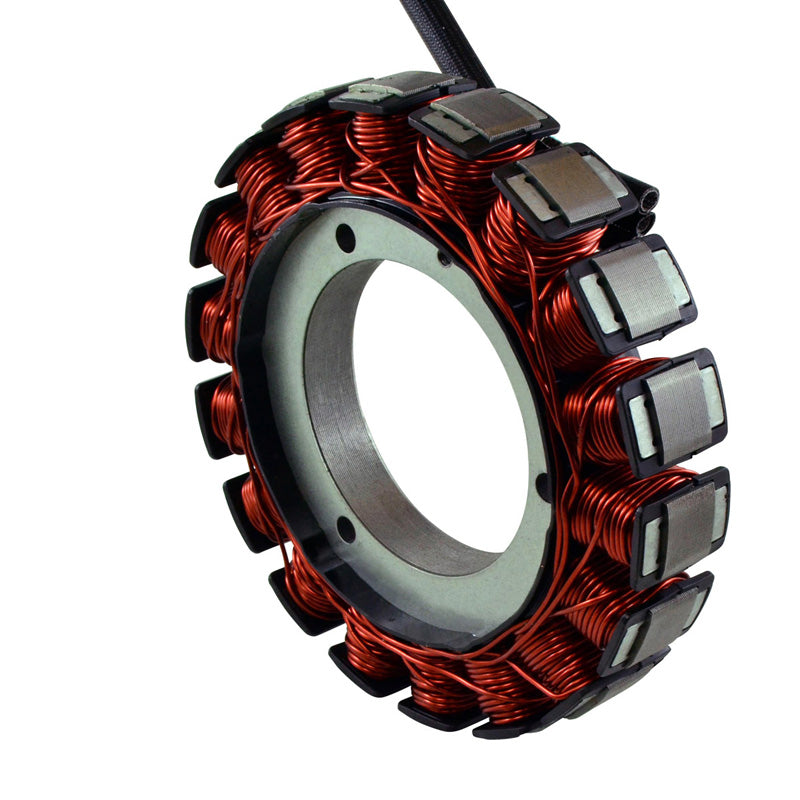

Highest grade copper windings, resistant to 200 degrees Celsius.

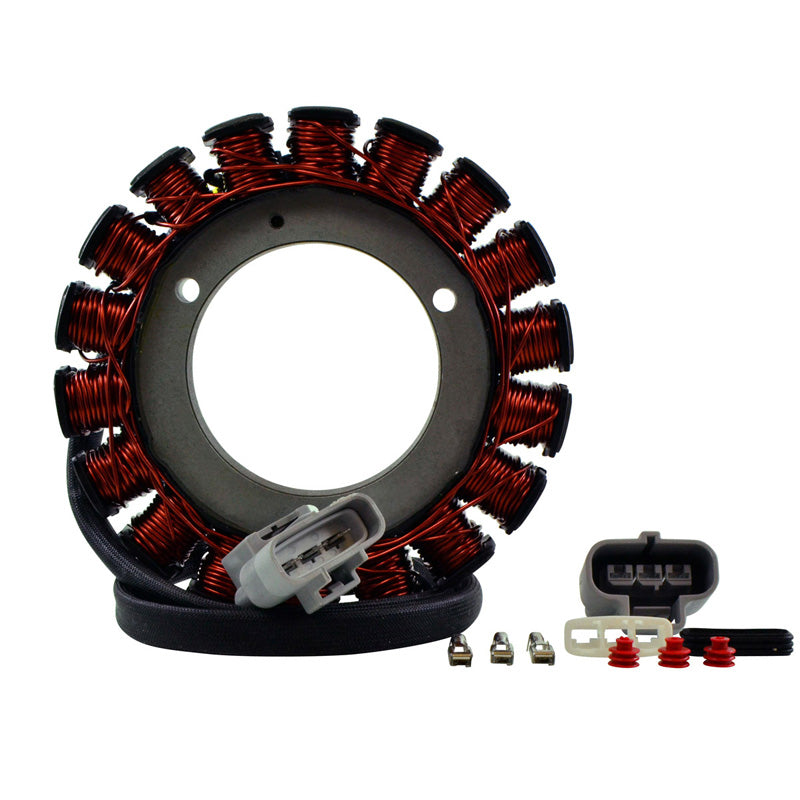

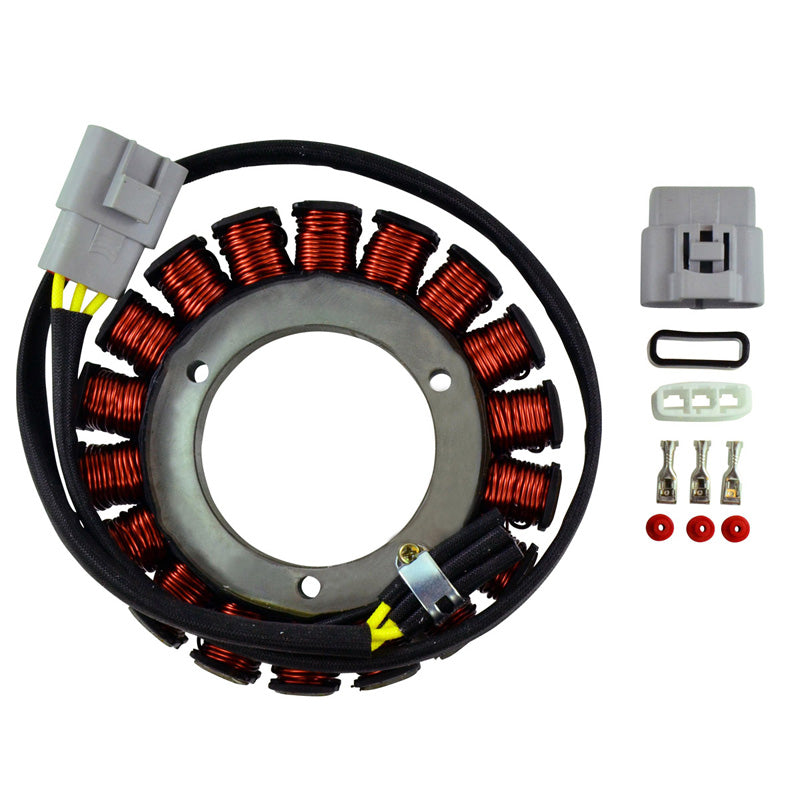

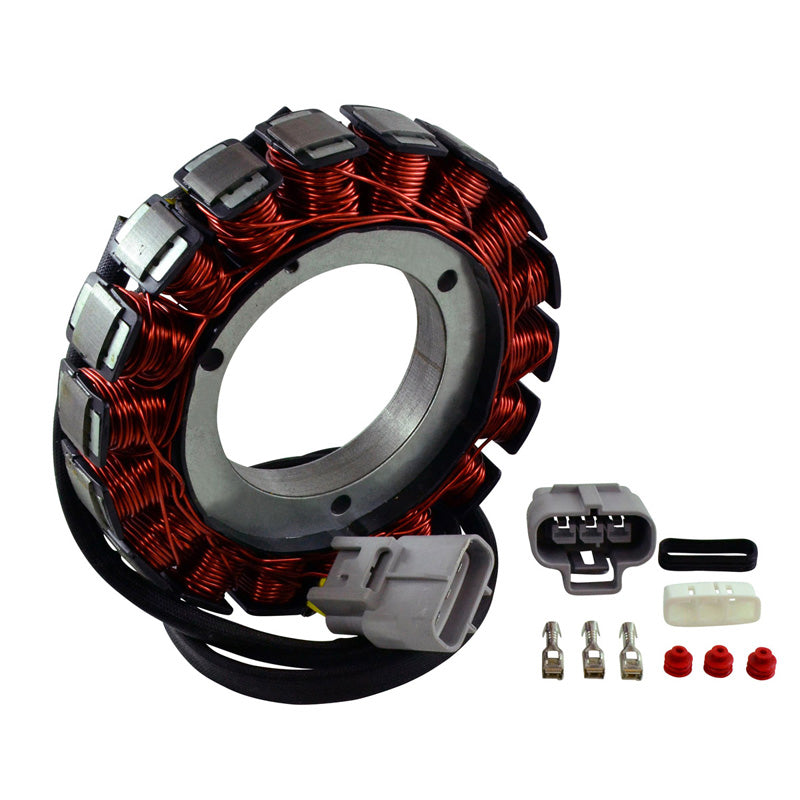

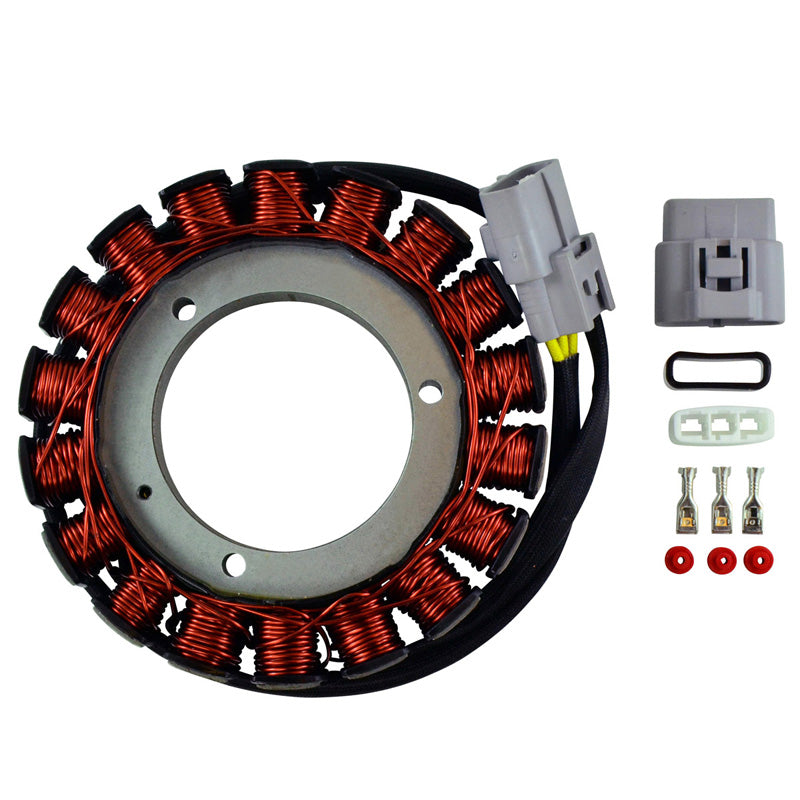

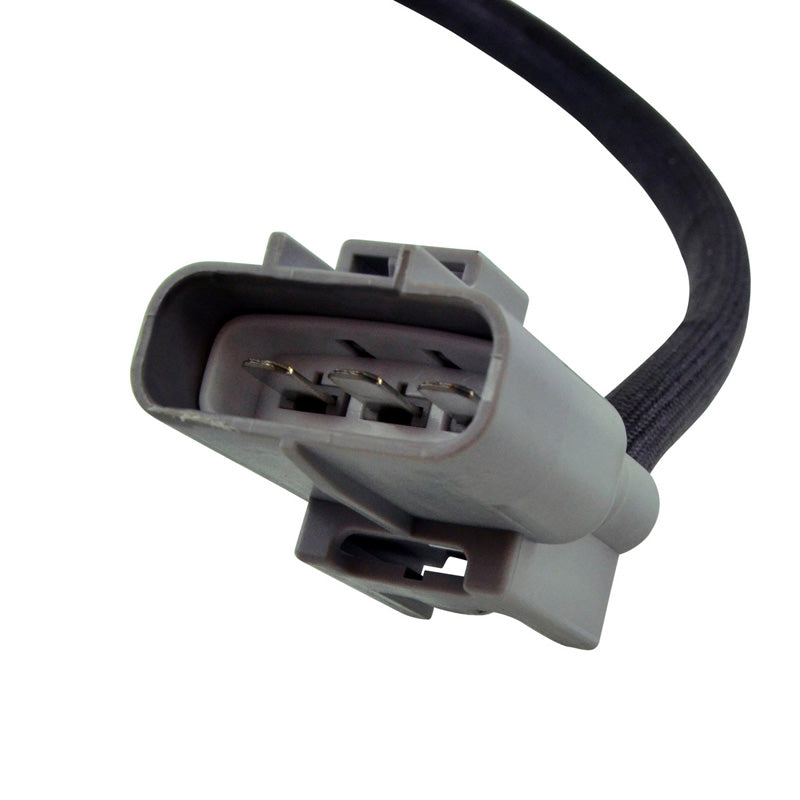

Connector included
All products shipped are tested

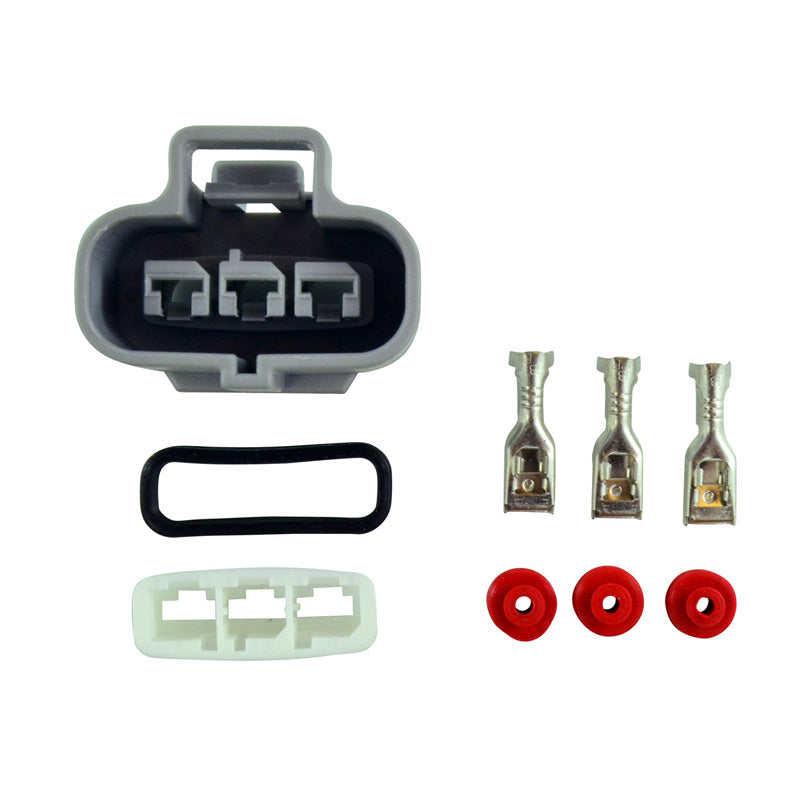

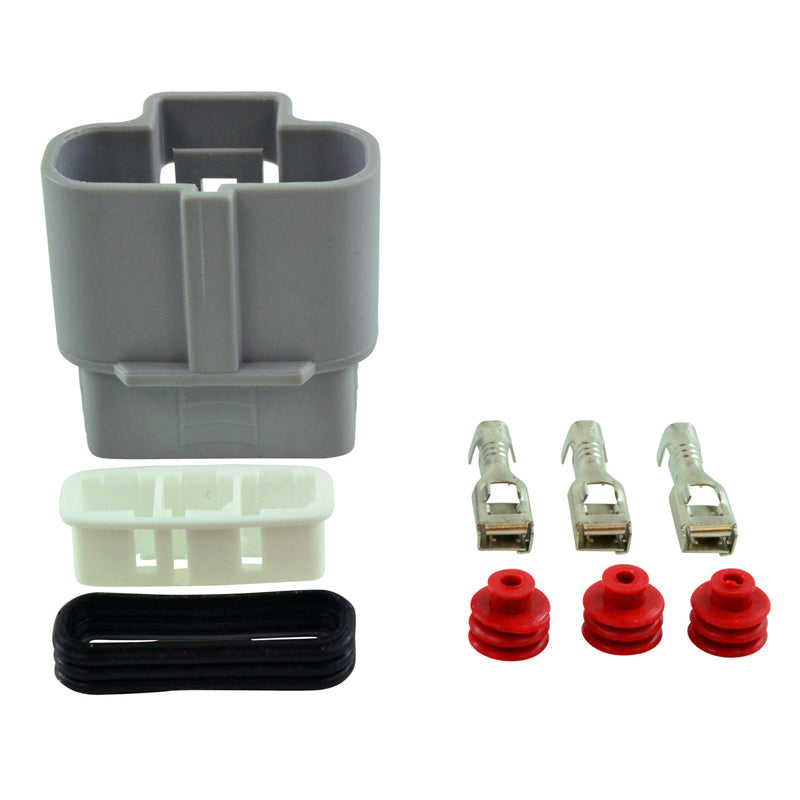

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 70 mm
Exterior diameter :145 mm

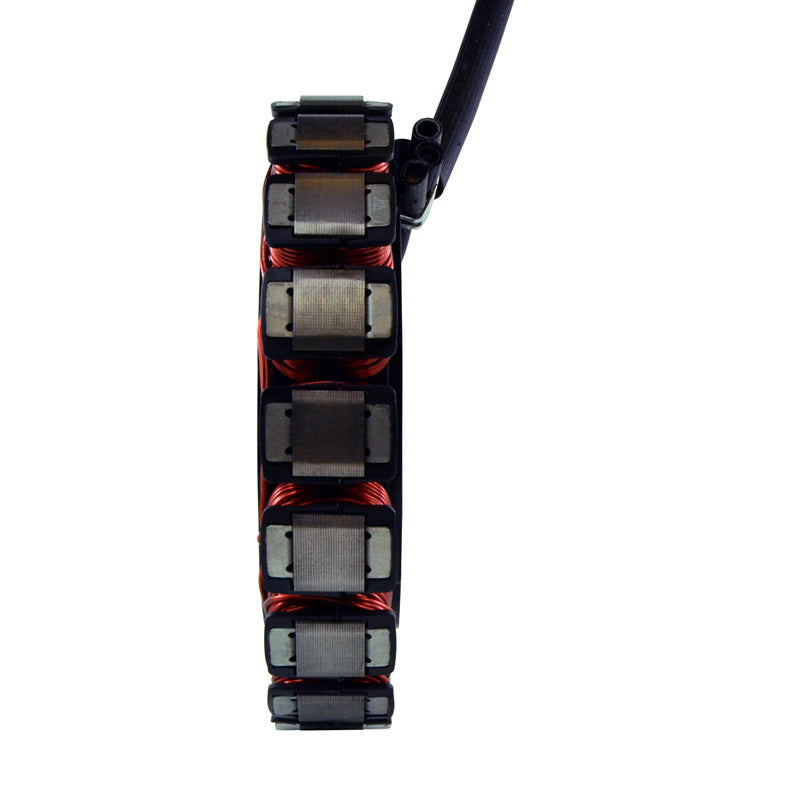

Thickness : 12 mm
Length of wires stator to plug : 680 mm
Other specifications :
Number of wires : 3

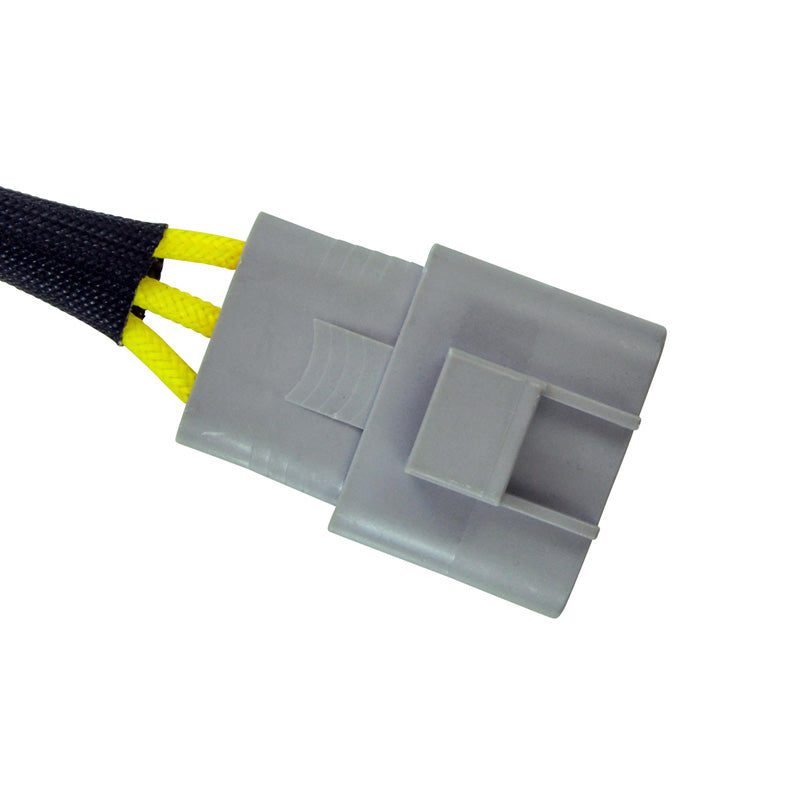

Number of plugs : 1
Number of pins : 3

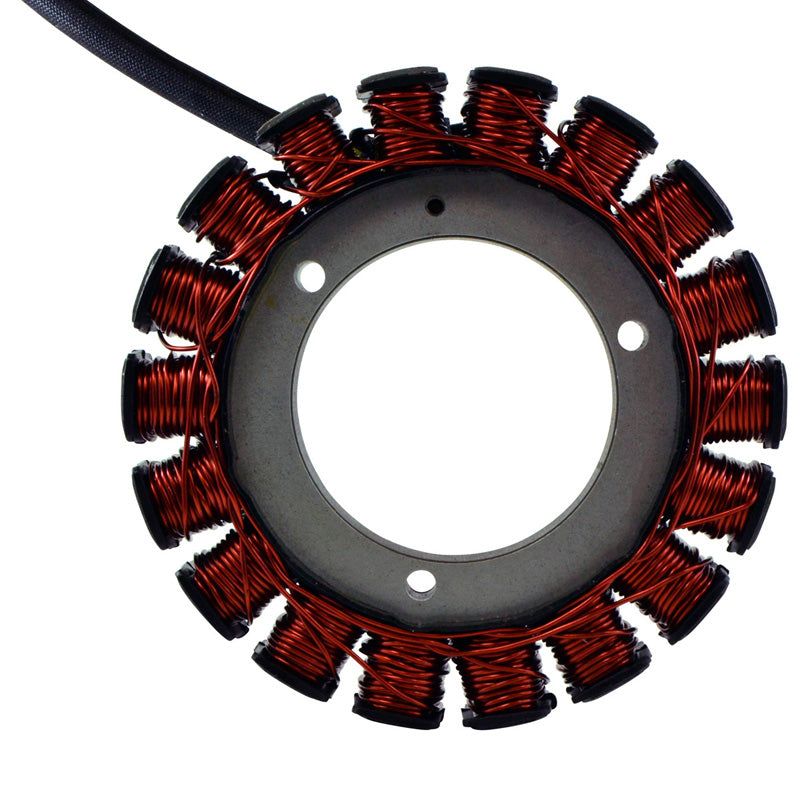

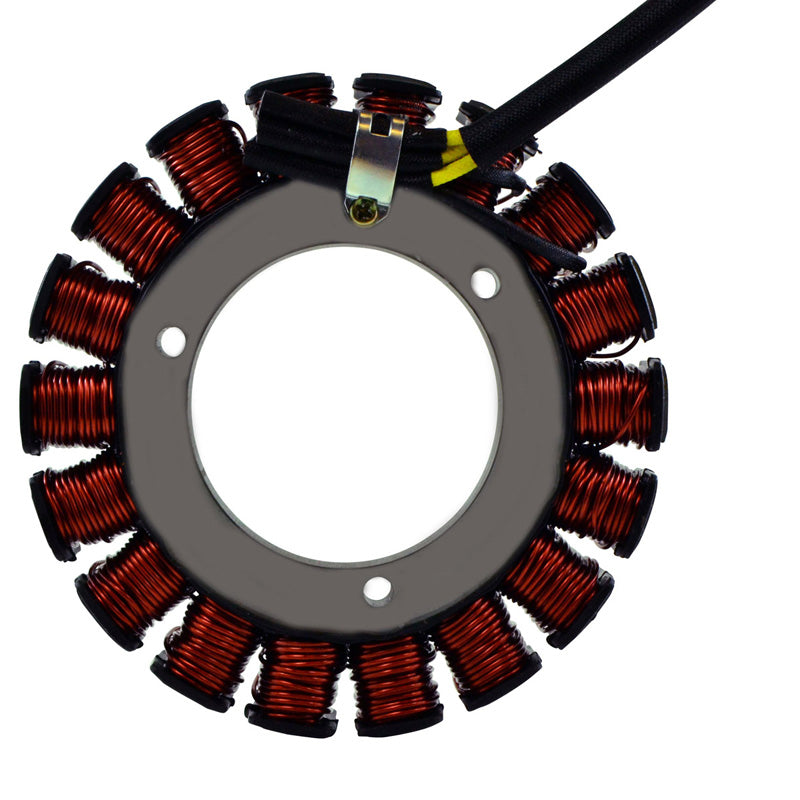

Number of poles : 18
Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms +-20%
Alternator to ground = O.L
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
