RMS STATOR KAW KLF220 BAYOU 88-95 RM01318

RMS STATOR KAW KLF220 BAYOU 88-95 RM01318

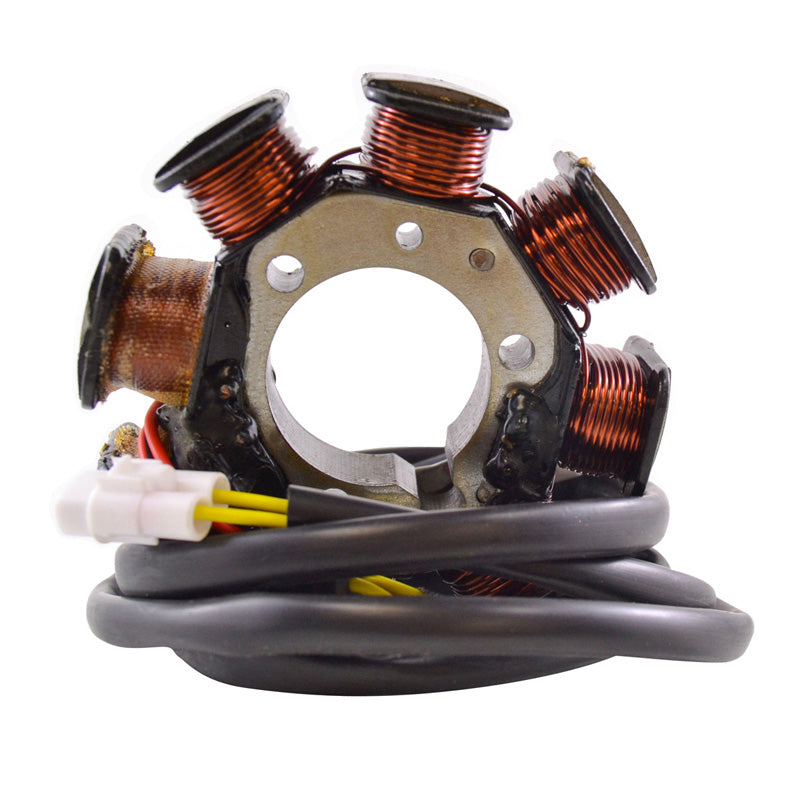

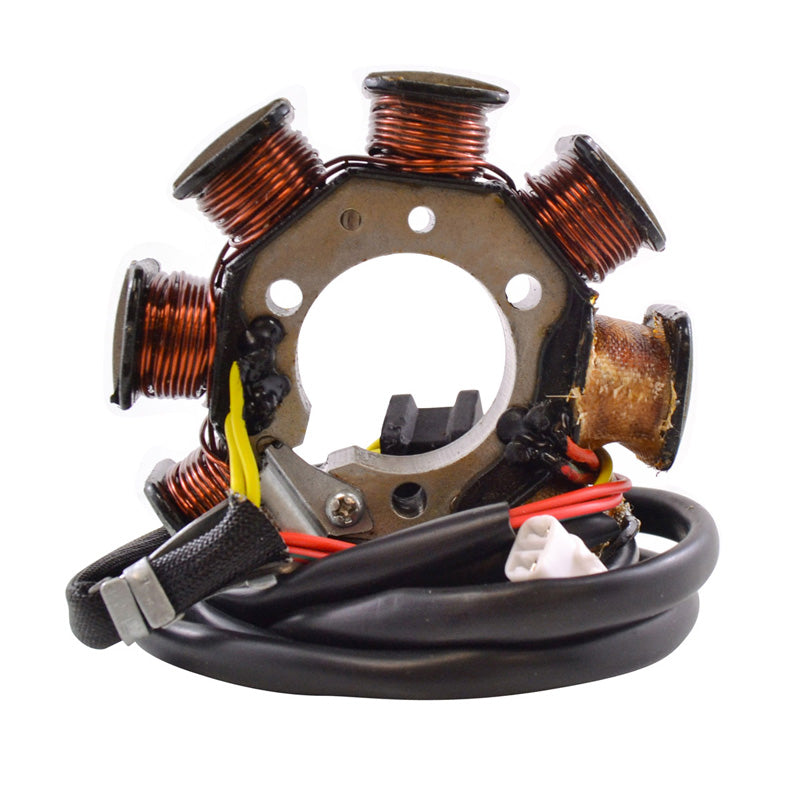

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.

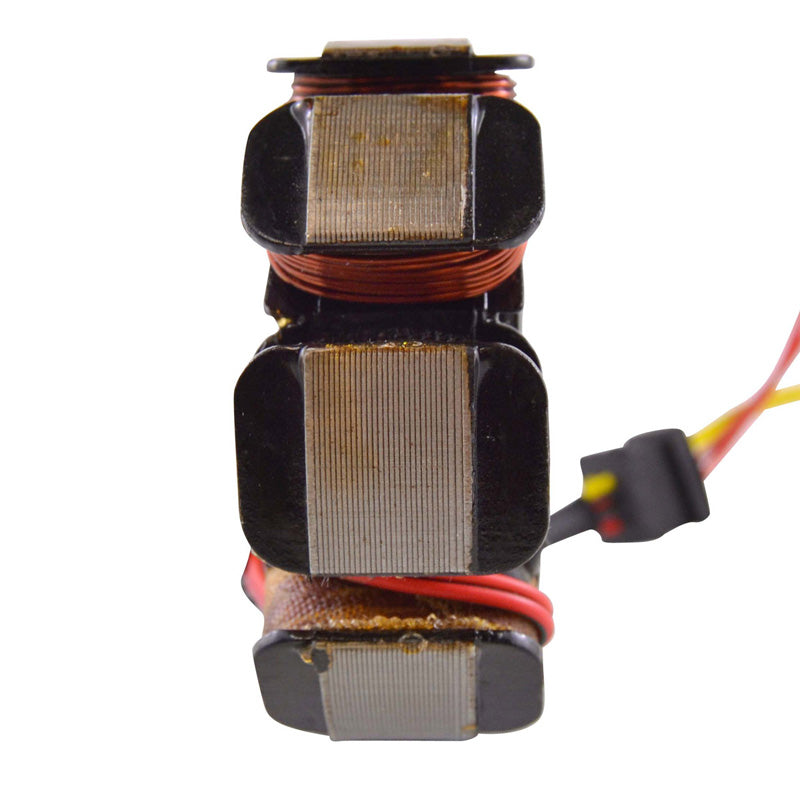

• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

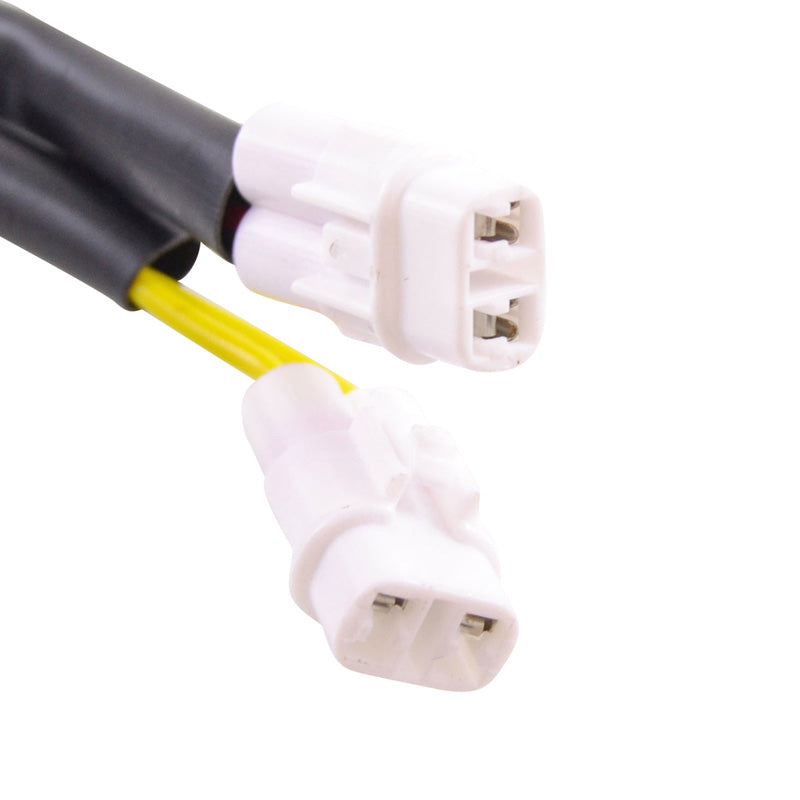

• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 34mm
Exterior diameter : 92mm
Thickness : 18mm
Length of wires stator to grommet : 100mm
Length of wires grommet to plug : 150mm & 900mm

Other specifications :
Number of wires : 4
Number of plugs : 2
Number of pins : 4

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4ohms +/-20%
Source : Red to Black/Red = 140ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
