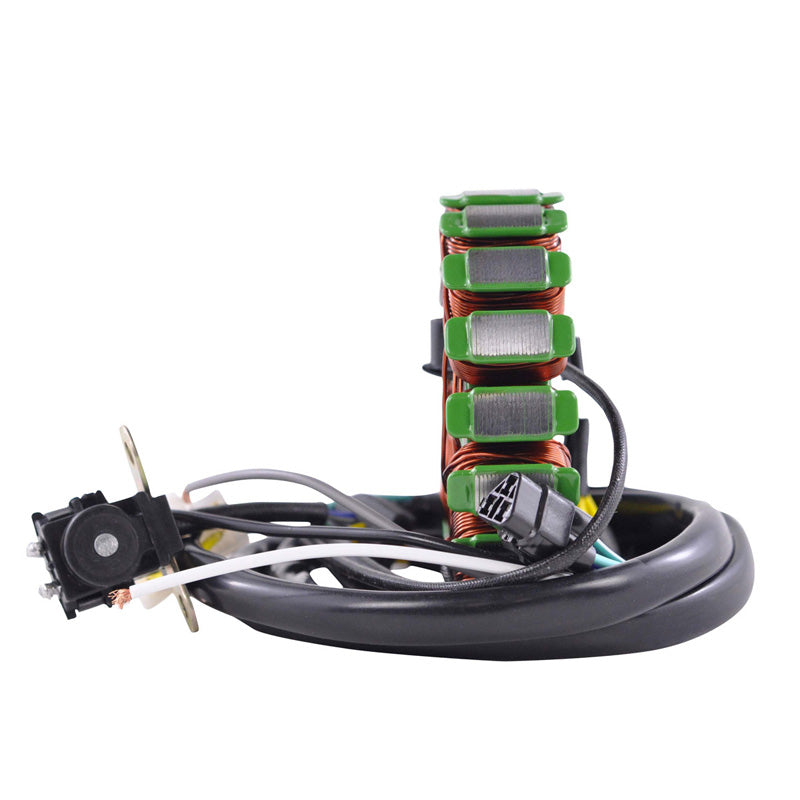

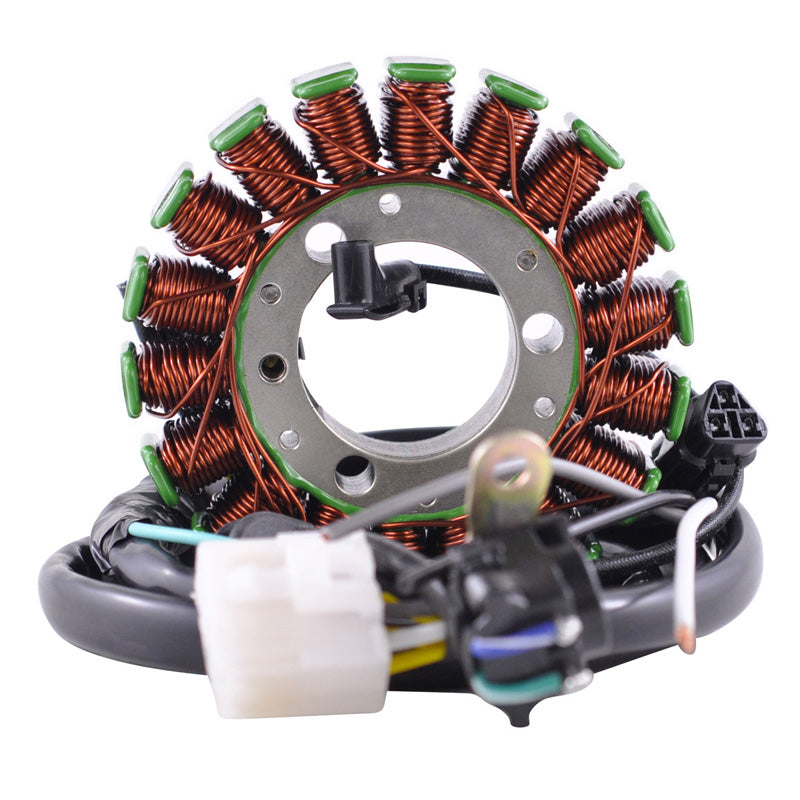

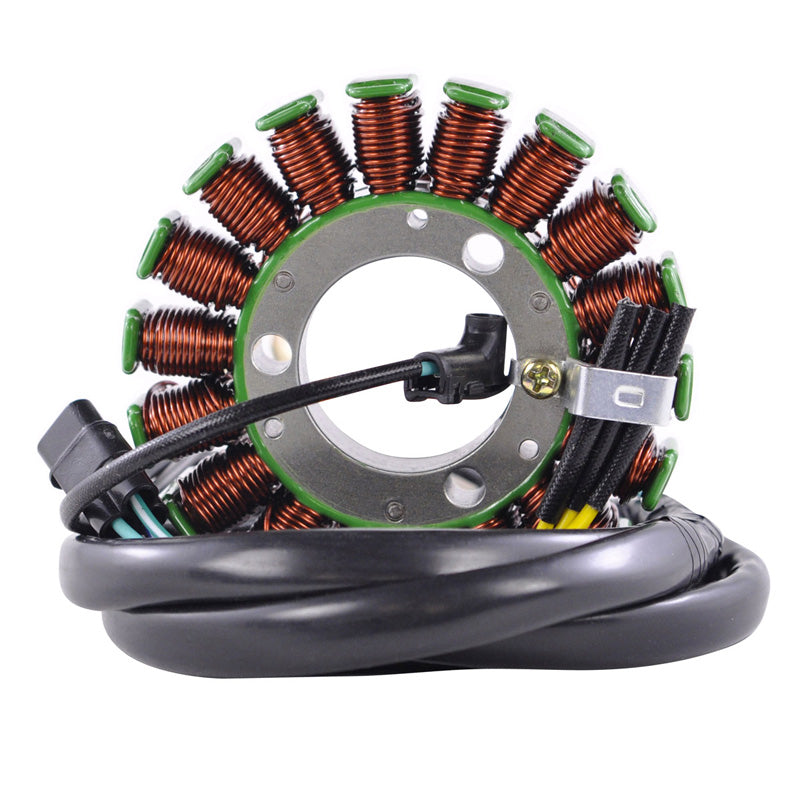

RMS STATOR KAW KLX250S|SF 09-14 RMS010-101405

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

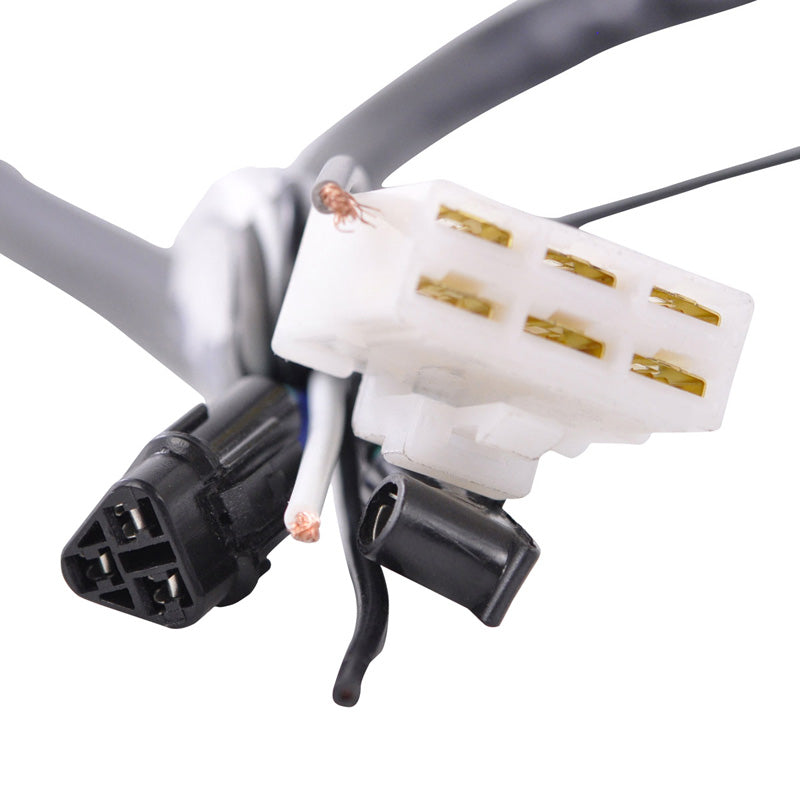

• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 35 mm
Exterior diameter : 93 mm
Thickness : 18 mm
Length of wires stator to grommet 1 : 155 mm
Length of wires grommet to plug 1: 505 mm
Length of wires grommet to plug 2: 810 mm
Length of wires grommet to pick-up coil's plug : 72mm
Length of pickup coil's wire to grommet : 60 mm

Other specifications :
Number of wires : 13
Number of plugs : 4
Number of pins : 13

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.9 ohms +-20%
Pickup : Blue/White to Green/White = 244 ohms +-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
