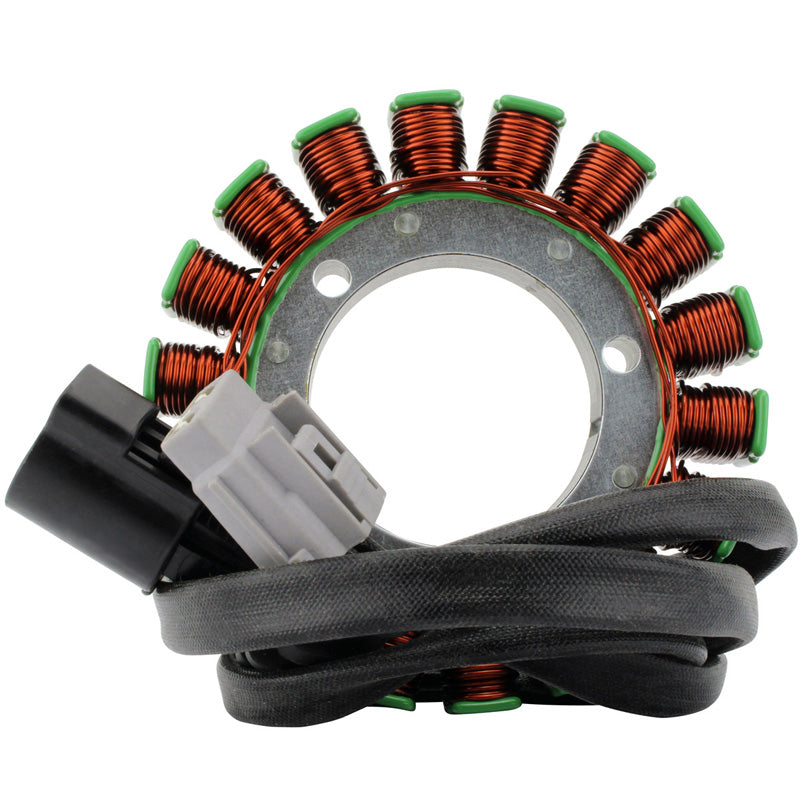

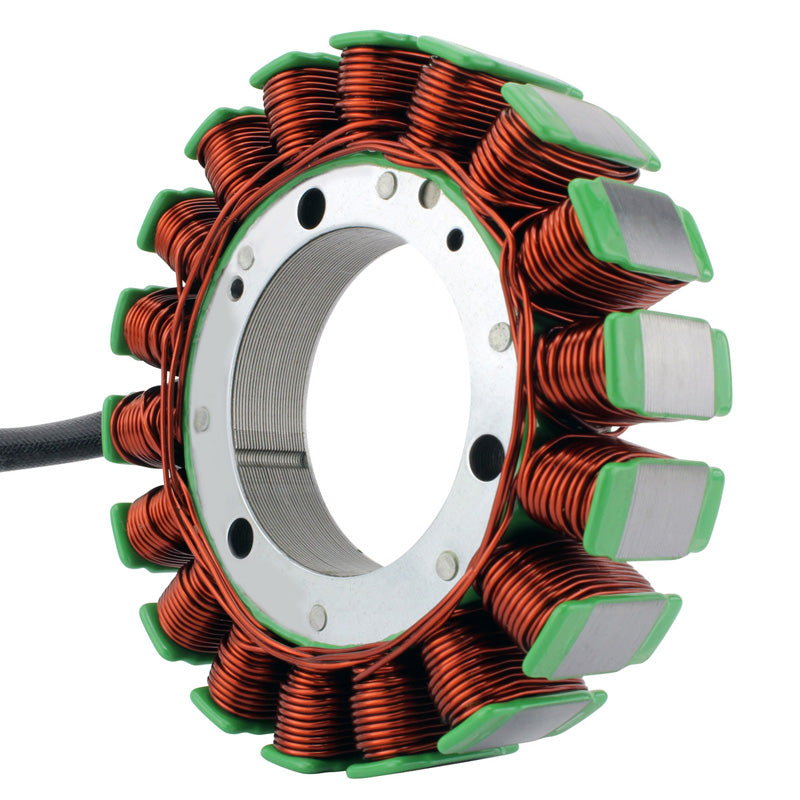

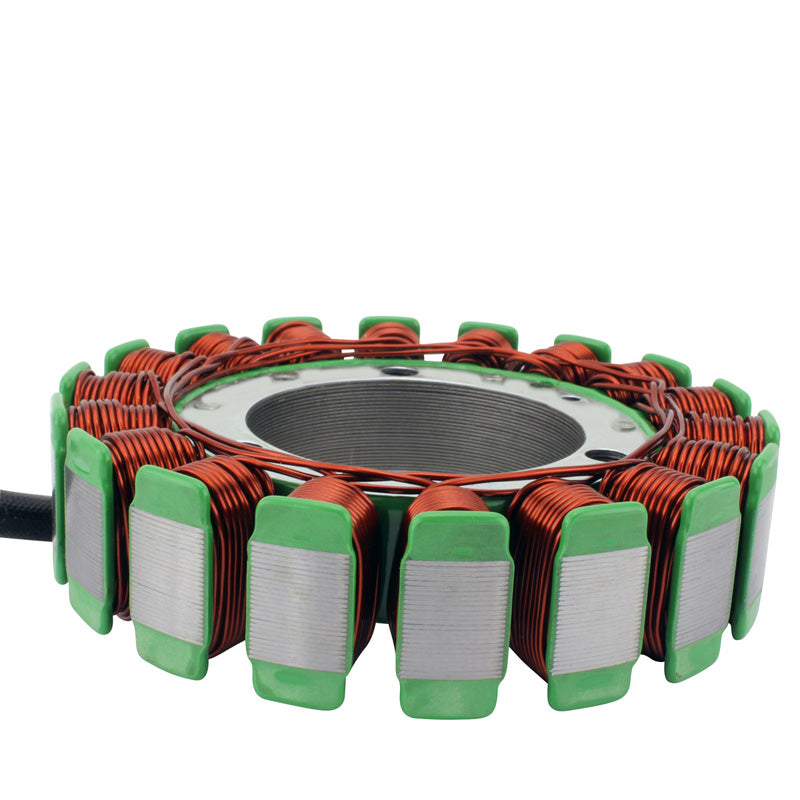

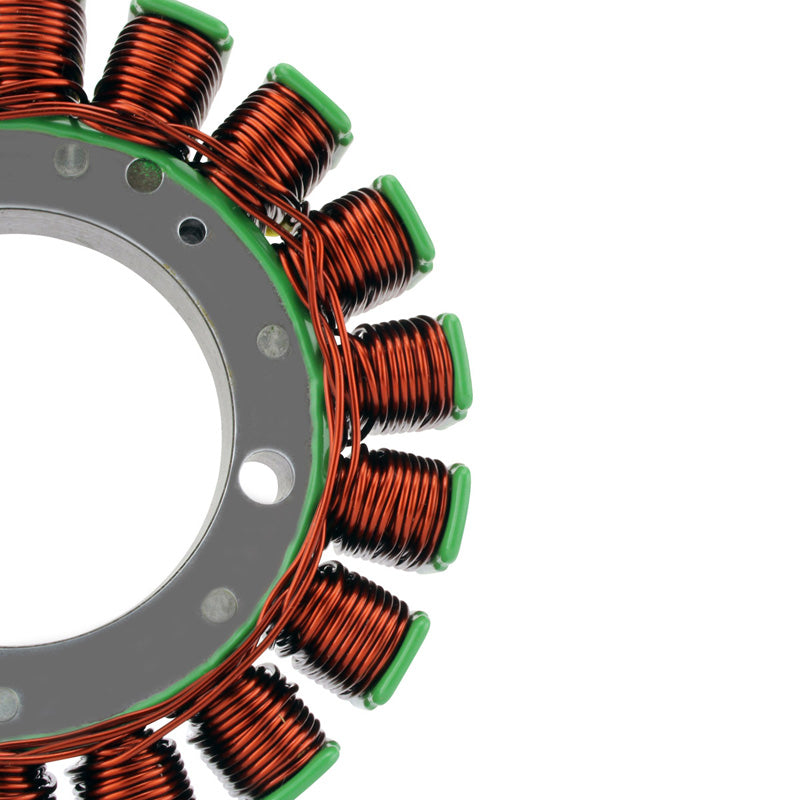

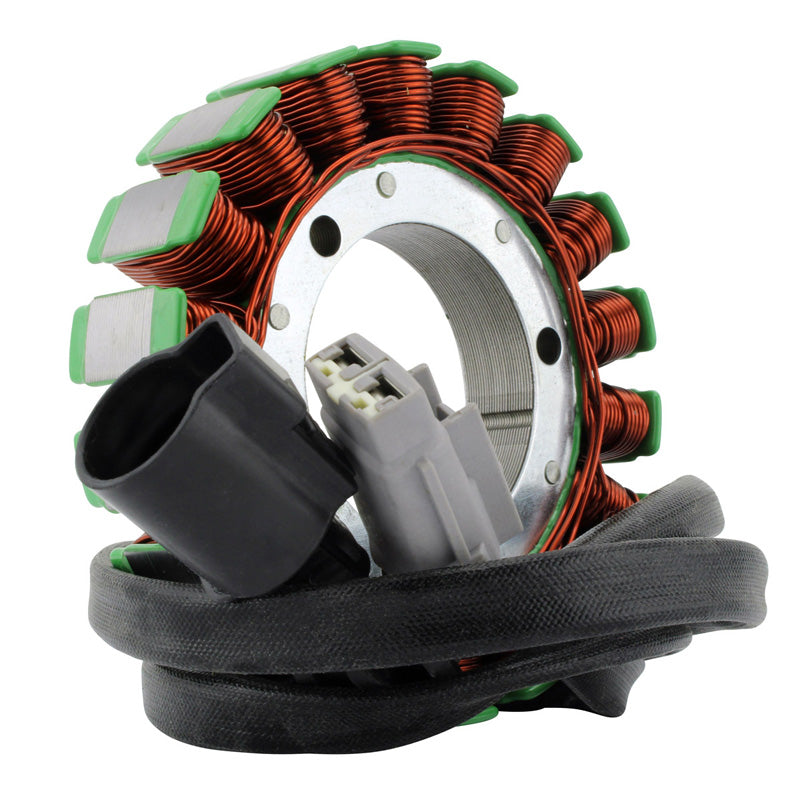

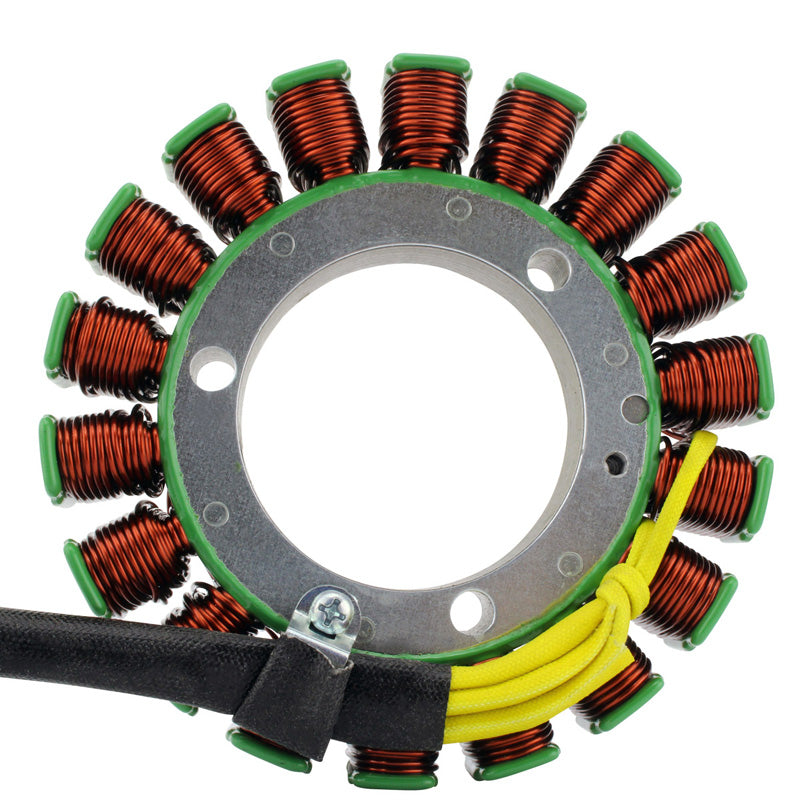

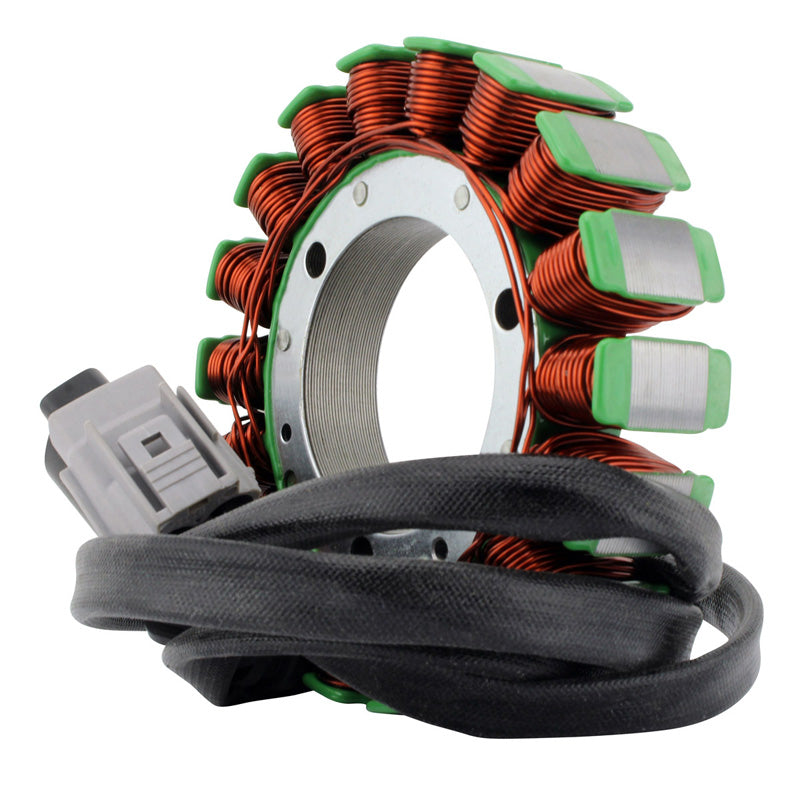

Highest grade of copper winding, resistant to 200 degrees Celsius

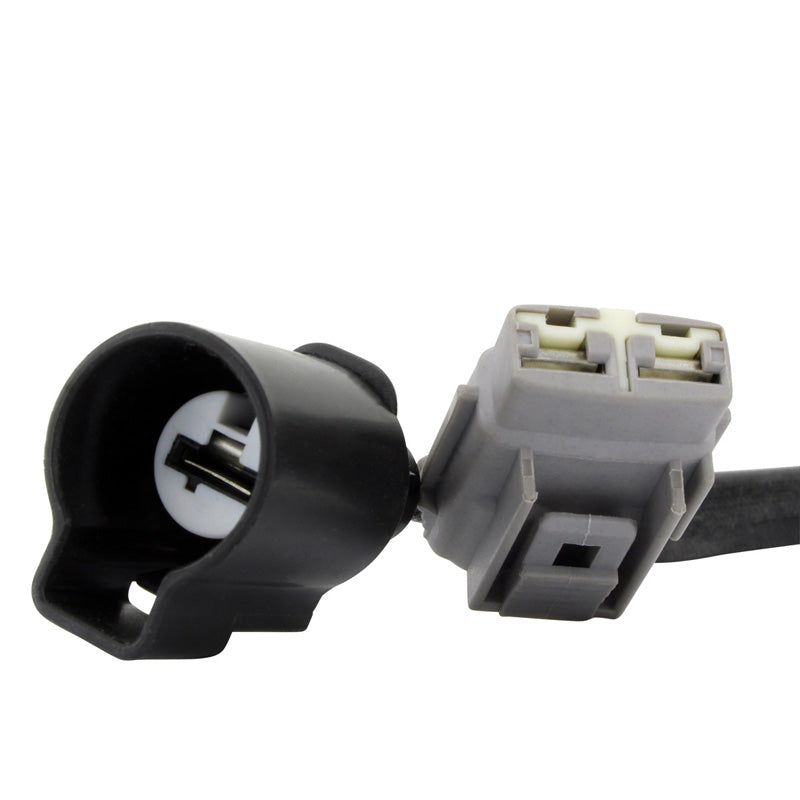

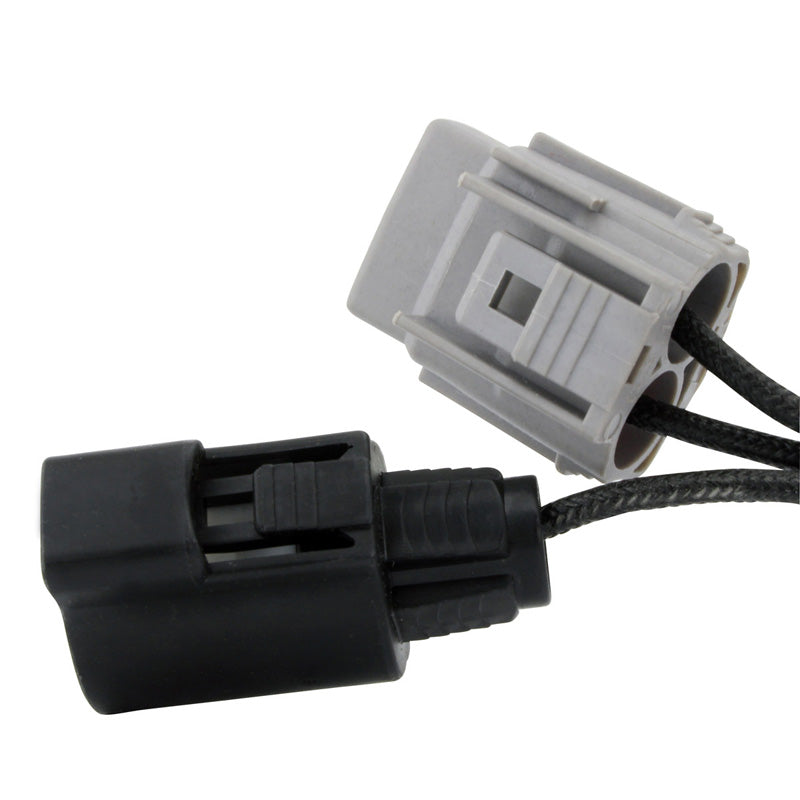

Connectors included

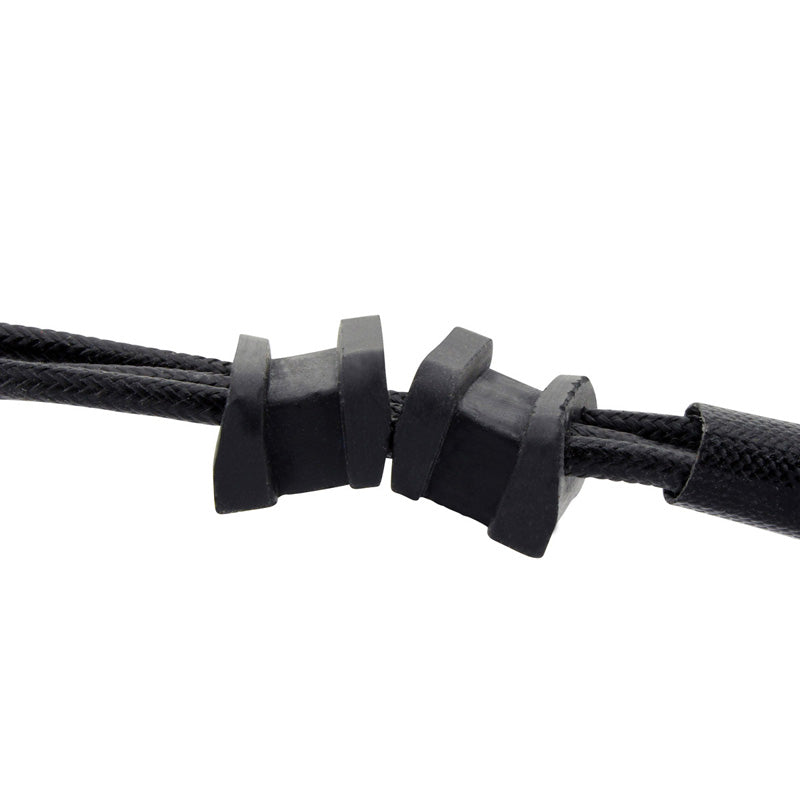

Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions:

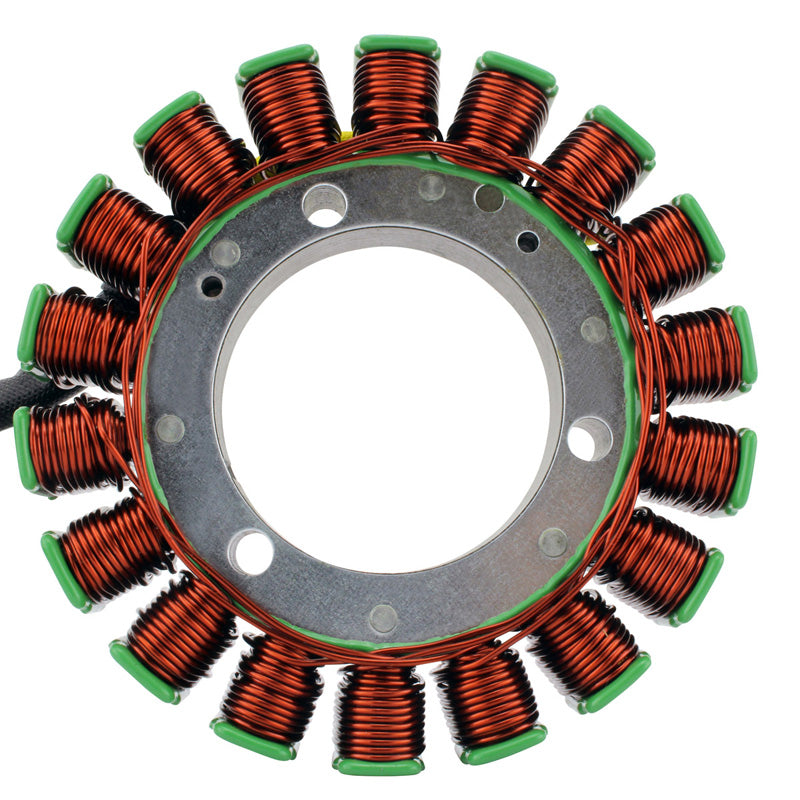

Interior diameter: 54 mm
Exterior diameter: 115 mm

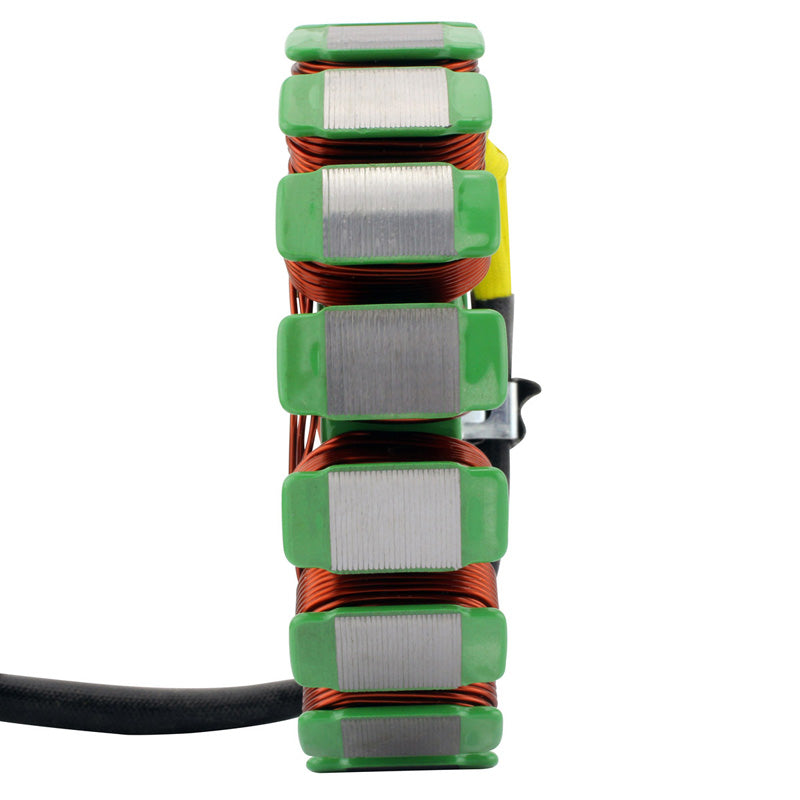

Thickness: 18 mm
Length of wires stator to grommet: 160 mm
Length of wires grommet to plug: 840 mm
Other specifications:
Number of wires: 3
Number of plugs: 2
Number of pins: 3
Number of poles: 18
Wire to wire resistance:
Alternator: Black to Black = 0.4 ohms +-20%
Alternator: Black to ground = O.L
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
