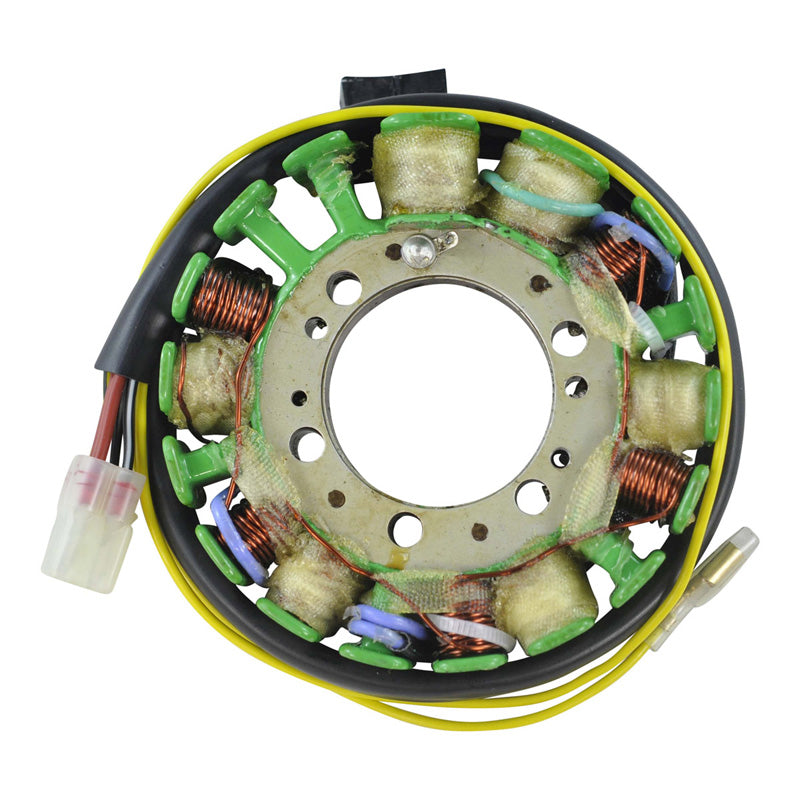

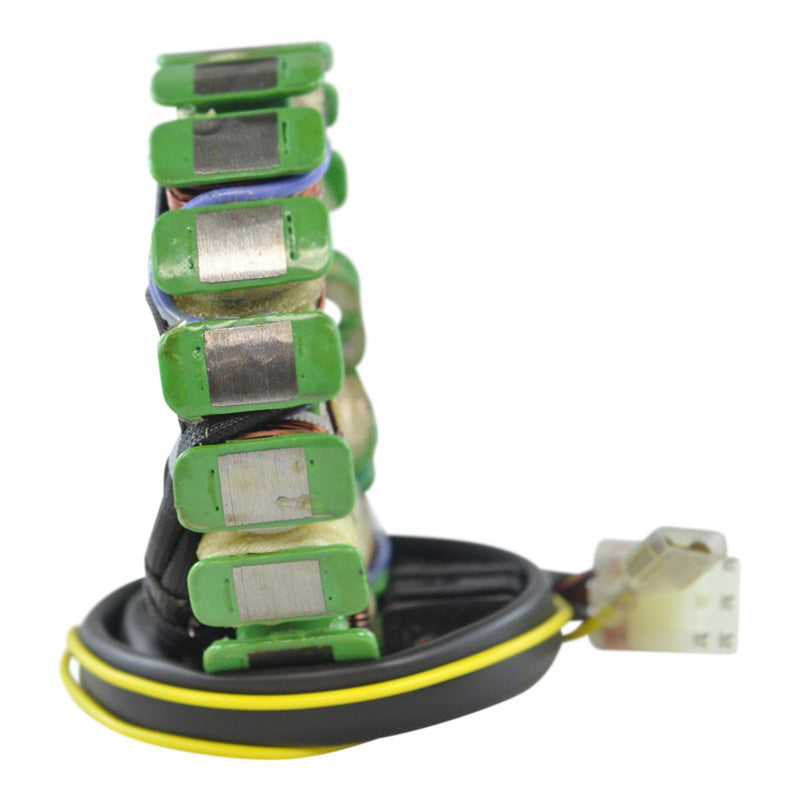

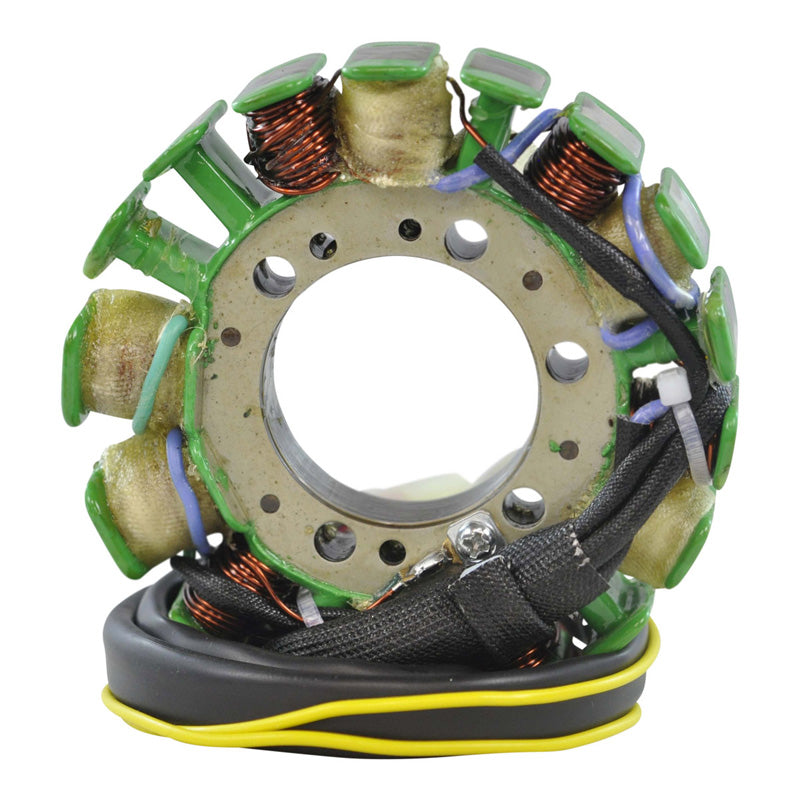

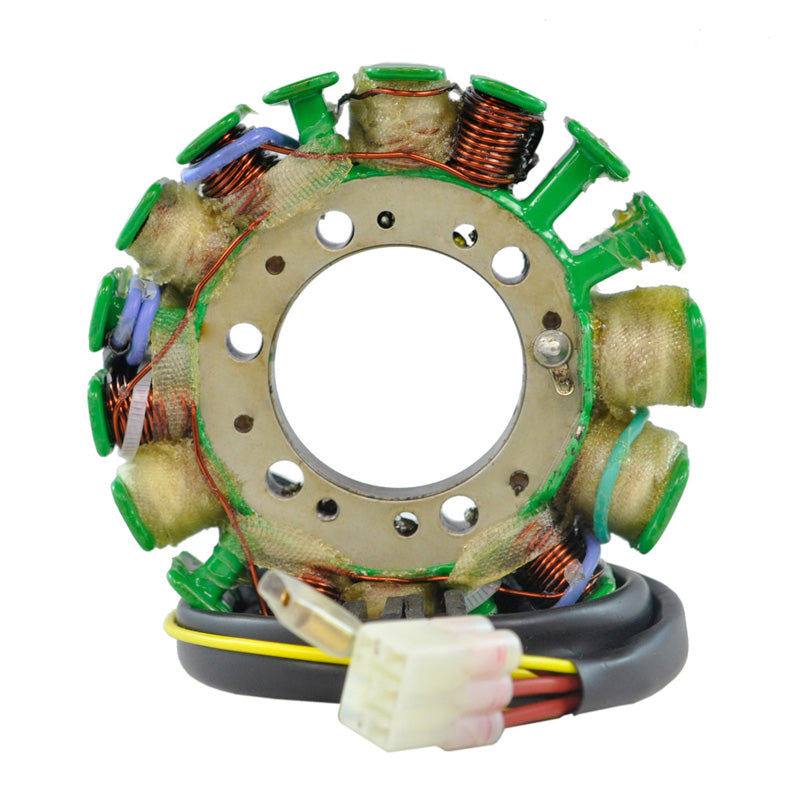

RMS STATOR KAW KSF250|KFX250 87-04 RM01427

RMS STATOR KAW KSF250|KFX250 87-04 RM01427

Brand new high output stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

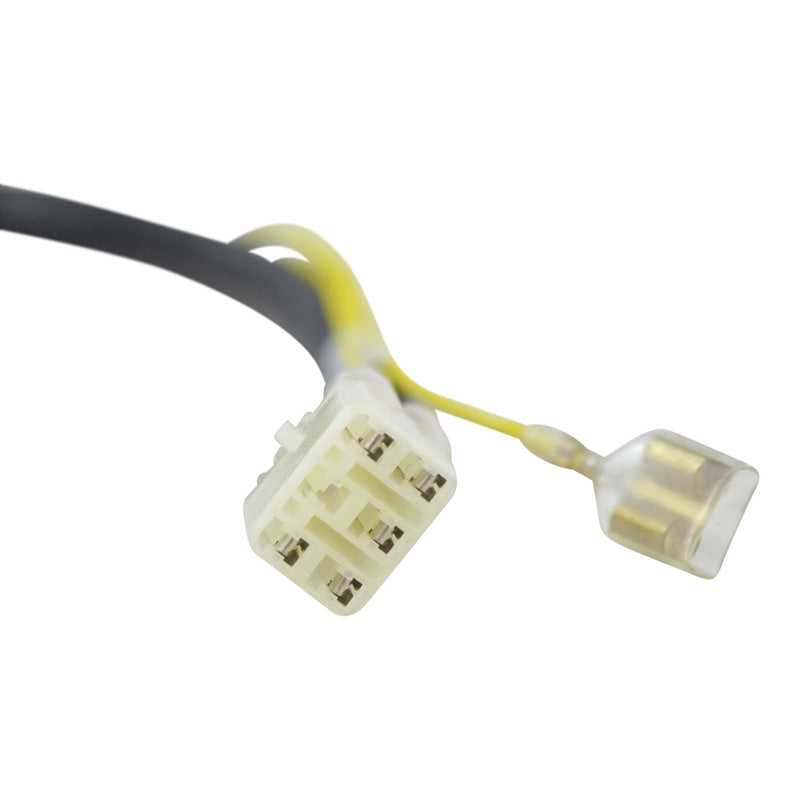

• Connector included
• Rubber grommet included
• All products shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 41mm
Exterior diameter : 103mm
Thickness : 14mm
Length of wires stator to grommet : 75mm
Length of wires grommet to plug : 420mm & 860mm

Other specifications :
Number of wires : 6
Number of plugs : 2
Number of pins : 6

Wire to wire resistance :
Alternator : Yellow to Black/Yellow = 0.4ohms +/-20%
Source : Black/Red to Black/White = 95ohms +/-20%
Other : Red to Red = 0.7ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
