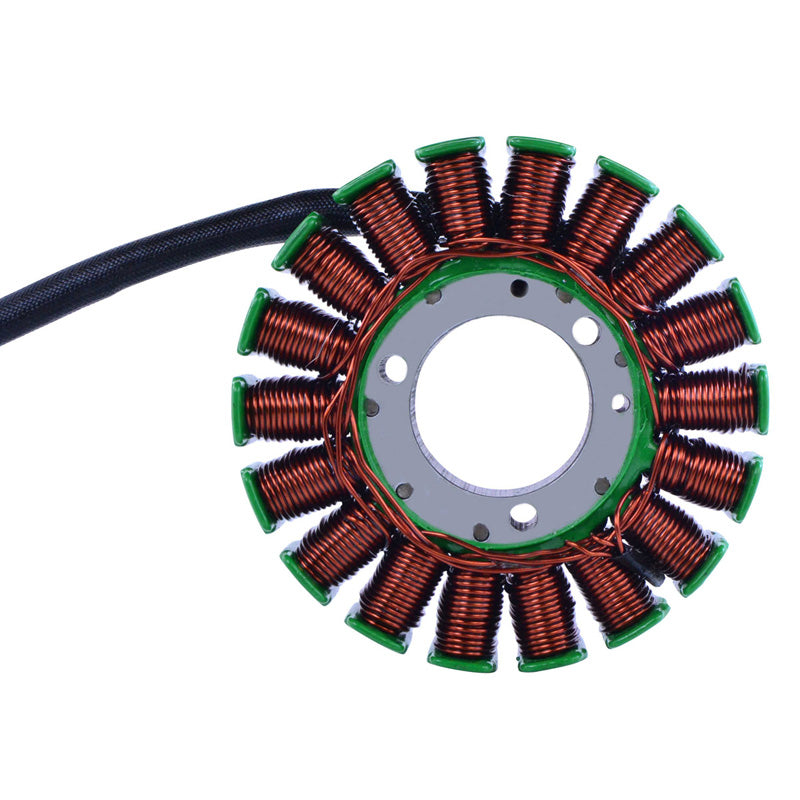

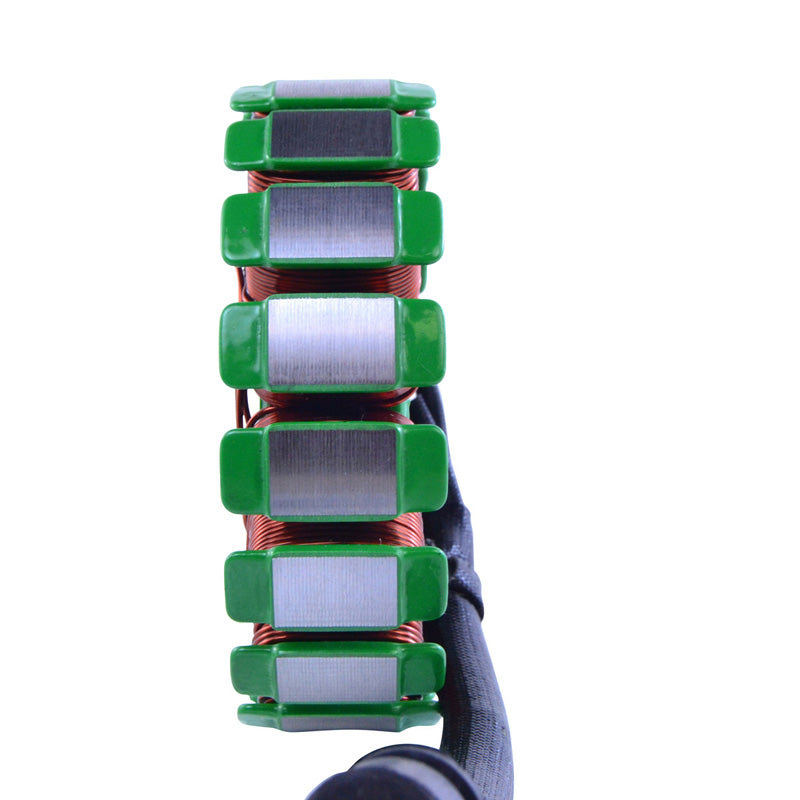

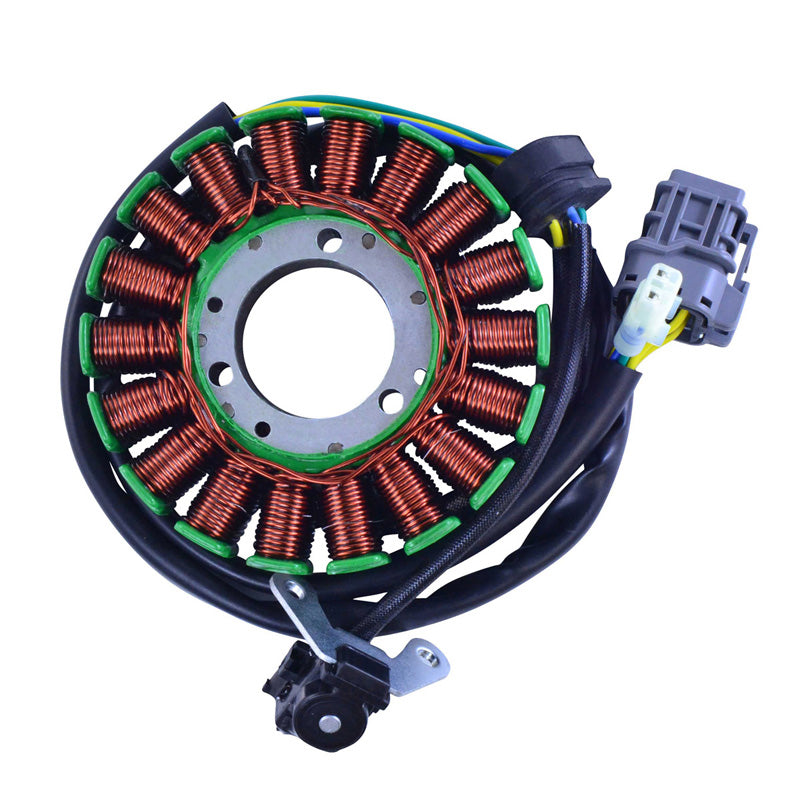

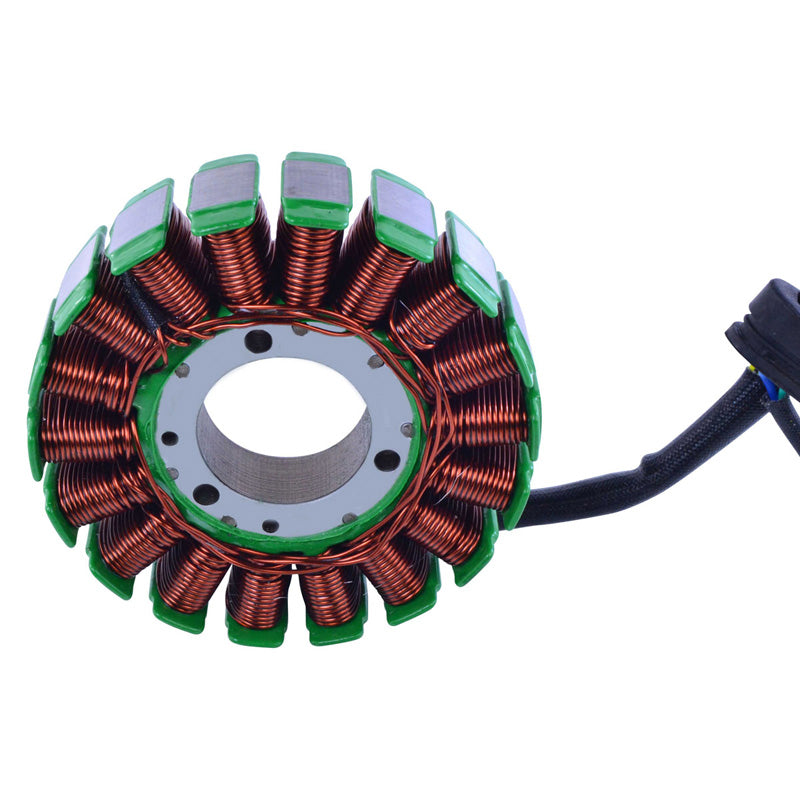

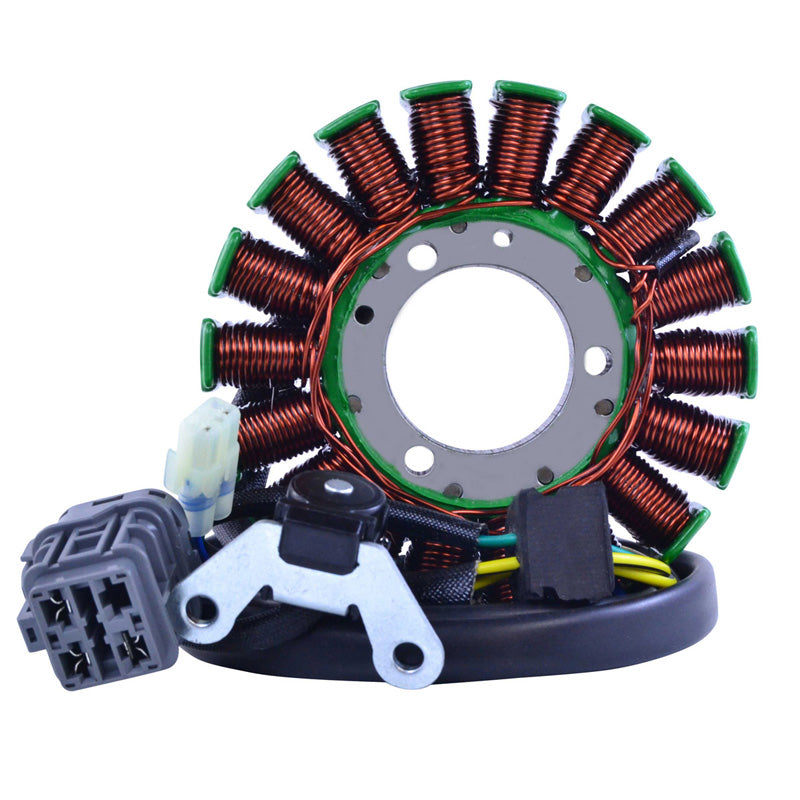

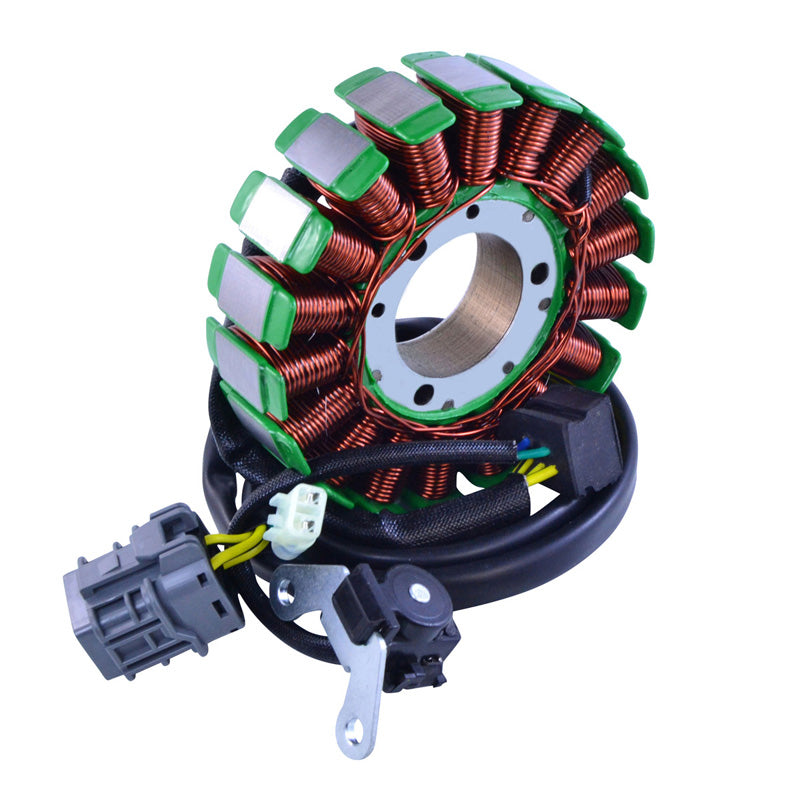

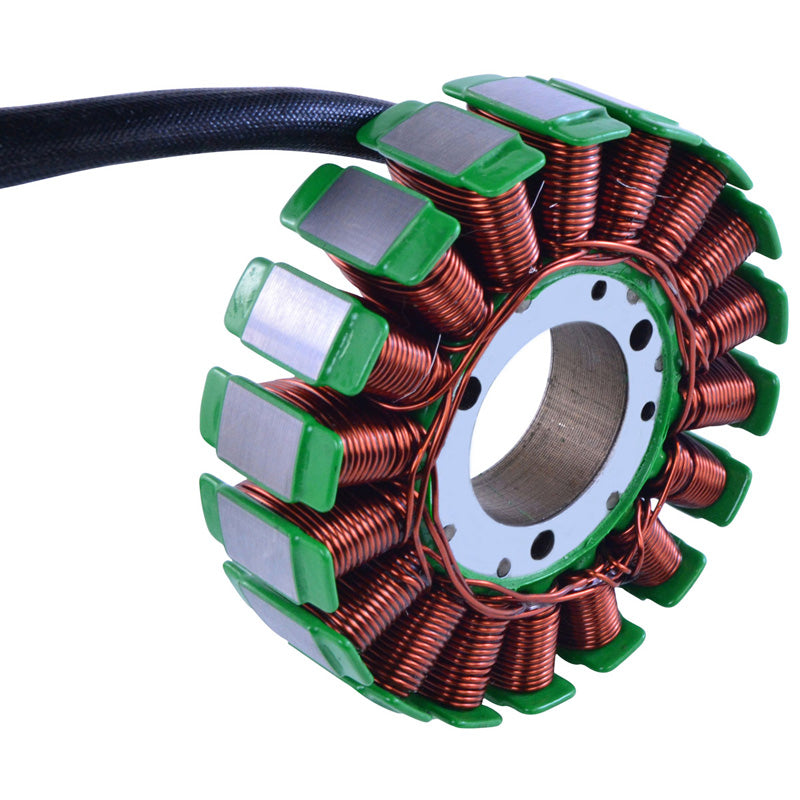

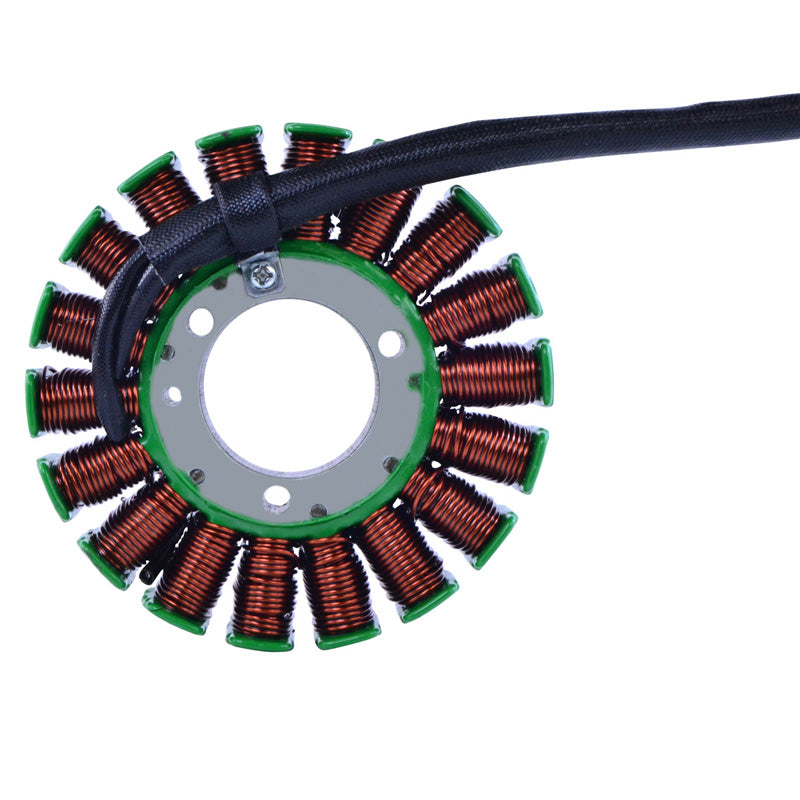

RMS STATOR KAW KVF300 BRUTE FORCE 12-23 RMS010-104839

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.

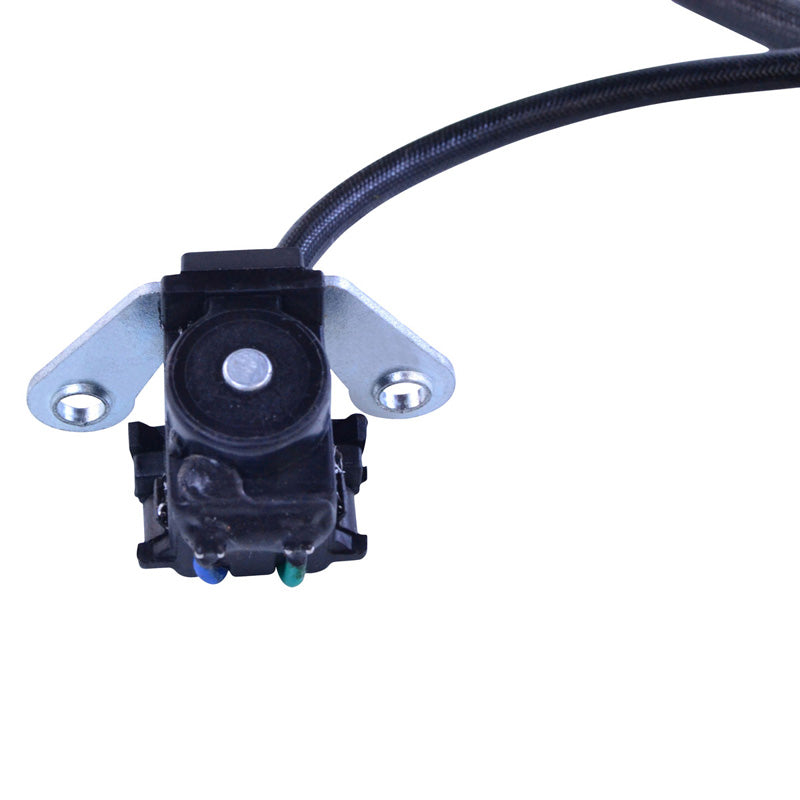

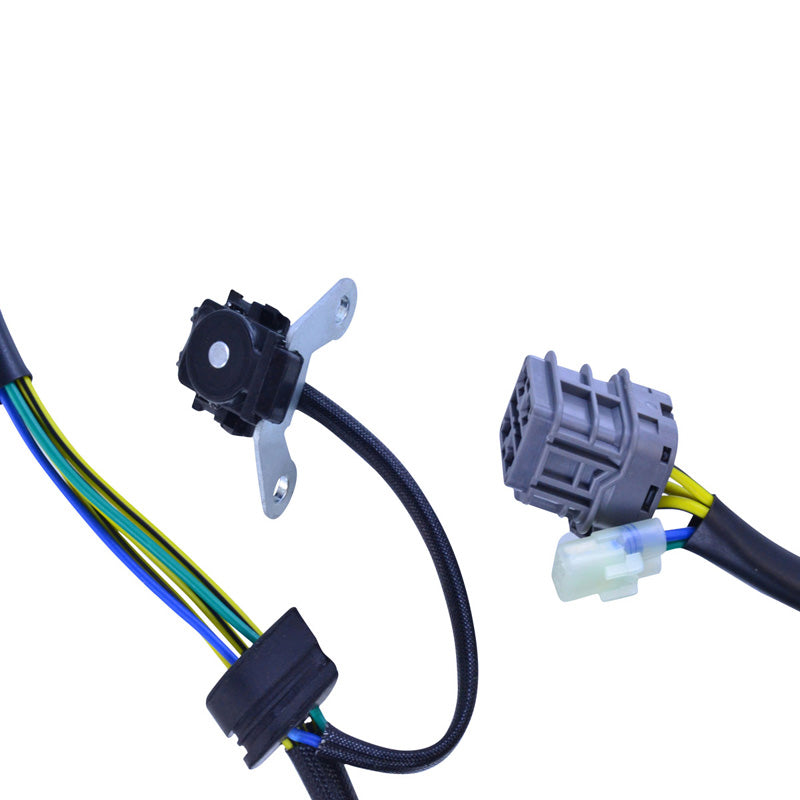

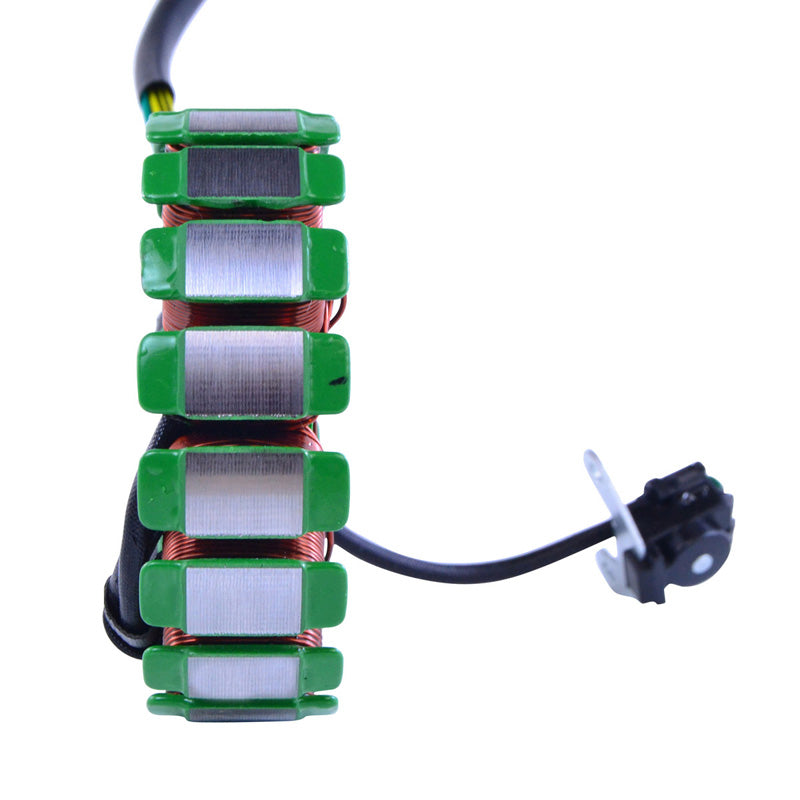

• Pick up pulsar coil included
• Connector included

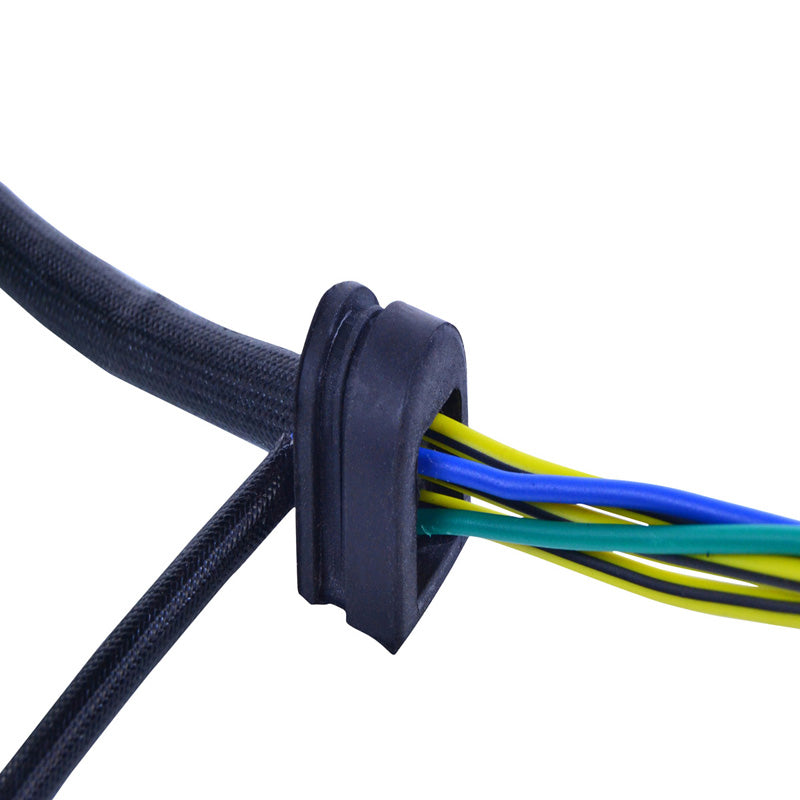

• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 35 mm
Exterior diameter : 104 mm
Thickness : 18 mm
Length of wires stator to grommet : 90 mm
Length of wires grommet to plug : 700 mm
Length of pickup coil's wire to grommet : 110 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4 ohms +-20%
Pickup : Blue between each Green = 150 ohms +-20%
Alternator to ground = O.L

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
